| General Information | |
|---|---|
| Durability | 100 Mating cycles |
| Ingress Protection Code | IP68 |
| Operating Temperature | -40 °C up to +90 °C |
| Gender | Male |
| Packaging Properties | |
|---|---|
| Packaging | Tray |
| Material Properties | |
|---|---|
| Insulator Material | PA66 |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Electrical Properties | |
|---|---|
| IR | 2 A; 5 A |
| Working Voltage | 30 V; 60 V; 250 V |
| Withstanding Voltage | 650 V (AC); 1000 V (AC); 1400 V (AC) |
| Contact Resistance Initial | 10 mΩ |
| RISO | 100 MΩ |
Application Notes
Products
| Order Code | Datasheet | Manual | Downloads | Status | Polarity | Gender | IR (A) | Working Voltage (V) | Withstanding Voltage (V (AC)) | Packaging | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 643230100404 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | 4 | Male | 5 | 250 | 1400 | Tray | 612690 | ||
| 643230100405 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | 5 | Male | 5 | 60 | 1000 | Tray | – | ||
| 643230100408 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | 8 | Male | 2 | 30 | 650 | Tray | – |
| Samples |
|---|
| Order Code | Datasheet | Manual | Downloads | Status | Polarity | Gender | IR (A) | Working Voltage (V) | Withstanding Voltage (V (AC)) | Packaging | Design Kit | Samples |
|---|
Mates with
WR-CIRCM12 Screw Mating Field Attachable Solder Bucket Female Plastic Coupling Nut

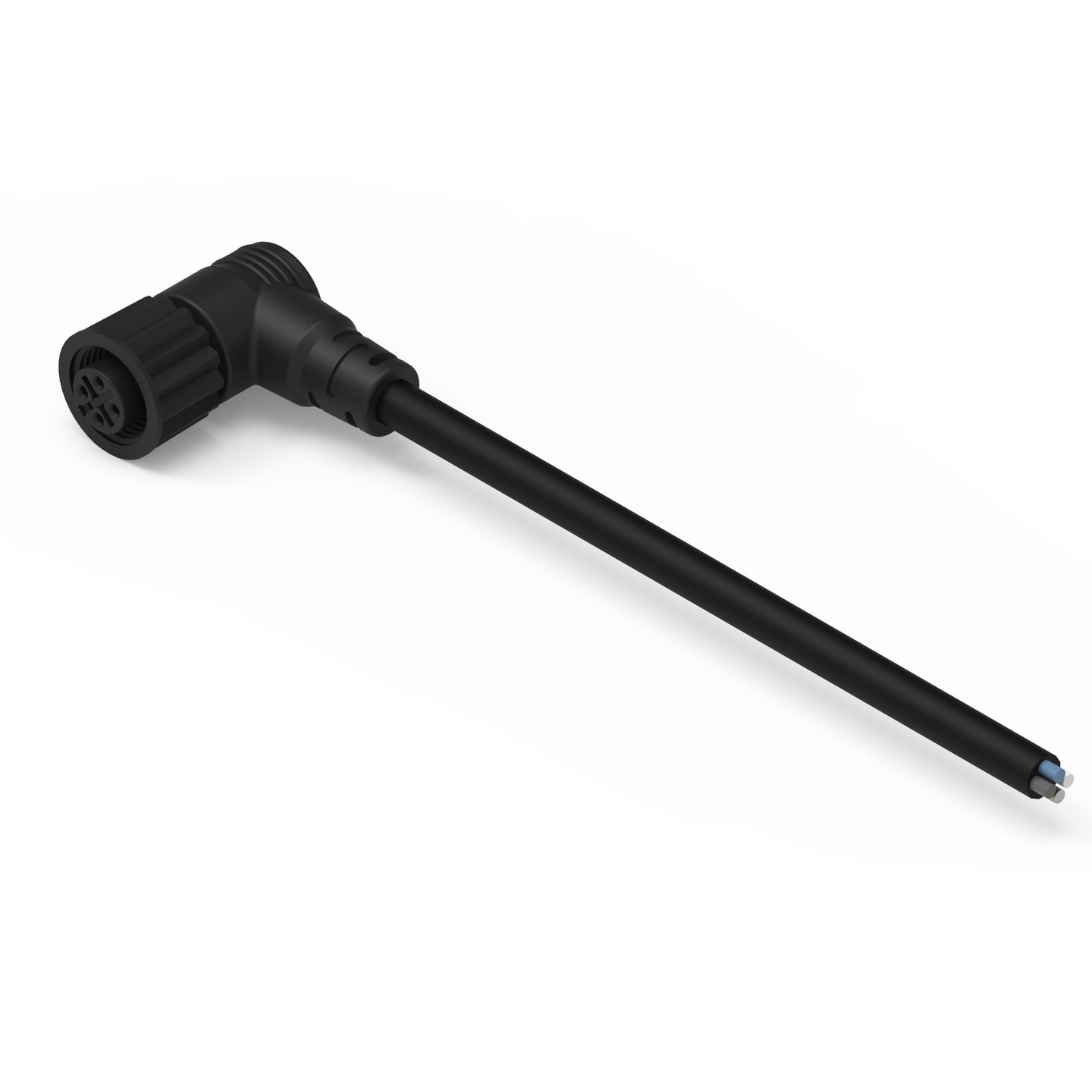

WR-CIRCM12 Screw Mating Cable Assembly Female Straight Plastic Coupling Nut

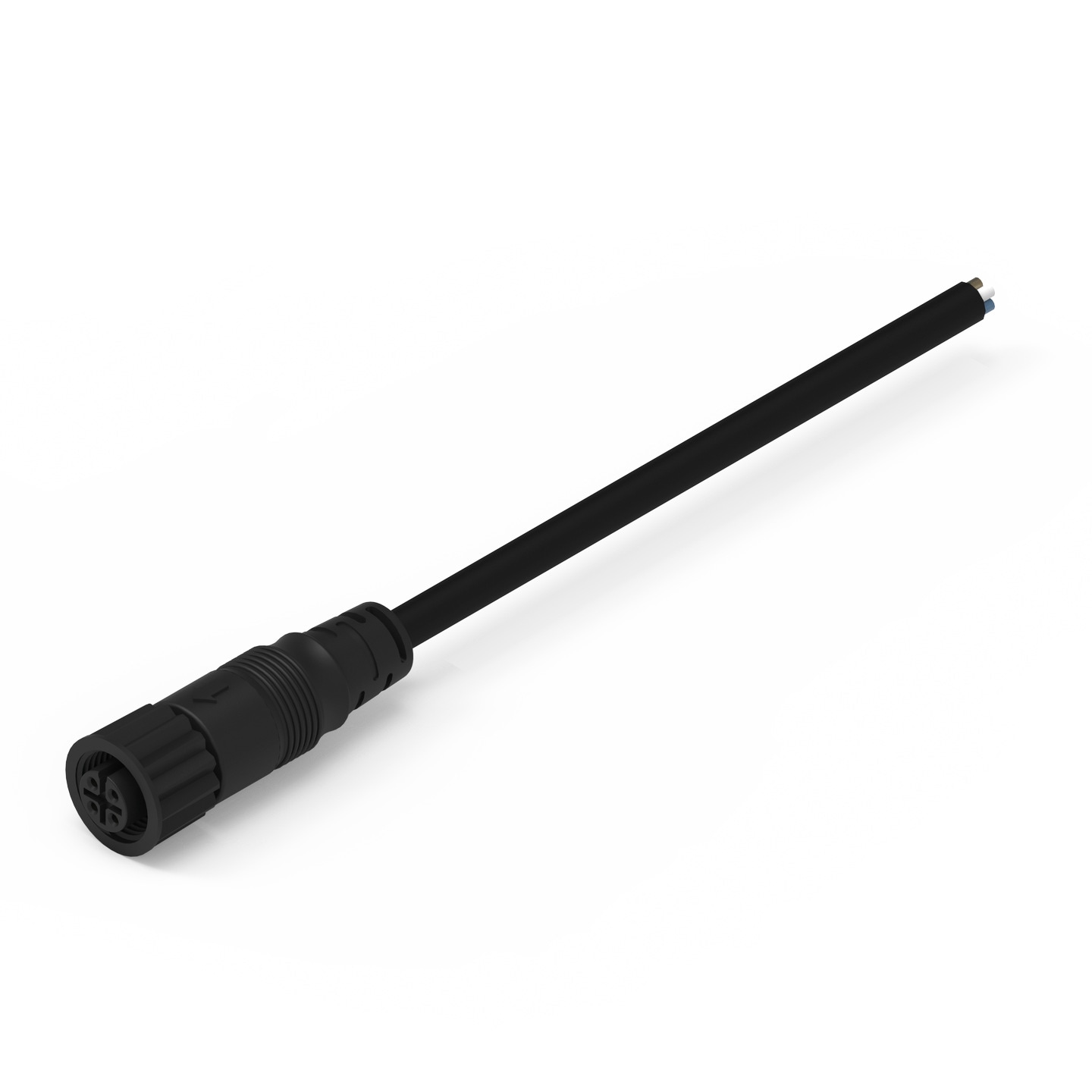

WR-CIRCM12 Screw Mating Cable Assembly Female Angled Plastic Coupling Nut
WR-CIRCM12 Screw Mating Field Attachable Solder Bucket Female Metal Coupling Nut
Assortments
Articles from this product series can be found in the following assortments:
