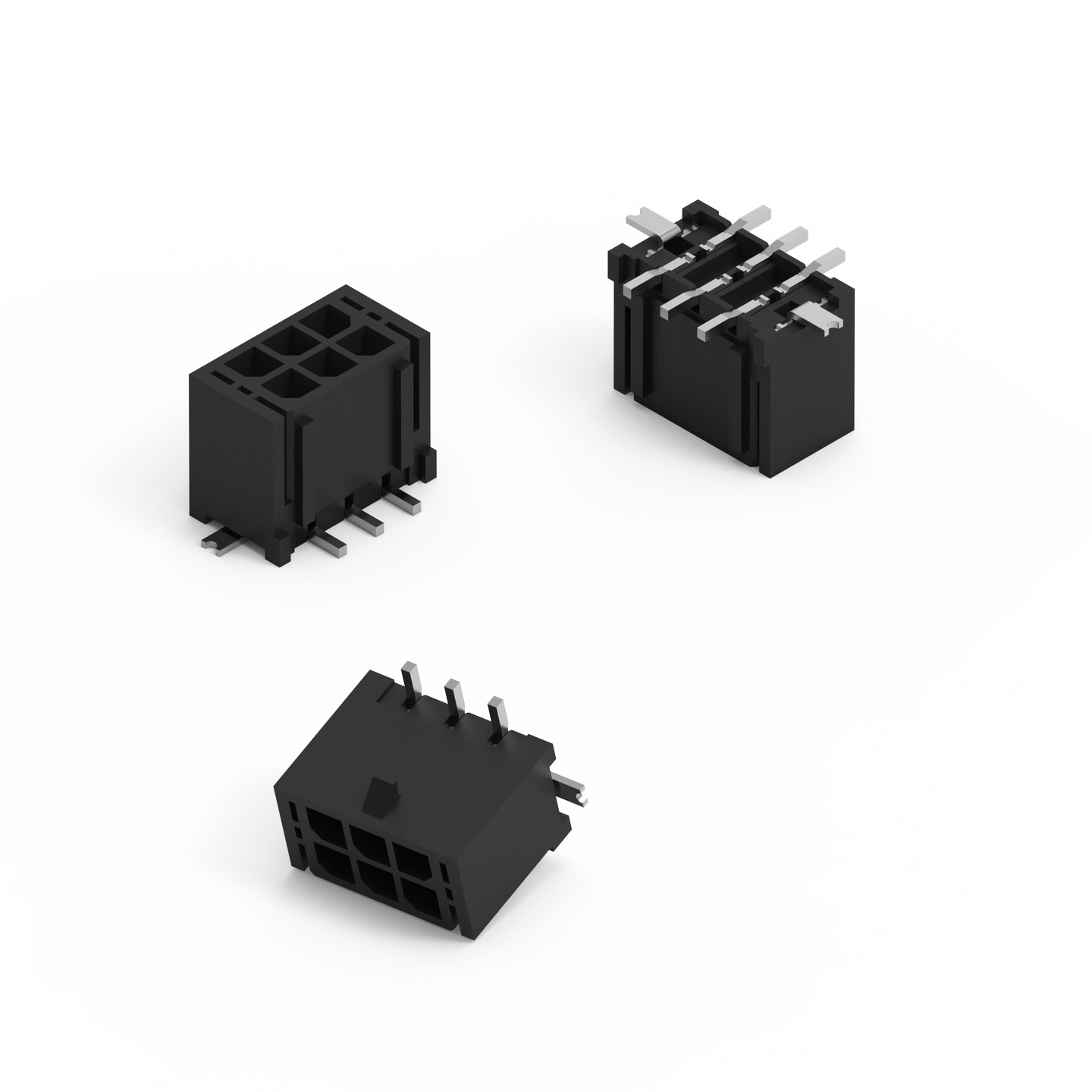

WR-MPC3 3.00 mm Male Header Dual Row Vertical with SMT Solder Tabs - SMT - Selective Gold

General Informations
Pitch	3 mm
Rows	Dual
Type	Vertical
Operating Temperature	-40 °C up to +105 °C
Durability	75 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Withstanding Voltage	1500 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Tray

Material Properties
Insulator Material	LCP
Insulator Color	Black
Insulator Flammability Rating	UL94 V-0
Pin Material	Copper Alloy
Pin Plating	Selective Gold

Certification
UL Approval	E323964
Glow Wire Approval	Compliant [IEC 60335-1]

Products

Order Code	Datasheet	Downloads	Pins (pcs)	Pitch (mm)	Gender	Type	Rows	Mount	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Pin Plating	Packaging	Design Kit	Samples
662002231824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662002231824_3D (rev1).pdf \| 66.4 KB IGS 662002231824_IGS (rev1).igs \| 1 MB STP 662002231824_STP (rev1).stp \| 248 KB Download all 6 files as zip archive ZIP	2	3	Male	Vertical	Dual	SMT	5	250	10	Selective Gold	Tray	–
662004231824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662004231824_3D (rev1).pdf \| 79.6 KB IGS 662004231824_IGS (rev1).igs \| 1.2 MB STP 662004231824_STP (rev1).stp \| 297.2 KB Download all 6 files as zip archive ZIP	4	3	Male	Vertical	Dual	SMT	5	250	10	Selective Gold	Tray	–
662006231824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662006231824_3D (rev1).pdf \| 92.5 KB IGS 662006231824_IGS (rev1).igs \| 1.4 MB STP 662006231824_STP (rev1).stp \| 344 KB Download all 6 files as zip archive ZIP	6	3	Male	Vertical	Dual	SMT	5	250	10	Selective Gold	Tray	612690
662008231824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662008231824_3D (rev1).pdf \| 103.8 KB IGS 662008231824_IGS (rev1).igs \| 1.7 MB STP 662008231824_STP (rev1).stp \| 391.9 KB Download all 6 files as zip archive ZIP	8	3	Male	Vertical	Dual	SMT	5	250	10	Selective Gold	Tray	–
662010231824	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MPC3 (rev23a).IntLib \| 16.2 MB CDS Cadence_WR-MPC3 (rev23a).zip \| 27.5 MB EAG Eagle_WR-MPC3 (rev23a).lbr \| 1.7 MB CAD files ZIP 3D 662010231824_3D (rev1).pdf \| 116.6 KB IGS 662010231824_IGS (rev1).igs \| 1.9 MB STP 662010231824_STP (rev1).stp \| 437.9 KB Download all 6 files as zip archive ZIP	10	3	Male	Vertical	Dual	SMT	5	250	10	Selective Gold	Tray	–
