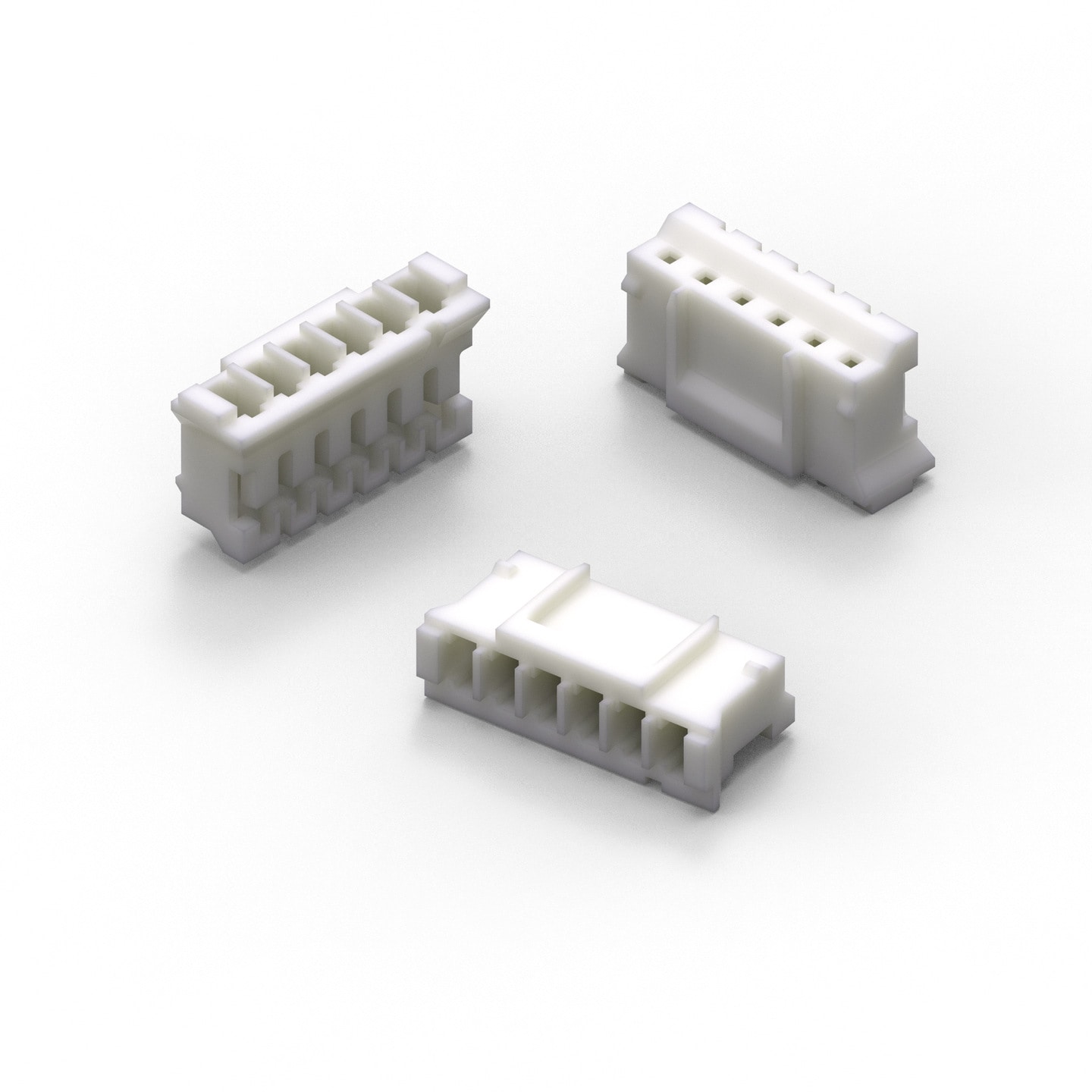

WR-WTB 2.00 mm Female Terminal Housing

Material Properties
Insulator Material	Nylon 66
Insulator Flammability Rating	UL94 V-0
Insulator Color	White

General Information
Operating Temperature	-25 °C up to +85 °C
Withstanding Voltage	800 V (AC)
R_ISO	1000 MΩ
Pitch	2 mm
Gender	Female
Type	Terminal Housing

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
620002113322	SPEC	3 files CAD files ZIP 3D 3D_620002113322 (rev1).pdf \| 45.7 KB IGS Download_IGES_620002113322 (rev1).iges \| 735.7 KB STP 620002113322 (rev1).stp \| 168.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2	Female	Terminal Housing	Cable	5.7	Bag	645001
620003113322	SPEC	3 files CAD files ZIP 3D 3D_620003113322 (rev1).pdf \| 59.5 KB IGS Download_IGES_620003113322 (rev1).iges \| 1004.9 KB STP 620003113322 (rev1).stp \| 228.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2	Female	Terminal Housing	Cable	7.7	Bag	645001
620004113322	SPEC	3 files CAD files ZIP 3D 3D_620004113322 (rev1).pdf \| 74.4 KB IGS Download_IGES_620004113322 (rev1).iges \| 1.3 MB STP 620004113322 (rev1).stp \| 295.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2	Female	Terminal Housing	Cable	9.7	Bag	645001
620005113322	SPEC	3 files CAD files ZIP 3D 3D_620005113322 (rev1).pdf \| 88.3 KB IGS Download_IGES_620005113322 (rev1).iges \| 1.5 MB STP 620005113322 (rev1).stp \| 356.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	2	Female	Terminal Housing	Cable	11.7	Bag	645001
620006113322	SPEC	3 files CAD files ZIP 3D 3D_620006113322 (rev1).pdf \| 103.4 KB IGS Download_IGES_620006113322 (rev1).iges \| 1.8 MB STP 620006113322 (rev1).stp \| 422.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	2	Female	Terminal Housing	Cable	13.7	Bag	645001
620007113322	SPEC	3 files CAD files ZIP 3D 3D_620007113322 (rev1).pdf \| 117.4 KB IGS Download_IGES_620007113322 (rev1).iges \| 2.1 MB STP 620007113322 (rev1).stp \| 486.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	2	Female	Terminal Housing	Cable	15.7	Bag	645001
620008113322	SPEC	3 files CAD files ZIP 3D 3D_620008113322 (rev1).pdf \| 131.4 KB IGS Download_IGES_620008113322 (rev1).iges \| 2.3 MB STP 620008113322 (rev1).stp \| 550.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	2	Female	Terminal Housing	Cable	17.7	Bag	645001
620009113322	SPEC	3 files CAD files ZIP 3D 3D_620009113322 (rev1).pdf \| 145.5 KB IGS Download_IGES_620009113322 (rev1).iges \| 2.6 MB STP 620009113322 (rev1).stp \| 615.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	2	Female	Terminal Housing	Cable	19.7	Bag	645001
620010113322	SPEC	3 files CAD files ZIP 3D 3D_620010113322 (rev1).pdf \| 159.6 KB IGS Download_IGES_620010113322 (rev1).iges \| 2.9 MB STP 620010113322 (rev1).stp \| 676.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2	Female	Terminal Housing	Cable	21.7	Bag	612690 645001

Order Code	Datasheet
620002113322	SPEC
620003113322	SPEC
620004113322	SPEC
620005113322	SPEC
620006113322	SPEC
620007113322	SPEC
620008113322	SPEC
620009113322	SPEC
620010113322	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Use with

WR-WTB 2.00 mm Female Crimp Contact

WR-WTB Pre-crimped wire

Mates with

WR-WTB 2.00 mm Male Vertical Shrouded Header

WR-WTB 2.00 mm Male Horizontal Shrouded Header

WR-WTB 2.00 mm SMT Male Vertical Shrouded Header

WR-WTB 2.00 mm SMT Male Horizontal Shrouded Header

Tools

WR-WTB Manual Crimping Tool

WR-WTB Manual Insulation Stripper

Automatic Crimping Tool

Automatic Crimping Tool: 600620401

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
