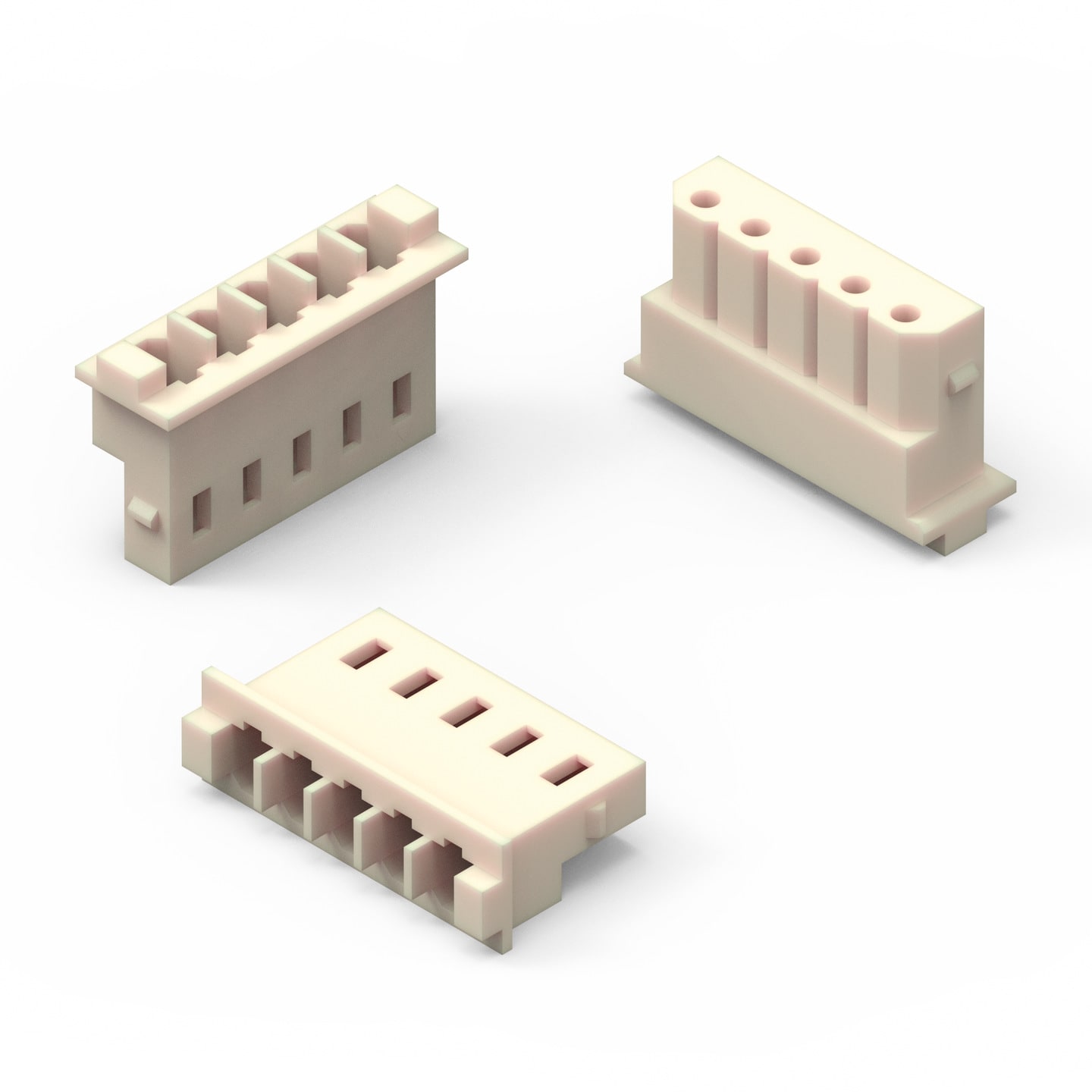

WR-WTB 2.50 mm Female Terminal Housing

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Color	Ivory

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Withstanding Voltage	1000 V (AC)
R_ISO	1000 MΩ
Pitch	2.5 mm
Gender	Female
Type	Terminal Housing

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples
	646002113322	SPEC	3 files CAD files ZIP 3D 646002113322_1 (rev1).pdf \| 58.2 KB IGS 646002113322 (rev1).igs \| 474.7 KB STP 646002113322 (rev1).stp \| 185.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	2.5	Female	Terminal Housing	Cable	7.4	Bag	645001
	646003113322	SPEC	3 files CAD files ZIP 3D 646003113322_1 (rev1).pdf \| 77.4 KB IGS 646003113322 (rev1).igs \| 639.1 KB STP 646003113322 (rev1).stp \| 248.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	2.5	Female	Terminal Housing	Cable	9.9	Bag	645001
	646004113322	SPEC	3 files CAD files ZIP 3D 646004113322_1 (rev1).pdf \| 96.7 KB IGS 646004113322 (rev1).igs \| 804.4 KB STP 646004113322 (rev1).stp \| 311.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	2.5	Female	Terminal Housing	Cable	12.4	Bag	645001
	646005113322	SPEC	3 files CAD files ZIP 3D 646005113322_1 (rev1).pdf \| 117.6 KB IGS 646005113322 (rev1).igs \| 969.7 KB STP 646005113322 (rev1).stp \| 373.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	2.5	Female	Terminal Housing	Cable	14.9	Bag	645001
	646007113322	SPEC	3 files CAD files ZIP 3D 646007113322_1 (rev1).pdf \| 161.2 KB IGS 646007113322 (rev1).igs \| 1.3 MB STP 646007113322 (rev1).stp \| 499.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	2.5	Female	Terminal Housing	Cable	19.9	Bag	645001
	646010113322	SPEC	3 files CAD files ZIP 3D 646010113322_1 (rev1).pdf \| 222 KB IGS 646010113322 (rev1).igs \| 1.8 MB STP 646010113322 (rev1).stp \| 690.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.5	Female	Terminal Housing	Cable	27.4	Bag	612690 645001

	Order Code	Datasheet
	646002113322	SPEC
	646003113322	SPEC
	646004113322	SPEC
	646005113322	SPEC
	646007113322	SPEC
	646010113322	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	PCB/Cable/Panel	L (mm)	Packaging	Design Kit	Samples

Use with

WR-WTB 2.50 mm Female Crimp Contact

WR-WTB Pre-crimped wire

Mates with

WR-WTB 2.50 mm Male Shrouded Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-WTB Wire-to-Board Connectors
