WR-BHD 2.54 mm Male IDC Connector | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderMale Wire to Wire Product seriesWR-BHD 2.54 mm Male IDC Connector

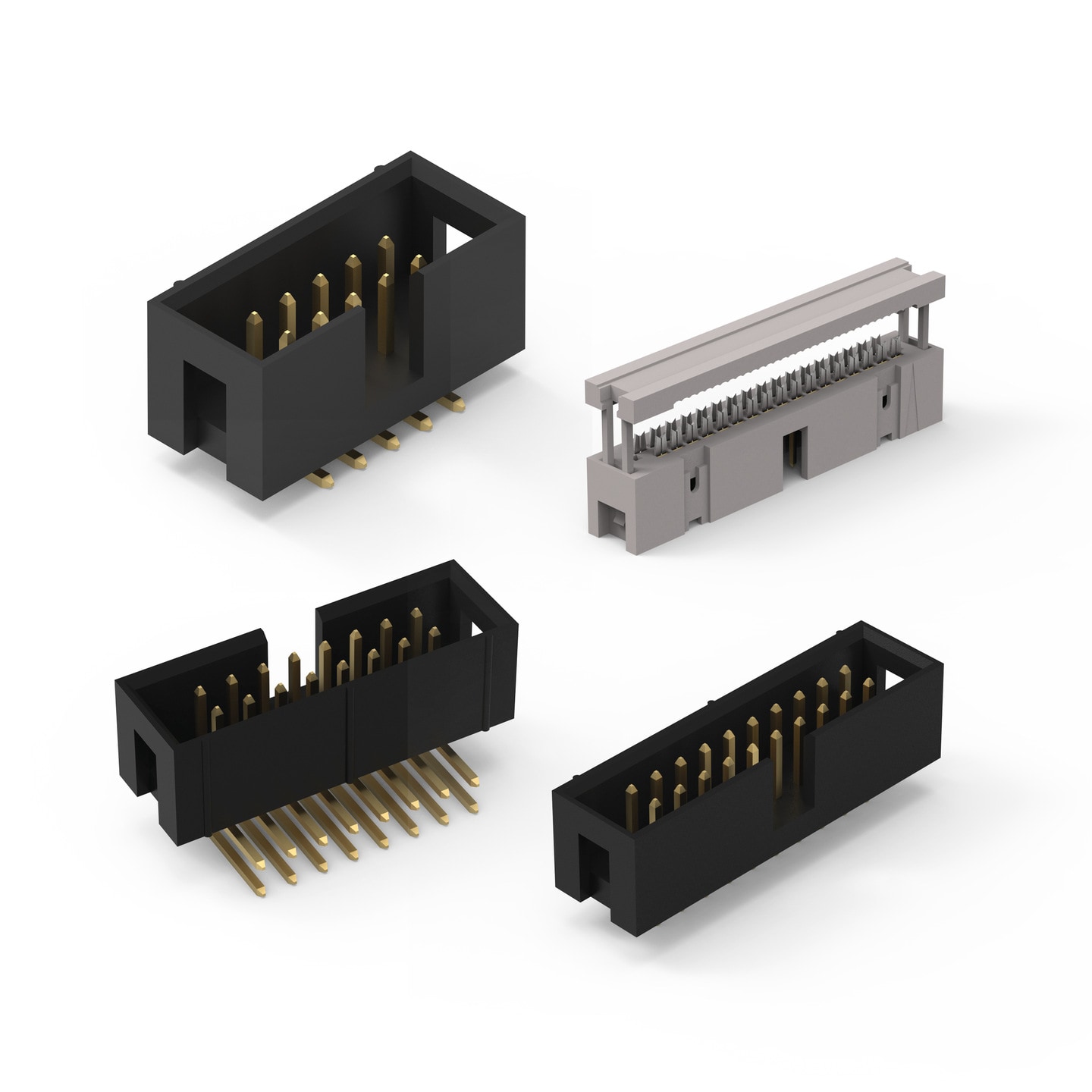

WR-BHD 2.54 mm Male IDC Connector. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Pins (Value) (pcs)	Pitch (mm)	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
61201025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61201025821_1 (rev1).pdf \| 108.9 KB IGS 61201025821 (rev1).igs \| 1.6 MB STP 61201025821 (rev1).stp \| 684.3 KB Download all 3 files as zip archive ZIP	10	2.54	Male	23	1	250	20	max.	Tray	612001
61201425821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61201425821_1 (rev1).pdf \| 131.6 KB IGS 61201425821 (rev1).igs \| 2 MB STP 61201425821 (rev1).stp \| 827.7 KB Download all 3 files as zip archive ZIP	14	2.54	Male	28.08	1	250	20	max.	Tray	612001
61201625821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61201625821_1 (rev1).pdf \| 142.7 KB IGS 61201625821 (rev1).igs \| 2.2 MB STP 61201625821 (rev1).stp \| 899.9 KB Download all 3 files as zip archive ZIP	16	2.54	Male	30.62	1	250	20	max.	Tray	612001
61202025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61202025821_1 (rev1).pdf \| 165.5 KB IGS 61202025821 (rev1).igs \| 2.5 MB STP 61202025821 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	20	2.54	Male	35.7	1	250	20	max.	Tray	612001
61202625821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61202625821_1 (rev1).pdf \| 200.2 KB IGS 61202625821 (rev1).igs \| 3.1 MB STP 61202625821 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	26	2.54	Male	43.42	1	250	20	max.	Tray	–
61203425821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61203425821_1 (rev1).pdf \| 245.1 KB IGS 61203425821 (rev1).igs \| 3.8 MB STP 61203425821 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	34	2.54	Male	53.48	1	250	20	max.	Tray	–
61204025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61204025821_1 (rev1).pdf \| 280.3 KB IGS 61204025821 (rev1).igs \| 4.3 MB STP 61204025821 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	40	2.54	Male	61.1	1	250	20	max.	Tray	–
61205025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	3 files CAD files ZIP 3D 61205025821_1 (rev1).pdf \| 339.1 KB IGS 61205025821 (rev1).igs \| 5.2 MB STP 61205025821 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	50	2.54	Male	73.8	1	250	20	max.	Tray	–

Order Code	Datasheet
61201025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61201425821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61201625821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61202025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61202625821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61203425821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61204025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
61205025821	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
