For Smooth Communication

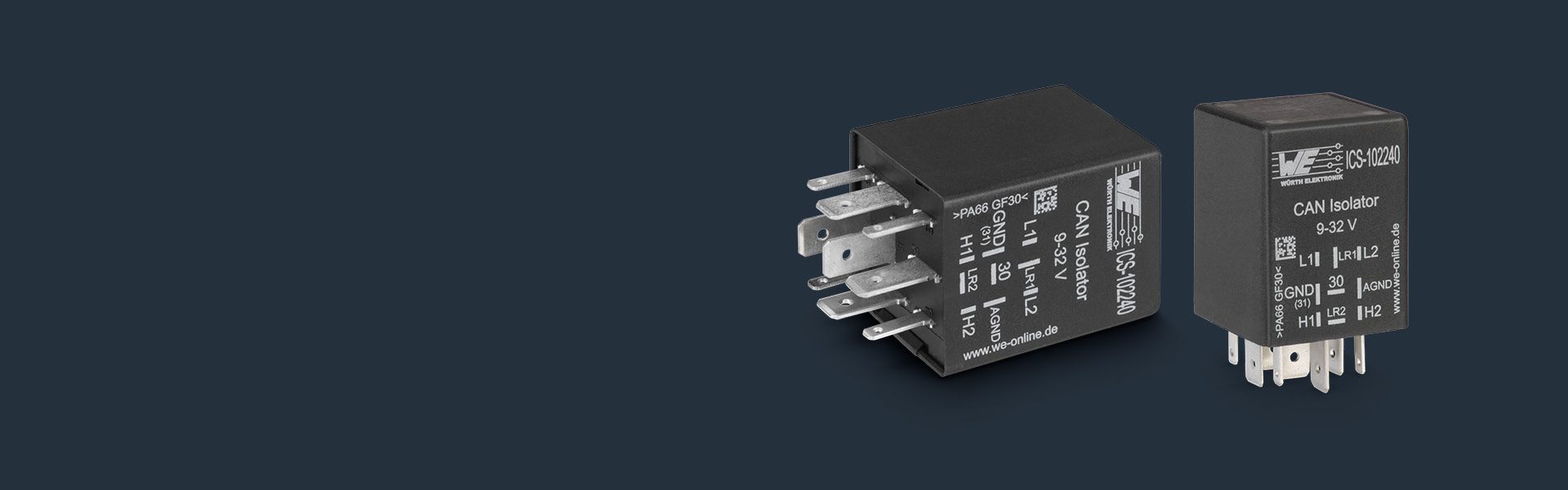

The CAN Isolator gives you the ability to assure a clean communication of two or more ECUs with different voltage range or an isolation of a given ECU by providing a galvanic isolation.
It can also be used as a repeater to allow CAN bus signals boost and offers the possibility to add a 120 Ohm resistor to each of its ports by external wiring. This allows the module to act as the end point of a CAN network, or if the CAN Isolator is implemented into an existing line, it splits it into two physically terminated CAN bus lines still bridged together.
| Connector | 9 Pins DIN / relay shape |
|---|---|
|
Operating temperature |
-40 °C to 85 °C |
|
Operating voltage Vsupply |
9 to 30 V DC |
| Pre-fusing | 1 A |
|
Current consumption |
<30 mA @ 24 Vsupply |
|
Ingress protection |
IP 53 |
|
Dimensions |
30 x 30 x 40 mm |
|
Description |
Order number Würth Elektronik ICS |
|---|---|
|
CAN Isolator (10 kΩ) |
ICS-102240 |
| CAN Isolator (56 kΩ) | ICS-104776 |
| CAN Isolator (1 MΩ) | ICS-104984 |
| 9 pins IP65 socket | ICS-102300 |
| 9 pins standard socket | X02783 |
