WEcabin Display i7

WEcabin Display i7

Convinces With Design and Functionality

The WEcabin Display i7 is a CAN-capable 7-inch display for controlling and displaying vehicle and comfort functions in mobile machines as well as commercial vehicles. Thanks to the robust, UV-resistant housing, it can be used as an additional or main display in harsh environmental conditions.



Open data sheet

Inside works a powerful A7 processor with 1 GB RAM and 8 GB flash memory. This is ideally suited for demanding control tasks. High optical performance guarantees good readability of the display in different lighting conditions.

Data and Facts About the WEcabin Display i7

Main Features

Operating voltage 8 – 32 V
Environmental conditions

Operating temperature: -30 °C to +70 °C
Storage temperature: -40 °C to +85 °C
Ingress protection: IP66, for the version without buttons on the front IP69K

Dimension 221.5 x 143.5 x 47 mm
Weight 900 g (without buttons)
Connector AMP Superseal 34-way

Display Specifications

Display

7“ TFT LCD

Resolution

1024 x 600 WVGA
128 PPI
Aspect ratio 16:9
Color 24 bit
Backlight LED
Brightness 500 cd/m²
Contrast 600:1
Orientation

Landscape or portrait programmable mode

Cover glass

3.2 mm thickness temperate glass

Operation

Touch (only for Standard & Plus version)

Buttons optional

TFT Installation Optical Bonding

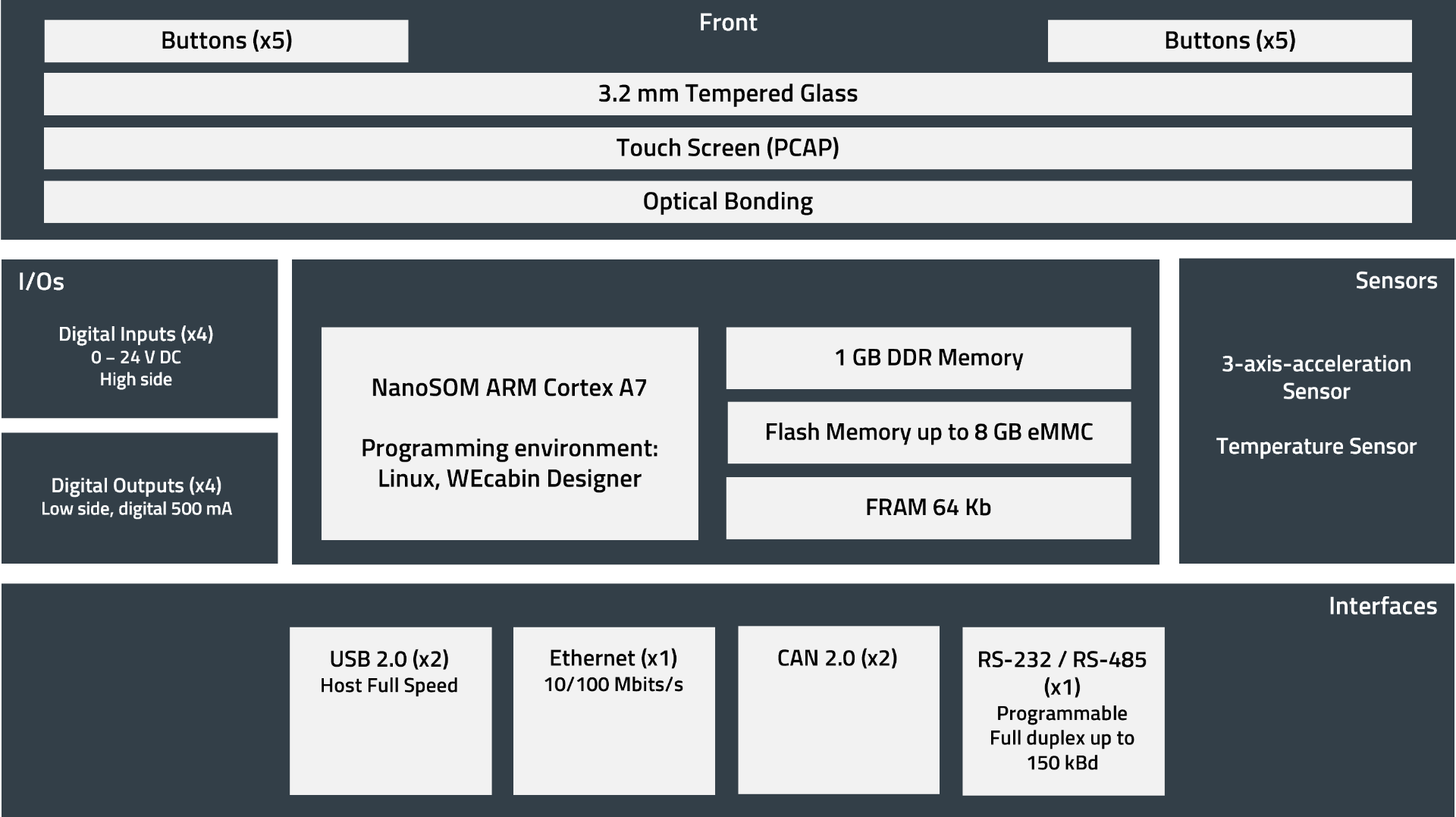

Hardware Map of the 7 inch HMI display

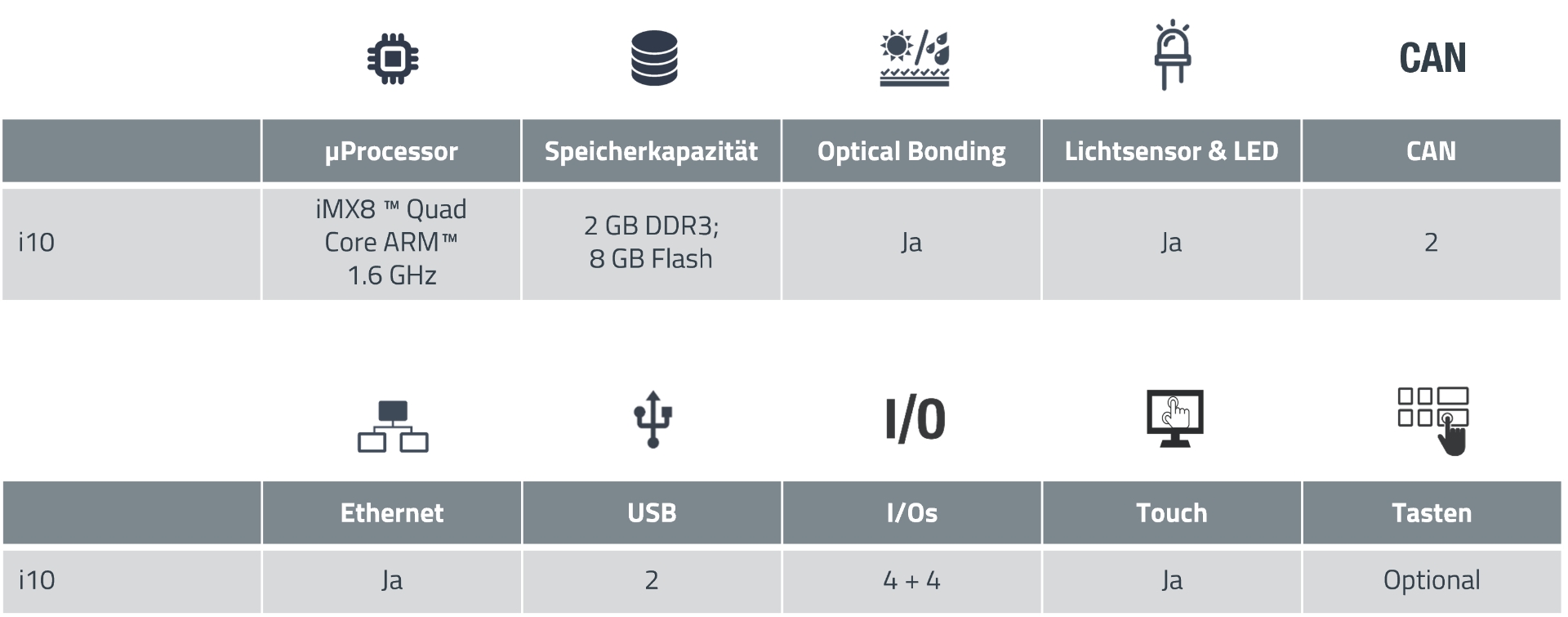

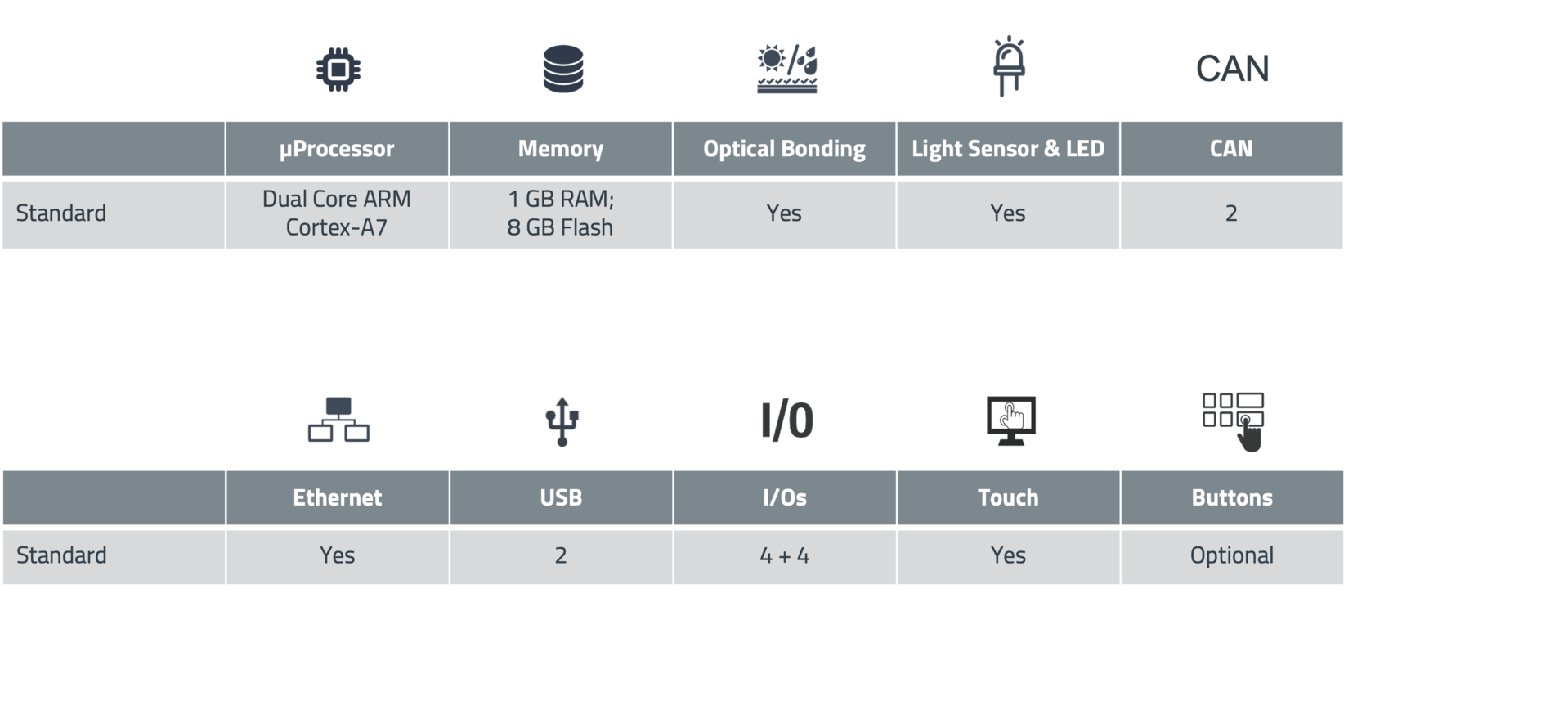

Table with the available variants of the 7-inch HMI display

Functions of our WEcabin Displays

  • Visualization, monitoring and control of all commands and status information
  • Advanced features such as PDF reader, web browser or user management
  • Remote access via smartphones, tablets or desktop PCs over a network connection
  • Direct connection of digital IP cameras
Product picture of the expansion module for the HMI displays

Expansion Module

The Expansion Module is a pluggable module for the WEcabin displays and extends them with additional functionalities.

An expansion module can be connected via a slot on the back of the WEcabin Display i7.

Are you interested? Ask us about the available modules.
