Embedding physical PCB sample WE.embed

Let there be light!

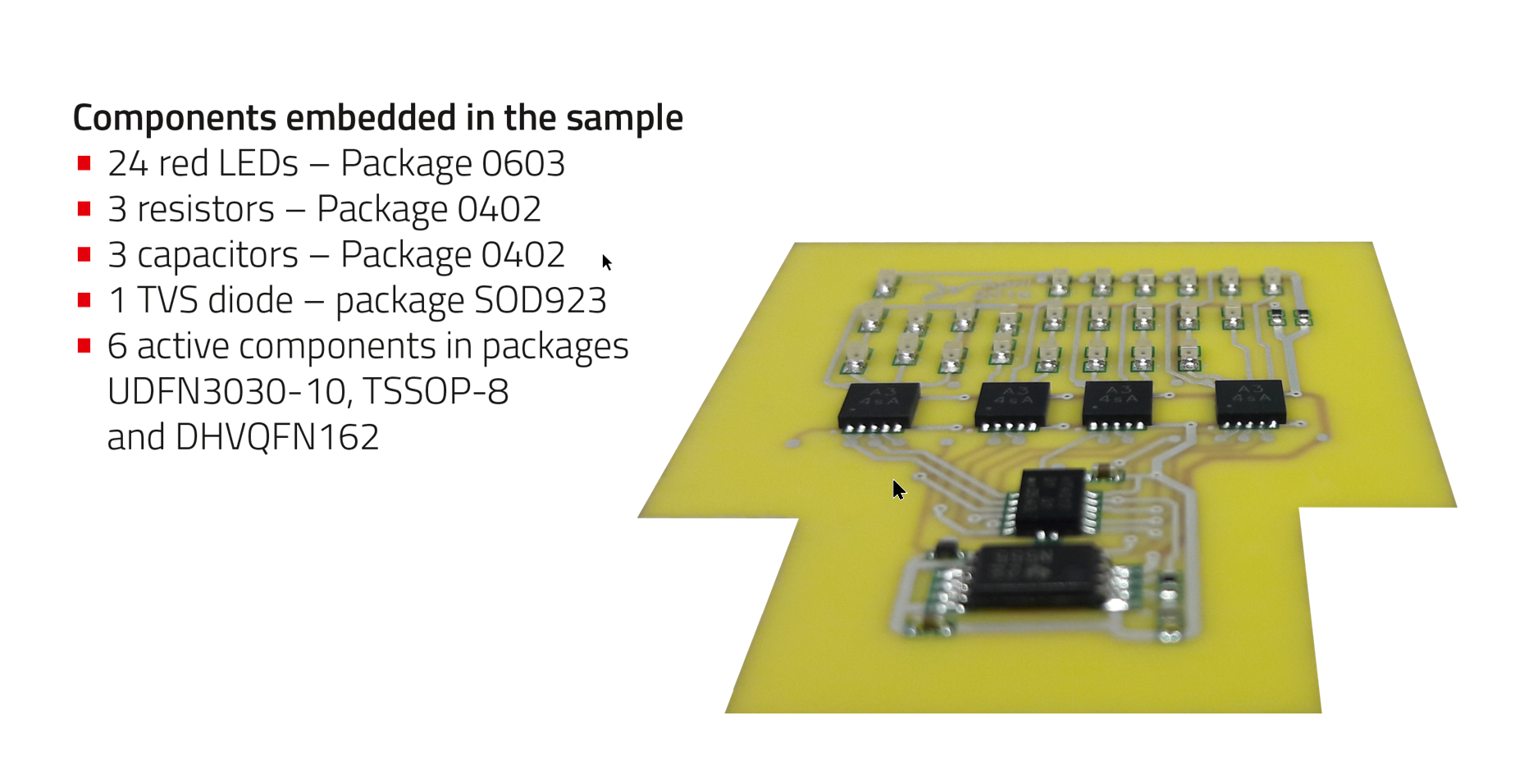

Our DEVICE.embedding sample WE.embed shows you a working module with active and passive components, embedded with the SOLDER.embedding variant. Simply plug the sample into a USB-A socket and the WE logo shines in a whole new glow!

Order Embedding physical PCB sample

GIF showing functionality of embedding hand pattern WE.embed 11_2023

Overview physical PCB sample WE.embed

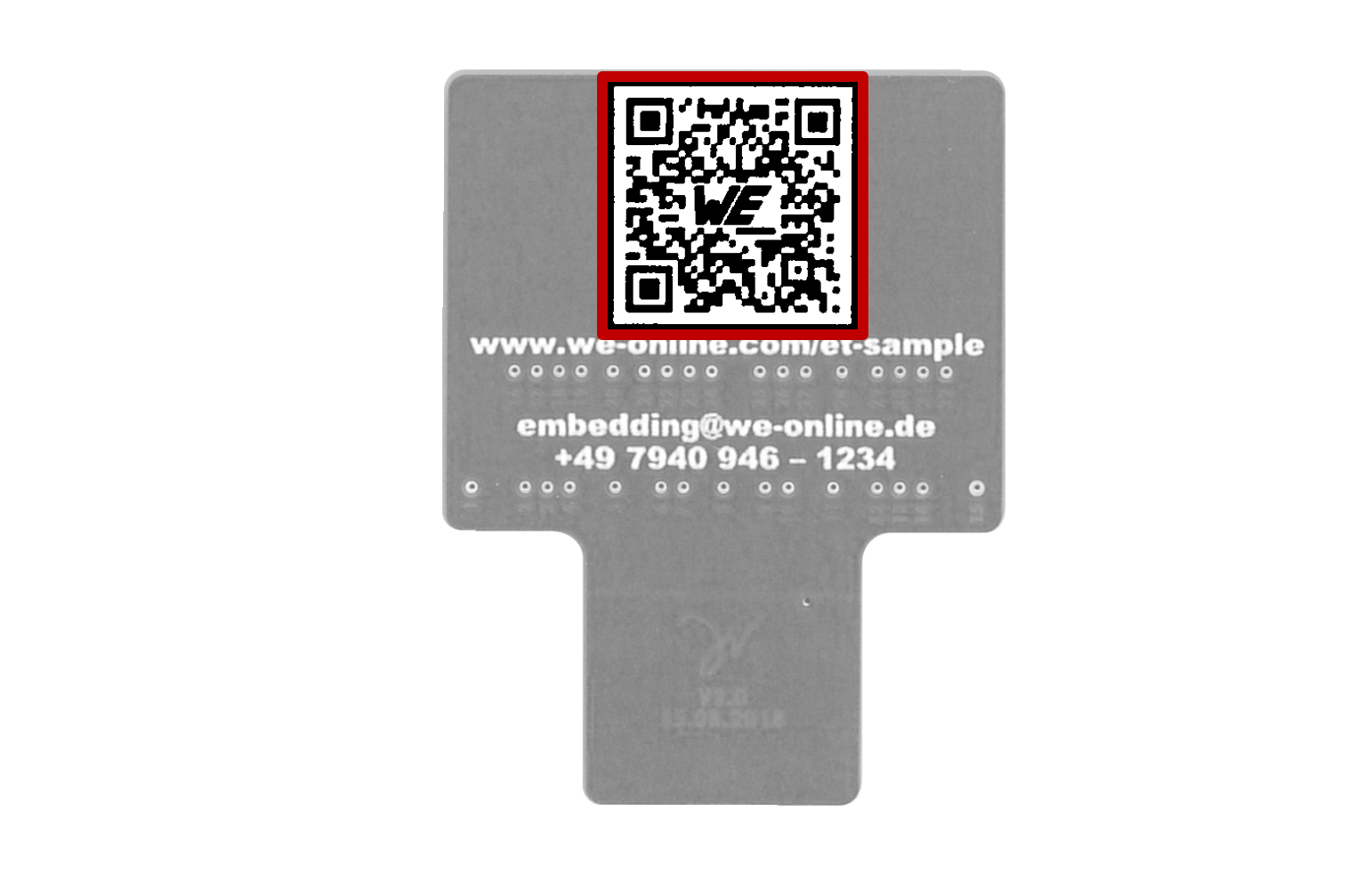

WE CBT Collage Device.embedding Handmuster USB im Detail — STRUCTURE AND NOMENCLATURE

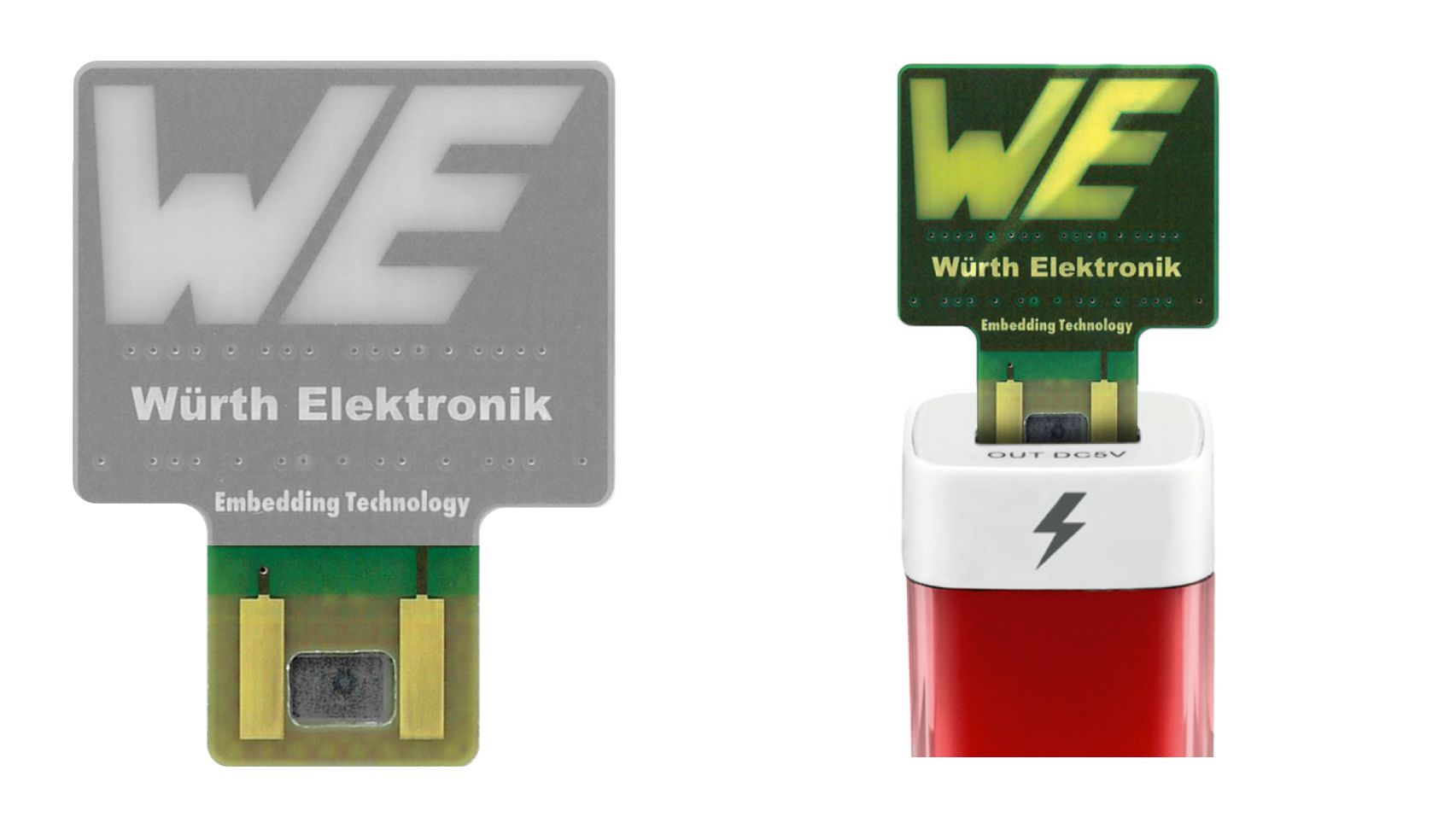

WE CBT Collage Device.embedding Sample USB in detail — USB CONTACT

Embedding physical PCB sample WE.embed in detail

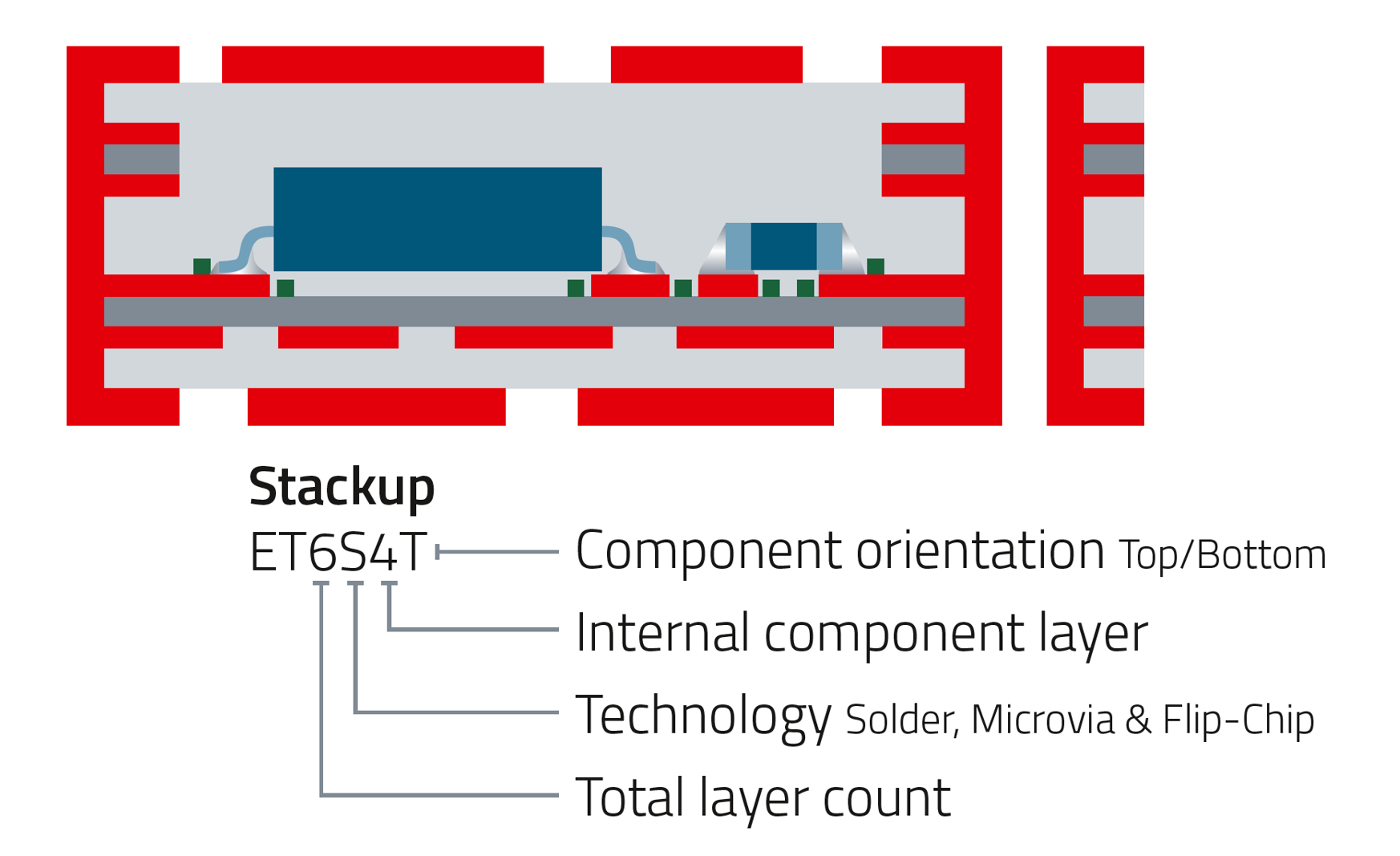

Design: Stackup ET6S4T

Explanations: The printed circuit board has 6 copper layers. The nomenclature also defines

the inner layer with the embedded components
the embedding variant used (SOLDER.embedding, MICROVIA.embedding or FLIP-CHIP.embedding)
the orientation of the parts on this inner layer

Design: SOLDER.embedding

Explanations:

The embedded components are passive and active components soldered on an inner layer. The soldering pads are provided with a minimal frame of solder resist for this purpose. The component space is left free in the prepreg. The stackup must be adapted to the component height.
