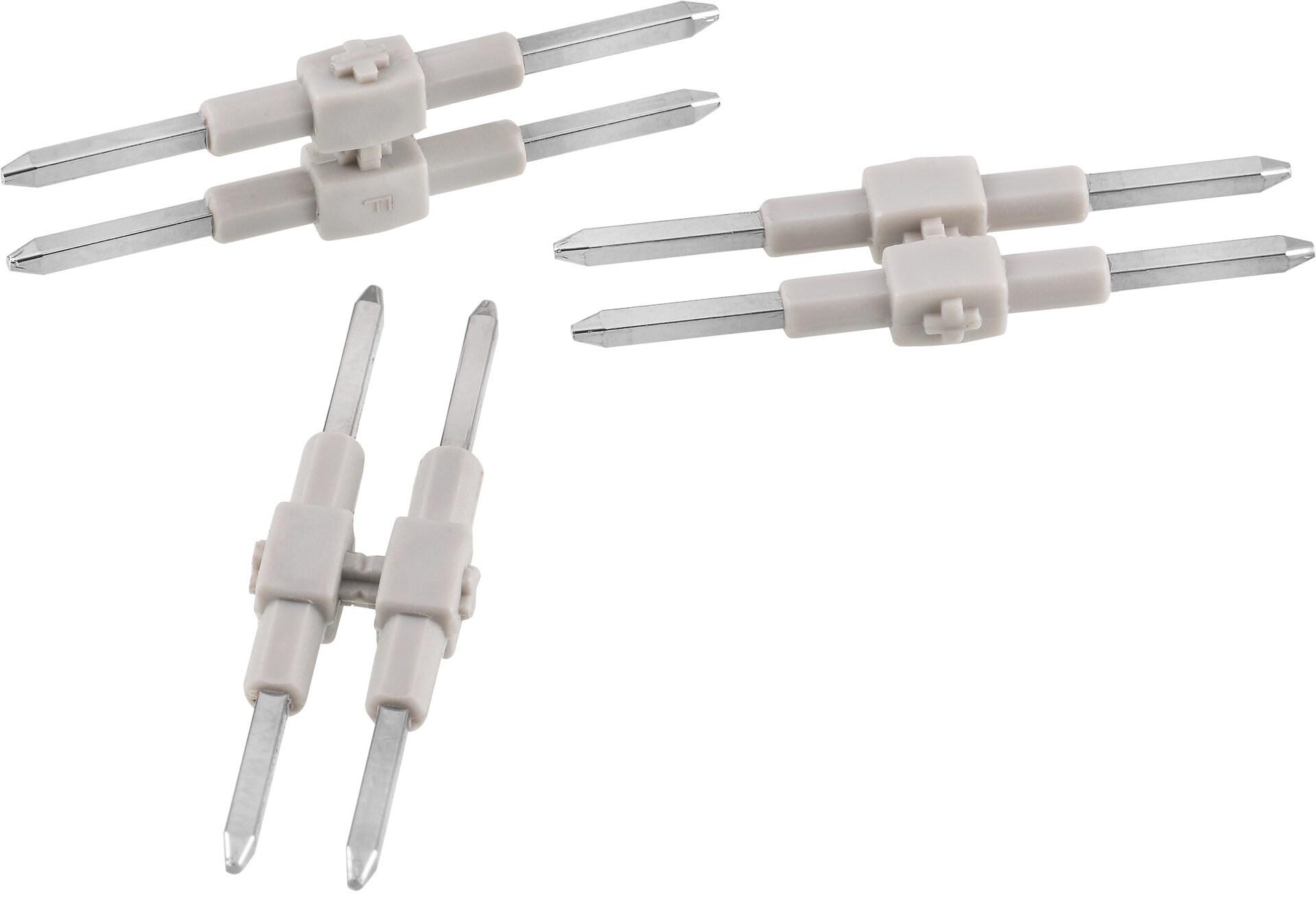

WR-LECO Series 401 - WTB Accessories for BTB Connection

General Information
Operating Temperature	-60 °C up to +105 °C
Compliance	Lead free / RoHS
I_R	9 A
I_R	9 A
Pitch	4 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Brass
Contact Plating	Nickel (Ni); Tin over Nickel

Electrical Properties
Working Voltage	320 V (AC)
Working Voltage [UL]	320 V (AC)
Working Voltage [cULus]	320 V (AC)
Withstanding Voltage [UL]	1500 V (AC)
Withstanding Voltage [cULus]	1500 V (AC)

Certification
UL Approval	; E323964
cULus Approval	E323964

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Gender	Mount	Type	Pitch (mm)	I_R (A)	I_R (A)	Working Voltage (V (AC))	Working Voltage [UL] (V (AC))	Working Voltage [cULus] (V (AC))	Design Kit	Samples
695101401122	SPEC	3 files CAD files ZIP 3D 3D_695101401122 (rev1).pdf \| 122.1 KB IGS Download_IGES_695101401122 (rev1).iges \| 700.9 KB STP Download_STP_695101401122 (rev1).stp \| 128.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	Wire to Board Accessories	BtB	Straight	4	9	9	320	320	320	–
695102401122	SPEC	3 files CAD files ZIP 3D 3D_695102401122 (rev1).pdf \| 211.3 KB IGS Download_IGES_695102401122 (rev1).iges \| 1.2 MB STP Download_STP_695102401122 (rev1).stp \| 225.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Wire to Board Accessories	BtB	Straight	4	9	9	320	320	320	612690
695103401122	SPEC	3 files CAD files ZIP 3D 3D_695103401122 (rev1).pdf \| 286.8 KB IGS Download_IGES_695103401122 (rev1).iges \| 1.8 MB STP Download_STP_695103401122 (rev1).stp \| 321.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Wire to Board Accessories	BtB	Straight	4	9	9	320	320	320	–

Order Code	Datasheet
695101401122	SPEC
695102401122	SPEC
695103401122	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Gender	Mount	Type	Pitch (mm)	I_R (A)	I_R (A)	Working Voltage (V (AC))	Working Voltage [UL] (V (AC))	Working Voltage [cULus] (V (AC))	Design Kit	Samples

WR-LECO 4.00 mm in use

Easy accessible connector for wire connection

Board-to-Board connection by use of optional header

Low building height and a white connector housing to avoid shades in the application

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
