| Size | Dimensions | L (mm) | W (mm) | H (mm) | Fl (mm) | Mount | ||
|---|---|---|---|---|---|---|---|---|

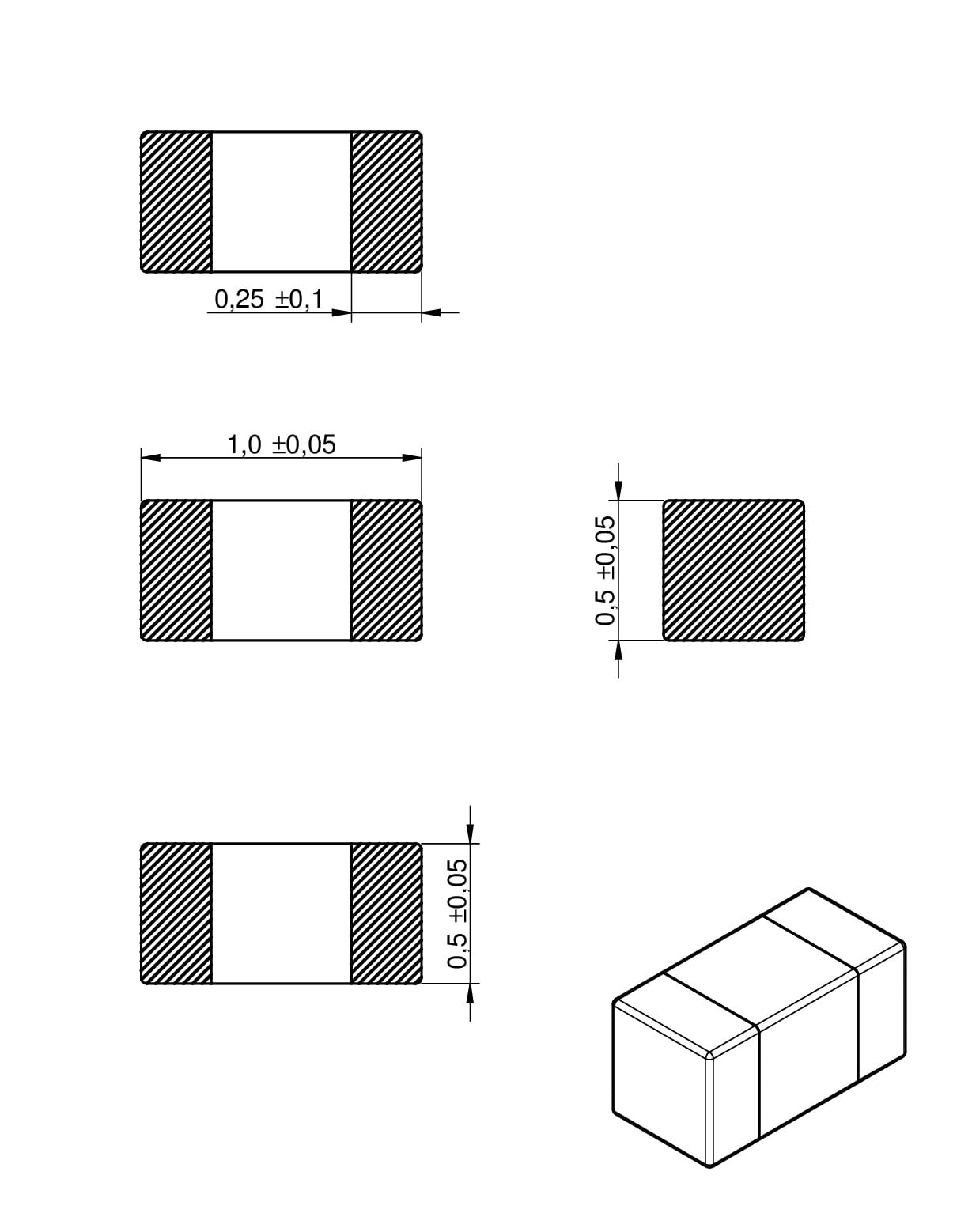

| 0402 | 1 | 0.5 | 0.5 | 0.25 | SMT | |||

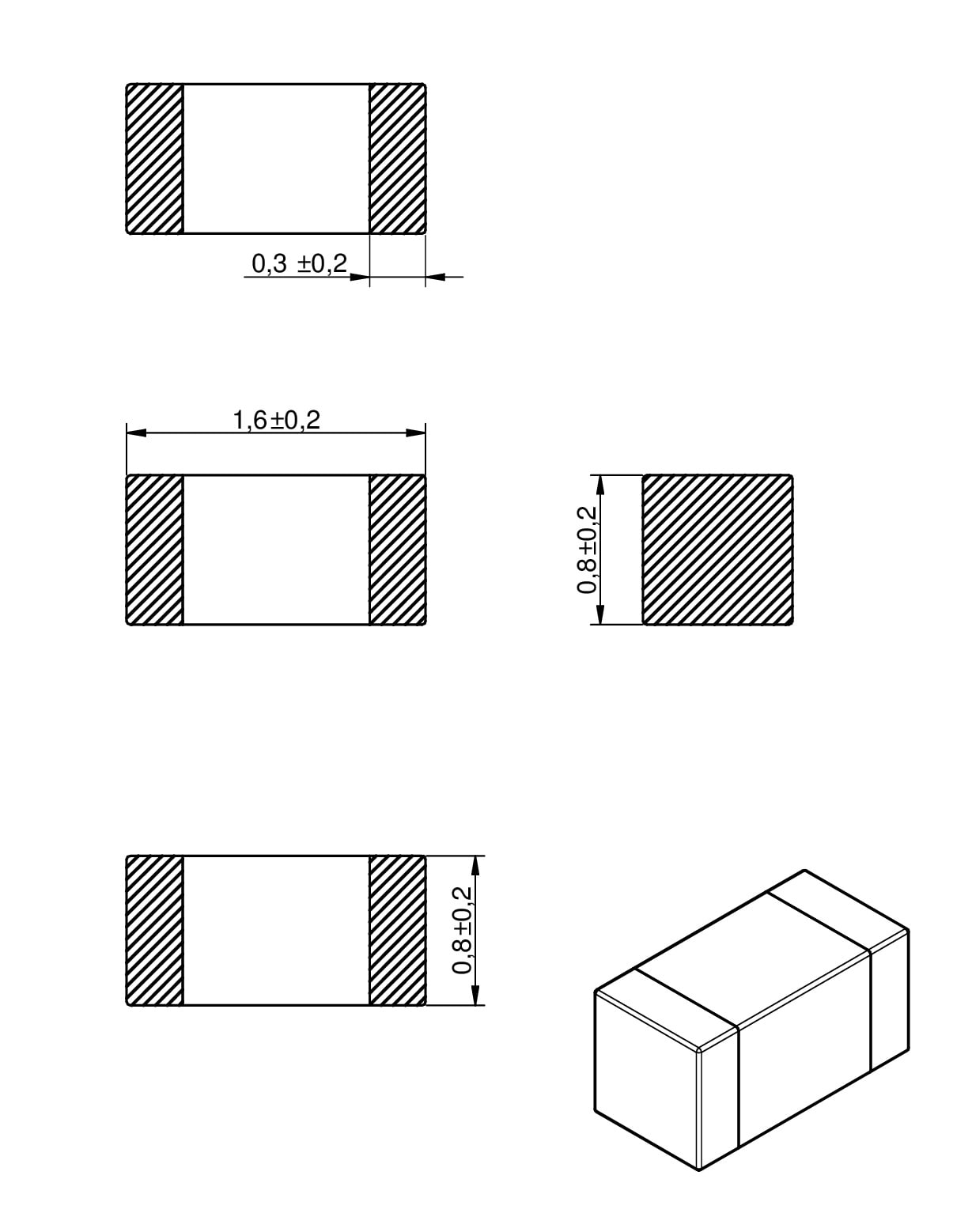

| 0603 | 1.6 | 0.8 | 0.8 | 0.3 | SMT | |||

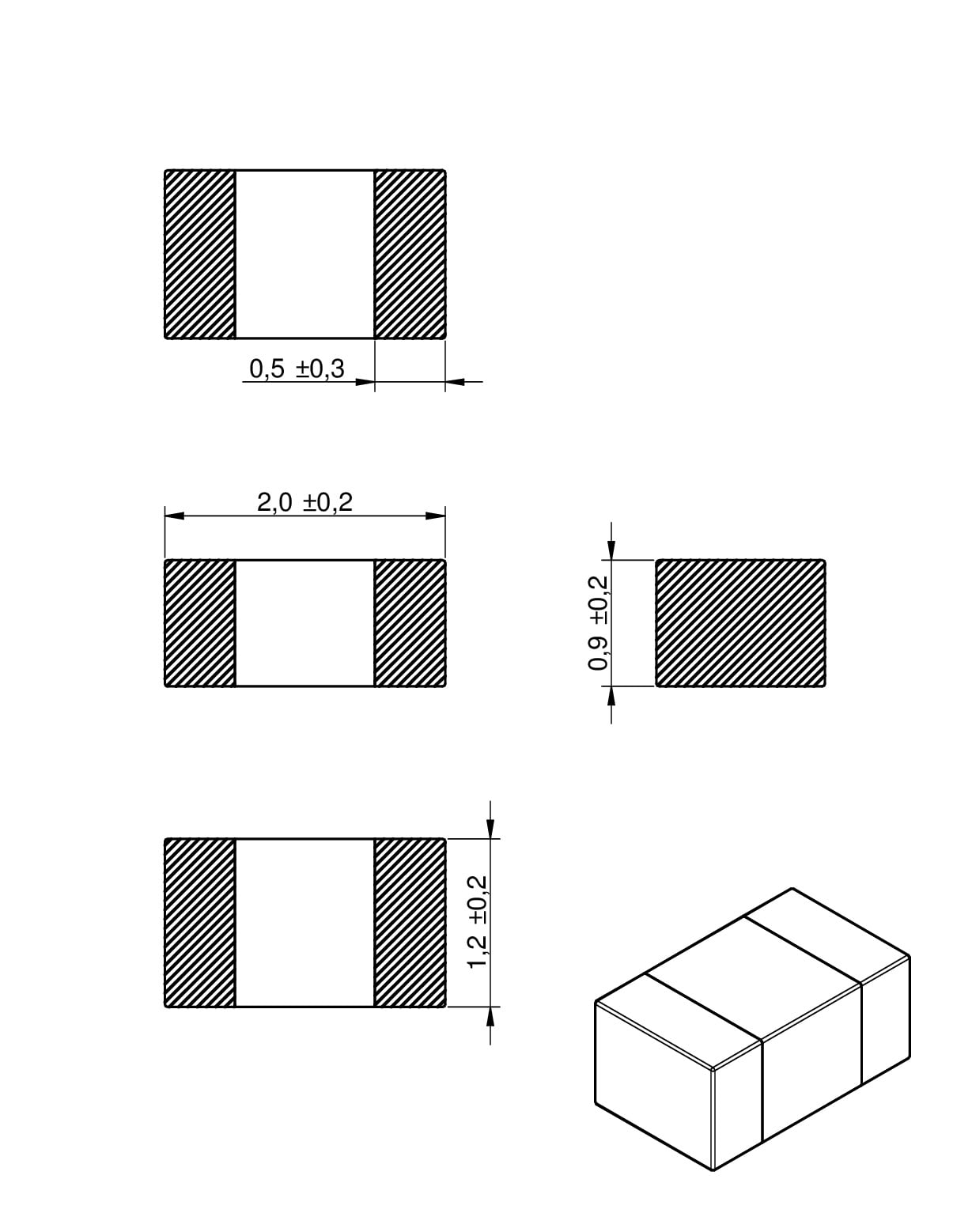

| 0805 | 2 | 1.2 | 0.9 | 0.5 | SMT | |||

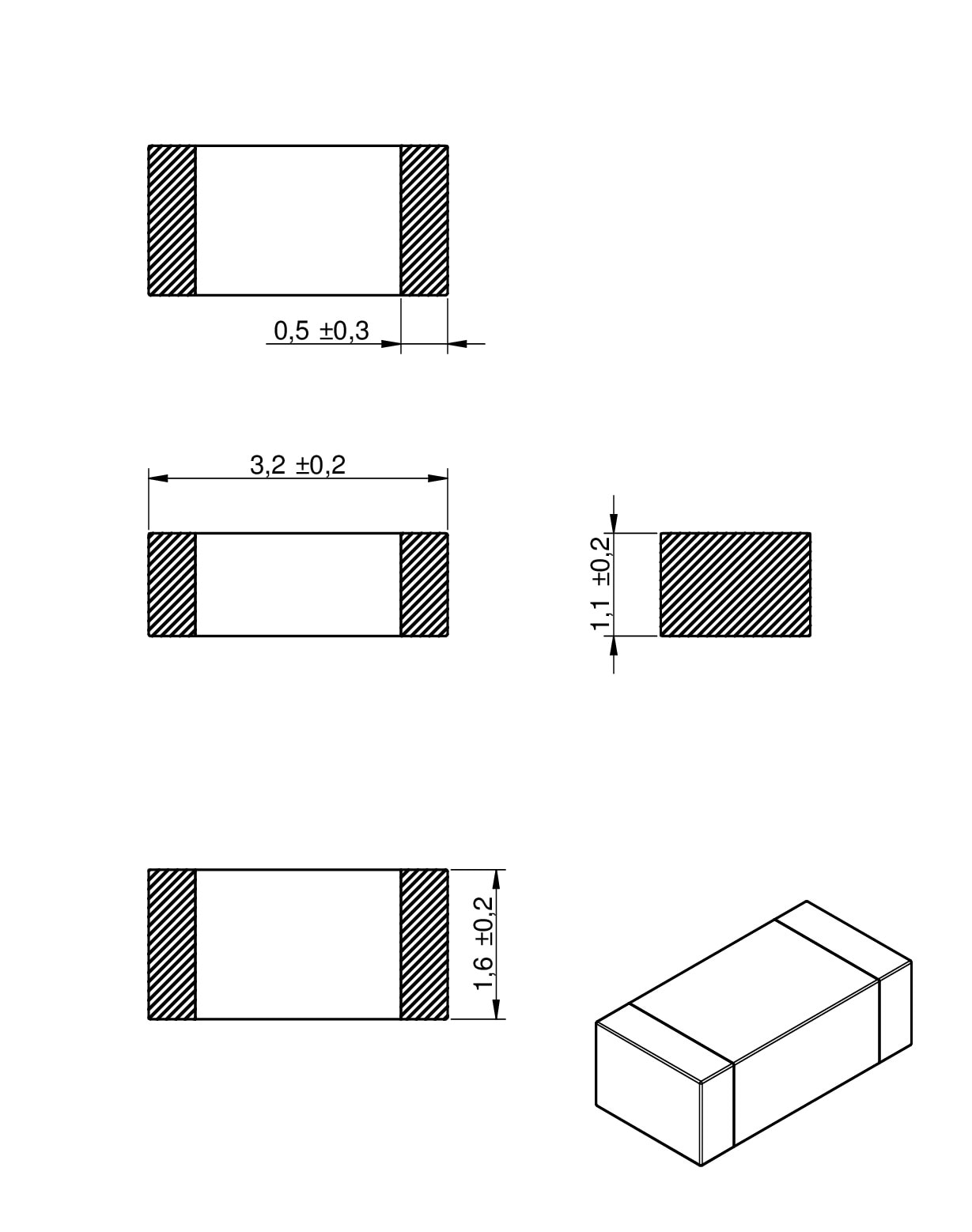

| 1206 | 3.2 | 1.6 | 1.1 | 0.5 | SMT | |||
| 1210 | 3.2 | 2.5 | 1.3 | 0.5 | SMT | |||

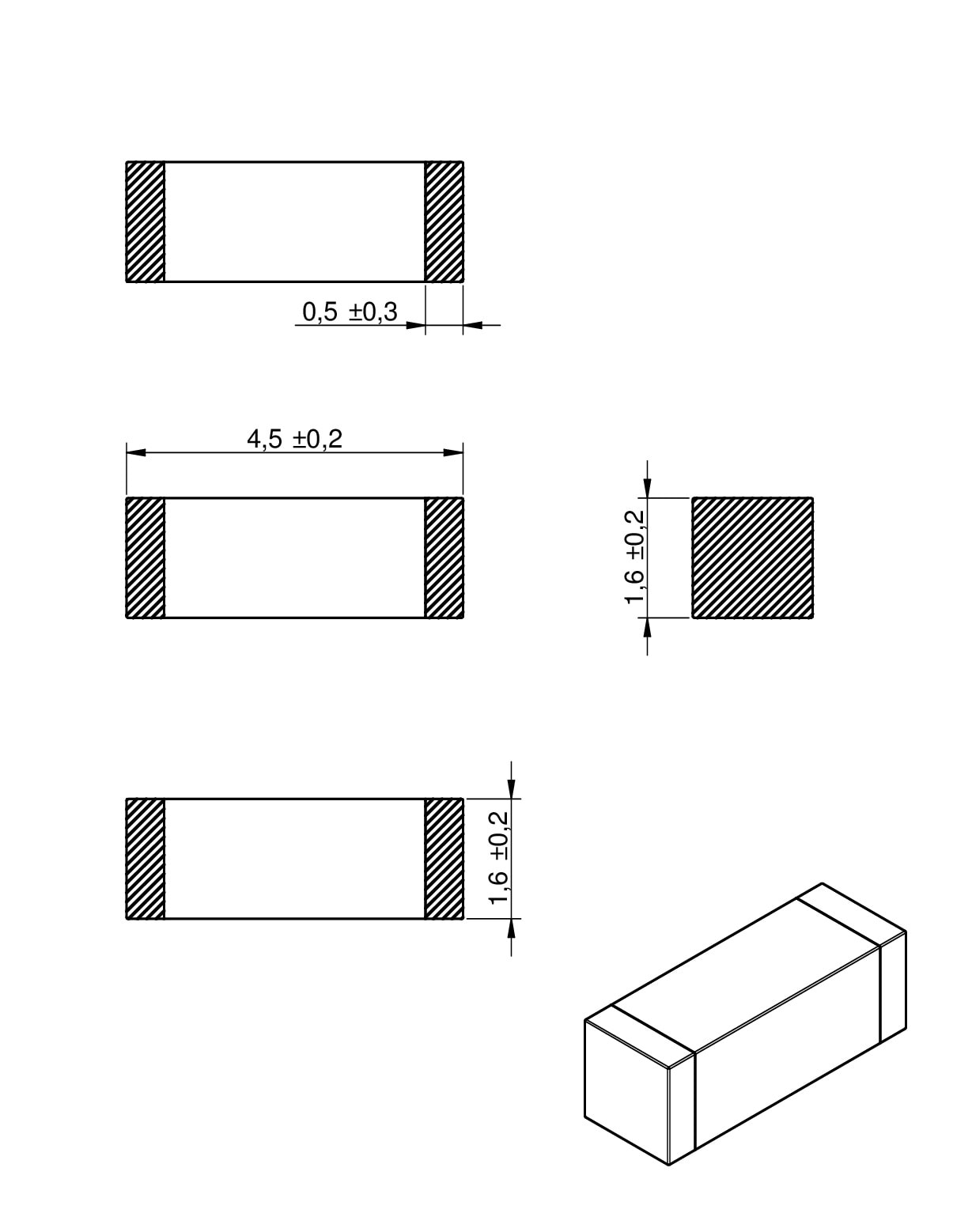

| EXT. | 1806 | 4.5 | 1.6 | 1.6 | 0.5 | SMT | ||

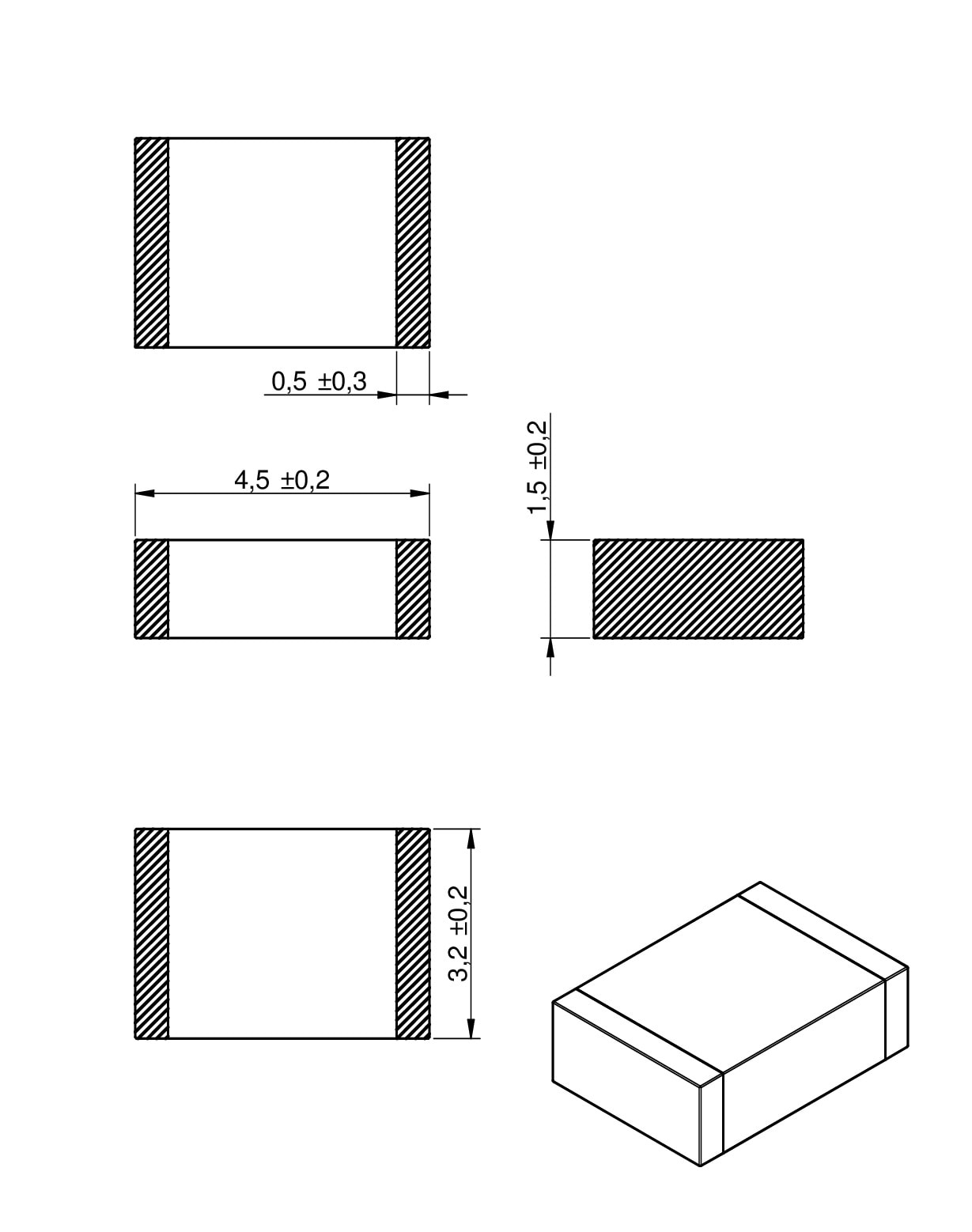

| 1812 | 4.5 | 3.2 | 1.5 | 0.5 | SMT | |||

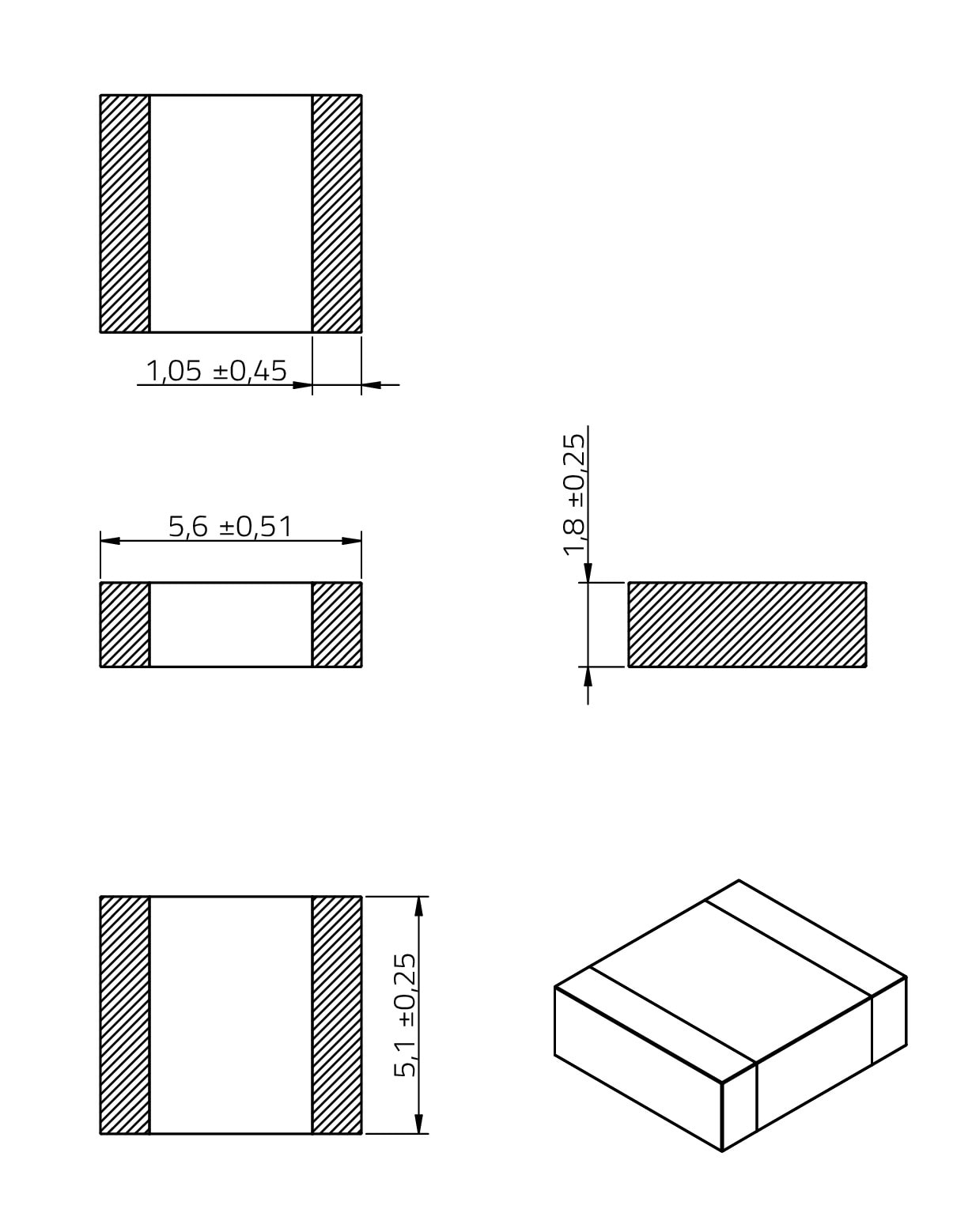

| 2220 | 5.6 | 5.1 | - | - | - |
Characteristics
- Reliable Ni-Sn electrodes
- High rated current up to 10 A
- AEC-Q200 qualified
- Operating temperature: –55 ºC to +125 ºC
Reference Designs
Applications
- Perfect as data line filter and for uncoupling of distribution voltage
Application Notes
- ANP002 The Protection of USB 2.0 Applications
- ANP013 Quiet switching controller for audio amplifiers
- ANP016 Going Wireless with Magnetic Shielding
- ANP024 The USB Interface from EMC Point of View
- ANP025 Ferrite Beads for Ringing Control
- ANP029 Accurate Inductor Loss Determination using REDEXPERT
- ANP041 Peak Current Proof Input Filter with Multilayer Power Suppression Bead WE-MPSB
- ANP101 RF Gain Block Amplifier with Integrated Ferrite Bead for Broadband Operation
- ANP116 Gigabit Ethernet interface from an EMC perspective
- ANP121 Filter and surge protection for I2C Bus
- ANP122 Gigabit PoE Interface from an EMC perspective
- ANP129 Inductive SMT Components in Comparison – the Wire Makes the Difference
Products
All
0402
0603
0805
1206
1210
1806
1812
2220
