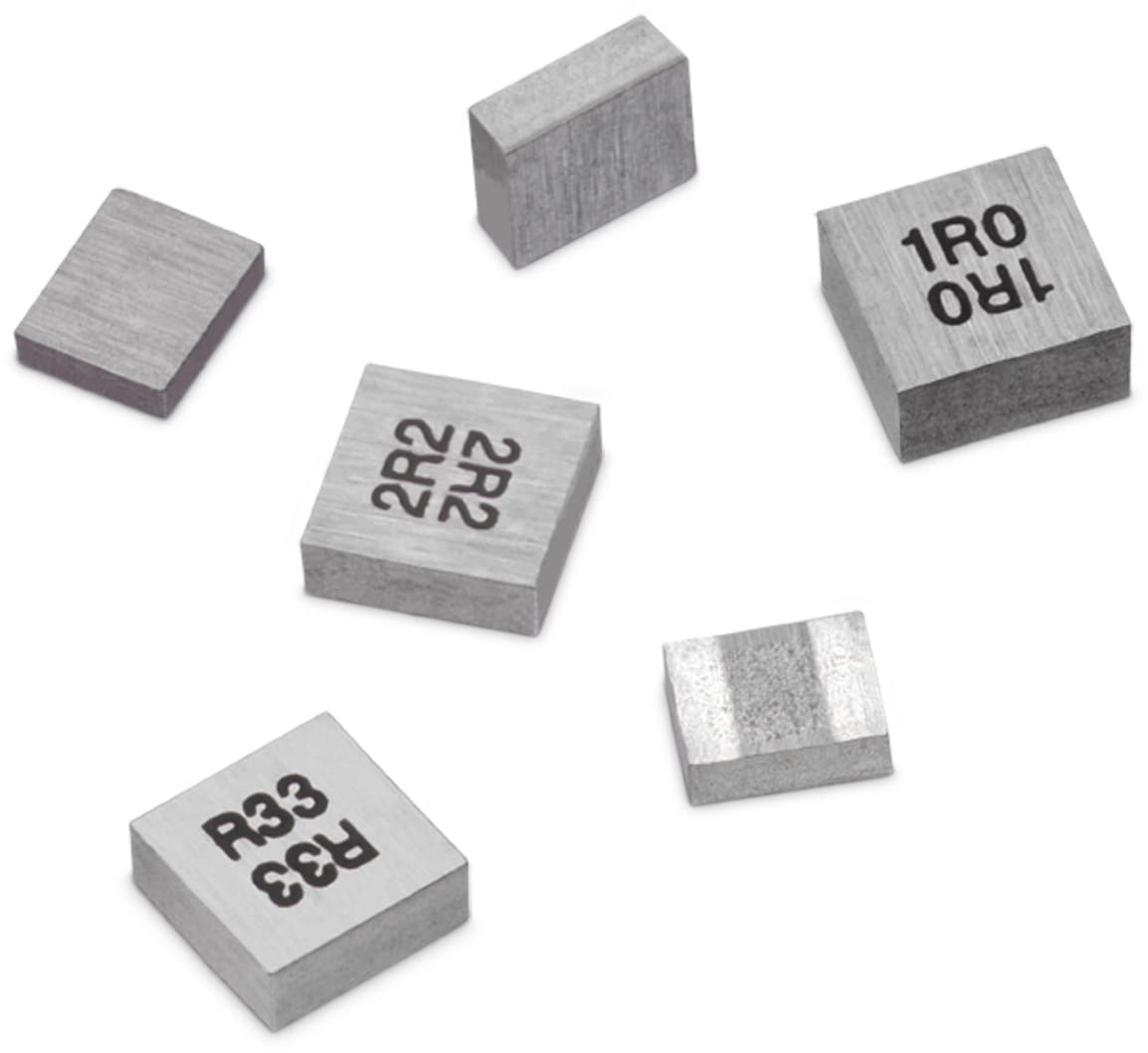

Size | Dimensions | L (mm) | W (mm) | H (mm) | Mount | ||
---|---|---|---|---|---|---|---|
1610 | 1.6 | 1.6 | 1 | SMT | |||

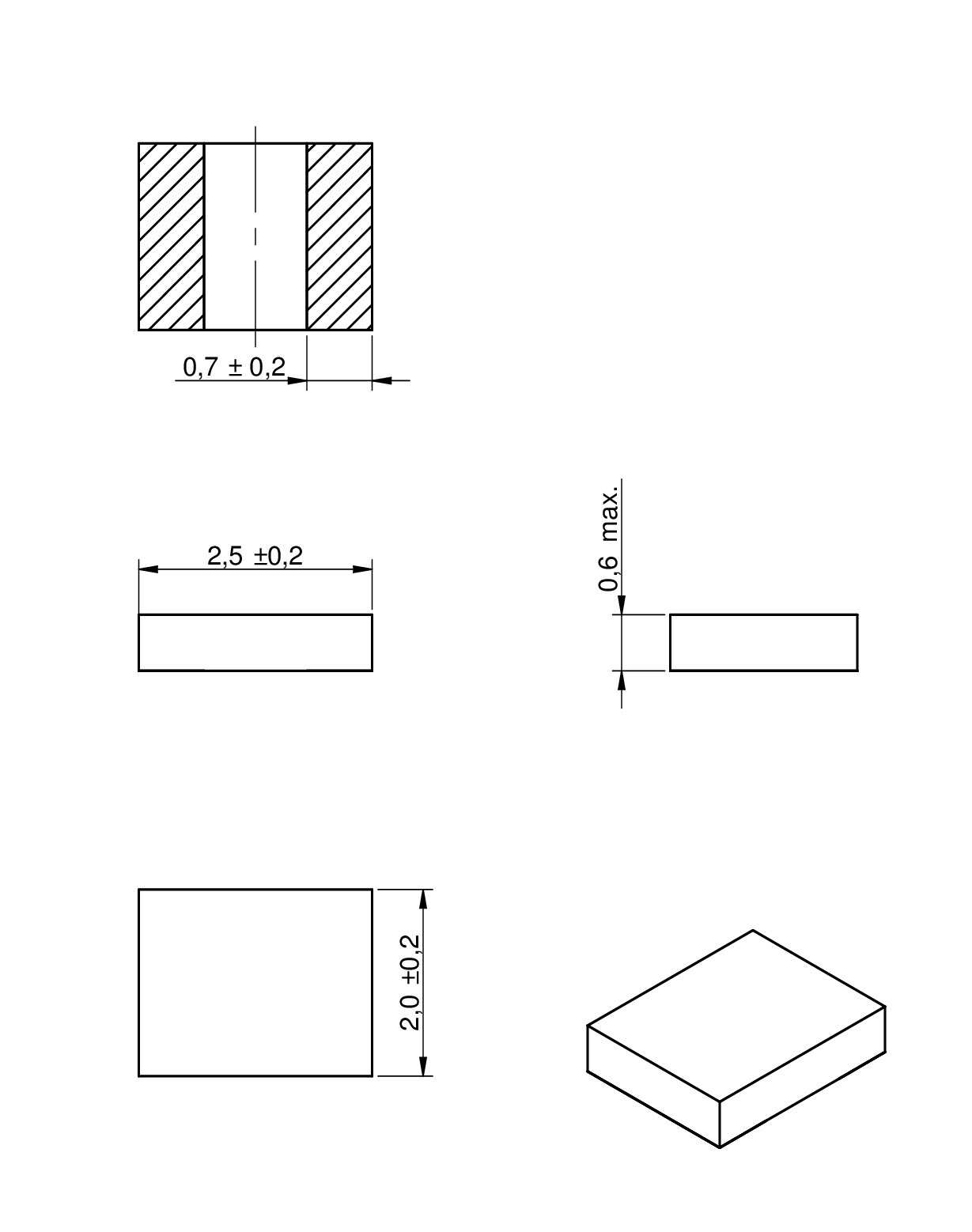

2506 | 2.5 | 2 | 0.6 | SMT | |||

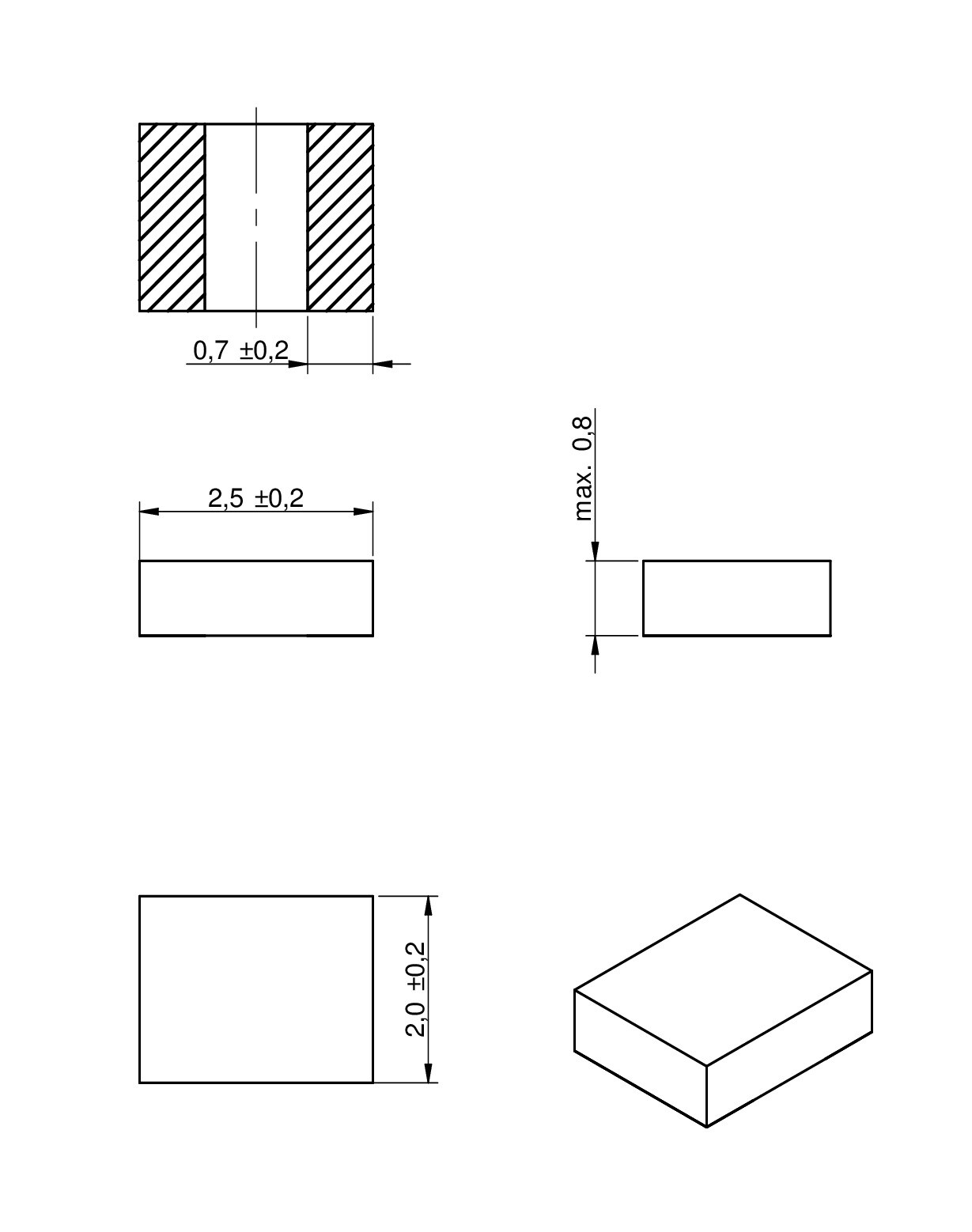

2508 | 2.5 | 2 | 0.8 | SMT | |||

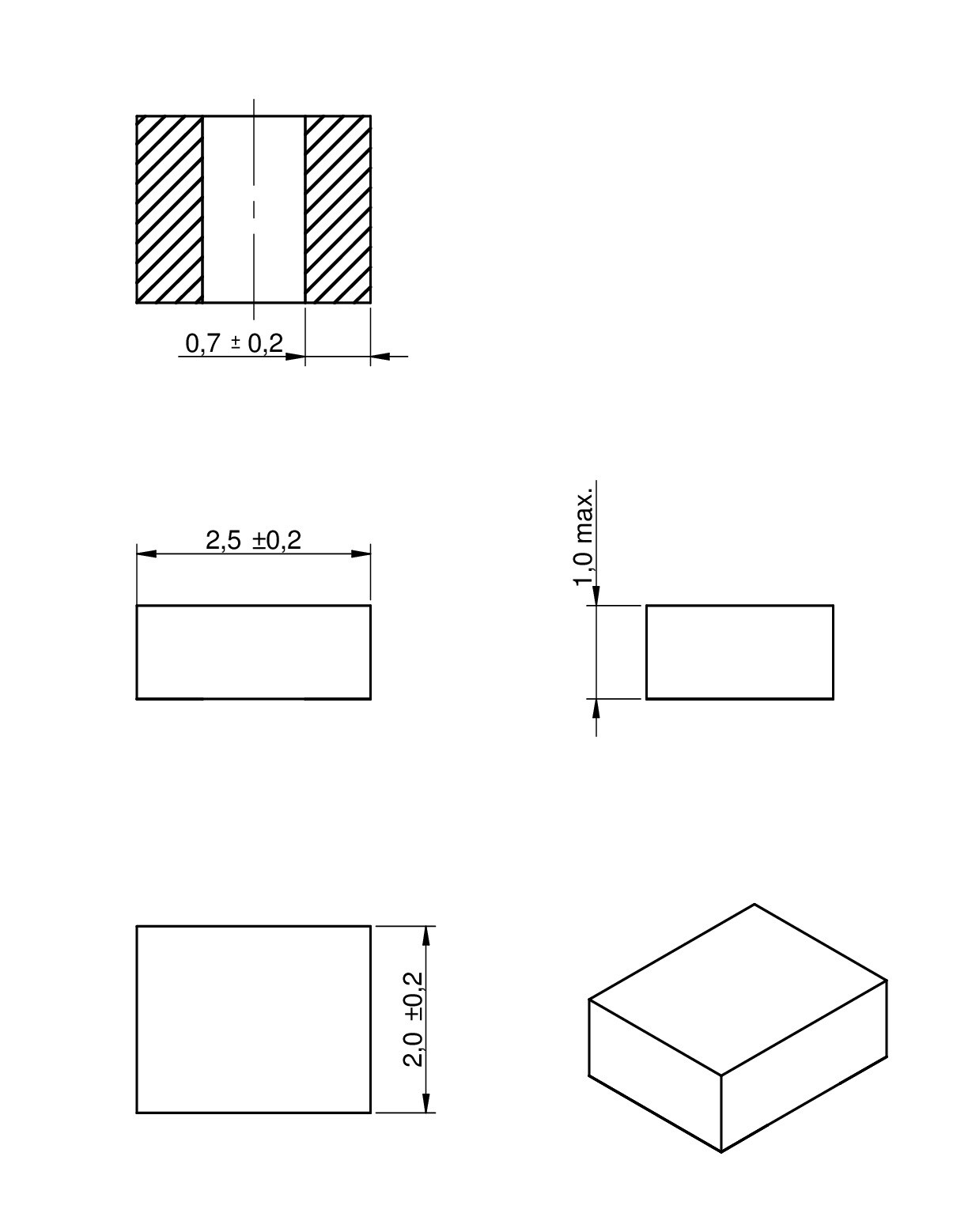

2510 | 2.5 | 2 | 1 | SMT | |||

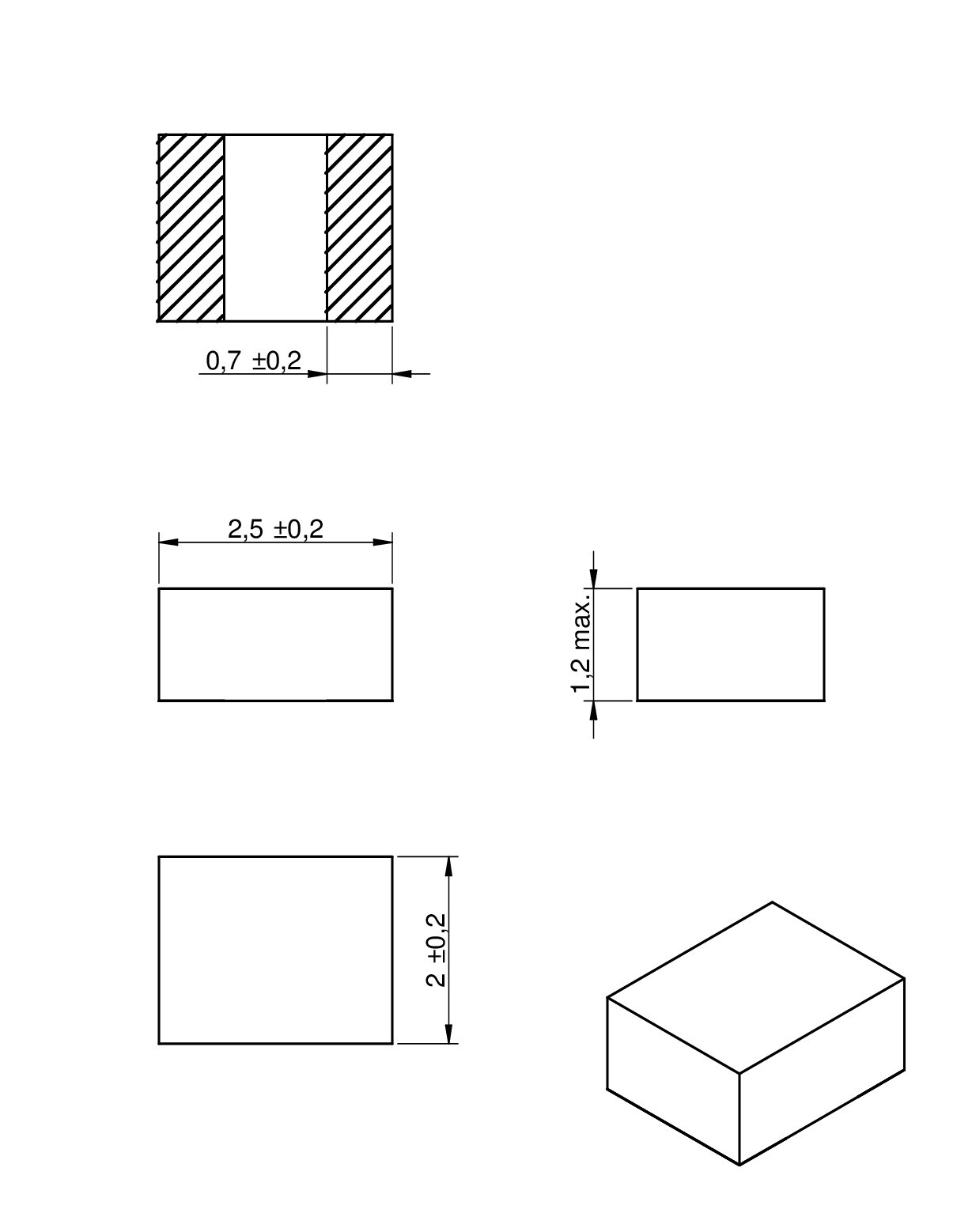

2512 | 2.5 | 2 | 1.2 | SMT | |||

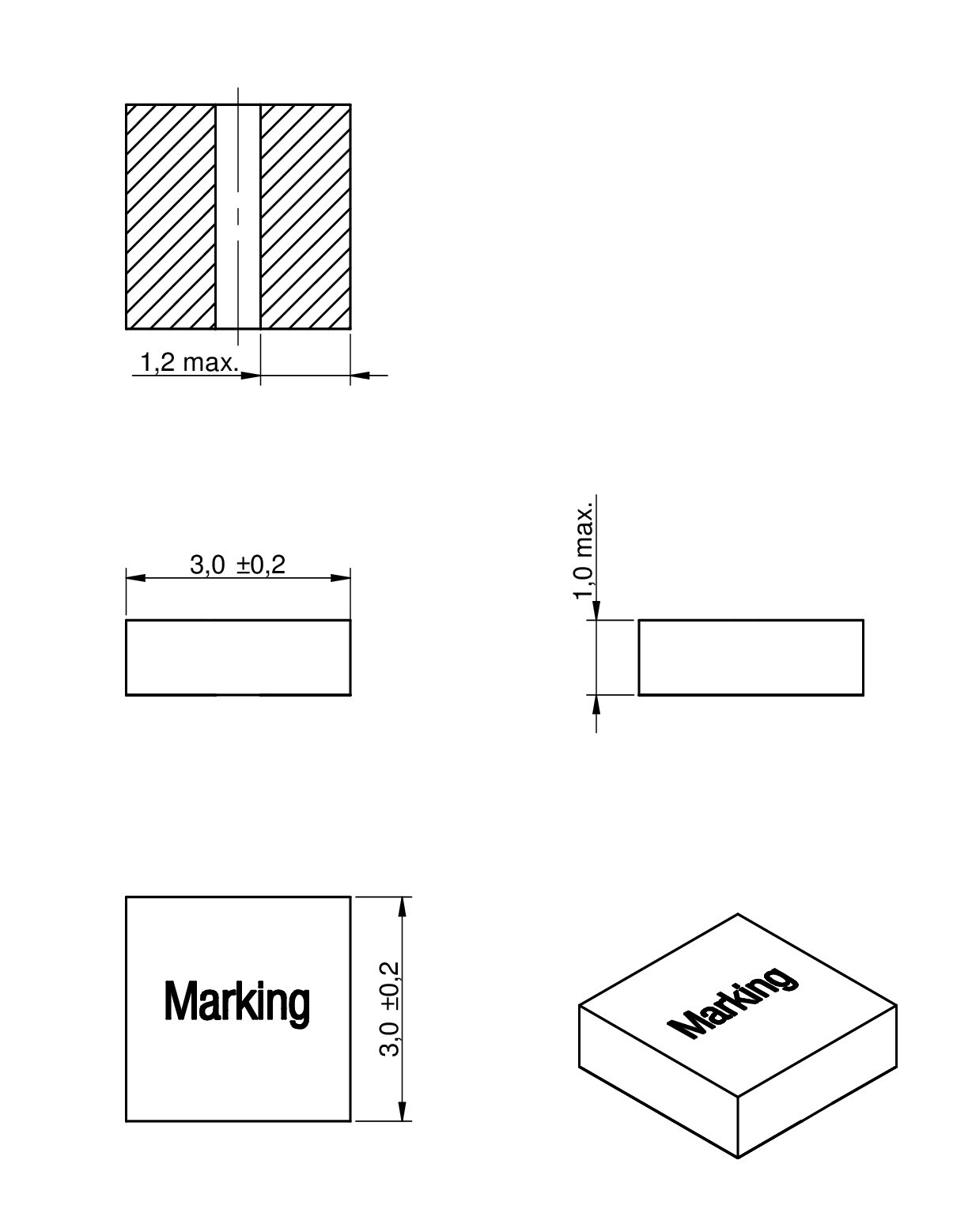

3010 | 3 | 3 | 1 | SMT | |||

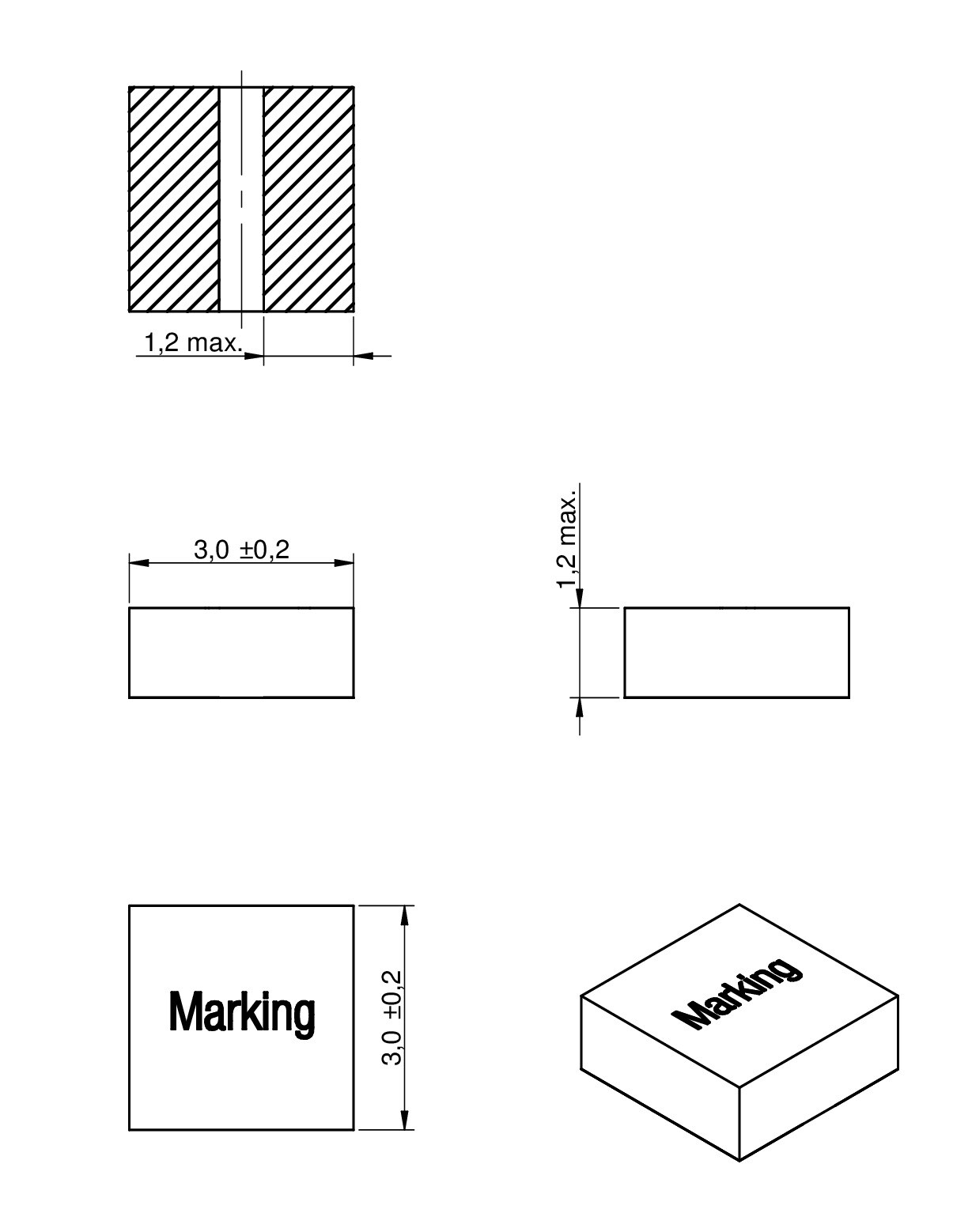

3012 | 3 | 3 | 1.2 | SMT | |||

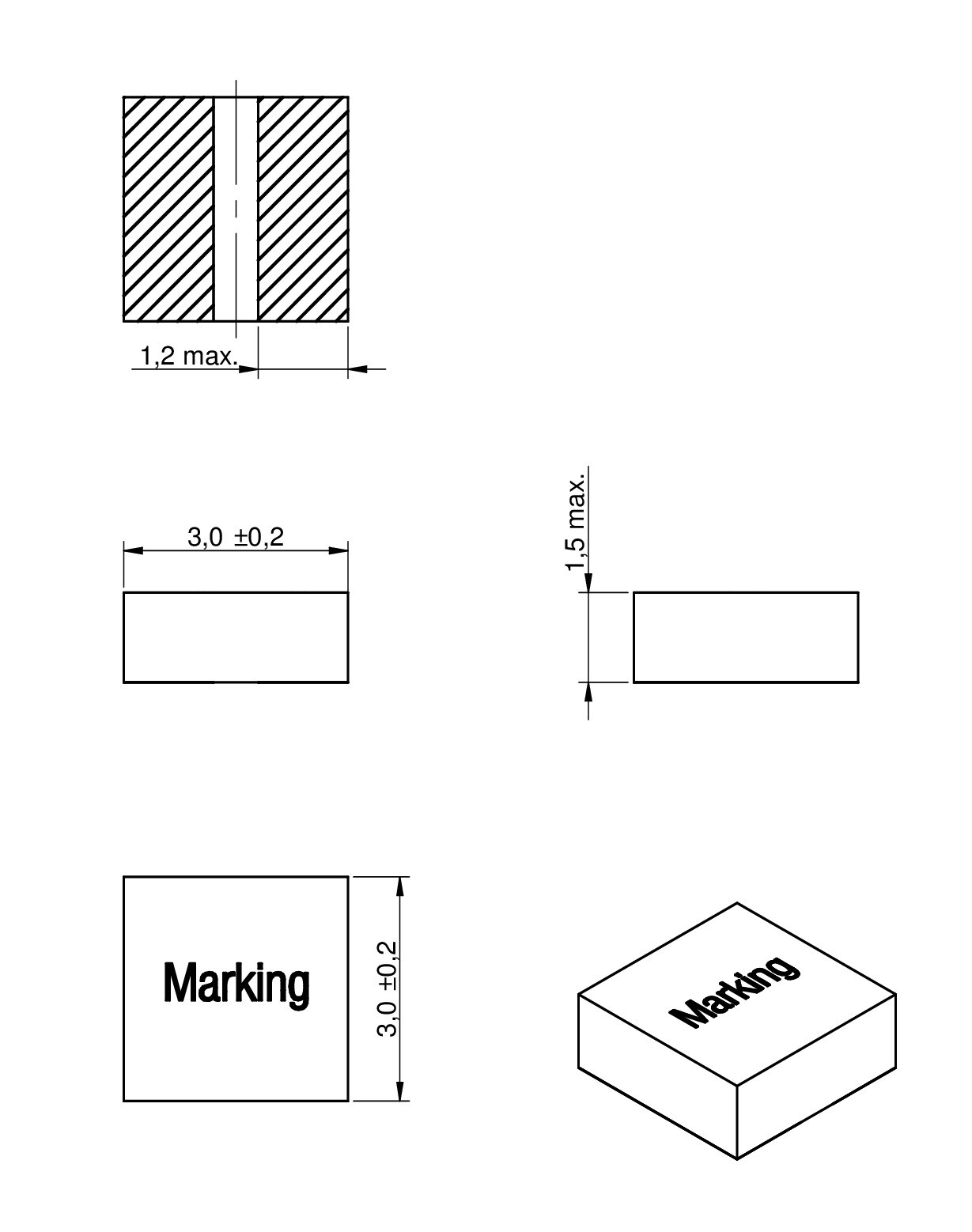

3015 | 3 | 3 | 1.5 | SMT | |||

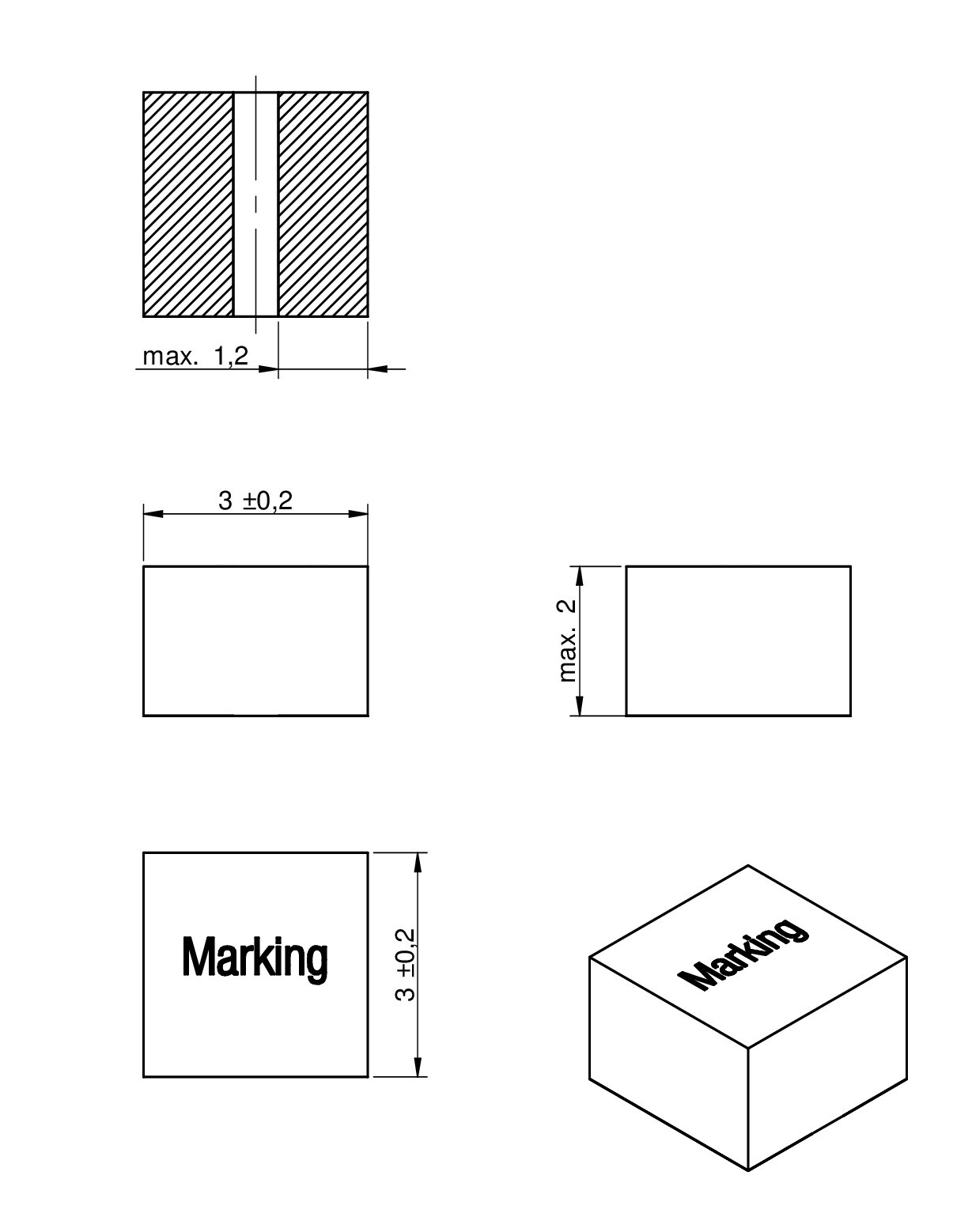

3020 | 3 | 3 | 2 | SMT | |||

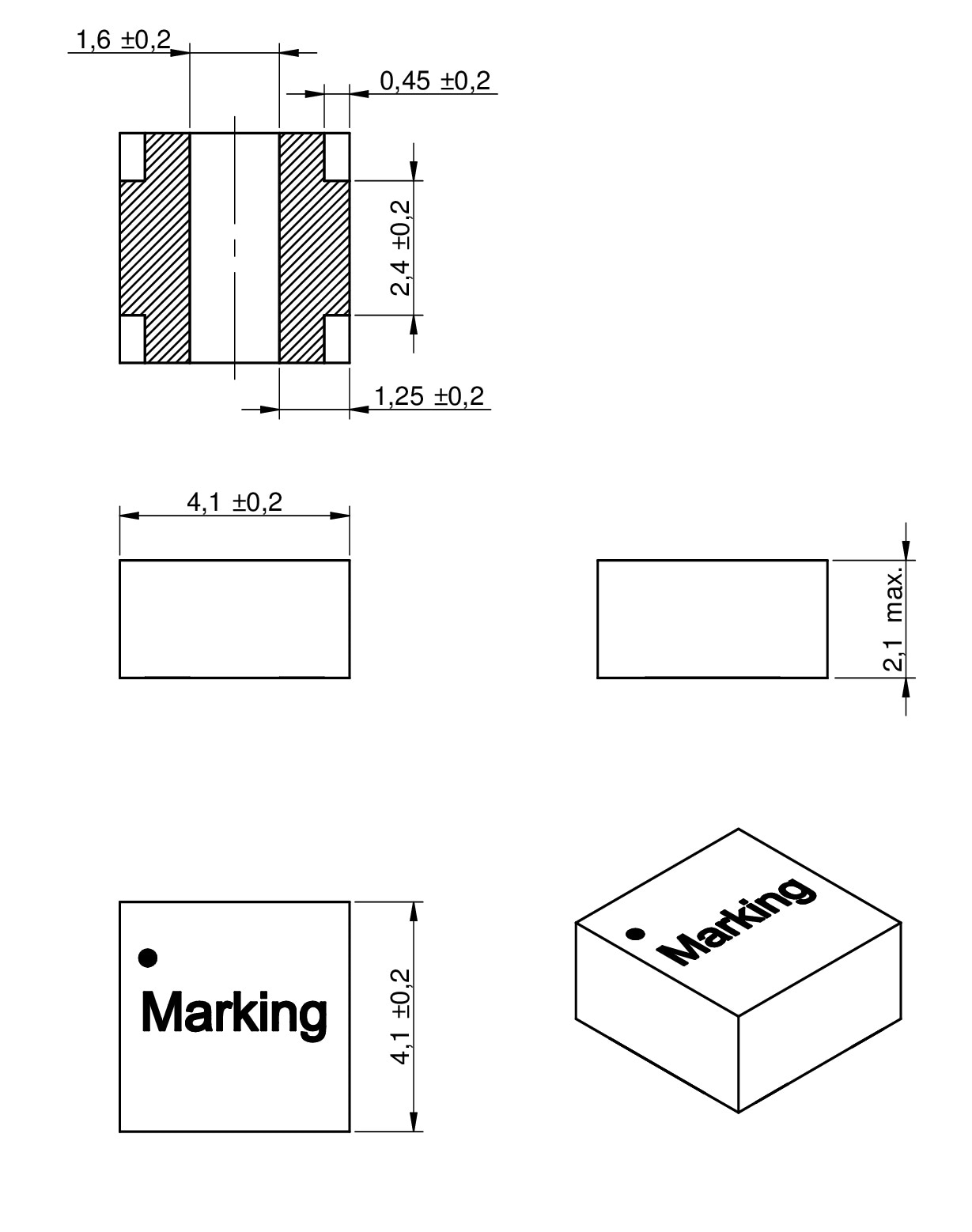

4020 | 4.1 | 4.1 | 2.1 | SMT | |||
4020 HT | 4.1 | 4.1 | 2.1 | SMT | |||

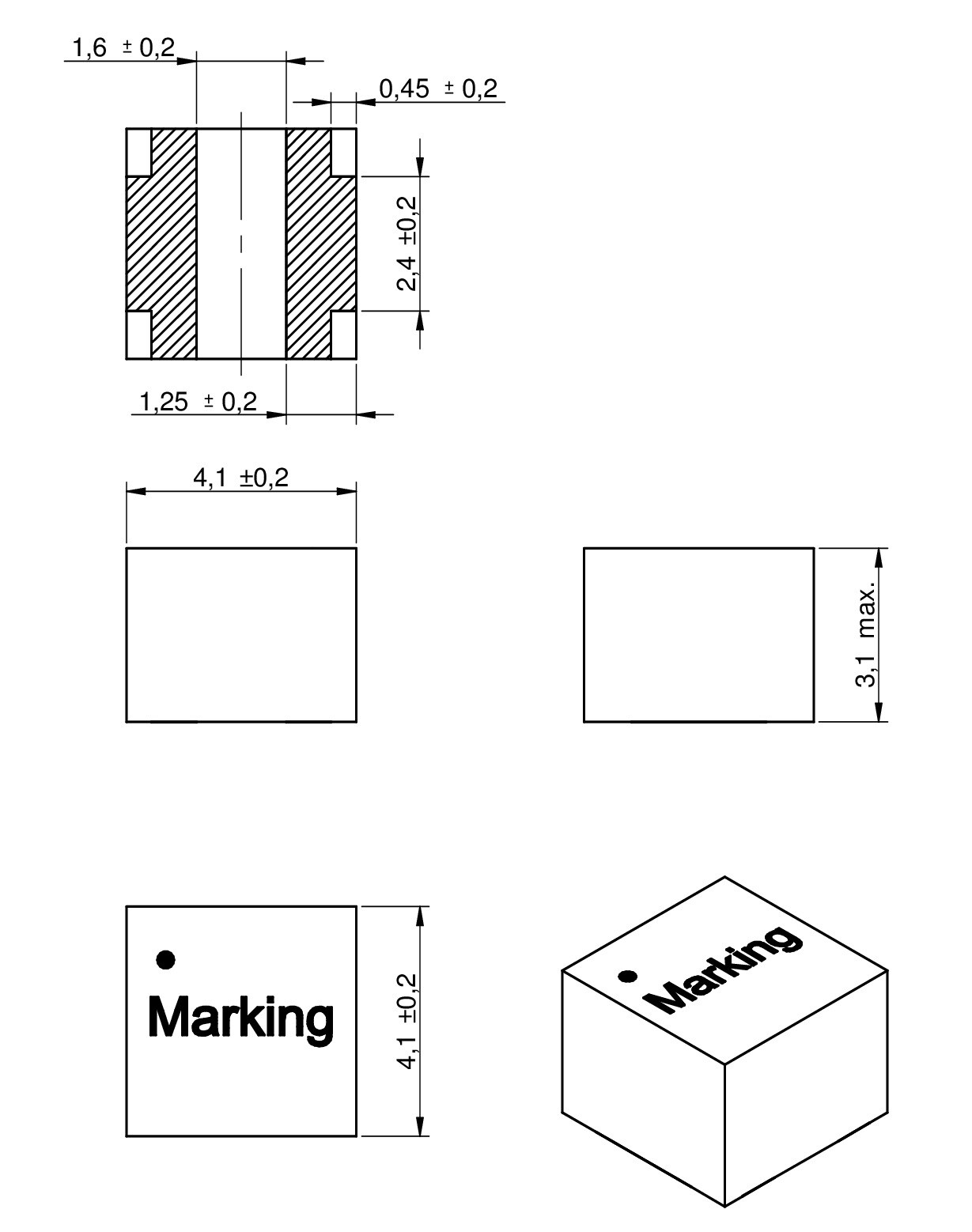

4030 | 4 | 4 | 3 | SMT | |||
5020 | 5.4 | 5.4 | 2.1 | SMT | |||
5030 | 5.4 | 5.4 | 3.1 | SMT | |||
NEW | 2010 | 2 | 1.6 | 1 | SMT | ||
NEW | 4012 | 4.1 | 4.1 | 1.3 | SMT | ||
NEW | 2512HT | 2.5 | 2 | 1.2 | SMT | ||
NEW | 3015HT | 3 | 3 | 1.5 | SMT | ||
NEW | 3020HT | 3 | 3 | 2 | SMT | ||
NEW | 6030HT | 6.6 | 6.6 | 3.1 | SMT |
Datasheet
LTSpice files
Characteristics
- Magnetic iron alloy allows high rated currents
- Compact design
- Magnetically shielded
- No acoustic noise and no leakage flux noise
- Operating temperature range: -40°C up to +125°C
- AEC-Q 200
Applications
- Powertrain coverters
- Body electronics & lighting
- Infotainment systems
- DC/DC-converter 48 V/12 V
- POL-converter
- DC/DC converter for field programmable gate array
- BMS (battery management system)
Application Notes
Products
All
1610
2506
2508
2510
2512
3010
3012
3015
3020
4020
4020 HT
4030
5020
5030
2010
4012
2512HT
3015HT
3020HT
6030HT
Order Code | Datasheet | Simulation | Downloads | L (µH) | ISAT,10% (A) | ISAT,30% (A) | RDC max. (mΩ) | fres (MHz) | IRP,40K (A) | Mount | Design Kit | Samples | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NEW | 7843835400033 | SPEC | – | 7 files | 0.033 | 19 | 40 | 1.1 | 682 | 33.5 | SMT | – | |
NEW | 7843835400068 | SPEC | – | 7 files | 0.068 | 18 | 38 | 1.9 | 374 | 27 | SMT | – | |
784383230033 | SPEC | 8 files | 0.33 | 4.25 | 8 | 38 | 180 | 5.5 | SMT | 7843832 | |||
784383340033 | SPEC | 8 files | 0.33 | 8.1 | 13.3 | 22.8 | 140 | 7.4 | SMT | 7843833 | |||
784383360033 | SPEC | 8 files | 0.33 | 5.45 | 10.5 | 17 | 140 | 8.7 | SMT | – | |||
784383560033 | SPEC | 8 files | 0.33 | 7.95 | 16.7 | 7.2 | 115 | 14.95 | SMT | – | |||
784383560033HT | SPEC | 8 files | 0.33 | 7.25 | 14.8 | 7.5 | 98 | 13.3 | SMT | – | |||
784383130033 | SPEC | 8 files | 0.33 | 3.35 | 6.2 | 84 | 215 | 3.25 | SMT | – | |||
NEW | 784383240033HT | SPEC | – | 7 files | 0.33 | 4.1 | 8.6 | 26.7 | 174 | 6.2 | SMT | – | |
NEW | 784383770033HT | SPEC | – | 7 files | 0.33 | 14.1 | 27.5 | 3 | 96 | 21.6 | SMT | – | |
784383210047 | SPEC | 8 files | 0.47 | 2.55 | 4.65 | 95 | 165 | 3.25 | SMT | 784001 7843832 | |||
784383220047 | SPEC | 8 files | 0.47 | 2.85 | 5.65 | 87 | 160 | 3.35 | SMT | 784001 7843832 | |||
784383230047 | SPEC | 8 files | 0.47 | 3.6 | 6.9 | 48 | 170 | 4.8 | SMT | 784001 7843832 | |||
784383240047 | SPEC | 8 files | 0.47 | 4.15 | 8 | 40 | 145 | 5.35 | SMT | – | |||
784383340047 | SPEC | 8 files | 0.47 | 5.95 | 12.3 | 26.4 | 110 | 6.8 | SMT | 7843833 | |||
784383350047 | SPEC | 8 files | 0.47 | 4.35 | 7.4 | 23 | 105 | 7.1 | SMT | – | |||
784383360047 | SPEC | 8 files | 0.47 | 5.4 | 9.8 | 22 | 99 | 7.55 | SMT | – | |||
784383560047HT | SPEC | 8 files | 0.47 | 6.45 | 13 | 8.1 | 83 | 12.7 | SMT | – | |||
784383130047 | SPEC | 8 files | 0.47 | 3.05 | 5.6 | 101 | 200 | 2.95 | SMT | – | |||
NEW | 784383240047HT | SPEC | – | 7 files | 0.47 | 3.6 | 7.5 | 34.7 | 131 | 5.3 | SMT | – | |
NEW | 784383430047 | SPEC | 7 files | 0.47 | 3.55 | 6.5 | 63 | 175 | 3.9 | SMT | – | ||
784383340056 | SPEC | 8 files | 0.56 | 5.65 | 11.1 | 34.8 | 108 | 5.8 | SMT | 7843833 | |||
784383560056 | SPEC | 8 files | 0.56 | 6.9 | 14.7 | 8.4 | 85 | 13.65 | SMT | 784001 7843833 | |||
784383240056 | SPEC | 8 files | 0.56 | 4.25 | 7.9 | 49 | 120 | 4.75 | SMT | – | |||
784383560056HT | SPEC | 8 files | 0.56 | 6.05 | 13 | 8.6 | 72 | 12.15 | SMT | – | |||
784383130056 | SPEC | 8 files | 0.56 | 2.75 | 5.2 | 113 | 150 | 2.7 | SMT | – | |||
NEW | 784383240056HT | SPEC | – | 7 files | 0.56 | 3.2 | 6.7 | 44.1 | 102 | 4.7 | SMT | – | |
NEW | 784383350056HT | SPEC | – | 7 files | 0.56 | 4 | 7.8 | 22.2 | 93 | 7.3 | SMT | – | |
NEW | 784383430056 | SPEC | 7 files | 0.56 | 3.3 | 6.2 | 73 | 135 | 3.6 | SMT | – | ||
784383230068 | SPEC | 8 files | 0.68 | 3.1 | 6.1 | 60 | 135 | 4.25 | SMT | 7843832 | |||
784383340068 | SPEC | 8 files | 0.68 | 4.95 | 10 | 43.2 | 100 | 5.15 | SMT | 7843833 | |||
784383350068 | SPEC | 8 files | 0.68 | 5.8 | 9.7 | 30 | 100 | 6.3 | SMT | – | |||
784383560068 | SPEC | 8 files | 0.68 | 5.8 | 12.7 | 9 | 75 | 13.15 | SMT | – | |||
784383240068 | SPEC | 8 files | 0.68 | 3.8 | 7.4 | 59 | 102 | 4.25 | SMT | 784001 7843832 | |||
784383360068 | SPEC | 8 files | 0.68 | 4.1 | 8.1 | 27 | 85 | 6.75 | SMT | – | |||
784383560068HT | SPEC | 8 files | 0.68 | 5.45 | 11.7 | 9.2 | 67 | 11.7 | SMT | – | |||
784383130068 | SPEC | 8 files | 0.68 | 2.55 | 4.8 | 126 | 135 | 2.55 | SMT | – | |||
NEW | 784383350068HT | SPEC | – | 7 files | 0.68 | 3.6 | 7.4 | 25.5 | 78 | 6.8 | SMT | – | |
NEW | 784383770068HT | SPEC | – | 7 files | 0.68 | 10.6 | 21.5 | 5.6 | 55 | 16.7 | SMT | – | |
NEW | 784383430068 | SPEC | 7 files | 0.68 | 3.15 | 5.9 | 84 | 130 | 3.3 | SMT | – | ||
784383230082 | SPEC | 8 files | 0.82 | 2.7 | 5.45 | 69 | 105 | 3.9 | SMT | 7843832 | |||
784383350082 | SPEC | 8 files | 0.82 | 4.95 | 9 | 35 | 85 | 5.7 | SMT | – | |||
784383660082 | SPEC | 8 files | 0.82 | 7.1 | 15.3 | 9.6 | 53.5 | 13.25 | SMT | – | |||
784383130082 | SPEC | 8 files | 0.82 | 2.5 | 4.6 | 144 | 115 | 2.35 | SMT | – | |||
NEW | 784383430082 | SPEC | 7 files | 0.82 | 2.8 | 5.35 | 92 | 125 | 3.15 | SMT | – | ||
78438321010 | SPEC | 8 files | 1 | 1.7 | 3.25 | 196 | 90 | 2.1 | SMT | 784001 7843832 | |||
78438322010 | SPEC | 8 files | 1 | 2.15 | 4.4 | 133 | 100 | 2.65 | SMT | 7843832 | |||
78438323010 | SPEC | 8 files | 1 | 2.6 | 5.3 | 75 | 80 | 3.55 | SMT | 784001 7843832 | |||
78438334010 | SPEC | 8 files | 1 | 4.3 | 8.4 | 50.5 | 80 | 4.75 | SMT | 784001 7843833 | |||
78438335010 | SPEC | 8 files | 1 | 3 | 5.95 | 47 | 72 | 4.95 | SMT | 784001 7843833 | |||
78438356010 | SPEC | 8 files | 1 | 5.3 | 11.5 | 15 | 55 | 10.1 | SMT | 784001 7843833 | |||
78438324010 | SPEC | 8 files | 1 | 3.2 | 6.3 | 60 | 85 | 4.05 | SMT | 784001 7843832 | |||
78438336010 | SPEC | 8 files | 1 | 3.25 | 6.5 | 32 | 67 | 6.15 | SMT | 784001 7843833 | |||
78438357010 | SPEC | 8 files | 1 | 6.2 | 12.5 | 13.5 | 59 | 10.25 | SMT | 784001 | |||
78438356010HT | SPEC | 8 files | 1 | 4.25 | 9.3 | 15.5 | 46 | 8.75 | SMT | – | |||
78438366010 | SPEC | 8 files | 1 | 6.25 | 14 | 13.1 | 50 | 11.1 | SMT | – | |||
78438367010 | SPEC | 8 files | 1 | 5.95 | 13.1 | 11.5 | 44.5 | 11.85 | SMT | – | |||
78438313010 | SPEC | 8 files | 1 | 2.25 | 4.25 | 159 | 111 | 2.2 | SMT | – | |||
NEW | 78438324010HT | SPEC | – | 7 files | 1 | 2.2 | 4.8 | 61.5 | 71 | 3.9 | SMT | – | |
NEW | 78438335010HT | SPEC | – | 7 files | 1 | 3 | 5.9 | 53.2 | 73 | 4.5 | SMT | – | |
NEW | 78438377010HT | SPEC | – | 7 files | 1 | 8.7 | 18 | 6.9 | 47 | 15.2 | SMT | – | |
NEW | 78438343010 | SPEC | 7 files | 1 | 2.5 | 4.7 | 104 | 99 | 2.8 | SMT | – | ||
78438323012 | SPEC | 8 files | 1.2 | 2.45 | 4.85 | 106 | 75 | 3.05 | SMT | 7843832 | |||
78438334012 | SPEC | 8 files | 1.2 | 4.15 | 7.5 | 66 | 66 | 4.05 | SMT | 784001 7843833 | |||
78438356012 | SPEC | 8 files | 1.2 | 5.55 | 11.2 | 18 | 52 | 8.9 | SMT | – | |||
78438324012 | SPEC | 8 files | 1.2 | 3.05 | 5.8 | 80 | 80 | 3.4 | SMT | – | |||
78438336012 | SPEC | 8 files | 1.2 | 3.05 | 6 | 36 | 57 | 5.65 | SMT | 7843833 | |||
78438357012 | SPEC | 6 files | 1.2 | 5.55 | 11.6 | 15.5 | 51 | 9.4 | SMT | – | |||
78438356012HT | SPEC | 8 files | 1.2 | 4.3 | 9.3 | 18.4 | 45 | 8 | SMT | – | |||
78438313012 | SPEC | 8 files | 1.2 | 2.2 | 4.1 | 174 | 109 | 2.1 | SMT | – | |||
NEW | 78438324012HT | SPEC | – | 7 files | 1.2 | 2.3 | 4.7 | 74.7 | 67 | 3.5 | SMT | – | |
NEW | 78438343012 | SPEC | – | 7 files | 1.2 | 2.55 | 4.9 | 136 | 96 | 2.4 | SMT | – | |
78438323015 | SPEC | 8 files | 1.5 | 2.25 | 4.75 | 110 | 65 | 2.85 | SMT | 7843832 | |||
78438334015 | SPEC | 8 files | 1.5 | 3.9 | 7.1 | 96 | 60 | 3.3 | SMT | 7843833 | |||
78438356015 | SPEC | 8 files | 1.5 | 4.8 | 10.2 | 19 | 48 | 8.6 | SMT | 7843833 | |||
78438324015 | SPEC | 8 files | 1.5 | 2.5 | 4.7 | 99 | 60 | 3.05 | SMT | – | |||
78438336015 | SPEC | 8 files | 1.5 | 2.95 | 5.85 | 39 | 51 | 5.35 | SMT | – | |||
78438357015 | SPEC | 6 files | 1.5 | 5.55 | 11 | 20 | 48 | 8.2 | SMT | – | |||
78438356015HT | SPEC | 8 files | 1.5 | 4.2 | 9 | 20.7 | 40 | 7.45 | SMT | – | |||
78438366015 | SPEC | 8 files | 1.5 | 5.85 | 13.2 | 21.3 | 35 | 8.45 | SMT | – | |||
78438313015 | SPEC | 8 files | 1.5 | 1.8 | 3.45 | 237 | 90 | 1.8 | SMT | – | |||
NEW | 78438324015HT | SPEC | – | 7 files | 1.5 | 1.9 | 4 | 102.1 | 56 | 2.9 | SMT | – | |
NEW | 78438343015 | SPEC | – | 7 files | 1.5 | 2 | 3.95 | 180 | 85 | 2.05 | SMT | – | |
78438356018 | SPEC | 8 files | 1.8 | 4.35 | 8.7 | 30 | 40 | 6.8 | SMT | – | |||
78438357018 | SPEC | 6 files | 1.8 | 5.05 | 10.3 | 21 | 42 | 7.9 | SMT | – | |||
78438356018HT | SPEC | 8 files | 1.8 | 3.95 | 8.3 | 29.9 | 37.5 | 6.05 | SMT | – | |||
78438322022 | SPEC | 8 files | 2.2 | 1.4 | 2.8 | 302 | 60 | 1.65 | SMT | 784001 7843832 | |||
78438323022 | SPEC | 8 files | 2.2 | 2 | 3.55 | 176 | 60 | 2.2 | SMT | 7843832 | |||
78438333022 | SPEC | 8 files | 2.2 | 2.75 | 4.85 | 172 | 50 | 2.35 | SMT | 784001 7843833 | |||
78438334022 | SPEC | 8 files | 2.2 | 3.6 | 6.1 | 115 | 50 | 2.9 | SMT | 784001 7843833 | |||
78438335022 | SPEC | 8 files | 2.2 | 2.5 | 4.2 | 108 | 45 | 3 | SMT | 7843833 | |||
78438356022 | SPEC | 8 files | 2.2 | 4.05 | 7.9 | 35 | 34 | 6.2 | SMT | 784001 7843833 | |||
78438324022 | SPEC | 8 files | 2.2 | 1.85 | 3.65 | 141 | 57 | 2.45 | SMT | 7843832 | |||
78438336022 | SPEC | 8 files | 2.2 | 2.75 | 5.55 | 80 | 42 | 3.6 | SMT | 7843833 | |||
78438357022 | SPEC | 6 files | 2.2 | 4.6 | 9.2 | 26 | 35 | 7.1 | SMT | – | |||
78438356022HT | SPEC | 8 files | 2.2 | 3.7 | 7.6 | 32.2 | 30 | 5.9 | SMT | – | |||
78438366022 | SPEC | 8 files | 2.2 | 5.35 | 12 | 27.3 | 31.5 | 7.4 | SMT | – | |||
78438367022 | SPEC | 8 files | 2.2 | 4.55 | 10.2 | 16.1 | 28 | 9.8 | SMT | – | |||
78438313022 | SPEC | 8 files | 2.2 | 1.5 | 3.25 | 388 | 70 | 1.25 | SMT | – | |||
NEW | 78438324022HT | SPEC | – | 7 files | 2.2 | 1.6 | 3.5 | 162.5 | 53 | 2.2 | SMT | – | |
NEW | 78438335022HT | SPEC | – | 7 files | 2.2 | 2.4 | 5 | 96 | 42 | 3.2 | SMT | – | |
NEW | 78438336022HT | SPEC | – | 7 files | 2.2 | 2.3 | 5.2 | 65.5 | 47 | 4 | SMT | – | |
NEW | 78438377022HT | SPEC | – | 7 files | 2.2 | 6.3 | 12.8 | 13.7 | 28 | 11.4 | SMT | – | |
NEW | 78438343022 | SPEC | – | 7 files | 2.2 | 1.65 | 3.3 | 270 | 70 | 1.65 | SMT | – | |
78438323033 | SPEC | 8 files | 3.3 | 1.35 | 2.7 | 264 | 50 | 1.75 | SMT | 7843832 | |||
78438333033 | SPEC | 8 files | 3.3 | 2.05 | 3.7 | 266 | 38 | 1.85 | SMT | 7843833 | |||
78438334033 | SPEC | 8 files | 3.3 | 2.75 | 5.1 | 179.7 | 36 | 2.25 | SMT | 7843833 | |||
78438335033 | SPEC | 8 files | 3.3 | 2.25 | 3.85 | 131 | 35 | 2.7 | SMT | 7843833 | |||
78438356033 | SPEC | 8 files | 3.3 | 3.55 | 7.1 | 48 | 26 | 5.15 | SMT | – | |||
78438324033 | SPEC | 8 files | 3.3 | 1.75 | 3.3 | 260 | 42 | 1.7 | SMT | – | |||
78438336033 | SPEC | 8 files | 3.3 | 2.85 | 5.35 | 114 | 39 | 2.9 | SMT | – | |||
78438356033HT | SPEC | 8 files | 3.3 | 3.1 | 6.5 | 51.8 | 25.5 | 4.45 | SMT | – | |||
78438366033 | SPEC | 8 files | 3.3 | 4.4 | 9.7 | 38.4 | 23 | 6.1 | SMT | – | |||
78438367033 | SPEC | 8 files | 3.3 | 4.35 | 10 | 23 | 22 | 8 | SMT | – | |||
78438357033 | SPEC | 5 files | 3.3 | 3.3 | 7 | 33.5 | 26 | 6.1 | SMT | – | |||
NEW | 78438324033HT | SPEC | – | 7 files | 3.3 | 1.4 | 3 | 274.7 | 42 | 1.7 | SMT | – | |
NEW | 78438335033HT | SPEC | – | 7 files | 3.3 | 2 | 4 | 133 | 35 | 2.7 | SMT | – | |
NEW | 78438377033HT | SPEC | – | 7 files | 3.3 | 5.2 | 11.2 | 20.4 | 22 | 9.6 | SMT | – | |
78438323047 | SPEC | 8 files | 4.7 | 1.1 | 2.3 | 388 | 35 | 1.4 | SMT | 784001 7843832 | |||
78438333047 | SPEC | 8 files | 4.7 | 1.65 | 3 | 409 | 35 | 1.45 | SMT | 784001 7843833 | |||
78438334047 | SPEC | 8 files | 4.7 | 2.6 | 4.75 | 307.8 | 30 | 1.7 | SMT | 784001 7843833 | |||
78438335047 | SPEC | 8 files | 4.7 | 1.85 | 3.7 | 162 | 30 | 2.4 | SMT | 784001 7843833 | |||
78438356047 | SPEC | 8 files | 4.7 | 3.05 | 5.75 | 76 | 22 | 4 | SMT | 784001 7843833 | |||
78438324047 | SPEC | 8 files | 4.7 | 1.4 | 2.65 | 345 | 35 | 1.45 | SMT | 7843832 | |||
78438336047 | SPEC | 8 files | 4.7 | 2.4 | 5.15 | 158 | 30 | 2.4 | SMT | 784001 7843833 | |||
78438357047 | SPEC | 6 files | 4.7 | 4.15 | 8.2 | 44 | 24 | 5.1 | SMT | 784001 | |||
78438356047HT | SPEC | 8 files | 4.7 | 2.35 | 5.05 | 74.8 | 18 | 3.7 | SMT | – | |||
78438366047 | SPEC | 8 files | 4.7 | 3.5 | 7.7 | 63 | 20 | 4.65 | SMT | – | |||
78438367047 | SPEC | 8 files | 4.7 | 3.35 | 6.5 | 34.5 | 18.5 | 6.45 | SMT | – | |||
NEW | 78438324047HT | SPEC | – | 7 files | 4.7 | 1.1 | 2.4 | 367.6 | 33 | 1.4 | SMT | – | |
NEW | 78438335047HT | SPEC | – | 7 files | 4.7 | 1.4 | 3.2 | 187.4 | 26 | 2.2 | SMT | – | |
78438334056 | SPEC | 8 files | 5.6 | 2.1 | 3.7 | 389 | 28 | 1.45 | SMT | 7843833 | |||
78438356056 | SPEC | 8 files | 5.6 | 2.65 | 5.5 | 81 | 20 | 3.85 | SMT | 784001 7843833 | |||
78438324056 | SPEC | 8 files | 5.6 | 1.15 | 2.2 | 465 | 30 | 1.25 | SMT | – | |||
78438357056 | SPEC | 6 files | 5.6 | 3.9 | 8.1 | 51 | 21 | 4.7 | SMT | – | |||
78438356056HT | SPEC | 8 files | 5.6 | 2.25 | 4.9 | 80.5 | 17 | 3.5 | SMT | – | |||
78438323068 | SPEC | 8 files | 6.8 | 1.05 | 2 | 648 | 30 | 1.05 | SMT | 784001 7843832 | |||
78438334068 | SPEC | 8 files | 6.8 | 1.75 | 3.5 | 423.4 | 25 | 1.4 | SMT | 7843833 | |||
78438335068 | SPEC | 8 files | 6.8 | 1.6 | 3.1 | 287 | 25 | 1.75 | SMT | 784001 7843833 | |||
78438324068 | SPEC | 8 files | 6.8 | 1 | 2.05 | 640 | 27 | 1.05 | SMT | 784001 7843832 | |||
78438336068 | SPEC | 8 files | 6.8 | 1.85 | 3.65 | 193 | 22 | 2.15 | SMT | 784001 | |||
78438357068 | SPEC | 6 files | 6.8 | 3.5 | 7.2 | 74 | 19.5 | 3.75 | SMT | – | |||
78438367068 | SPEC | 8 files | 6.8 | 3.7 | 7.7 | 48.3 | 15.5 | 5.3 | SMT | – | |||
NEW | 78438335068HT | SPEC | – | 7 files | 6.8 | 1.4 | 3 | 310.7 | 22 | 1.7 | SMT | – | |
78438323082 | SPEC | 8 files | 8.2 | 0.9 | 1.85 | 743 | 27 | 0.95 | SMT | 7843832 | |||
78438324082 | SPEC | 8 files | 8.2 | 1 | 1.9 | 720 | 25 | 0.95 | SMT | – | |||
78438357082 | SPEC | 6 files | 8.2 | 3.35 | 6.8 | 86 | 17 | 3.45 | SMT | – | |||
78438367082 | SPEC | 8 files | 8.2 | 3.25 | 6.6 | 57.5 | 13 | 4.85 | SMT | – | |||
78438323100 | SPEC | 8 files | 10 | 0.85 | 1.7 | 843 | 25 | 0.9 | SMT | 784001 7843832 | |||
78438324100 | SPEC | 8 files | 10 | 0.95 | 1.75 | 780 | 23 | 0.9 | SMT | 784001 7843832 | |||
78438335100 | SPEC | 8 files | 10 | 1.35 | 3 | 513 | 21 | 1.25 | SMT | 784001 7843833 | |||
78438336100 | SPEC | 8 files | 10 | 1.55 | 3 | 322 | 18 | 1.65 | SMT | 784001 7843833 | |||
78438357100 | SPEC | 6 files | 10 | 3 | 5.95 | 110 | 15 | 3.05 | SMT | 784001 | |||
78438367100 | SPEC | 8 files | 10 | 3.25 | 6.6 | 70.2 | 13 | 4.3 | SMT | – | |||
NEW | 78438335100HT | SPEC | – | 7 files | 10 | 1.1 | 2.4 | 549.5 | 19 | 1.2 | SMT | – | |
78438335150 | SPEC | 8 files | 15 | 1.17 | 2.2 | 830 | 14 | 0.95 | SMT | 7843833 | |||
78438335220 | SPEC | 8 files | 22 | 1.1 | 2 | 1040 | 12 | 0.85 | SMT | 7843833 | |||
78438335330 | SPEC | 8 files | 33 | 0.9 | 1.7 | 1330 | 10 | 0.7 | SMT | 7843833 | |||
78438335470 | SPEC | 8 files | 47 | 0.75 | 1.5 | 2300 | 8 | 0.5 | SMT | 784001 7843833 |
Order Code | Datasheet | Simulation | |
---|---|---|---|
NEW | 7843835400033 | SPEC | – |
NEW | 7843835400068 | SPEC | – |
784383230033 | SPEC | ||
784383340033 | SPEC | ||
784383360033 | SPEC | ||
784383560033 | SPEC | ||
784383560033HT | SPEC | ||
784383130033 | SPEC | ||
NEW | 784383240033HT | SPEC | – |
NEW | 784383770033HT | SPEC | – |
784383210047 | SPEC | ||
784383220047 | SPEC | ||
784383230047 | SPEC | ||
784383240047 | SPEC | ||
784383340047 | SPEC | ||
784383350047 | SPEC | ||
784383360047 | SPEC | ||
784383560047HT | SPEC | ||
784383130047 | SPEC | ||
NEW | 784383240047HT | SPEC | – |
NEW | 784383430047 | SPEC | |
784383340056 | SPEC | ||
784383560056 | SPEC | ||
784383240056 | SPEC | ||
784383560056HT | SPEC | ||
784383130056 | SPEC | ||
NEW | 784383240056HT | SPEC | – |
NEW | 784383350056HT | SPEC | – |
NEW | 784383430056 | SPEC | |
784383230068 | SPEC | ||
784383340068 | SPEC | ||
784383350068 | SPEC | ||
784383560068 | SPEC | ||
784383240068 | SPEC | ||
784383360068 | SPEC | ||
784383560068HT | SPEC | ||
784383130068 | SPEC | ||
NEW | 784383350068HT | SPEC | – |
NEW | 784383770068HT | SPEC | – |
NEW | 784383430068 | SPEC | |
784383230082 | SPEC | ||
784383350082 | SPEC | ||
784383660082 | SPEC | ||
784383130082 | SPEC | ||
NEW | 784383430082 | SPEC | |
78438321010 | SPEC | ||
78438322010 | SPEC | ||
78438323010 | SPEC | ||
78438334010 | SPEC | ||
78438335010 | SPEC | ||
78438356010 | SPEC | ||
78438324010 | SPEC | ||
78438336010 | SPEC | ||
78438357010 | SPEC | ||
78438356010HT | SPEC | ||
78438366010 | SPEC | ||
78438367010 | SPEC | ||
78438313010 | SPEC | ||
NEW | 78438324010HT | SPEC | – |
NEW | 78438335010HT | SPEC | – |
NEW | 78438377010HT | SPEC | – |
NEW | 78438343010 | SPEC | |
78438323012 | SPEC | ||
78438334012 | SPEC | ||
78438356012 | SPEC | ||
78438324012 | SPEC | ||
78438336012 | SPEC | ||
78438357012 | SPEC | ||
78438356012HT | SPEC | ||
78438313012 | SPEC | ||
NEW | 78438324012HT | SPEC | – |
NEW | 78438343012 | SPEC | – |
78438323015 | SPEC | ||
78438334015 | SPEC | ||
78438356015 | SPEC | ||
78438324015 | SPEC | ||
78438336015 | SPEC | ||
78438357015 | SPEC | ||
78438356015HT | SPEC | ||
78438366015 | SPEC | ||
78438313015 | SPEC | ||
NEW | 78438324015HT | SPEC | – |
NEW | 78438343015 | SPEC | – |
78438356018 | SPEC | ||
78438357018 | SPEC | ||
78438356018HT | SPEC | ||
78438322022 | SPEC | ||
78438323022 | SPEC | ||
78438333022 | SPEC | ||
78438334022 | SPEC | ||
78438335022 | SPEC | ||
78438356022 | SPEC | ||
78438324022 | SPEC | ||
78438336022 | SPEC | ||
78438357022 | SPEC | ||
78438356022HT | SPEC | ||
78438366022 | SPEC | ||
78438367022 | SPEC | ||
78438313022 | SPEC | ||
NEW | 78438324022HT | SPEC | – |
NEW | 78438335022HT | SPEC | – |
NEW | 78438336022HT | SPEC | – |
NEW | 78438377022HT | SPEC | – |
NEW | 78438343022 | SPEC | – |
78438323033 | SPEC | ||
78438333033 | SPEC | ||
78438334033 | SPEC | ||
78438335033 | SPEC | ||
78438356033 | SPEC | ||
78438324033 | SPEC | ||
78438336033 | SPEC | ||
78438356033HT | SPEC | ||
78438366033 | SPEC | ||
78438367033 | SPEC | ||
78438357033 | SPEC | ||
NEW | 78438324033HT | SPEC | – |
NEW | 78438335033HT | SPEC | – |
NEW | 78438377033HT | SPEC | – |
78438323047 | SPEC | ||
78438333047 | SPEC | ||
78438334047 | SPEC | ||
78438335047 | SPEC | ||
78438356047 | SPEC | ||
78438324047 | SPEC | ||
78438336047 | SPEC | ||
78438357047 | SPEC | ||
78438356047HT | SPEC | ||
78438366047 | SPEC | ||
78438367047 | SPEC | ||
NEW | 78438324047HT | SPEC | – |
NEW | 78438335047HT | SPEC | – |
78438334056 | SPEC | ||
78438356056 | SPEC | ||
78438324056 | SPEC | ||
78438357056 | SPEC | ||
78438356056HT | SPEC | ||
78438323068 | SPEC | ||
78438334068 | SPEC | ||
78438335068 | SPEC | ||
78438324068 | SPEC | ||
78438336068 | SPEC | ||
78438357068 | SPEC | ||
78438367068 | SPEC | ||
NEW | 78438335068HT | SPEC | – |
78438323082 | SPEC | ||
78438324082 | SPEC | ||
78438357082 | SPEC | ||
78438367082 | SPEC | ||
78438323100 | SPEC | ||
78438324100 | SPEC | ||
78438335100 | SPEC | ||
78438336100 | SPEC | ||
78438357100 | SPEC | ||
78438367100 | SPEC | ||
NEW | 78438335100HT | SPEC | – |
78438335150 | SPEC | ||
78438335220 | SPEC | ||
78438335330 | SPEC | ||
78438335470 | SPEC |
Samples |
---|
Order Code | Datasheet | Simulation | Downloads | L (µH) | ISAT,10% (A) | ISAT,30% (A) | RDC max. (mΩ) | fres (MHz) | IRP,40K (A) | Mount | Design Kit | Samples |
---|
The innovative design in detail
Advantages at a glance
Lowest AC & DC losses
Excellent temperature stability
Innovative Metall Alloy Core Material
Assortments
Articles from this product series can be found in the following assortments:
