OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyTerminal BlocksProduct sub-familyRising Cage ClampPitchPitch 5.00 mmProduct seriesWR-TBL Series 7097 - Rising Cage Clamp 5.0mm pitch - Horizontal cable entry - SMT

WR-TBL Series 7097 - Rising Cage Clamp 5.0mm pitch - Horizontal cable entry - SMT

General Information
Operating Temperature-40 °C up to +130 °C
ComplianceRoHS
Pitch5 mm
Material Properties
Insulator MaterialPA46
Insulator Flammability RatingUL94 V-0
Pin MaterialBrass
Pin PlatingTin over Nickel
Cage MaterialBrass
Cage PlatingNickel
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
ScrewM3
Electrical Properties
IR cULus6 A
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Contact Resistance [cULus]20 mΩ
Certification
cULus ApprovalE315414
Mechanical Properties
Wire Strip Length7 up to 8 (mm)
ScrewM3
Packaging Properties
PackagingTape and Reel with Cap
Wire Properties
Wire Strip Length7 up to 8 (mm)
Solid Wire Section (AWG)30 to 14 (AWG)
Solid Wire Section (Metric)0.2 to 1.5 (mm²)
Stranded Wire Section (AWG)30 to 14 (AWG)
Stranded Wire Section (Metric)0.2 to 1.5 (mm²)

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691709710302SPEC
6 files 2 Rising Cage Clamp PCB No Horizontal 30 to 14 (AWG) 0.2 to 1.5 (mm²)691001
691709710303SPEC
6 files 3 Rising Cage Clamp PCB No Horizontal 30 to 14 (AWG) 0.2 to 1.5 (mm²)691001
691709710304SPEC
6 files 4 Rising Cage Clamp PCB No Horizontal 30 to 14 (AWG) 0.2 to 1.5 (mm²)
691709710305SPEC
6 files 5 Rising Cage Clamp PCB No Horizontal 30 to 14 (AWG) 0.2 to 1.5 (mm²)
691709710306SPEC
6 files 6 Rising Cage Clamp PCB No Horizontal 30 to 14 (AWG) 0.2 to 1.5 (mm²)
691709710308SPEC
6 files 8 Rising Cage Clamp PCB No Horizontal 30 to 14 (AWG) 0.2 to 1.5 (mm²)
Order Code Data­sheet
691709710302SPEC
691709710303SPEC
691709710304SPEC
691709710305SPEC
691709710306SPEC
691709710308SPEC
Samples
Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

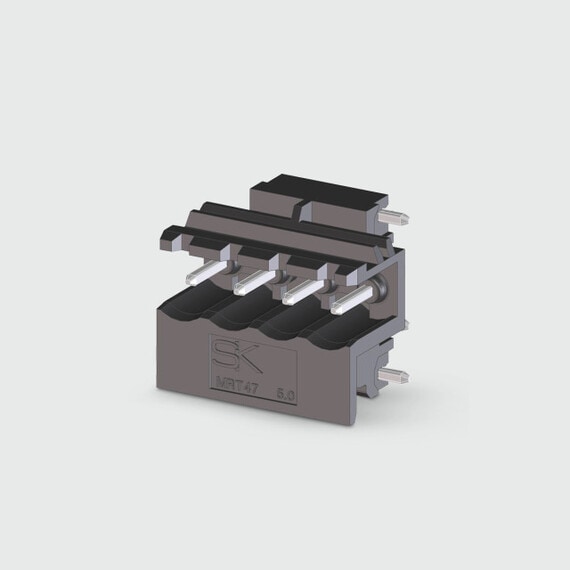

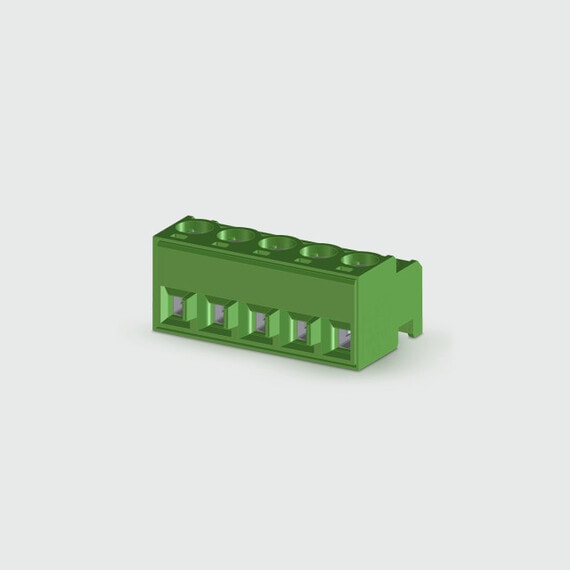

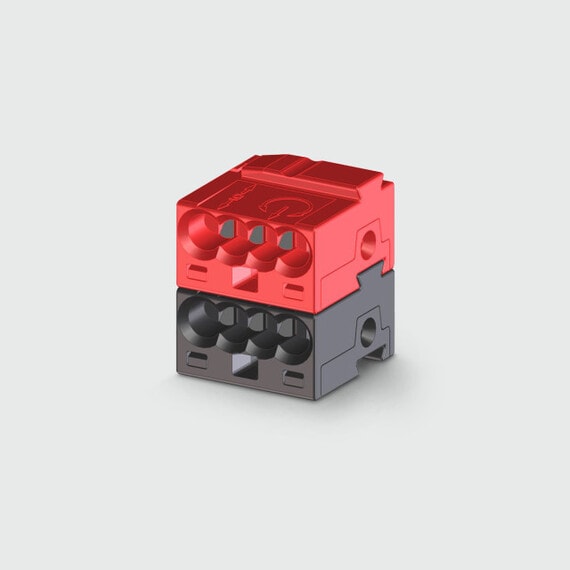

Custom & Standard Terminal Blocks

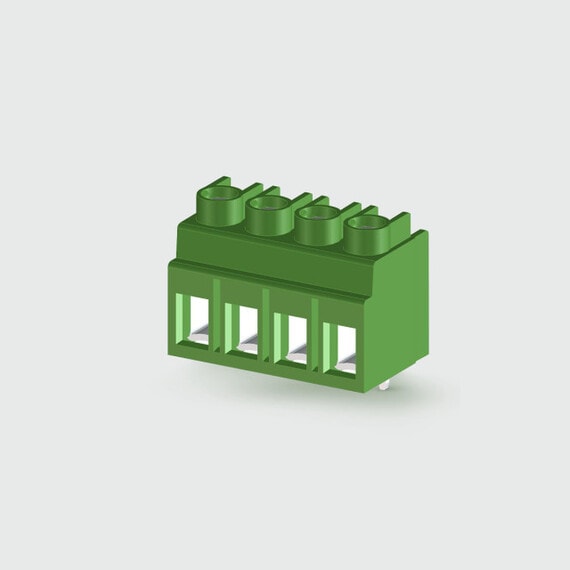

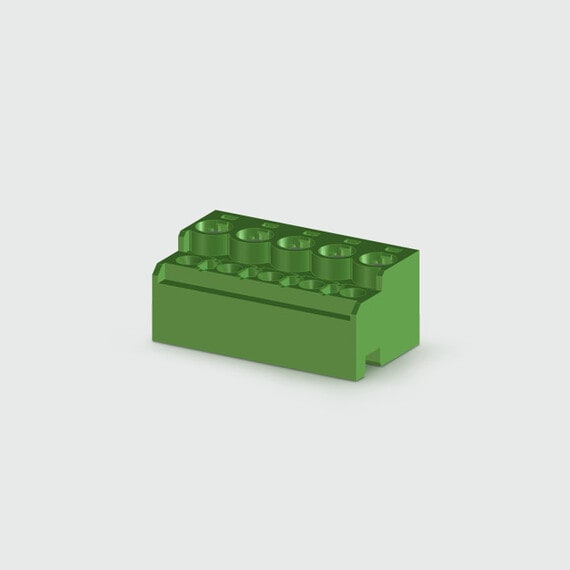

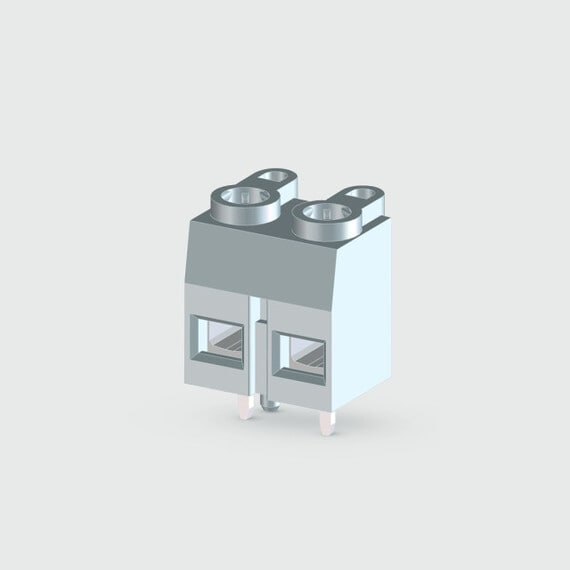

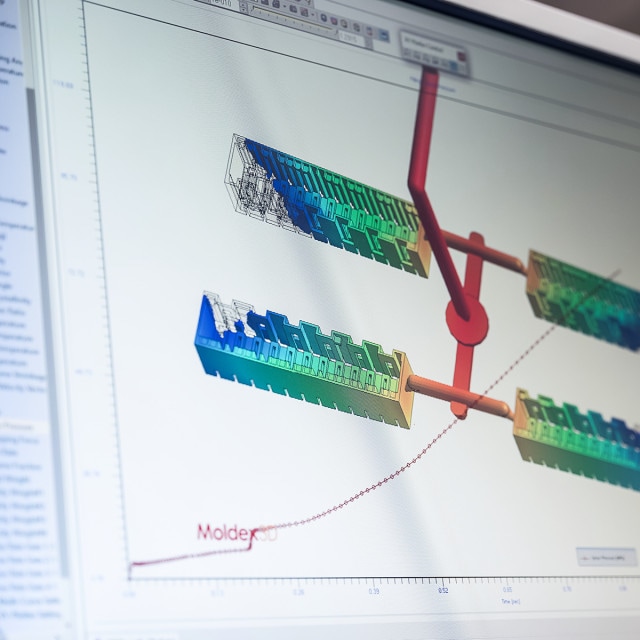

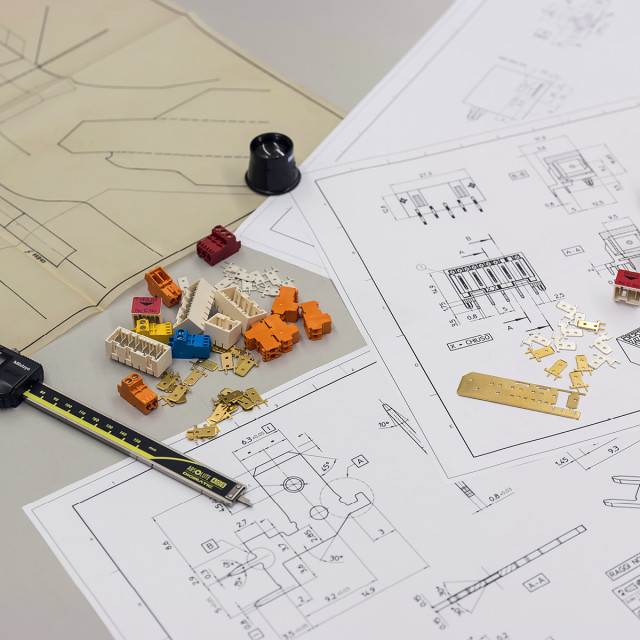

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.

  • Highly customized products
  • Over 2000 standard articles
  • Available from stock without MOQ
  • Personalized modifications of standard parts for small quantities
  • Color & printing possibilities with MOQ for mass production

Personalized Modifications of Standard Terminal Blocks

Ink Jet

Printing for your terminal blocks (e.g. coding, personalization)

Coding

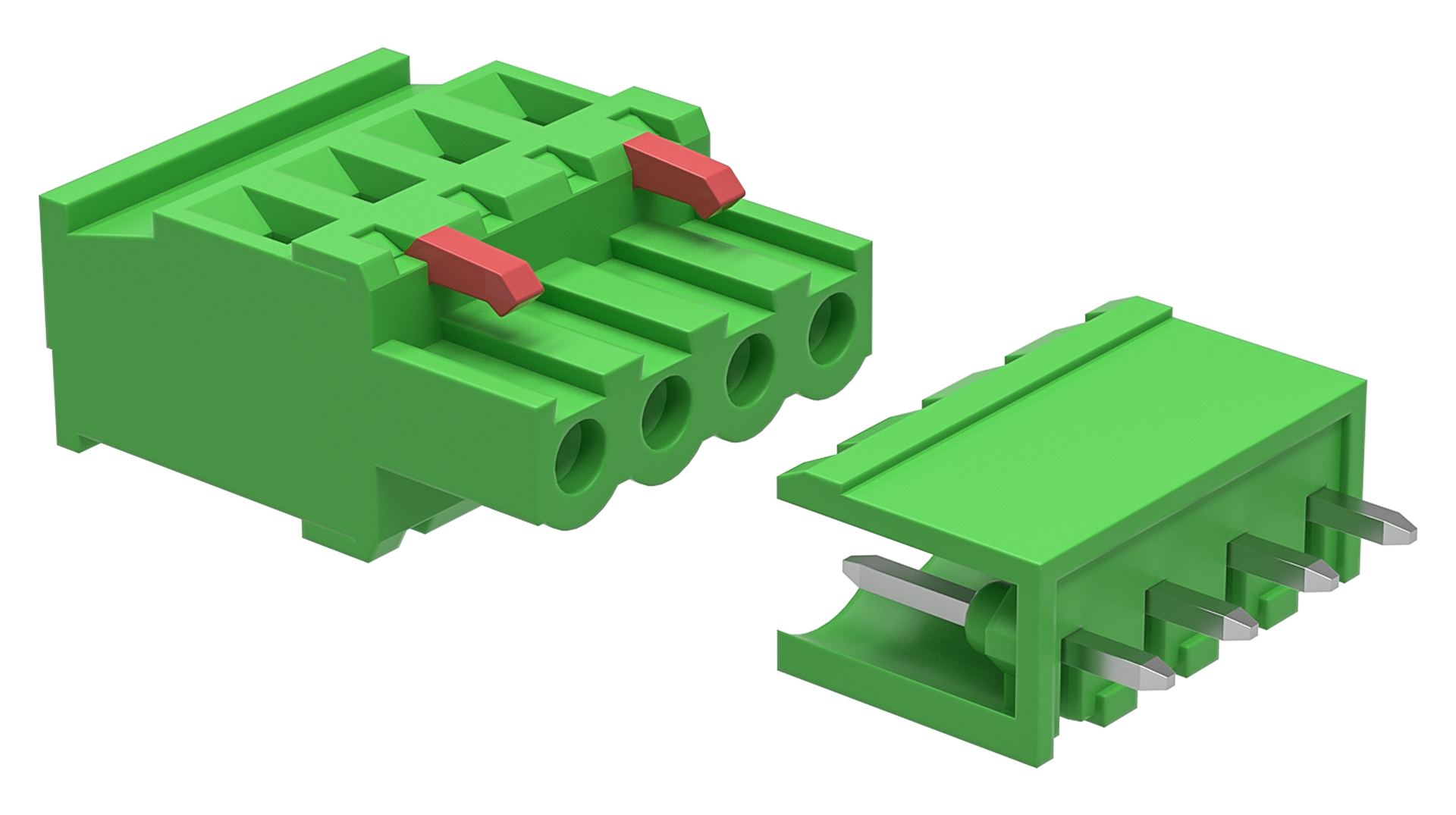

Installation of coding pins according to keying specification

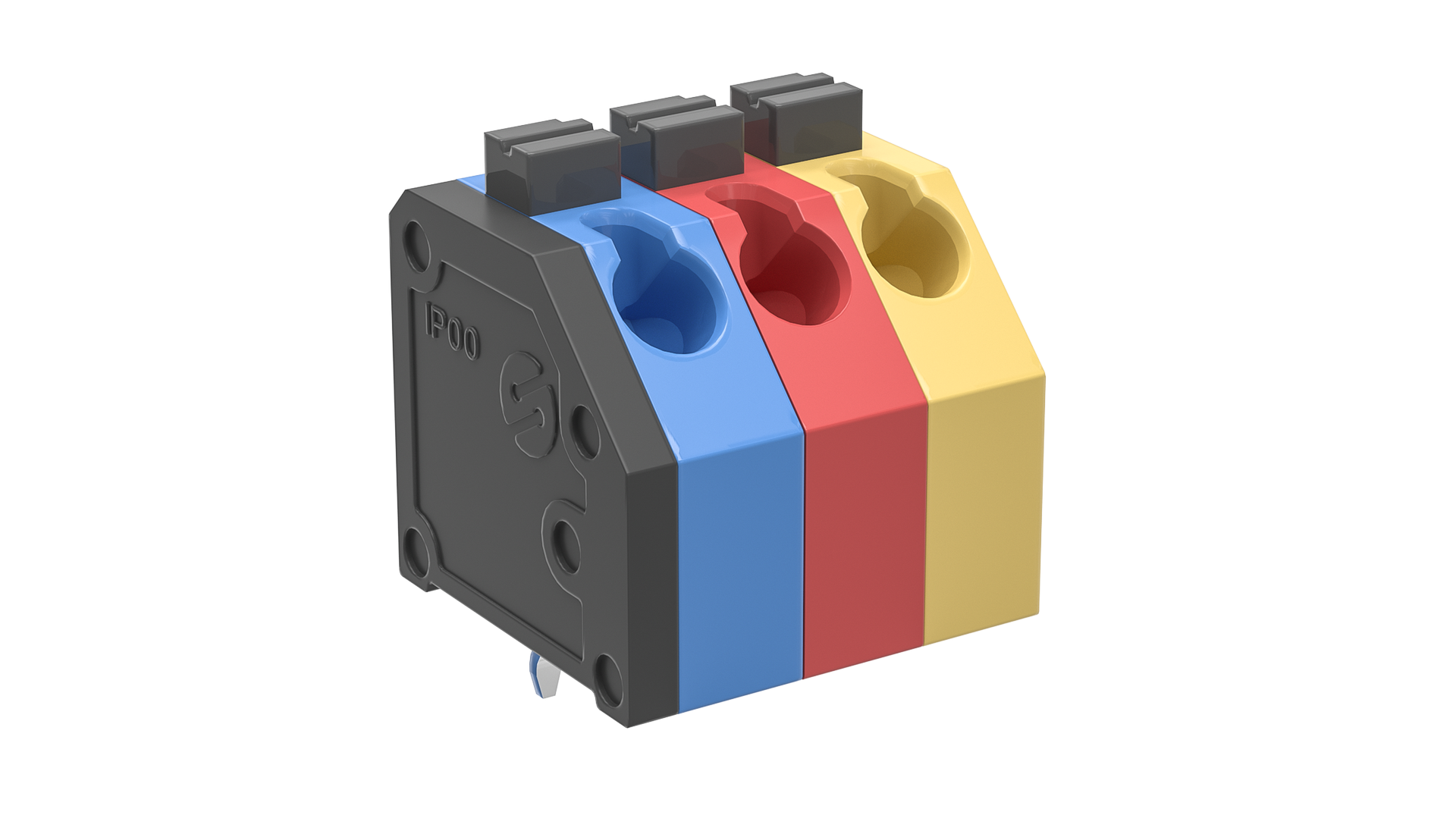

Color Coding

For selected series according to your specifications (412B / 412MB / 413B)

Assembly

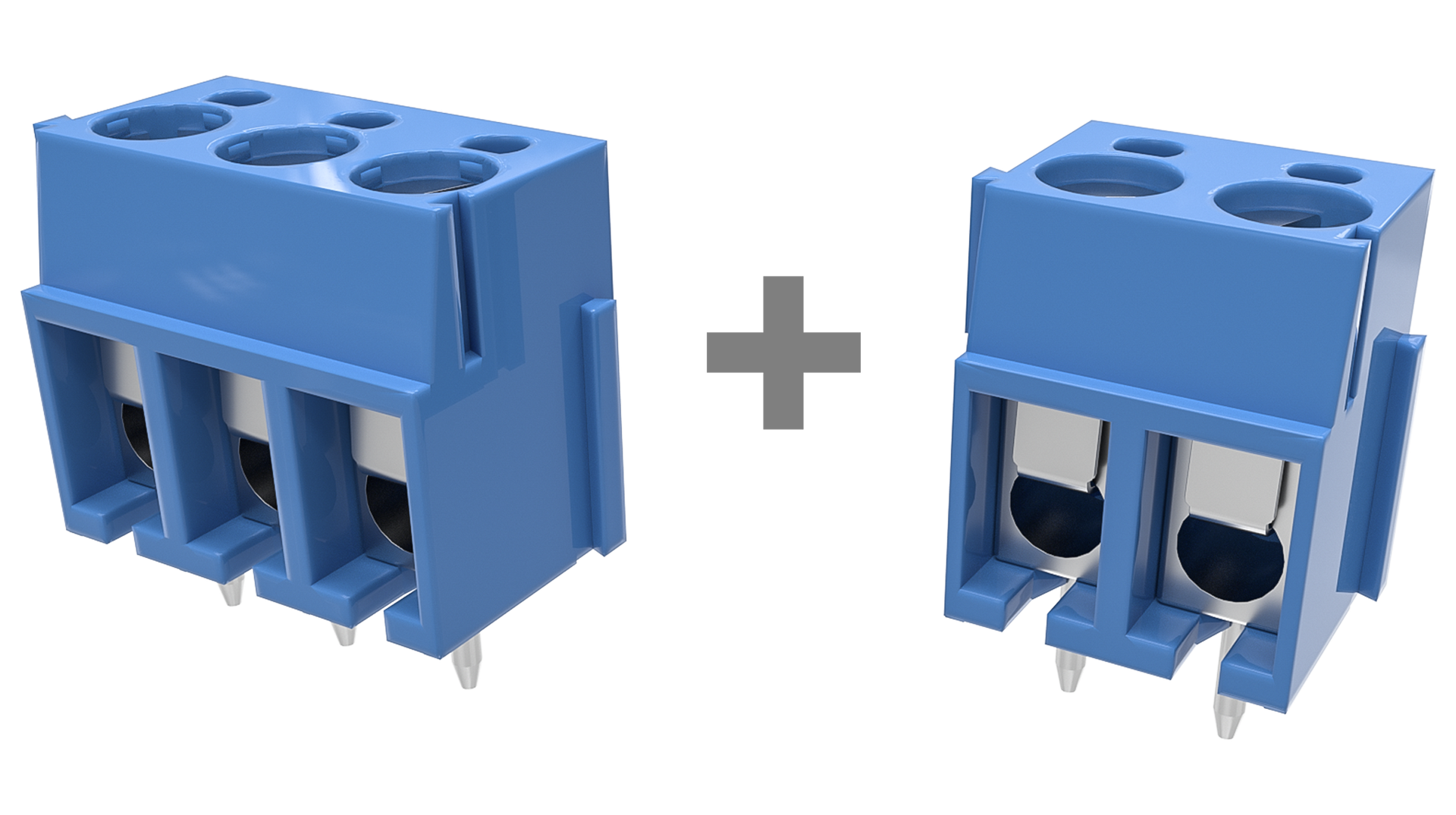

Rapid assembly of pin numbers according to your needs
