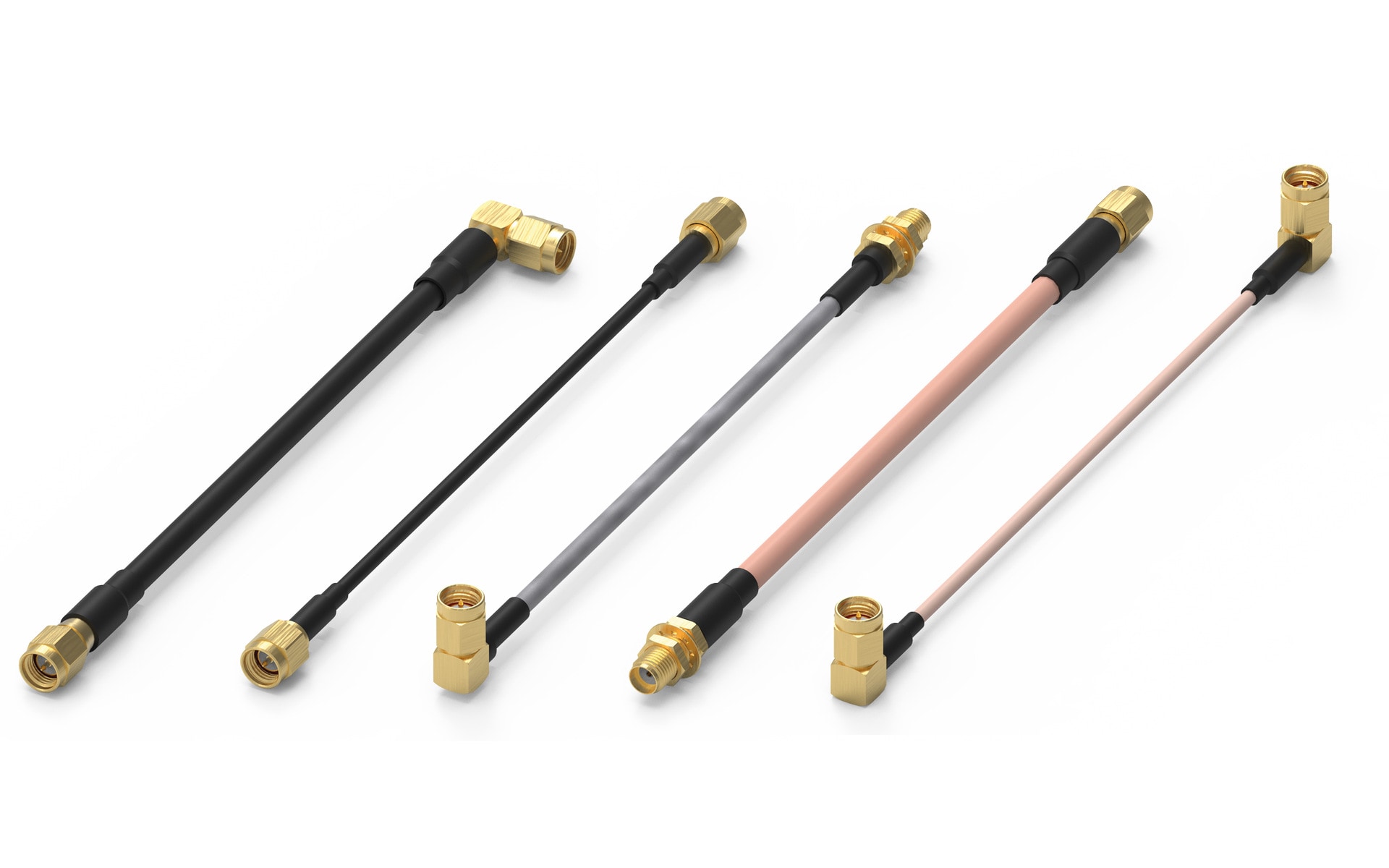

WR-CXASY SMA to SMA

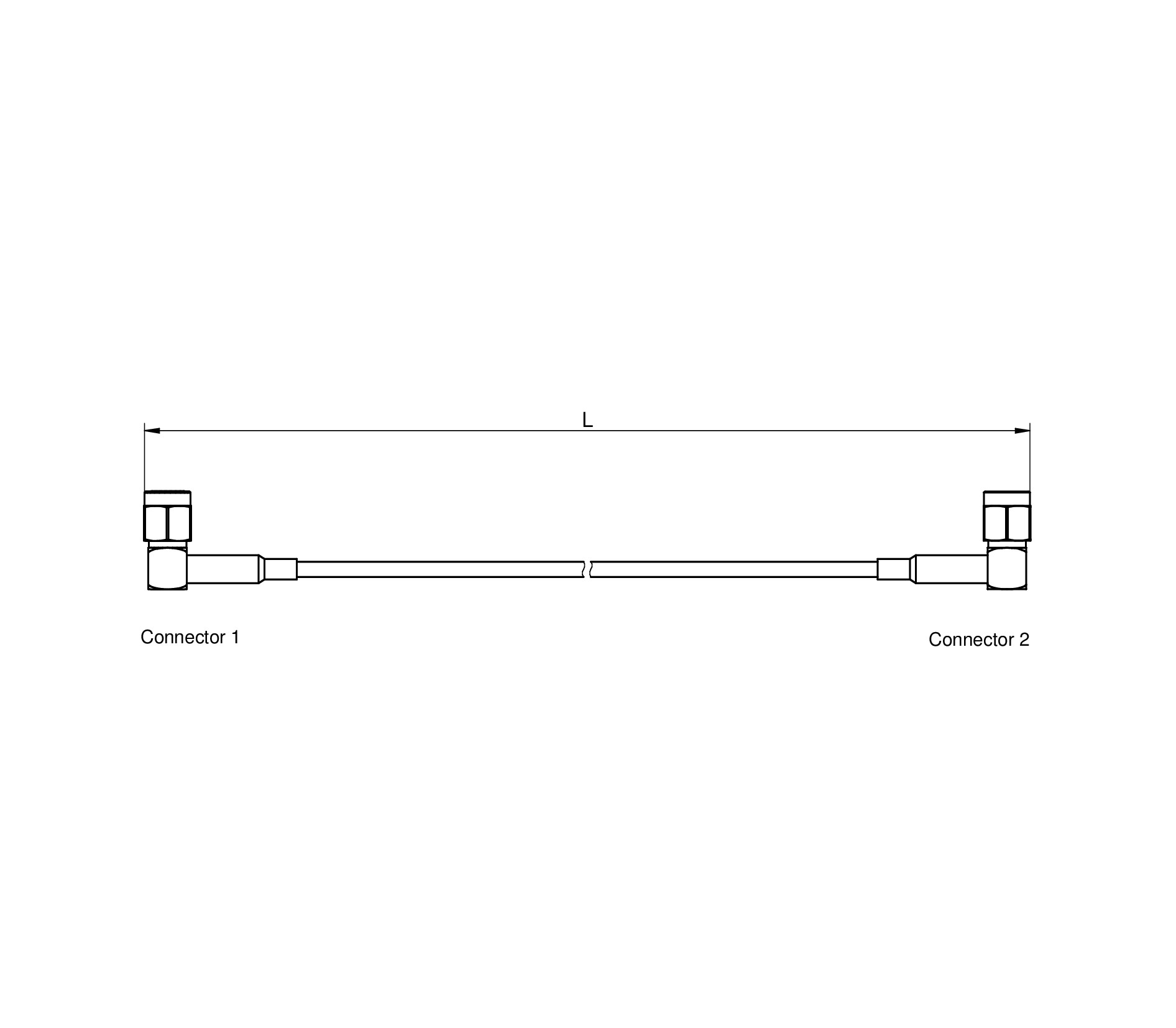

Bauform	Maße

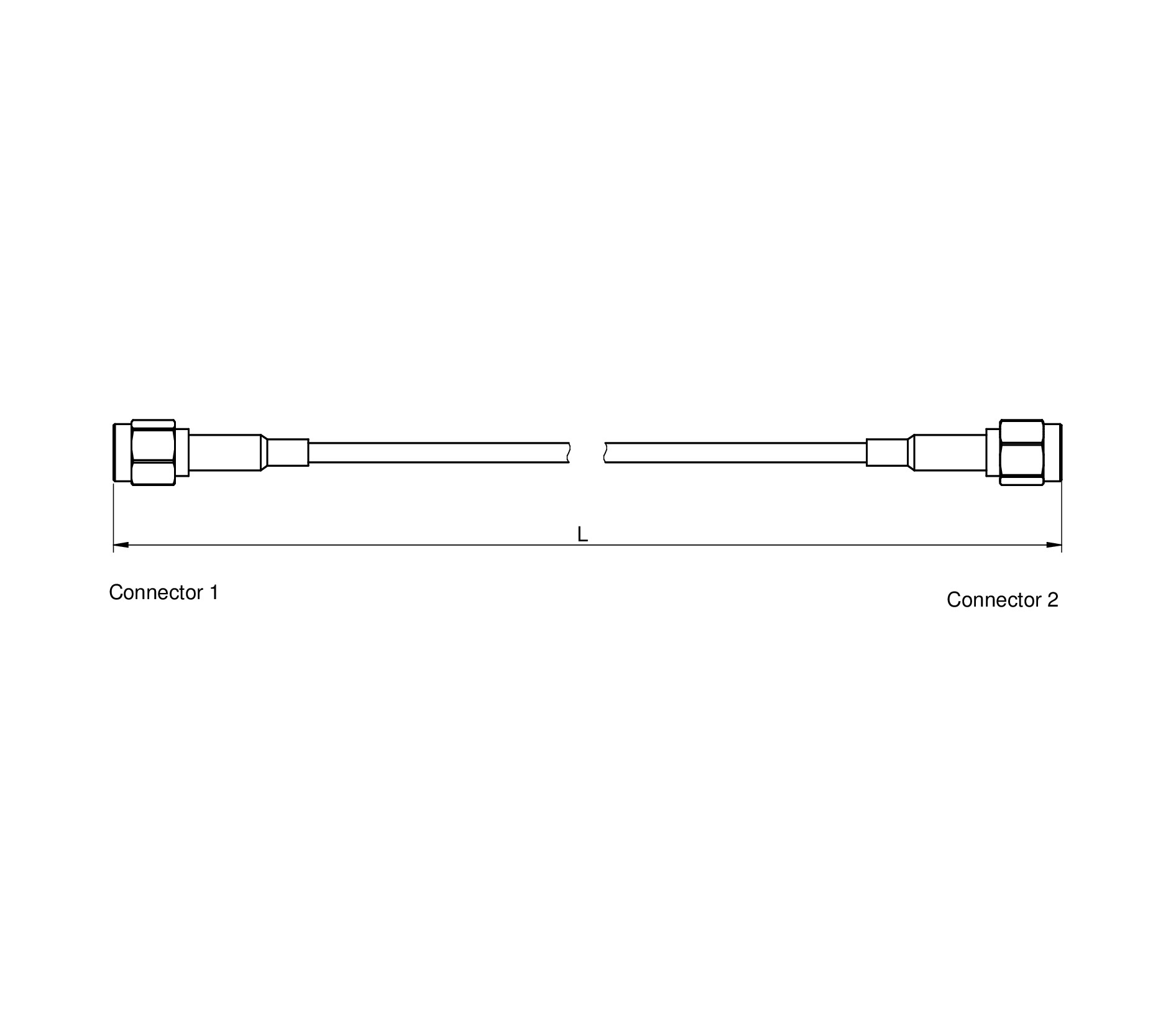

Straight Plug \| Straight Plug

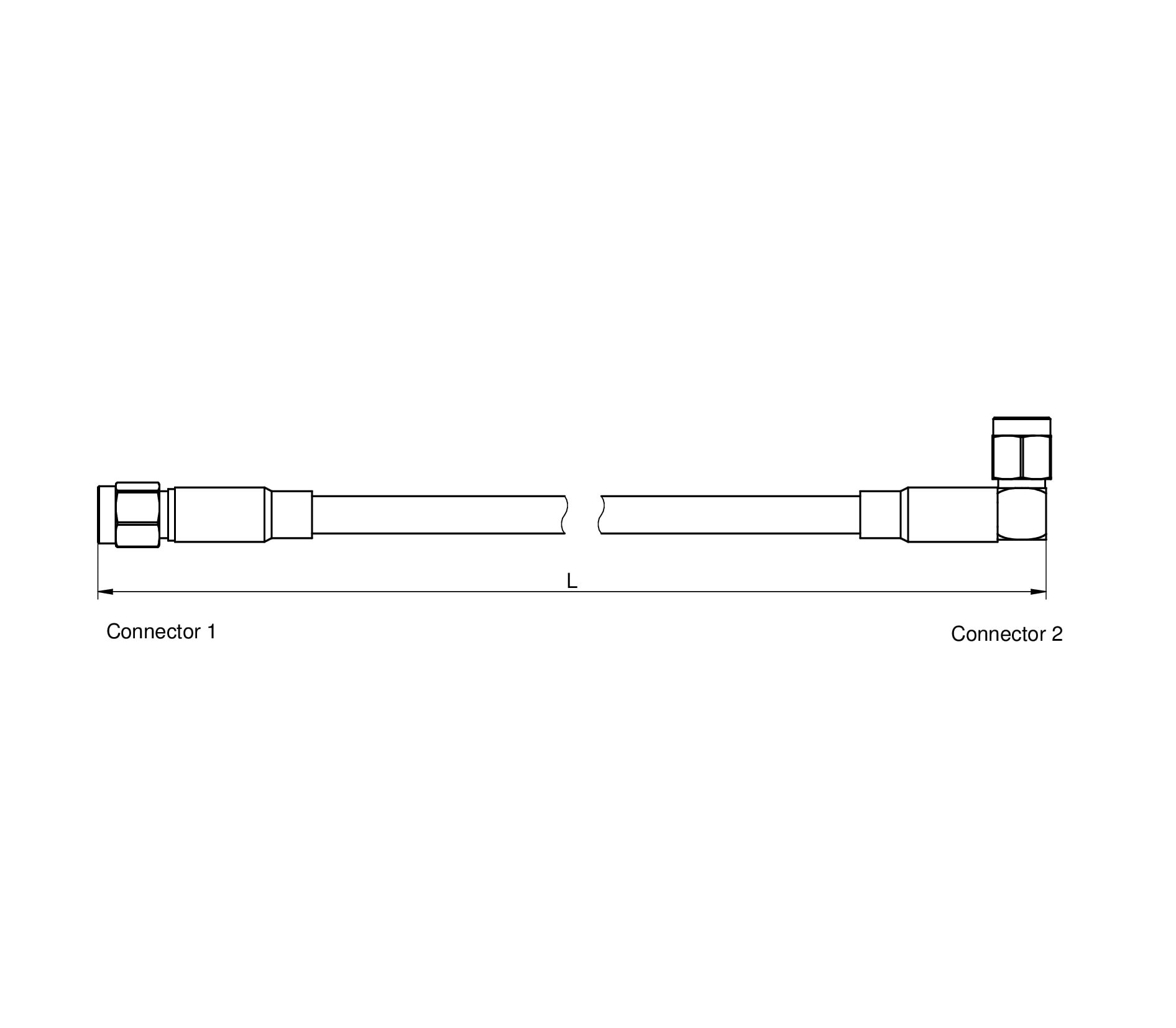

Straight Plug \| Right Angle Plug

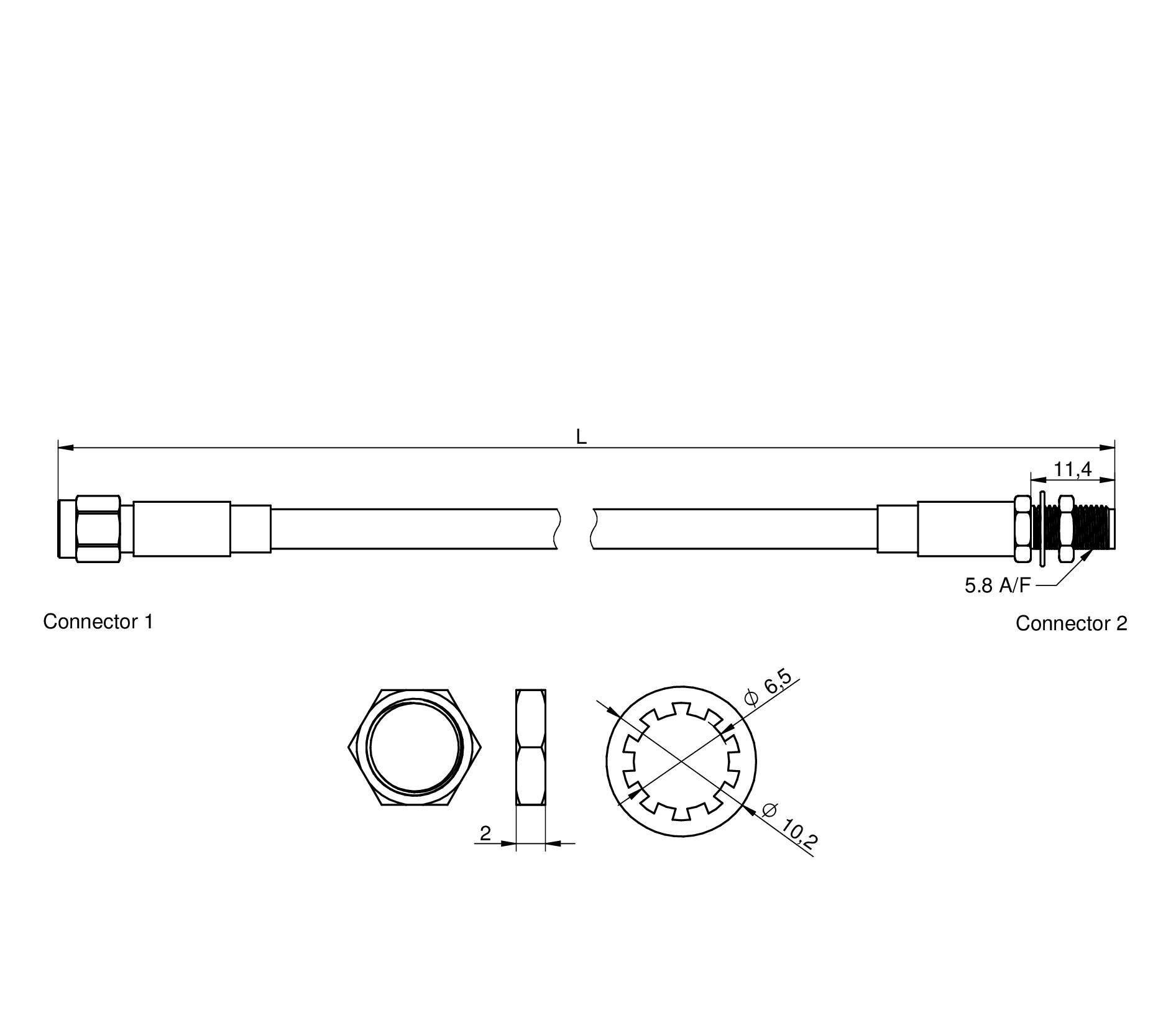

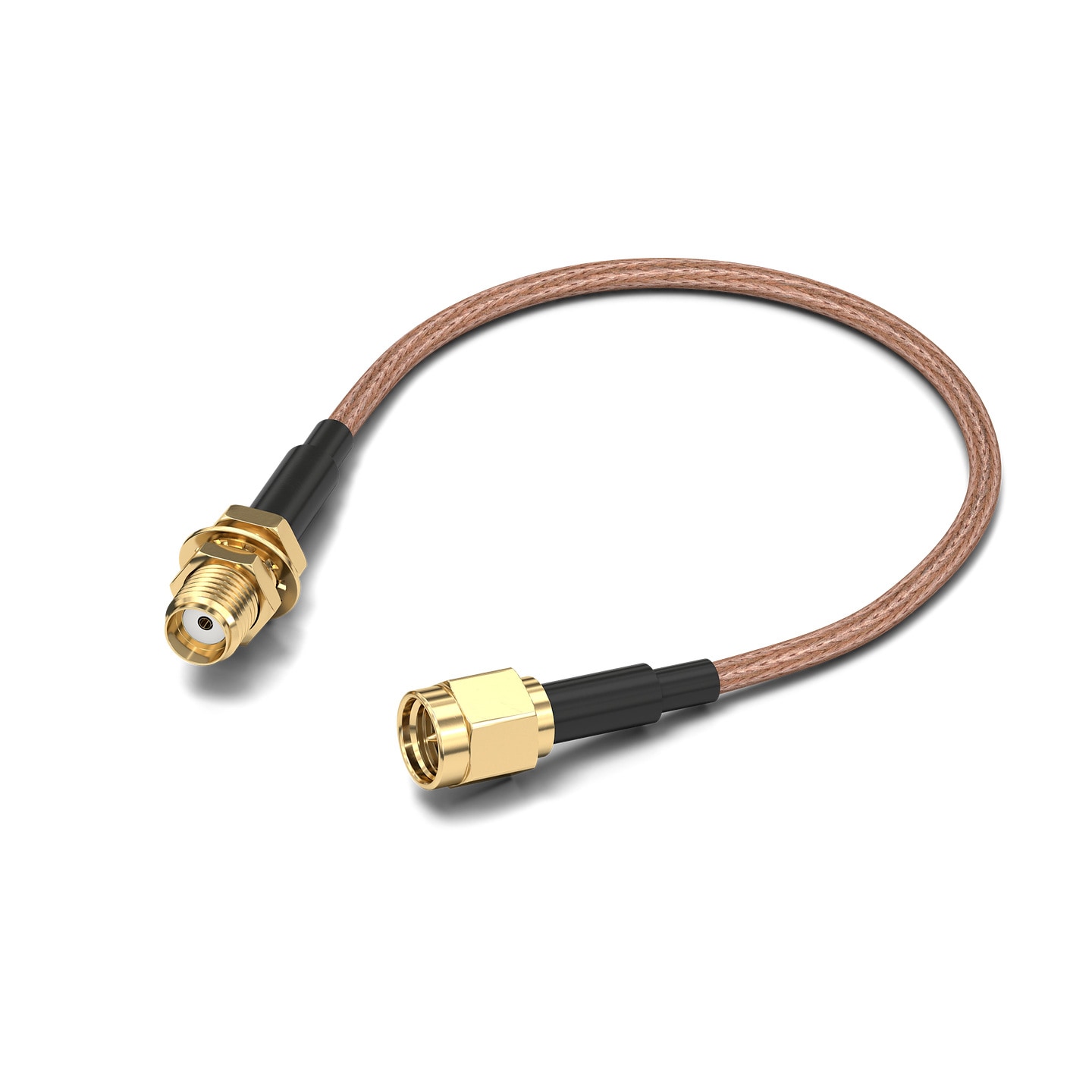

Straight Plug \| Straight Bulkhead Jack

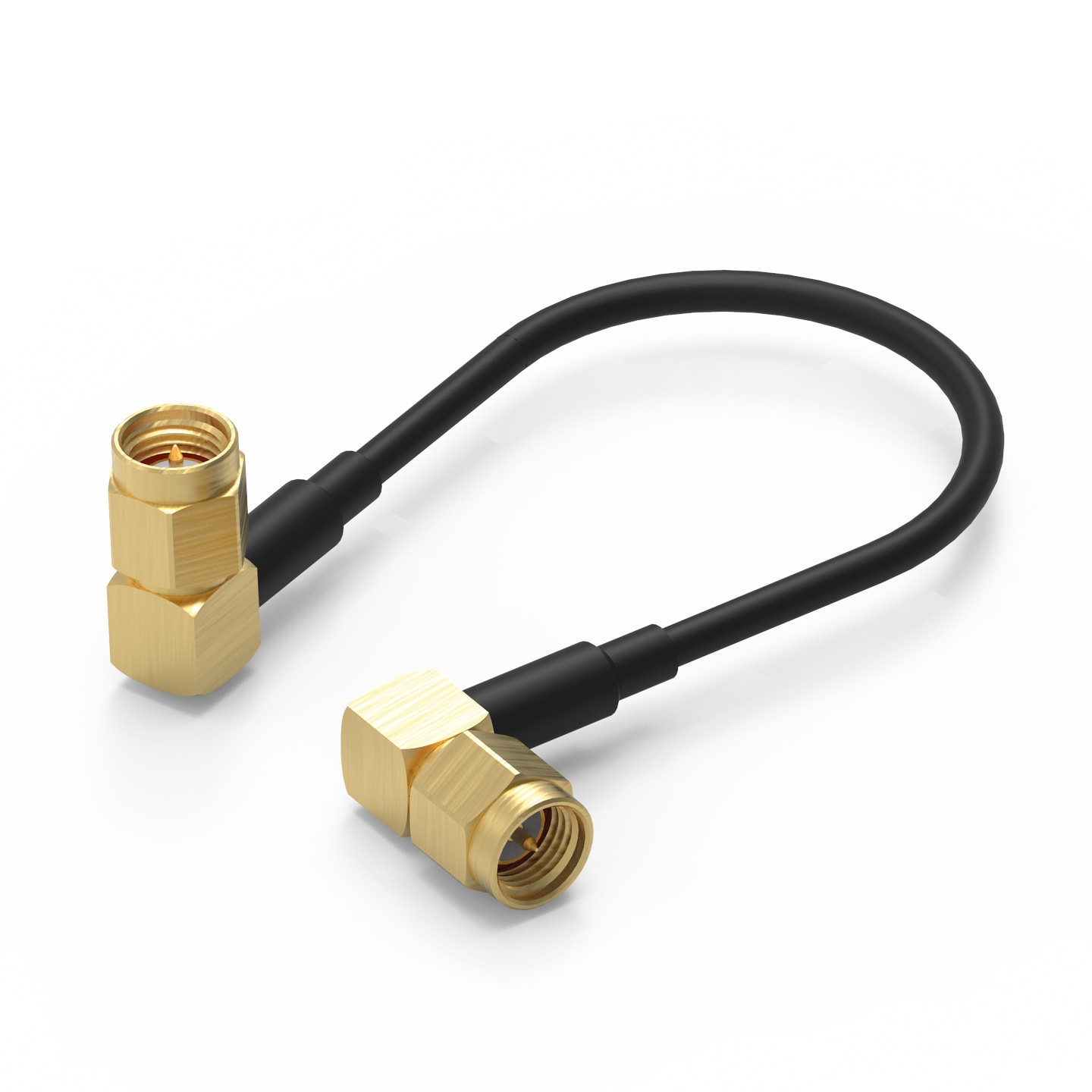

Right Angle Plug \| Right Angle Plug

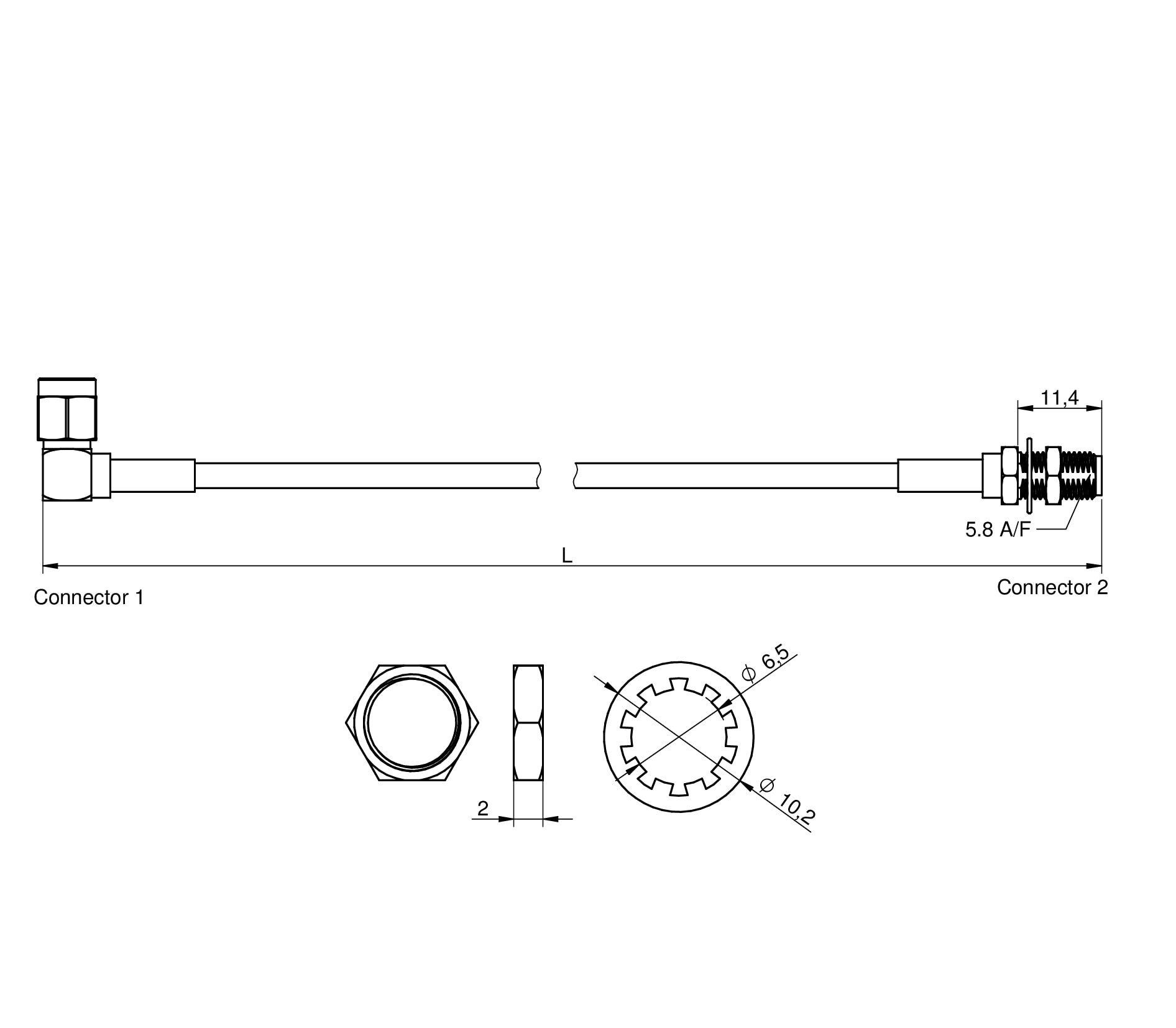

Right Angle Plug \| Straight Bulkhead Jack

Merkmale

Interface: MIL-STD-348
Mating Cycle: 500 Cycles
Impedance: 50Ω
Insulation Resistance: 5000M Ω (min.)
Withstanding Voltage: 1000 Vrms (min.)
Mating: Screw (Recommended by torque wrench tool)

Anwendung

Network and communications
RF Test and measurement equipment
Industrial applications
Electronic consumers and device

Artikeldaten

Alle

Straight Plug | Straight Plug

Straight Plug | Right Angle Plug

Straight Plug | Straight Bulkhead Jack

Right Angle Plug | Right Angle Plug

Right Angle Plug | Straight Bulkhead Jack

Artikel Nr.	Datenblatt	Downloads	Kabel	Kabeltyp	Nominale Kabellänge (mm)	f	Nominal Außenkabeldurchmesser (mm)	Min. Bend Radius (mm)	Betriebstemperatur	Design Kit
65503503515308	SPEC	–	.085"	Hand-Formable	152.4	DC~18 GHz	2.15	6	-65 °C up to +165 °C	748001
65503503530508	SPEC	–	.085"	Hand-Formable	304.8	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503503615308	SPEC	–	.085"	Hand-Formable	152.4	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503503630508	SPEC	–	.085"	Hand-Formable	304.8	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503503215308	SPEC	–	.085"	Hand-Formable	152.4	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503503230508	SPEC	–	.085"	Hand-Formable	304.8	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503603215308	SPEC	–	.085"	Hand-Formable	152.4	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503603230508	SPEC	–	.085"	Hand-Formable	304.8	DC~18 GHz	2.15	6	-65 °C up to +165 °C	–
65503503515307	SPEC	–	.141"	Hand-Formable	152.4	DC~18 GHz	3.58	10	-65 °C up to +165 °C	–
65503503530507	SPEC	–	.141"	Hand-Formable	304.8	DC~18 GHz	3.58	10	-65 °C up to +165 °C	–
65503503615307	SPEC	–	.141"	Hand-Formable	152.4	DC~12.4 GHz	3.58	10	-65 °C up to +165 °C	–
65503503630507	SPEC	–	.141"	Hand-Formable	304.8	DC~12.4 GHz	3.58	10	-65 °C up to +165 °C	–
65503503215307	SPEC	–	.141"	Hand-Formable	152.4	DC~18 GHz	3.58	10	-65 °C up to +165 °C	–
65503503230507	SPEC	–	.141"	Hand-Formable	304.8	DC~18 GHz	3.58	10	-65 °C up to +165 °C	–
65503603215307	SPEC	–	.141"	Hand-Formable	152.4	DC~12.4 GHz	3.58	10	-65 °C up to +165 °C	–
65503603230507	SPEC	–	.141"	Hand-Formable	304.8	DC~12.4 GHz	3.58	10	-65 °C up to +165 °C	–
65503503515301	SPEC	–	RG-58 C/U	Flexible	152.4	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503503530501	SPEC	–	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503503515302	SPEC	–	RG-142/U	Flexible	152.4	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503503530502	SPEC	–	RG-142/U	Flexible	304.8	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503503515303	SPEC	–	RG-174/U	Flexible	152.4	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503503530503	SPEC	–	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503503515305	SPEC	–	RG-316/U	Flexible	152.4	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	748001
65503503530505	SPEC	–	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503503515306	SPEC	–	RG-316 DB	Flexible	152.4	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503503530506	SPEC	–	RG-316 DB	Flexible	304.8	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503503615301	SPEC	–	RG-58 C/U	Flexible	152.4	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503503630501	SPEC	–	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503503630502	SPEC	–	RG-142/U	Flexible	304.8	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503503615302	SPEC	–	RG-142/U	Flexible	152.4	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503503615303	SPEC	–	RG-174/U	Flexible	152.4	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503503630503	SPEC	–	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503503615305	SPEC	–	RG-316/U	Flexible	152.4	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503503630505	SPEC	–	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503503615306	SPEC	–	RG-316 DB	Flexible	152.4	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503503630506	SPEC	–	RG-316 DB	Flexible	304.8	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503503215301	SPEC	–	RG-58 C/U	Flexible	152.4	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503503230501	SPEC	–	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503503215302	SPEC	–	RG-142/U	Flexible	152.4	DC~6 GHz	2.7	25.4	-55 °C up to +165 °C	–
65503503230502	SPEC	–	RG-142/U	Flexible	304.8	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503503215303	SPEC	–	RG-174/U	Flexible	152.4	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503503230503	SPEC	–	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503503215305	SPEC	–	RG-316/U	Flexible	152.4	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503503230505	SPEC	–	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503503215306	SPEC	–	RG-316 DB	Flexible	152.4	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503503230506	SPEC	–	RG-316 DB	Flexible	304.8	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503603215301	SPEC	–	RG-58 C/U	Flexible	152.4	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503603230501	SPEC	–	RG-58 C/U	Flexible	304.8	DC~1 GHz	4.95	49.5	-20 °C up to +80 °C	–
65503603215302	SPEC	–	RG-142/U	Flexible	152.4	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503603230502	SPEC	–	RG-142/U	Flexible	304.8	DC~6 GHz	4.95	25.4	-55 °C up to +165 °C	–
65503603215303	SPEC	–	RG-174/U	Flexible	152.4	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503603230503	SPEC	–	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65503603215305	SPEC	–	RG-316/U	Flexible	152.4	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503603230505	SPEC	–	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65503603215306	SPEC	–	RG-316 DB	Flexible	152.4	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
65503603230506	SPEC	–	RG-316 DB	Flexible	304.8	DC~6 GHz	2.9	15.3	-55 °C up to +165 °C	–
655035035100003	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_655035035xxx03 (rev1).pdf \| 237.6 KB IGS IGES_655035035xxxx03 (rev1).iges \| 1.5 MB STP STP_655035035xxxx03 (rev1).stp \| 312.5 KB Alle 3 Dateien als ZIP herunterladen ZIP	RG-174/U	Flexible	1000	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
655035035200003	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_655035035200003 (rev1).pdf \| 1 MB IGS IGES_655035035200003 (rev1).iges \| 2.8 MB STP STEP_655035035200003 (rev1).stp \| 1.8 MB Alle 3 Dateien als ZIP herunterladen ZIP	RG-174/U	Flexible	2000	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
655035032100003	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_655035032100003 (rev1).pdf \| 1 MB IGS IGES_655035032100003 (rev1).iges \| 2.8 MB STP STEP_655035032100003 (rev1).stp \| 1.6 MB Alle 3 Dateien als ZIP herunterladen ZIP	RG-174/U	Flexible	1000	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65501510315301	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_65501510315301 (rev1).pdf \| 596.3 KB IGS IGES_65501510315301 (rev1).iges \| 2.2 MB STP STEP_65501510315301 (rev1).stp \| 415.3 KB Alle 3 Dateien als ZIP herunterladen ZIP	RG-174/U	Flexible	152.4	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65501510330501	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_65501510330501 (rev1).pdf \| 596.3 KB IGS IGES_65501510330501 (rev1).iges \| 2.2 MB STP STEP_65501510330501 (rev1).stp \| 415.3 KB Alle 3 Dateien als ZIP herunterladen ZIP	RG-174/U	Flexible	304.8	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
65501510515301	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_65501510515301 (rev1).pdf \| 596.3 KB IGS IGES_65501510515301 (rev1).iges \| 2.2 MB STP STEP_65501510515301 (rev1).stp \| 415.3 KB Alle 3 Dateien als ZIP herunterladen ZIP	RG-316/U	Flexible	152.4	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
65501510530501	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_65501510530501 (rev1).pdf \| 596.2 KB IGS IGES_65501510530501 (rev1).iges \| 2.2 MB STP STEP_65501510530501 (rev1).stp \| 415.5 KB Alle 3 Dateien als ZIP herunterladen ZIP	RG-316/U	Flexible	304.8	DC~6 GHz	2.49	12.7	-55 °C up to +165 °C	–
655035032200003	SPEC	3 Dateien CAD-Dateien ZIP 3D 3D_655035032200003 (rev1).pdf \| 1 MB IGS IGES_655035032200003 (rev1).iges \| 2.8 MB STP STEP_655035032200003 (rev1).stp \| 1.8 MB Alle 3 Dateien als ZIP herunterladen ZIP	RG-174/U	Flexible	2000	DC~1 GHz	2.7	30	-20 °C up to +80 °C	–
