WL-SMCD SMT Mono-color Chip LED Diffused

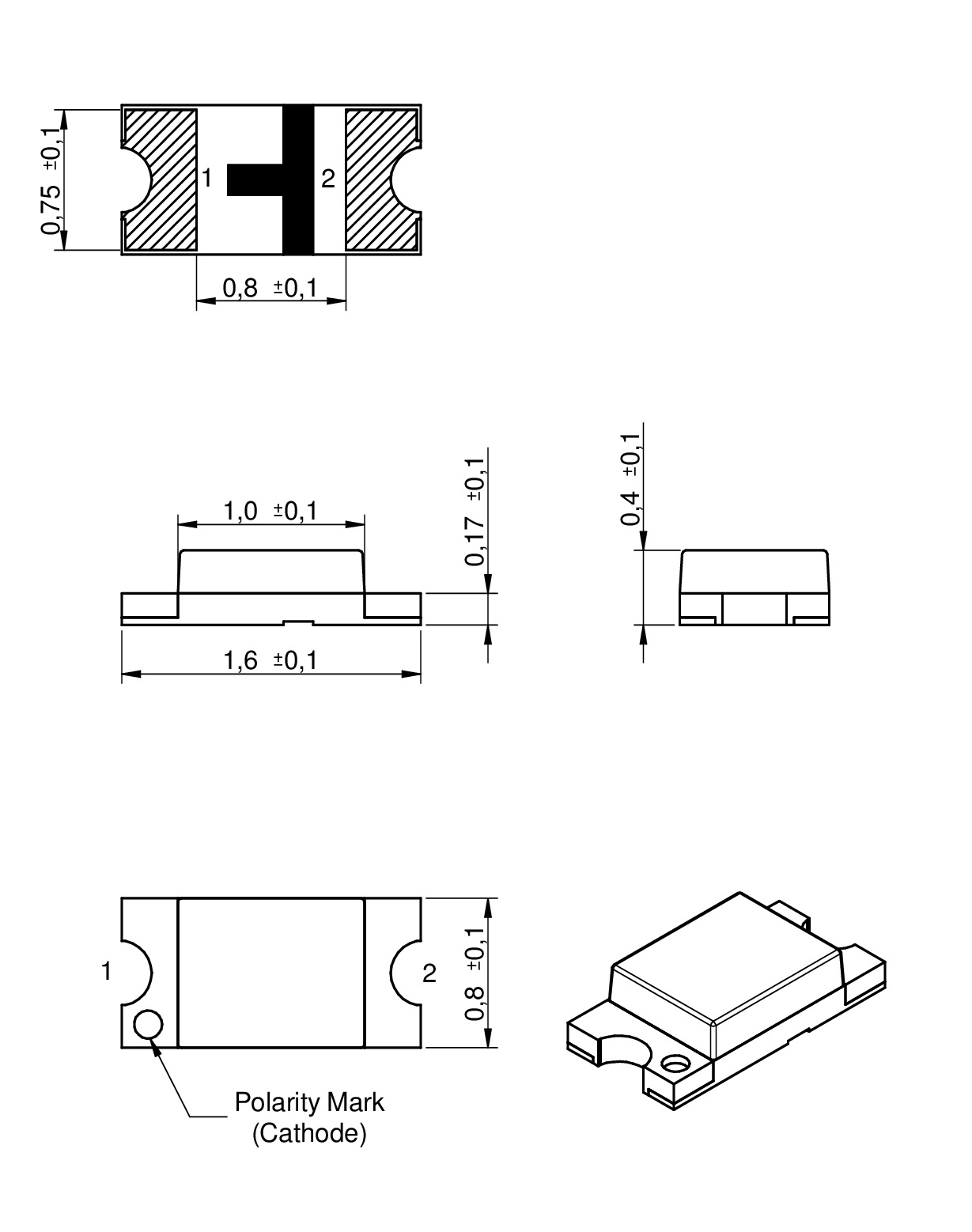

Bauform	Maße	L (mm)	W (mm)	H (mm)	Montageart
0603		1.6	0.8	0.4	SMT

LTSpice-Dateien

LT
LTSpice_WL-SMCD (rev24a).zip
|
1.9 KB

Merkmale

Industrielle 0603 Bauform - 1,6 x 0,8 mm
Weiter Abstrahlwinkel 140°
Dünnes Gehäuse: nur 0,4 mm Höhe

Anwendung

Büroautomatisierung
Haushaltsgeräte
Industrielle Ausrüstung
Frontplatten-Hintergrundbeleuchtung
Tastenhintergrundbeleuchtung
LCD-Hintergrundbeleuchtung
Navigationshintergrundbeleuchtung

Artikeldaten

0603

	Artikel Nr.	Datenblatt	Simulation	Downloads	Status	λ_{Dom typ.} (nm)	Farbe	λ_{Peak typ.} (nm)	I_{V typ.} (mcd)	V_{F typ.} (V)	Chiptechnologie	2θ_{50% typ.} (°)	Demoboard	Design Kit	Muster
	150060BS55040	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD-Dateien ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Alle 6 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	470	Blau	465	80	3.2	InGaN	140	9999003	150155
	150060GS55040	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD-Dateien ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Strahldaten RIR Photopia_rir_150060GS55040_5M (rev1p0).zip \| 120.9 MB SRC Lucaray-maker_src_150060GS55040_5M (rev1p0).zip \| 120.9 MB ASA ASAP-and-APEX_dis_150060GS55040_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_150060GS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_150060GS55040_5M (rev1p0).zip \| 189 MB LIG LightTools_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_150060GS55040_5M (rev1p0).zip \| 189 MB LUC LucidShape_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_150060GS55040_5M (rev1p0).zip \| 189.1 MB OPT optalix_DIS_150060GS55040_5M (rev1p0).zip \| 120.9 MB OPT OpTaliX_txt_150060GS55040_5M (rev1p0).zip \| 189.1 MB OPT OptiCAD_dat_150060GS55040_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_150060GS55040_5M (rev1p0).zip \| 189.1 MB SIM Simulux_ray_150060GS55040_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_150060GS55040_5M (rev1p0).zip \| 125.6 MB TRA TracePro_txt_150060GS55040_5M (rev1p0).zip \| 188.9 MB ZEM Zemax_dat_150060GS55040_5M (rev1p0).zip \| 189.1 MB ZEM ZemaxBin_dat_150060GS55040_5M (rev1p0).zip \| 120.9 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	525	Grün	520	430	3.2	InGaN	140	9999003	150155
	150060VS55040	SPEC		6 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD-Dateien ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Alle 6 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	573	Hellgrün	575	60	2	AlInGaP	140	9999003	150155
	150060YS55040	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD-Dateien ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Strahldaten RIR Photopia_rir_150060YS55040_5M (rev1p0).zip \| 120.9 MB SRC Lucaray-maker_src_150060YS55040_5M (rev1p0).zip \| 120.9 MB ASA ASAP-and-APEX_dis_150060YS55040_5M (rev1p0).zip \| 120.9 MB COD CodeV_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_dat_150060YS55040_5M (rev1p0).zip \| 120.9 MB FRE Fred_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB LIG LightTools_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB LIG LightTools_txt_150060YS55040_5M (rev1p0).zip \| 190 MB LUC LucidShape_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB LUC LucidShape_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB OPT optalix_DIS_150060YS55040_5M (rev1p0).zip \| 120.9 MB OPT OpTaliX_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB OPT OptiCAD_dat_150060YS55040_5M (rev1p0).zip \| 120.9 MB OPT OptiCAD_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB SIM Simulux_ray_150060YS55040_5M (rev1p0).zip \| 120.9 MB SPE Speos_ray_150060YS55040_5M (rev1p0).zip \| 125.5 MB TRA TracePro_txt_150060YS55040_5M (rev1p0).zip \| 189.9 MB ZEM Zemax_dat_150060YS55040_5M (rev1p0).zip \| 189.9 MB ZEM ZemaxBin_dat_150060YS55040_5M (rev1p0).zip \| 120.9 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	589	Gelb	591	100	2	AlInGaP	140	9999003	150155
	150060AS55040	SPEC	–	4 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Alle 4 Dateien als ZIP herunterladen ZIP	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	605	Amber	609	110	2	AlInGaP	140	–	–
	150060RS55040	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD-Dateien ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Strahldaten RIR Photopia_rir_150060RS55040_5M (rev1p0).zip \| 121 MB SRC Lucaray-maker_src_150060RS55040_5M (rev1p0).zip \| 121 MB ASA ASAP-and-APEX_dis_150060RS55040_5M (rev1p0).zip \| 121 MB COD CodeV_ray_150060RS55040_5M (rev1p0).zip \| 121 MB FRE Fred_dat_150060RS55040_5M (rev1p0).zip \| 121 MB FRE Fred_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB LIG LightTools_ray_150060RS55040_5M (rev1p0).zip \| 121 MB LIG LightTools_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB LUC LucidShape_ray_150060RS55040_5M (rev1p0).zip \| 121 MB LUC LucidShape_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB OPT optalix_DIS_150060RS55040_5M (rev1p0).zip \| 121 MB OPT OpTaliX_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB OPT OptiCAD_dat_150060RS55040_5M (rev1p0).zip \| 121 MB OPT OptiCAD_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB SIM Simulux_ray_150060RS55040_5M (rev1p0).zip \| 121 MB SPE Speos_ray_150060RS55040_5M (rev1p0).zip \| 125.7 MB TRA TracePro_txt_150060RS55040_5M (rev1p0).zip \| 189.3 MB ZEM Zemax_dat_150060RS55040_5M (rev1p0).zip \| 189.3 MB ZEM ZemaxBin_dat_150060RS55040_5M (rev1p0).zip \| 121 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	624	Rot	632	90	2	AlInGaP	140	9999003	150155
	150060SS55040	SPEC		25 Dateien EDA-Modelle: Bauteile ZIP ALT Altium_WL-SMCD (rev24a).IntLib \| 61 KB CDS Cadence_WL-SMCD (rev24a).zip \| 132.1 KB EAG Eagle_WL-SMCD (rev24a).lbr \| 18.3 KB CAD-Dateien ZIP IGS Download_IGS_WL-WL-SMCD-0603 (rev1).igs \| 534.9 KB STP Download_STP_WL-WL-SMCD-0603 (rev1).stp \| 220.5 KB Elektrische Modelle ZIP PSP PSpice_WL-SMCD (rev24a).zip \| 3.7 KB Strahldaten RIR Photopia_rir_150060SS55040_5M (rev1p0).zip \| 120.6 MB SRC Lucaray-maker_src_150060SS55040_5M (rev1p0).zip \| 120.6 MB ASA ASAP-and-APEX_dis_150060SS55040_5M (rev1p0).zip \| 120.6 MB COD CodeV_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB FRE Fred_dat_150060SS55040_5M (rev1p0).zip \| 120.6 MB FRE Fred_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB LIG LightTools_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB LIG LightTools_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB LUC LucidShape_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB LUC LucidShape_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB OPT optalix_DIS_150060SS55040_5M (rev1p0).zip \| 120.6 MB OPT OpTaliX_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB OPT OptiCAD_dat_150060SS55040_5M (rev1p0).zip \| 120.6 MB OPT OptiCAD_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB SIM Simulux_ray_150060SS55040_5M (rev1p0).zip \| 120.6 MB SPE Speos_ray_150060SS55040_5M (rev1p0).zip \| 125.6 MB TRA TracePro_txt_150060SS55040_5M (rev1p0).zip \| 189.6 MB ZEM Zemax_dat_150060SS55040_5M (rev1p0).zip \| 189.6 MB ZEM ZemaxBin_dat_150060SS55040_5M (rev1p0).zip \| 120.6 MB	Aktiv i\| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre.	630	Superrot	645	70	2	AlInGaP	140	9999003	150155

	Artikel Nr.	Datenblatt	Simulation
	150060BS55040	SPEC
	150060GS55040	SPEC
	150060VS55040	SPEC
	150060YS55040	SPEC
	150060AS55040	SPEC	–
	150060RS55040	SPEC
	150060SS55040	SPEC

Muster

	Artikel Nr.	Datenblatt	Simulation	Downloads	Status	λ_{Dom typ.} (nm)	Farbe	λ_{Peak typ.} (nm)	I_{V typ.} (mcd)	V_{F typ.} (V)	Chiptechnologie	2θ_{50% typ.} (°)	Demoboard	Design Kit	Muster

Sortimente

Artikel dieser Produktserie finden Sie in den folgenden Sortimenten:

Design Kit Chip LED – Top View

Demoboard Visible LEDs
