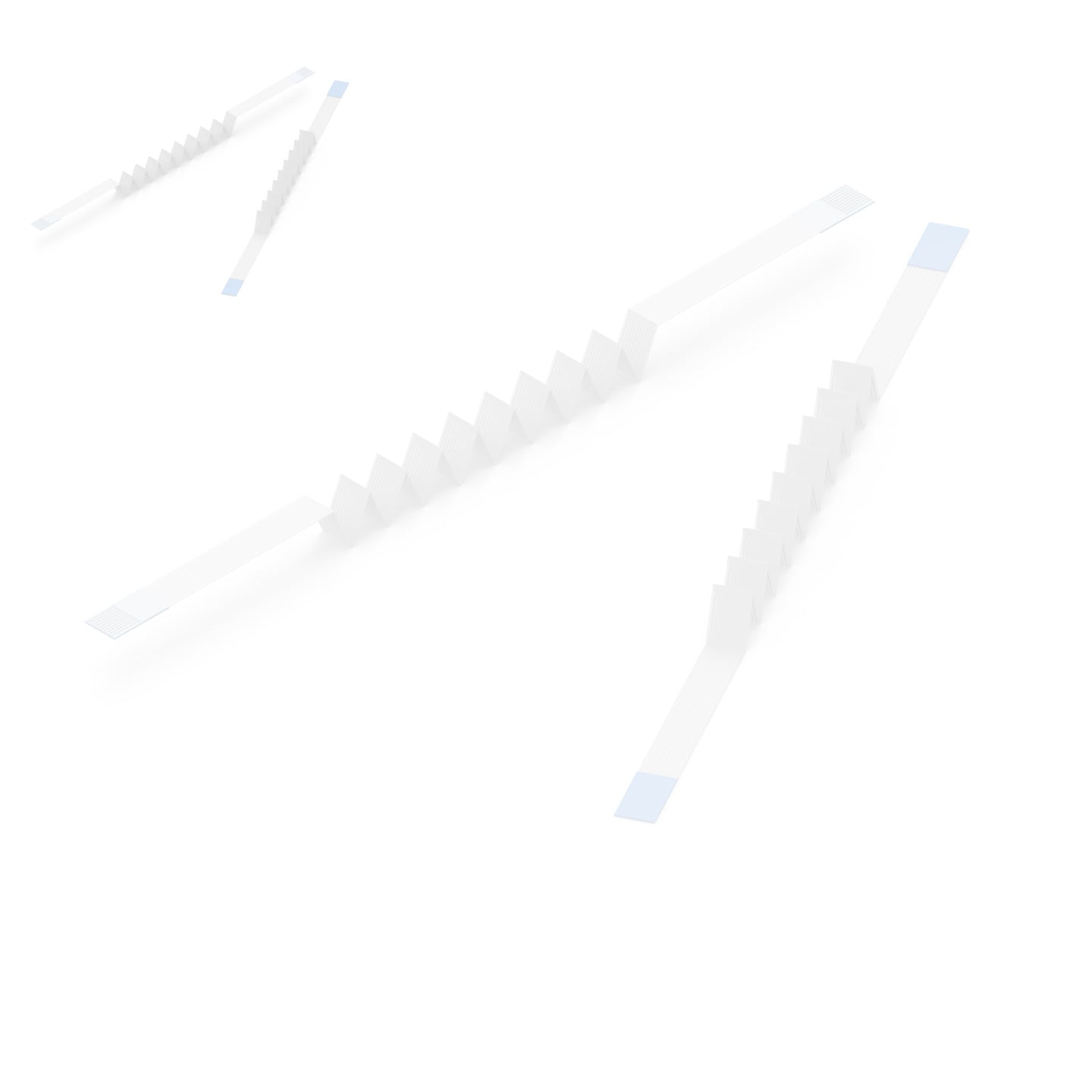

WR-FFC 1.00 mm Folding Flat Flexible Cable

Kind Properties
Pitch	1 mm
Durability	20 Mating cycles
S1	5 mm
D1	10 mm
S2	5 mm
D2	10 mm
Cw	0.7 mm
Ct	0.035 mm

General Information
Operating Temperature	-30 °C up to +105 °C
Flammability Rating	UL SUB.758

Packaging Properties
Packaging	Bag

Material Properties
Insulator Material	PET (White)
Tape Material	PET (Blue)
Contact Material	Copper
Contact Plating	Tin

Electrical Properties
I_R	1 A
Working Voltage	60 V
R_ISO	1000 MΩ
Withstanding Voltage	500 V (AC)
R	1.09 Ω/m
Contact Resistance	20 mΩ

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Type/Size	Length (folded) (mm)	Length (unfolded) (mm)	W (mm)	Design Kit
686610119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx119001_686610119001 (rev1).iges \| 3 MB STP STP_FFC_1_00_Type_1_6866xx119001_686610119001 (rev1).stp \| 917.3 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.00mm Type 1	120	200	11	612690 687001
686710119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx119001_686710119001 (rev1).iges \| 3 MB STP STP_FFC_1_00_Type_2_6867xx119001_686710119001 (rev1).stp \| 950 KB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.00mm, Type 2	120	200	11	–
686610141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx141001_686610141001 (rev1).iges \| 5.9 MB STP STP_FFC_1_00_Type_1_6866xx141001_686610141001 (rev1).stp \| 1.8 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.00mm Type 1	165	350	11	–
686710141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx141001_686710141001 (rev1).iges \| 6.3 MB STP STP_FFC_1_00_Type_2_6867xx141001_686710141001 (rev1).stp \| 2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.00mm Type 2	165	350	11	612690
686610225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx225001_686610225001 (rev1).iges \| 7 MB STP STP_FFC_1_00_Type_1_6866xx225001_686610225001 (rev1).stp \| 2.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.00mm Type 1	280	500	11	–
686710225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx225002_686710225001 (rev1).iges \| 10.6 MB STP STP_FFC_1_00_Type_2_6867xx225002_686710225001 (rev1).stp \| 3.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1.00mm Type 2	280	500	11	687001
686612119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx119001_686612119001 (rev1).iges \| 3.5 MB STP STP_FFC_1_00_Type_1_6866xx119001_686612119001 (rev1).stp \| 1.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.00mm Type 1	120	200	13	–
686712119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx119001_686712119001 (rev1).iges \| 3.6 MB STP STP_FFC_1_00_Type_2_6867xx119001_686712119001 (rev1).stp \| 1.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.00mm, Type 2	120	200	13	–
686612141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx141001_686612141001 (rev1).iges \| 6.9 MB STP STP_FFC_1_00_Type_1_6866xx141001_686612141001 (rev1).stp \| 2.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.00mm Type 1	165	350	13	–
686712141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx141001_686712141001 (rev1).iges \| 7.5 MB STP STP_FFC_1_00_Type_2_6867xx141001_686712141001 (rev1).stp \| 2.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.00mm Type 2	165	350	13	–
686612225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx225001_686612225001 (rev1).iges \| 8.2 MB STP STP_FFC_1_00_Type_1_6866xx225001_686612225001 (rev1).stp \| 2.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.00mm Type 1	280	500	13	–
686712225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx225002_686712225001 (rev1).iges \| 12.7 MB STP STP_FFC_1_00_Type_2_6867xx225002_686712225001 (rev1).stp \| 3.9 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1.00mm Type 2	280	500	13	–
686616119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx119001_686616119001 (rev1).iges \| 4.5 MB STP STP_FFC_1_00_Type_1_6866xx119001_686616119001 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.00mm Type 1	120	200	17	–
686716119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx119001_686716119001 (rev1).iges \| 4.6 MB STP STP_FFC_1_00_Type_2_6867xx119001_686716119001 (rev1).stp \| 1.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.00mm, Type 2	120	200	17	–
686616141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx141001_686616141001 (rev1).iges \| 9 MB STP STP_FFC_1_00_Type_1_6866xx141001_686616141001 (rev1).stp \| 2.8 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.00mm Type 1	165	350	17	–
686716141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx141001_686716141001 (rev1).iges \| 9.8 MB STP STP_FFC_1_00_Type_2_6867xx141001_686716141001 (rev1).stp \| 3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.00mm Type 2	165	350	17	–
686616225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx225001_686616225001 (rev1).iges \| 10.7 MB STP STP_FFC_1_00_Type_1_6866xx225001_686616225001 (rev1).stp \| 3.3 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.00mm Type 1	280	500	17	–
686716225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx225002_686716225001 (rev1).iges \| 16.7 MB STP STP_FFC_1_00_Type_2_6867xx225002_686716225001 (rev1).stp \| 5.2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1.00mm Type 2	280	500	17	–
686620119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx119001_686620119001 (rev1).iges \| 5.5 MB STP STP_FFC_1_00_Type_1_6866xx119001_686620119001 (rev1).stp \| 1.8 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.00mm Type 1	120	200	21	–
686720119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx119001_686720119001 (rev1).iges \| 6 MB STP STP_FFC_1_00_Type_2_6867xx119001_686720119001 (rev1).stp \| 1.9 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.00mm, Type 2	120	200	21	–
686620141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx141001_686620141001 (rev1).iges \| 11.1 MB STP STP_FFC_1_00_Type_1_6866xx141001_686620141001 (rev1).stp \| 3.4 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.00mm Type 1	165	350	21	687001
686720141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx141001_686720141001 (rev1).iges \| 12.1 MB STP STP_FFC_1_00_Type_2_6867xx141001_686720141001 (rev1).stp \| 3.7 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.00mm Type 2	165	350	21	–
686620225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx225001_686620225001 (rev1).iges \| 13.1 MB STP STP_FFC_1_00_Type_1_6866xx225001_686620225001 (rev1).stp \| 4.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.00mm Type 1	280	500	21	–
686720225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx225002_686720225001 (rev1).iges \| 20.7 MB STP STP_FFC_1_00_Type_2_6867xx225002_686720225001 (rev1).stp \| 6.5 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1.00mm Type 2	280	500	21	–
686630119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx119001_686630119001 (rev1).iges \| 8.1 MB STP STP_FFC_1_00_Type_1_6866xx119001_686630119001 (rev1).stp \| 2.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.00mm Type 1	120	200	31	–
686730119001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx119001_686730119001 (rev1).iges \| 8.5 MB STP STP_FFC_1_00_Type_2_6867xx119001_686730119001 (rev1).stp \| 2.6 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.00mm, Type 2	120	200	31	–
686630141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx141001_686630141001 (rev1).iges \| 16.3 MB STP STP_FFC_1_00_Type_1_6866xx141001_686630141001 (rev1).stp \| 5.1 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.00mm Type 1	165	350	31	–
686730141001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx141001_686730141001 (rev1).iges \| 17.9 MB STP STP_FFC_1_00_Type_2_6867xx141001_686730141001 (rev1).stp \| 5.5 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.00mm Type 2	165	350	31	–
686630225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_1_6866xx225001_686630225001 (rev1).iges \| 19.2 MB STP STP_FFC_1_00_Type_1_6866xx225001_686630225001 (rev1).stp \| 6.2 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.00mm Type 1	280	500	31	–
686730225001	SPEC	2 files CAD files ZIP IGS IGES_FFC_1_00_Type_2_6867xx225002_686730225001 (rev1).iges \| 30.8 MB STP STP_FFC_1_00_Type_2_6867xx225002_686730225001 (rev1).stp \| 9.8 MB Download all 2 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1.00mm Type 2	280	500	31	–
