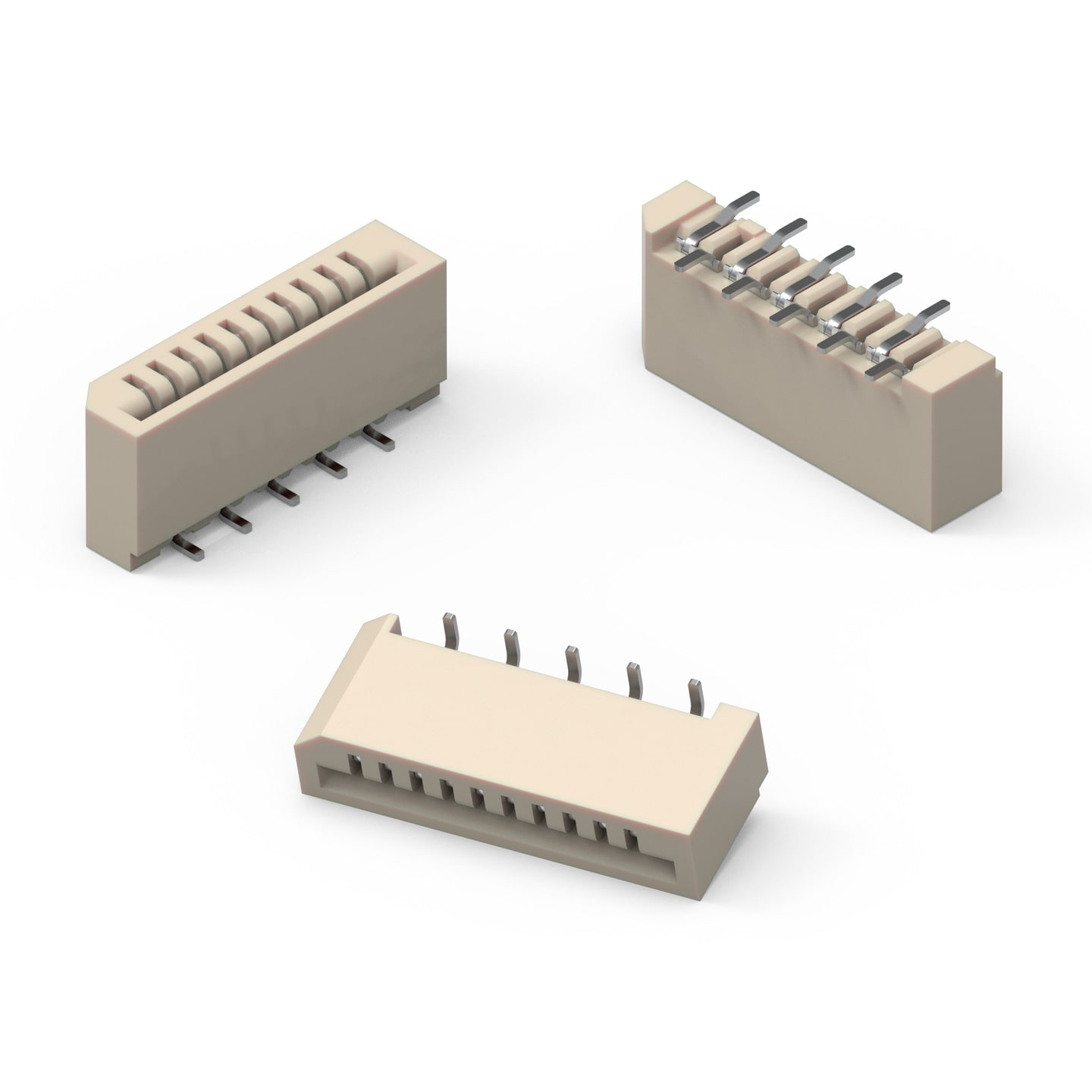

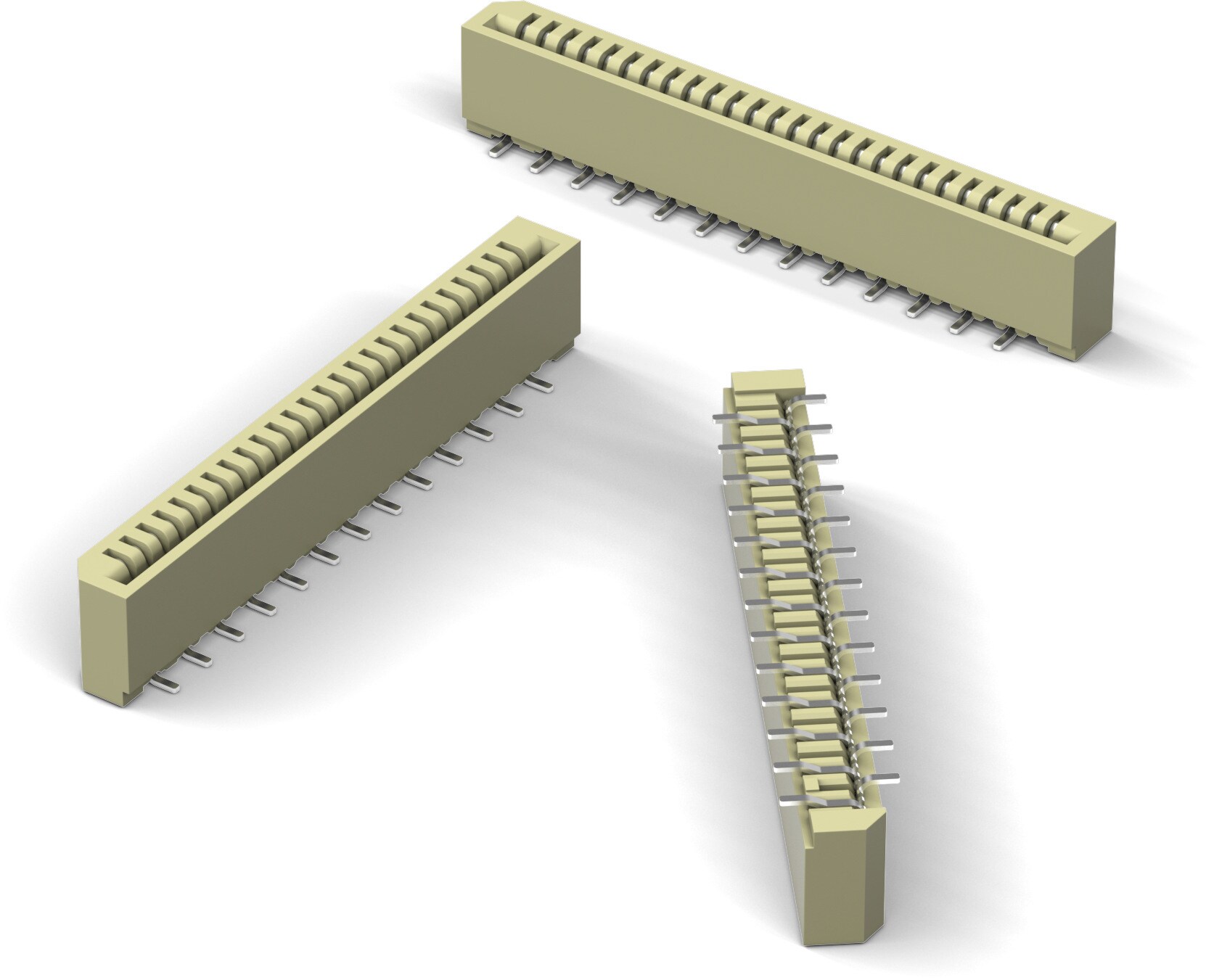

WR-FPC 1.00 mm SMT LIF Vertical Type A

General Information
Pitch	1 mm

Material Properties
Insulator Material	LCP
Contact Material	Phosphor Bronze
Contact Plating	2.032µm Tin over 1.27µm Nickel
Contact Type	Stamped

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples
686104188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686104188822 (rev1).pdf \| 92.9 KB IGS Download_IGES_686104188822 (rev1).iges \| 1.4 MB STP Download_STEP_686104188822 (rev1).stp \| 323.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	1	Vertical	7	1	125	Tape and Reel & Mylar	30	max.	687001
686106188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686106188822 (rev1).pdf \| 106.9 KB IGS Download_IGES_686106188822 (rev1).iges \| 1.7 MB STP Download_STEP_686106188822 (rev1).stp \| 384.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	1	Vertical	9	1	125	Tape and Reel & Mylar	30	max.	687001
686108188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686108188822 (rev1).pdf \| 120.2 KB IGS Download_IGES_686108188822 (rev1).iges \| 1.9 MB STP Download_STEP_686108188822 (rev1).stp \| 447.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	1	Vertical	11	1	125	Tape and Reel & Mylar	30	max.	687001
686109188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686109188822 (rev1).pdf \| 127.4 KB IGS Download_IGES_686109188822 (rev1).iges \| 2.1 MB STP Download_STEP_686109188822 (rev1).stp \| 478 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	1	Vertical	12	1	125	Tape and Reel & Mylar	30	max.	687001
686110188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686110188822 (rev1).pdf \| 134.5 KB IGS Download_IGES_686110188822 (rev1).iges \| 2.2 MB STP Download_STEP_686110188822 (rev1).stp \| 512.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	1	Vertical	13	1	125	Tape and Reel & Mylar	30	max.	612690 687001
686112188822	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686112188822 (rev1).pdf \| 148.9 KB IGS Download_IGES_686112188822 (rev1).iges \| 2.5 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	1	Vertical	15	1	125	Tape and Reel & Mylar	30	max.	687001
686114188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686114188822 (rev1).pdf \| 160.8 KB IGS Download_IGES_686114188822 (rev1).iges \| 2.8 MB STP Download_STEP_686114188822 (rev1).stp \| 641.7 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	1	Vertical	17	1	125	Tape and Reel & Mylar	30	max.	687001
686116188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686116188822 (rev1).pdf \| 174.4 KB IGS Download_IGES_686116188822 (rev1).iges \| 3 MB STP Download_STEP_686116188822 (rev1).stp \| 706.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	1	Vertical	19	1	125	Tape and Reel & Mylar	30	max.	687001
686118188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686118188822 (rev1).pdf \| 188.4 KB IGS Download_IGES_686118188822 (rev1).iges \| 3.3 MB STP Download_STEP_686118188822 (rev1).stp \| 771 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	1	Vertical	21	1	125	Tape and Reel & Mylar	30	max.	687001
686120188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686120188822 (rev1).pdf \| 202.5 KB IGS Download_IGES_686120188822 (rev1).iges \| 3.5 MB STP Download_STEP_686120188822 (rev1).stp \| 827.5 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	1	Vertical	23	1	125	Tape and Reel & Mylar	30	max.	687001
686122188822	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP IGS Download_IGES_686122188822 (rev1).iges \| 3.8 MB STP Download_STEP_686122188822 (rev1).stp \| 892.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22	1	Vertical	25	1	125	Tape and Reel & Mylar	30	max.	687001
686124188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686124188822 (rev1).pdf \| 235.9 KB IGS Download_IGES_686124188822 (rev1).iges \| 4.1 MB STP Download_STEP_686124188822 (rev1).stp \| 958.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	24	1	Vertical	27	1	125	Tape and Reel & Mylar	30	max.	687001
686126188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686126188822 (rev1).pdf \| 250.5 KB IGS Download_IGES_686126188822 (rev1).iges \| 4.3 MB STP Download_STEP_686126188822 (rev1).stp \| 1023.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	1	Vertical	29	1	125	Tape and Reel & Mylar	30	max.	687001
686128188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686128188822 (rev1).pdf \| 259.6 KB IGS Download_IGES_686128188822 (rev1).iges \| 4.6 MB STP Download_STEP_686128188822 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	28	1	Vertical	31	1	125	Tape and Reel & Mylar	30	max.	687001
686130188822	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FPC (rev22c).IntLib \| 32.4 MB CDS Cadence_WR-FPC (rev22a).zip \| 37.9 MB EAG Eagle_WR-FPC (rev24a).lbr \| 1.9 MB CAD files ZIP 3D Download_3D_686130188822 (rev1).pdf \| 273.7 KB IGS Download_IGES_686130188822 (rev1).iges \| 4.9 MB STP Download_STEP_686130188822 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	30	1	Vertical	33	1	125	Tape and Reel & Mylar	30	max.	687001

Order Code	Datasheet
686104188822	SPEC
686106188822	SPEC
686108188822	SPEC
686109188822	SPEC
686110188822	SPEC
686112188822	SPEC
686114188822	SPEC
686116188822	SPEC
686118188822	SPEC
686120188822	SPEC
686122188822	SPEC
686124188822	SPEC
686126188822	SPEC
686128188822	SPEC
686130188822	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Type	L (mm)	I_R (A)	Working Voltage (V (AC))	Packaging	Contact Resistance (mΩ)	Tol. R	Design Kit	Samples

Use with

WR-FFC 1.00 mm Flat Flexible Cable Type 1 (Contacts on same side)

WR-FFC 1.00 mm Flat Flexible Cable Type 2 (Contacts opposite)

Suitable for

WR-FFC 1.00 mm Folding Flat Flexible Cable

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FPC ZIF Connectors & Flat Flexible Cables
