WA-BCMC Battery Holder

Properties
Operating Temperature	-30 °C up to + 85 °C including temp rise
Material	Phosphor Bronze
Surface	Nickel (Ni); Tin

Products

Order Code	Datasheet	Downloads	Status	Battery Type	Mount	Packaging
79523141	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-BCMC (rev23a).IntLib \| 730.5 KB CDS Cadence_WA-BCMC (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCMC (rev23a).lbr \| 50.7 KB CAD files ZIP 3D 3D_79523141 (rev1).pdf \| 59.2 KB IGS 79523141 (rev1).igs \| 670.9 KB STP 79523141 (rev1).stp \| 234.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2016,2020,2025,2032	SMT	Tape and Reel
79523211	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-BCMC (rev23a).IntLib \| 730.5 KB CDS Cadence_WA-BCMC (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCMC (rev23a).lbr \| 50.7 KB CAD files ZIP 3D 3D_79523211 (rev1).pdf \| 58.2 KB IGS 79523211 (rev1).igs \| 691.7 KB STP 79523211 (rev1).stp \| 241.3 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2016,2020,2025,2032	THT	Bag
79523151	SPEC	7 files EDA models: Components ZIP ALT Altium_WA-BCMC (rev23a).IntLib \| 730.5 KB CDS Cadence_WA-BCMC (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCMC (rev23a).lbr \| 50.7 KB CAD files ZIP 3D Download_3D_79523151 (rev1).pdf \| 241.6 KB IGS Downloads_IGS_79523151 (rev1).igs \| 2.7 MB STP Downloads_STP_79523151 (rev1).stp \| 498.4 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2025,2032	SMT	Reel
79573131	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-BCMC (rev23a).IntLib \| 730.5 KB CDS Cadence_WA-BCMC (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCMC (rev23a).lbr \| 50.7 KB CAD files ZIP 3D 3D_79573131 (rev1).pdf \| 65.1 KB IGS 79573131 (rev1).igs \| 744.7 KB STP 79573131 (rev1).stp \| 250.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2430	SMT	Bag
79573231	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-BCMC (rev23a).IntLib \| 730.5 KB CDS Cadence_WA-BCMC (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCMC (rev23a).lbr \| 50.7 KB CAD files ZIP 3D 3D_79573231 (rev1).pdf \| 60.7 KB IGS 79573231 (rev1).igs \| 720.8 KB STP 79573231 (rev1).stp \| 250.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2430	THT	Bag
79573141	SPEC	6 files EDA models: Components ZIP ALT Altium_WA-BCMC (rev23a).IntLib \| 730.5 KB CDS Cadence_WA-BCMC (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCMC (rev23a).lbr \| 50.7 KB CAD files ZIP 3D 3D_79573141 (rev1).pdf \| 59.2 KB IGS Download_IGS_79573141 (rev1).igs \| 670.9 KB STP Download_STEP_79573141 (rev1).stp \| 234.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2430	SMT	Reel

	Order Code	Datasheet
	79523141	SPEC
	79523211	SPEC
	79523151	SPEC
	79573131	SPEC
	79573231	SPEC
	79573141	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Battery Type	Mount	Packaging	Samples

Let's meet our new WA-BCMC - Battery Holder

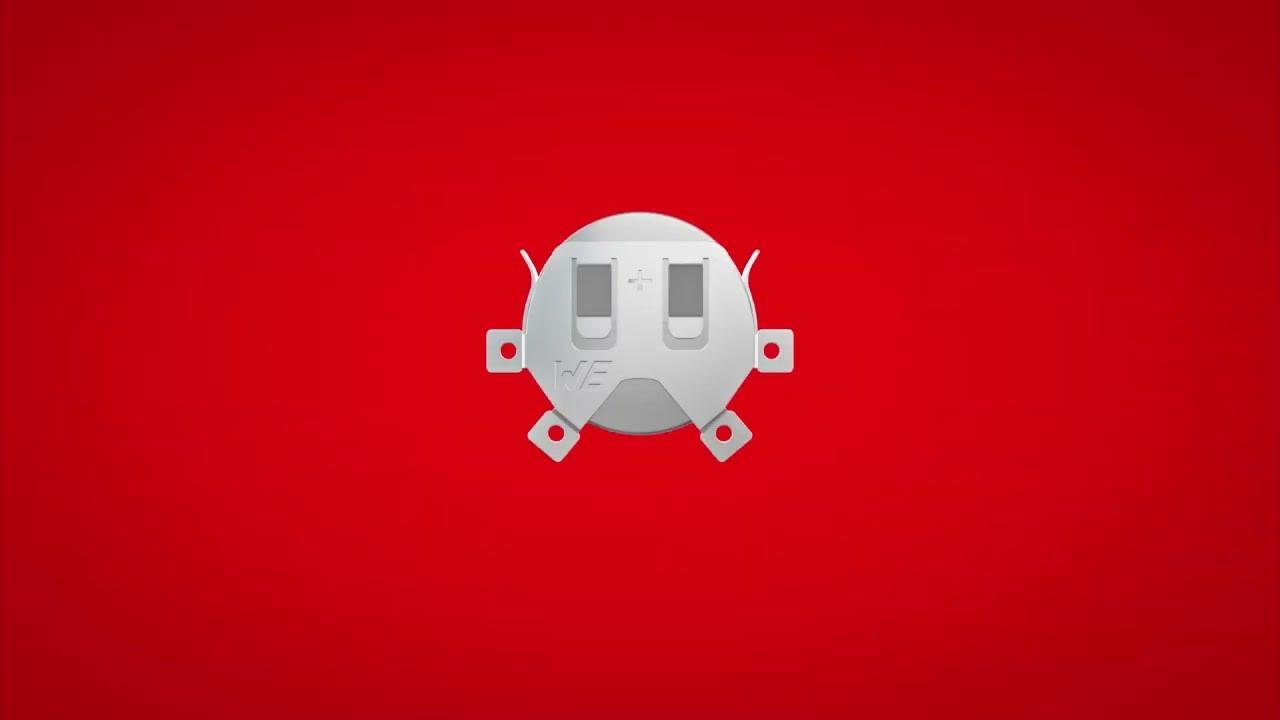

The new WA-BCMC SMT battery holder for CR2025 and CR2032 button cells brings improved mechanical stability of 10 G with the battery inserted. This is realized by a combination of the novel, lateral locking concept and simultaneous connection via 4 solder pads. These mechanical properties make the button cell holder ideal for mobile applications.
