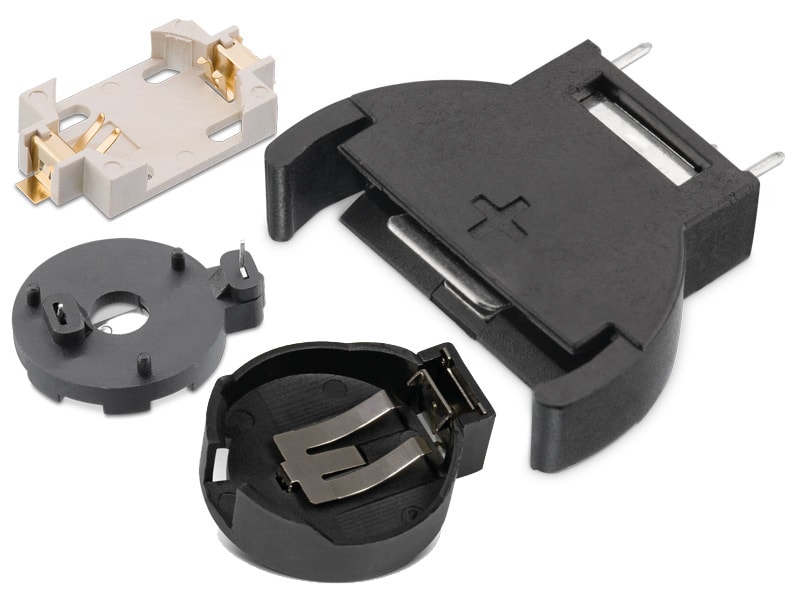

WA-BCPH Battery Holder

Electrical Properties
I_R	0.5 A
Withstanding Voltage	12 V (DC)
Contact Resistance	30 mΩ
R_ISO	100 MΩ

Properties
Operating Temperature	-25 °C up to + 85 °C including temp rise
Base Flammability Rating	UL94 V-0

Products

	Order Code	Datasheet	Downloads	Status	Battery Type	Base Material	Base Color	Mount	Packaging	Samples
	79528211	SPEC	5 files EDA models: Components ZIP ALT Altium_WA-BCPH (rev22b).IntLib \| 781.5 KB CDS Cadence_WA-BCPH (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCPH (rev22a).lbr \| 28.4 KB CAD files ZIP IGS 79528211 (rev1).igs \| 1.4 MB STP 79528211 (rev1).stp \| 346.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2025,2032	PBT	Black	THT	Tray
	79527141	SPEC	5 files EDA models: Components ZIP ALT Altium_WA-BCPH (rev22b).IntLib \| 781.5 KB CDS Cadence_WA-BCPH (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCPH (rev22a).lbr \| 28.4 KB CAD files ZIP IGS 79527141 (rev1).igs \| 2 MB STP 79527141 (rev1).stp \| 426.8 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2032	LCP	White	SMT	Reel
	79548211	SPEC	5 files EDA models: Components ZIP ALT Altium_WA-BCPH (rev22b).IntLib \| 781.5 KB CDS Cadence_WA-BCPH (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCPH (rev22a).lbr \| 28.4 KB CAD files ZIP IGS 79548211 (rev1).igs \| 1.1 MB STP 79548211 (rev1).stp \| 386.7 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2032	PA66	Black	THT	Tray
	79578211	SPEC	5 files EDA models: Components ZIP ALT Altium_WA-BCPH (rev22b).IntLib \| 781.5 KB CDS Cadence_WA-BCPH (rev23a).zip \| 1.4 MB EAG Eagle_WA-BCPH (rev22a).lbr \| 28.4 KB CAD files ZIP IGS 79578211 (rev1).igs \| 1.8 MB STP 79578211 (rev1).stp \| 364.4 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2450	PBT	Black	THT	Carton
