WR-BHD 2.54 mm Male IDC Connector | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyWire-to-Board Connectors Product sub-familyWR-BHD Box Header Pitch2.54 mm GenderMale Wire to Wire Product seriesWR-BHD 2.54 mm Male IDC Connector

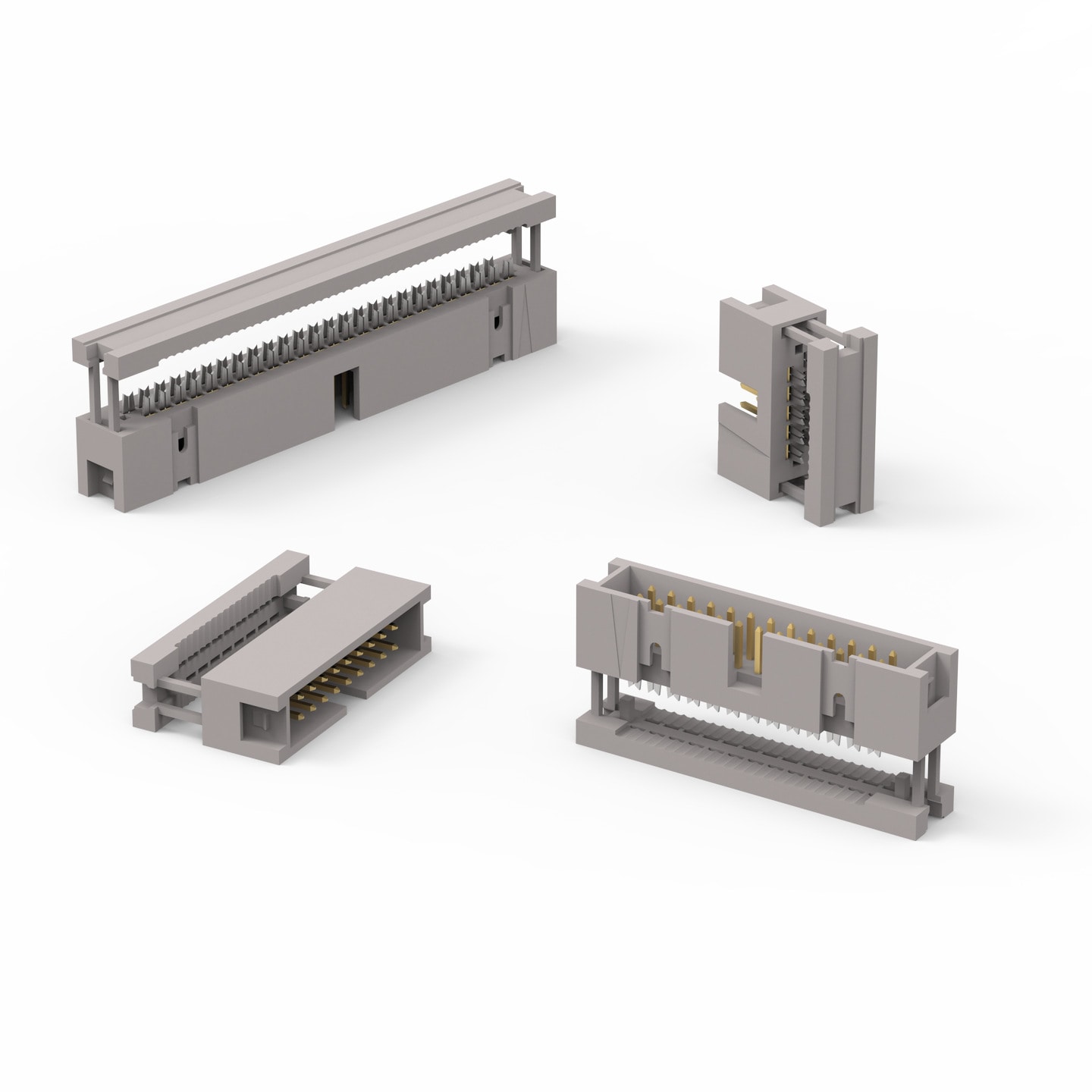

WR-BHD 2.54 mm Male IDC Connector. Operating temperature -40 °C up to 105 °C. Dielectric strength 500 V (AC)

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Grey
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Working Voltage	250 V (AC)
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ
Pitch	2.54 mm
Gender	Male

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Version	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples
61201025821	SPEC	3 files CAD files ZIP 3D 61201025821_1 (rev1).pdf \| 108.9 KB IGS 61201025821 (rev1).igs \| 1.6 MB STP 61201025821 (rev1).stp \| 684.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	2.54	Without ears	Male	23	1	250	20	max.	Tray	612001
61201425821	SPEC	3 files CAD files ZIP 3D 61201425821_1 (rev1).pdf \| 131.6 KB IGS 61201425821 (rev1).igs \| 2 MB STP 61201425821 (rev1).stp \| 827.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	14	2.54	Without ears	Male	28.08	1	250	20	max.	Tray	612001
61201625821	SPEC	3 files CAD files ZIP 3D 61201625821_1 (rev1).pdf \| 142.7 KB IGS 61201625821 (rev1).igs \| 2.2 MB STP 61201625821 (rev1).stp \| 899.9 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	16	2.54	Without ears	Male	30.62	1	250	20	max.	Tray	612001
61202025821	SPEC	3 files CAD files ZIP 3D 61202025821_1 (rev1).pdf \| 165.5 KB IGS 61202025821 (rev1).igs \| 2.5 MB STP 61202025821 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	20	2.54	Without ears	Male	35.7	1	250	20	max.	Tray	612001
61202625821	SPEC	3 files CAD files ZIP 3D 61202625821_1 (rev1).pdf \| 200.2 KB IGS 61202625821 (rev1).igs \| 3.1 MB STP 61202625821 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	26	2.54	Without ears	Male	43.42	1	250	20	max.	Tray	–
61203425821	SPEC	3 files CAD files ZIP 3D 61203425821_1 (rev1).pdf \| 245.1 KB IGS 61203425821 (rev1).igs \| 3.8 MB STP 61203425821 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	34	2.54	Without ears	Male	53.48	1	250	20	max.	Tray	–
61204025821	SPEC	3 files CAD files ZIP 3D 61204025821_1 (rev1).pdf \| 280.3 KB IGS 61204025821 (rev1).igs \| 4.3 MB STP 61204025821 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	40	2.54	Without ears	Male	61.1	1	250	20	max.	Tray	–
61205025821	SPEC	3 files CAD files ZIP 3D 61205025821_1 (rev1).pdf \| 339.1 KB IGS 61205025821 (rev1).igs \| 5.2 MB STP 61205025821 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	50	2.54	Without ears	Male	73.8	1	250	20	max.	Tray	–

Order Code	Datasheet
61201025821	SPEC
61201425821	SPEC
61201625821	SPEC
61202025821	SPEC
61202625821	SPEC
61203425821	SPEC
61204025821	SPEC
61205025821	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Version	Gender	L (mm)	I_R (A)	Working Voltage (V (AC))	Contact Resistance (mΩ)	Tol. R	Packaging	Design Kit	Samples

Mates with

WR-BHD 2.54 mm Female IDC Connector with Strain Relief

Use with

WR-CAB 1.27 mm Ribbon Flat Cable

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces

WR-CAB 1.27 mm Ribbon Flat Cable 1 m pieces

WR-CAB 1.27 mm Ribbon Flat Cable

Tools

WR-BHD IDC Press & Tools

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Box Headers and Flat Cable
