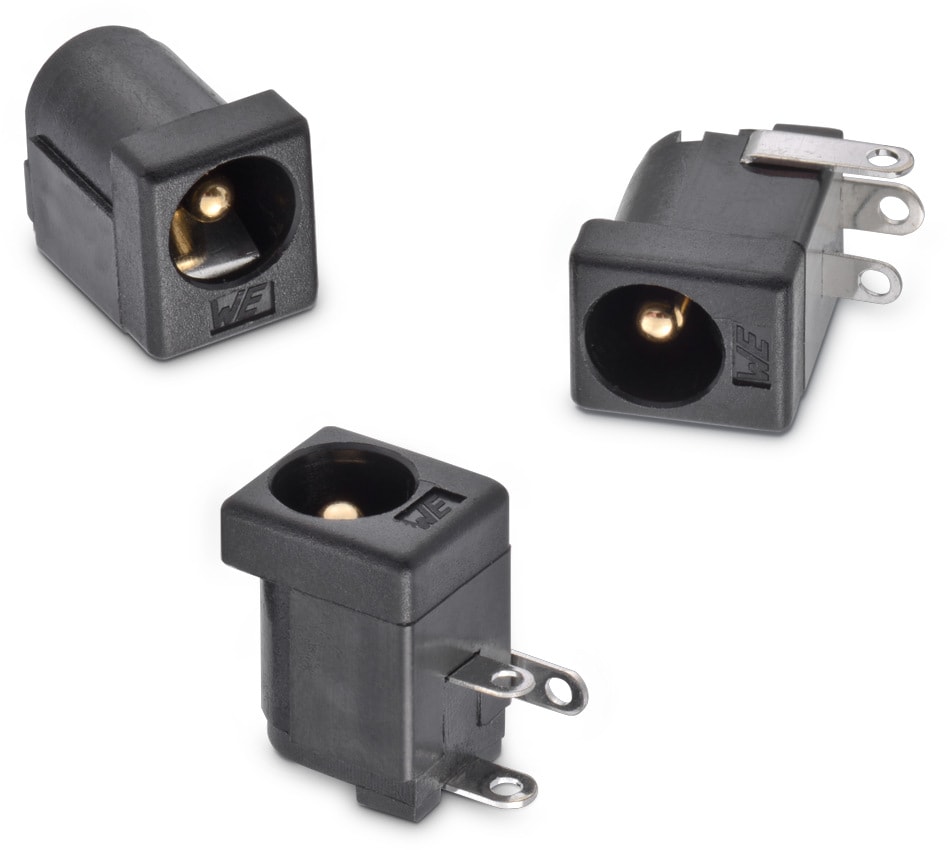

| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +85 °C |
| Compliance | RoHS |
| Quality Class | 5 000 Mating cycles |
| Type | Right Angled |
| Material Properties | |
|---|---|
| Insulator Material | PA66 |
| Insulator Flammability Rating | UL94 V-0 |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Type | Stamped |
| Center Pin Plating | Gold |
| Center Pin Terminal Plating | Tin |
| Tip Spring Material | Tin |
| Tip Spring Plating | Tin |
| Shunt Terminal Plating | Tin |
| Electrical Properties | |
|---|---|
| IR | 5 A |
| Working Voltage | 30 V (DC) |
| Withstanding Voltage | 500 V (AC) |
| Contact Resistance | 50 mΩ |
| RISO | 100 MΩ |
| Certification | |
|---|---|
| UL Approval | E323964 |
| Packaging Properties | |
|---|---|
| Packaging | Bag |
Products
| Order Code | Datasheet | Downloads | Status | Mount | Type | IR (A) | IR (A) | Working Voltage (V (DC)) | Packaging | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 694106301002 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | THT | Right Angled | 5 | 5 | 30 | Bag | 612690 694001 | |
| 694108301002 | SPEC | 6 files | Active i| Production is active. Expected lifetime: >10 years. | THT | Right Angled | 5 | 5 | 30 | Bag | 612690 694001 |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Mount | Type | IR (A) | IR (A) | Working Voltage (V (DC)) | Packaging | Design Kit | Samples |
|---|
Assortments
Articles from this product series can be found in the following assortments:
