WR-DSUB Male Crimp Contact | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyInput/Output Connectors Product sub-familyWR-DSUB Connectors OrientationCable GenderMale Product seriesWR-DSUB Male Crimp Contact

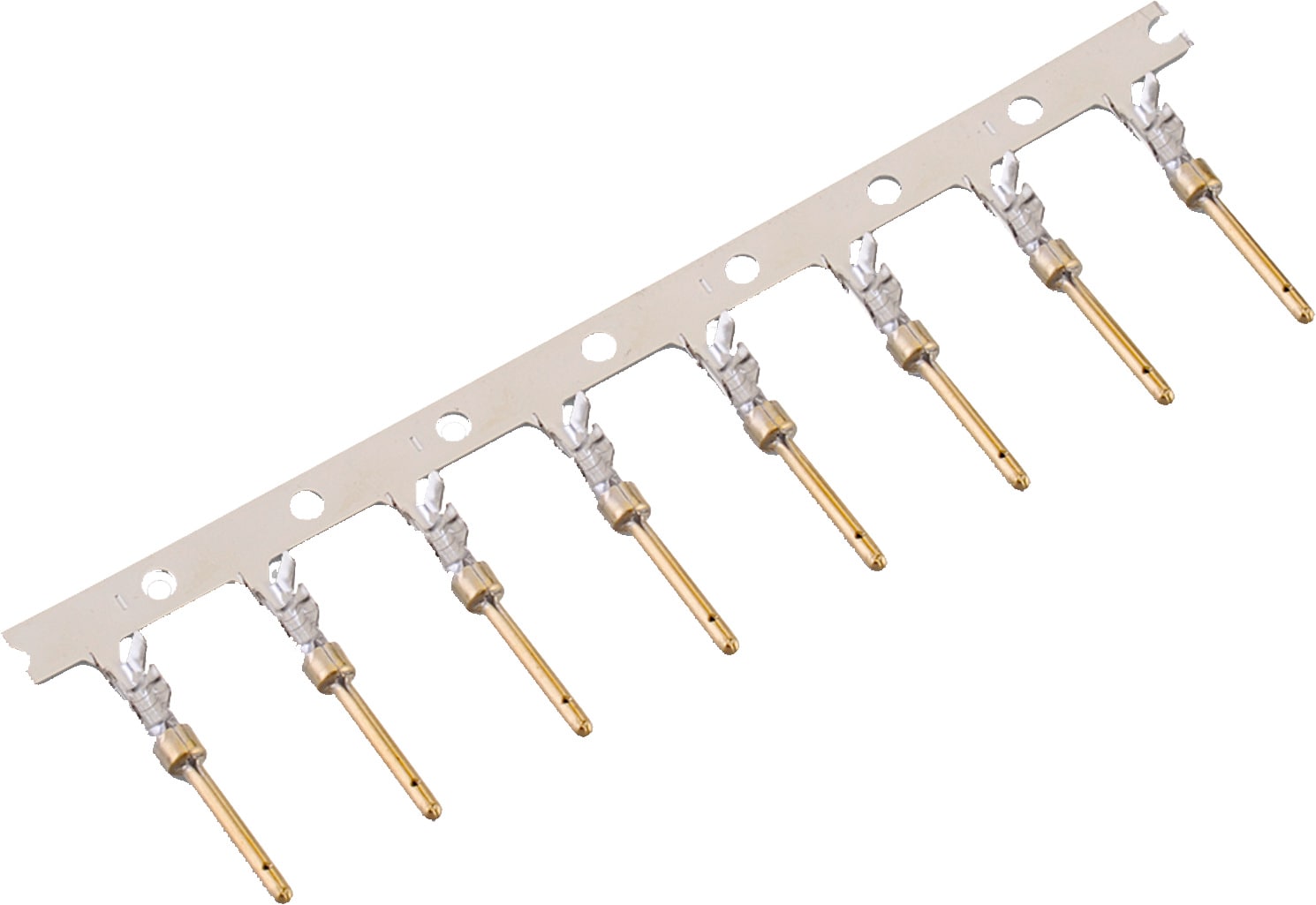

WR-DSUB Male Crimp Contact

General Information
Operating Temperature	-55 °C up to +105 °C
Compliance	RoHS
Quality Class	50 Mating cycles
Gender	Male
Type	Terminal/Contact
Insulator Flammability Rating	UL94 V-0
Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

Electrical Properties
I_R	3 A
Working Voltage	250 V (AC)
Contact Resistance	50 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Samples
61800413722	SPEC	6 files CAD files ZIP 3D 618x0413722_1 (rev1).pdf \| 371 KB IGS 618x0413722 (rev1).iges \| 2.7 MB IGS 61800413722 (rev1).igs \| 1.5 MB STP 618x0413722 (rev1).stp \| 928.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	20 to 22 (AWG)	0.518 to 0.326 (mm²)	Big Reel	5000
61800513722	SPEC	6 files CAD files ZIP 3D 618x0513722_1 (rev1).pdf \| 371 KB IGS 618x0513722 (rev1).iges \| 2.7 MB IGS 61800513722 (rev1).igs \| 1.5 MB STP 618x0513722 (rev1).stp \| 928.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Big Reel	5000
61800413722DEC	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 190.9 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	22 to 20 (AWG)	0.518 to 0.326 (mm²)	Bag	100
61800513722DEC	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 190.9 KB IGS Download_IGES (rev1).iges \| 1.2 MB STP Download_STP (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Bag	100
61810413722	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 371 KB IGS Download_IGES (rev1).iges \| 2.7 MB STP Download_STP (rev1).stp \| 928.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	22 to 20 (AWG)	0.518 to 0.326 (mm²)	Small Reel	500
61810513722	SPEC	3 files CAD files ZIP 3D Download_3D (rev1).pdf \| 371 KB IGS Download_IGES (rev1).iges \| 2.7 MB STP Download_STP (rev1).stp \| 928.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	26 to 24 (AWG)	0.129 to 0.205 (mm²)	Small Reel	500

Order Code	Datasheet
61800413722	SPEC
61800513722	SPEC
61800413722DEC	SPEC
61800513722DEC	SPEC
61810413722	SPEC
61810513722	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Samples
