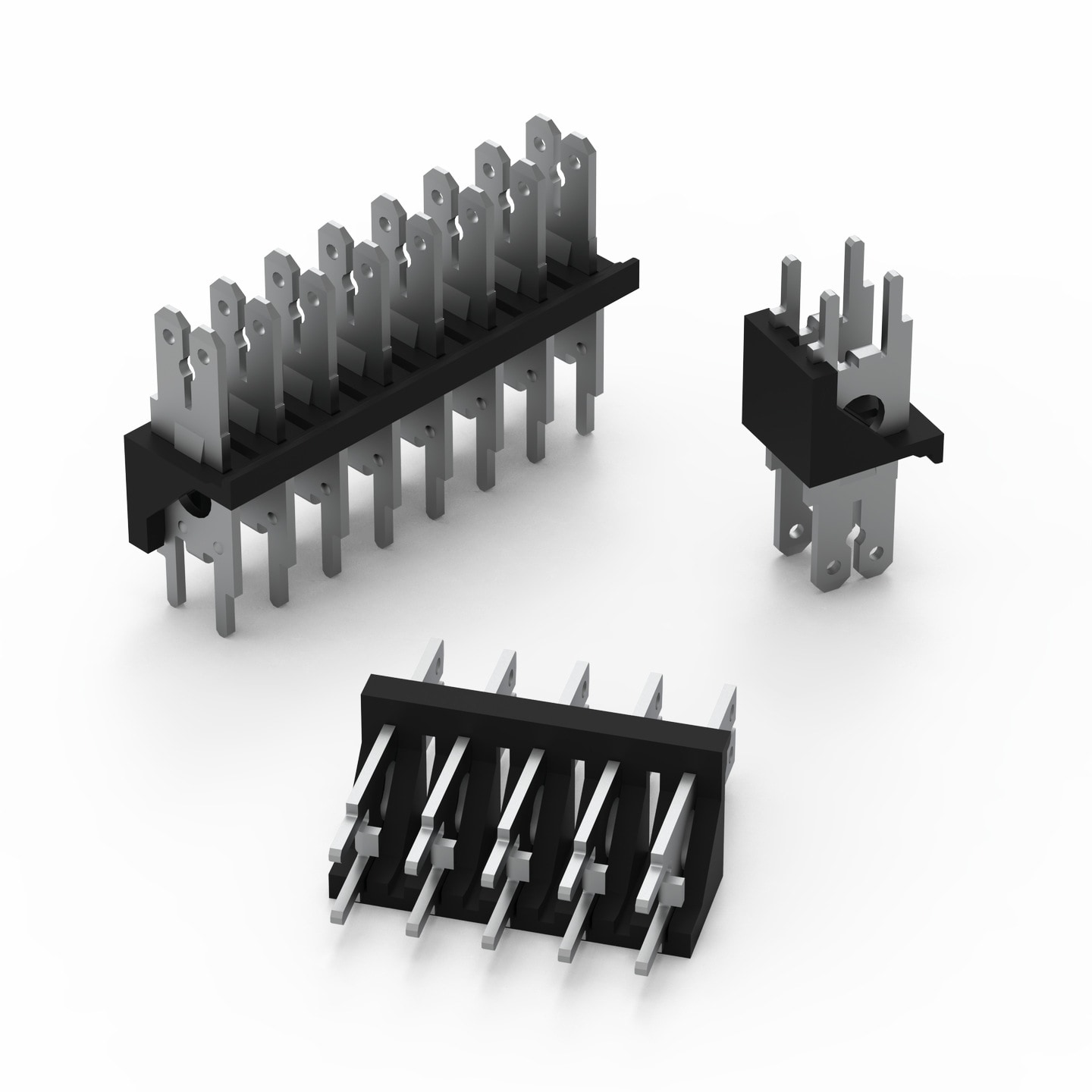

WR-FAST 5.08 mm THT Male Header Vertical Blade 2863

General Information
Operating Temperature	-30 °C up to +120 °C
Working Voltage	300 V (AC)
Withstanding Voltage	1600 V (AC)
Contact Resistance	20 mΩ
R_ISO	5 MΩ
I_R	16 A
Pitch	5.08 mm
Gender	Male

Material Properties
Insulator Material	PC
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Steel
Contact Plating	Tin
Contact Type	Stamped

Certification
cULus Approval	E150931

Packaging Properties
Packaging	Box

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	L (mm)	Packaging	Design Kit
638207222002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222002 (rev1).pdf \| 67 KB IGS Download_IGES_638207222002 (rev1).iges \| 705.3 KB STP Download_STEP_638207222002 (rev1).stp \| 146.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	5.08	Male	Vertical	THT	9.2	Box	638001
638207222003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222003 (rev1).pdf \| 72.4 KB IGS Download_IGES_638207222003 (rev1).iges \| 812.2 KB STP Download_STEP_638207222003 (rev1).stp \| 171.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	5.08	Male	Vertical	THT	14.28	Box	638001
638207222004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222004 (rev1).pdf \| 77.9 KB IGS Download_IGES_638207222004 (rev1).iges \| 918.3 KB STP Downloads_STEP_638207222004 (rev1).stp \| 196.8 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	5.08	Male	Vertical	THT	19.36	Box	638001
638207222005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222005 (rev1).pdf \| 83.4 KB IGS Download_IGES_638207222005 (rev1).iges \| 1 MB STP Download_STEP_638207222005 (rev1).stp \| 222.1 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	5.08	Male	Vertical	THT	24.44	Box	638001
638207222006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222006 (rev1).pdf \| 88.9 KB IGS Download_IGES_638207222006 (rev1).iges \| 1.1 MB STP Download_STEP_638207222006 (rev1).stp \| 247.4 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	5.08	Male	Vertical	THT	29.52	Box	638001
638207222007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222007 (rev1).pdf \| 94.4 KB IGS Download_IGES_638207222007 (rev1).iges \| 1.2 MB STP Download_STEP_638207222007 (rev1).stp \| 281.2 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	5.08	Male	Vertical	THT	34.6	Box	638001
638207222008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-FAST (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FAST (rev19a).zip \| 3.4 MB EAG Eagle_WR-FAST (rev20a).lbr \| 337.1 KB CAD files ZIP 3D Download_3D_638207222008 (rev1).pdf \| 99.9 KB IGS Download_IGES_638207222008 (rev1).iges \| 1.3 MB STP Download_STEP_638207222008 (rev1).stp \| 307.6 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	5.08	Male	Vertical	THT	39.68	Box	–

Order Code	Datasheet
638207222002	SPEC
638207222003	SPEC
638207222004	SPEC
638207222005	SPEC
638207222006	SPEC
638207222007	SPEC
638207222008	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Pitch (mm)	Gender	Type	Mount	L (mm)	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-FAST Fast Connection
