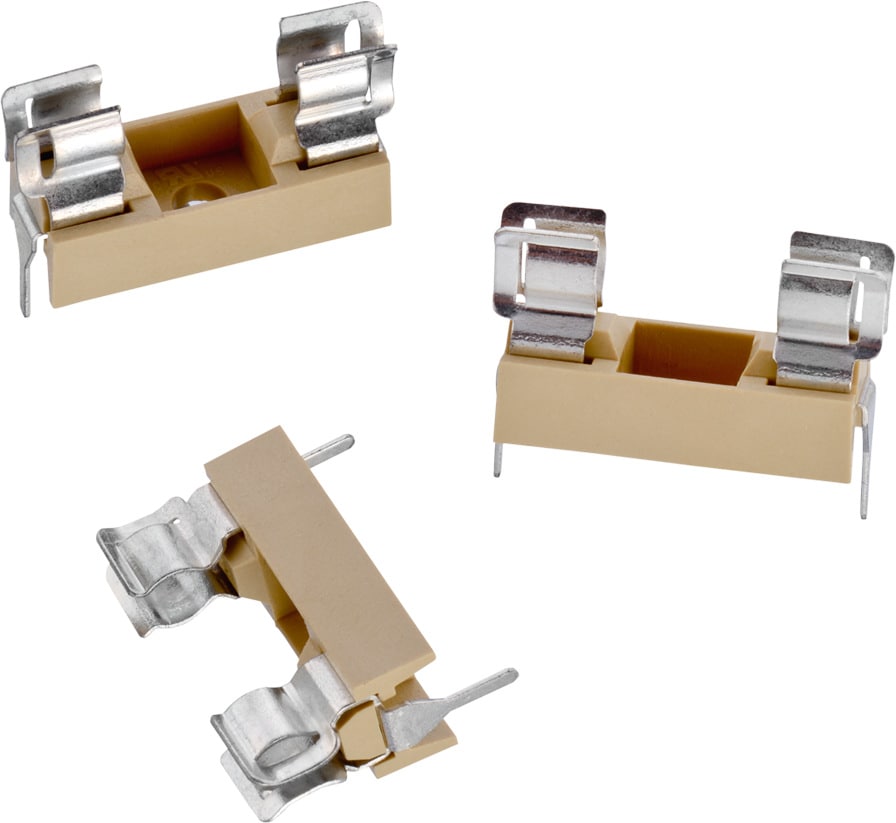

WR-FSH Fuseholder THT Blocks PCB Clip Cover

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS

Material Properties
Insulator Material	PPO (PPE+PS)
Insulator Flammability Rating	UL94 V-1
Insulator Color	Beige
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Contact Type	Stamped

Electrical Properties
I_R	18 A
I_R	6.3 A
Working Voltage	250 V (AC)
Working Voltage [UL]	250 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [UL]	1500 V (AC)
Withstanding Voltage [VDE]	1500 V (AC)
Contact Resistance	10 mΩ

Mechanical Properties
Protection Class	I & II
Fuse Size	5x20 mm

Certification
cULus Approval	E157417
VDE Approval	129300

Packaging Properties
Packaging	Box

Products

Order Code	Datasheet	Downloads	Status	I_R (A)	I_R (A)	Mates with	Design Kit	Samples
696101000002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev20a).zip \| 7.7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696101000002 (rev1).pdf \| 137.8 KB IGS 696101000002 (rev1).igs \| 2.5 MB STP 696101000002 (rev1).stp \| 671.7 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	18	6.3	WR-FSH Accessories - PCB - Clip cover - THT - Glow wire plastic	612690 696001

Order Code	Datasheet
696101000002	SPEC

Samples

Order Code	Datasheet	Downloads	Status	I_R (A)	I_R (A)	Mates with	Design Kit	Samples

Use with

WR-FSH Accessories - PCB - Clip cover - THT - Glow wire plastic

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-FSH Fuseholder
