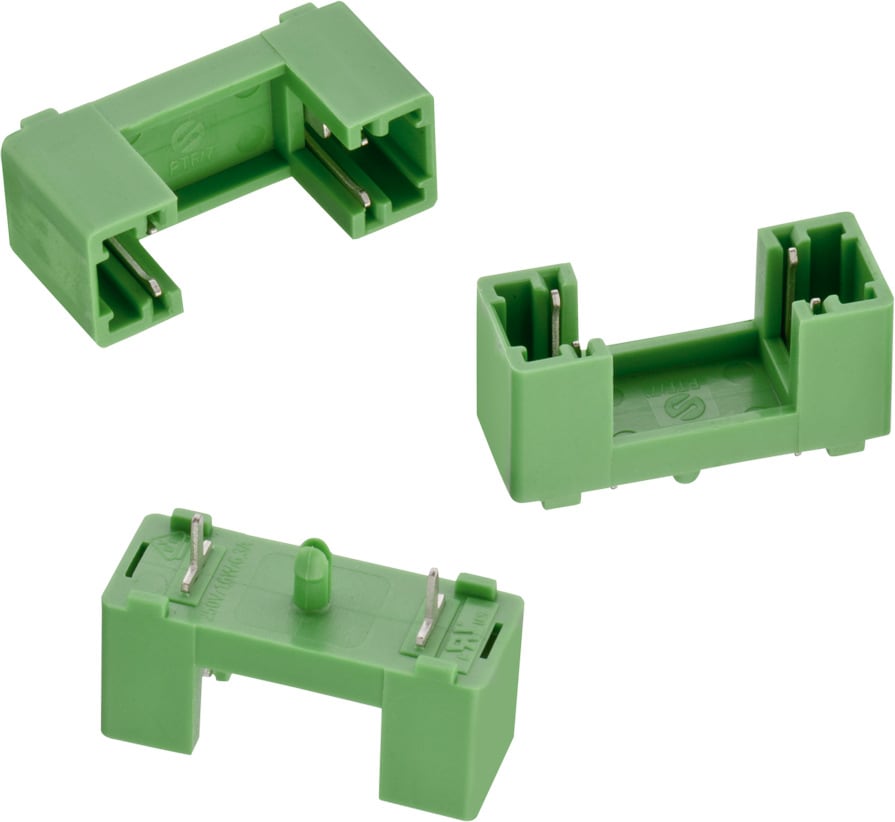

WR-FSH Fuseholder THT Blocks PCB Clip Cover

General Information
Operating Temperature	-30 °C up to +120 °C
Compliance	RoHS

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Contact Type	Stamped

Electrical Properties
I_R	20 A
I_R[VDE]	6.3 A
Working Voltage	250 V (AC)
Working Voltage [UL]	250 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [UL]	1500 V (AC)
Withstanding Voltage [cULus]	1500 V (AC)
Withstanding Voltage [VDE]	1500 V (AC)
Contact Resistance	10 mΩ
R_C	10 mΩ

Mechanical Properties
Protection Class	I & II
Fuse Size	5x20 mm

Certification
cULus Approval	E157417
VDE Approval	129302

Packaging Properties
Packaging	Box

Products

Order Code	Datasheet	Downloads	Status	Description	I_R (A)	I_R[VDE] (A)	Design Kit	Samples
696105003002	SPEC	7 files EDA models: Components ZIP ALT 696105003002 (rev16a).IntLib \| 1.7 MB ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev25a).zip \| 7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696105003002 (rev1).pdf \| 160 KB IGS 696105003002 (rev1).igs \| 2.6 MB STP 696105003002 (rev1).stp \| 1.5 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15mm pitch - with polarization peg	20	6.3	612690 696001
696106003002	SPEC	7 files EDA models: Components ZIP ALT 696106003002 (rev16a).IntLib \| 1.7 MB ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev25a).zip \| 7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696106003002 (rev1).pdf \| 149.3 KB IGS 696106003002 (rev1).igs \| 2.4 MB STP 696106003002 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	15mm pitch - without polarization peg	20	6.3	696001
696107003002	SPEC	7 files EDA models: Components ZIP ALT 696107003002 (rev16a).IntLib \| 1.7 MB ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev25a).zip \| 7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696107003002 (rev1).pdf \| 154.6 KB IGS 696107003002 (rev1).igs \| 2.4 MB STP 696107003002 (rev1).stp \| 1.4 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22,6mm pitch - with polarization peg	20	6.3	696001
696108003002	SPEC	7 files EDA models: Components ZIP ALT 696108003002 (rev16a).IntLib \| 1.7 MB ALT Altium_WR-FSH (rev22a).IntLib \| 1.9 MB CDS Cadence_WR-FSH (rev25a).zip \| 7 MB EAG Eagle_WR-FSH (rev20a).lbr \| 79.7 KB CAD files ZIP 3D 3D_696108003002 (rev1).pdf \| 138.5 KB IGS 696108003002 (rev1).igs \| 2.3 MB STP 696108003002 (rev1).stp \| 1.3 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	22,6mm pitch - without polarization peg	20	6.3	696001
