Characteristics

Low-cost high power radio module 868 MHz
Wireless M-BUS EN13757-4: 2013 standard
OMS (Open Metering System) supported
Range up to 1000 m line of sight
Small size: 17 x 27 x 4.0 mm
RF output power 14 dBm
Low-power functions (Wake-On-Radio)
Easy switching between operating modes S, T, C
Adjustable RF data rates
Communication via UART/SPI Interface
Encryption AES-128
Available on Tape & Reel for SMT mounting
ACC Software - PC Tool to configure and update the module
Wireless Connectivity SDK

Application Notes

See what the firmware developed by Würth Elektronik can do - the WE-ProWare

Products

All

Radio Module

USB radio stick

EV-Kits

Order Code	Datasheet	Simulation	Manual	Downloads	Status	Description	Frequency Range (MHz)	d_LoS (m)	P_{Tx, 50 Ω} (dBm)	Rx_{sens, 50 Ω} (dBm)	V_{DD min.} (V)	V_{DD max._(V)}	R_{b max.} (kbps)	L (mm)	W (mm)	H (mm)	Radio Module	Antenna	USB Radio Stick	Evaluation Kit
2607029283001	–	–	PDF	–	Active i\| Production is active. Expected lifetime: >10 years.	EV-Kit Metis-II	–	–	–	–	–	–	–	–	–	–	2607021183000	Hyperion-I	–	–

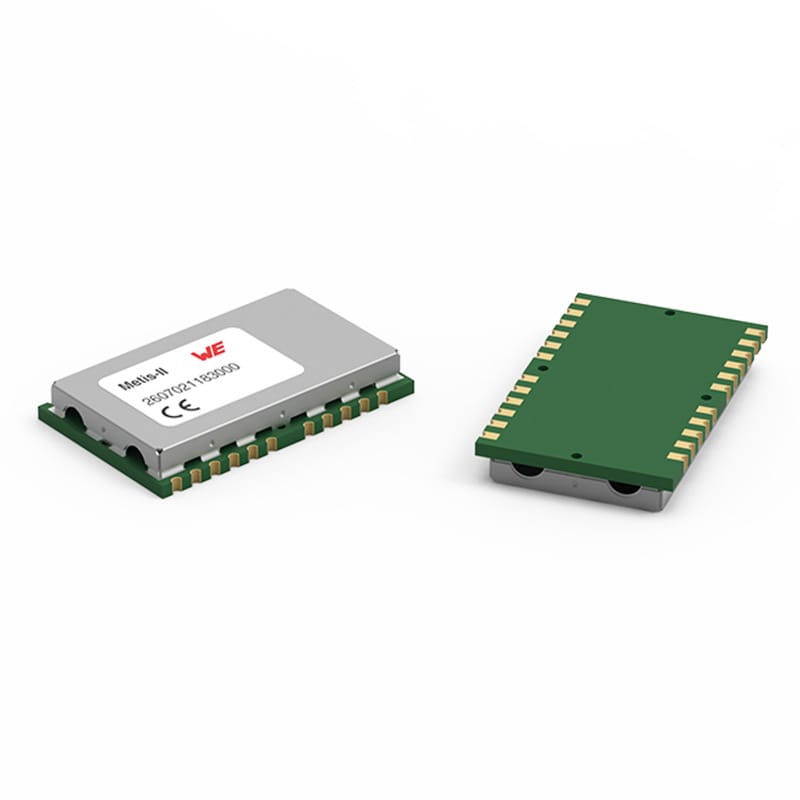

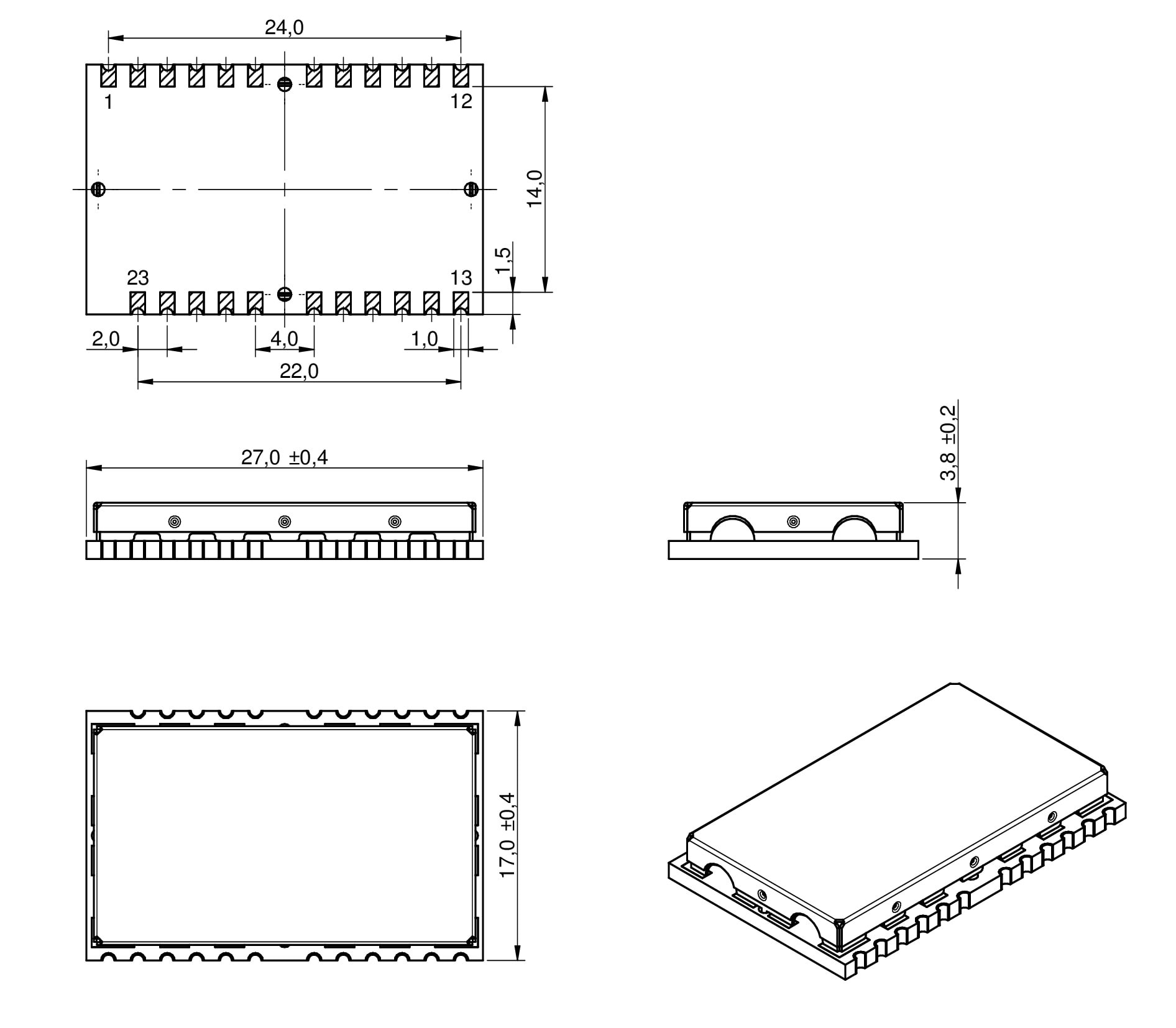

2607021183000	SPEC		PDF	5 files EDA models: Components ZIP ALT LIB_WE_WIRL_Altium (revV15.0).zip \| 3.3 MB EAG LIB_WE_WIRL_Eagle (revV15).zip \| 33.2 KB CAD files ZIP 3D 3D_2607021183000 (rev1).pdf \| 416.9 KB IGS Download_IGS_WIRL-WMB1-2607011113001 (rev1).igs \| 4 MB STP Download_STP_WIRL-WMB1-2607011113001 (rev1).stp \| 1.5 MB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Metis-II	868.3 - 869.525	1000	14	-106	2	3.6	100	17	27	3.8	–	Hyperion-I Hyperion-II	2607056283001	2607029283001
2607056283001	SPEC		PDF	4 files EDA models: Components ZIP ALT LIB_WE_WIRL_Altium (revV15.0).zip \| 3.3 MB EAG LIB_WE_WIRL_Eagle (revV15).zip \| 33.2 KB CAD files ZIP IGS Download_IGS_WIRL-WMB1-2607056281001 (rev1).igs \| 13.6 MB STP Download_STP_WIRL-WMB1-2607056281001 (rev1).stp \| 3.1 MB Download all 4 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Metis-II USB radio stick	868.3 - 869.525	800	14	-106	–	–	100	74	23.65	12	2607021183000	Hyperion-I Hyperion-II	–	–

Order Code	Datasheet	Simulation
2607029283001	–	–
2607021183000	SPEC
2607056283001	SPEC

Offer

Order Code	Datasheet	Simulation	Manual	Downloads	Status	Description	Frequency Range (MHz)	d_LoS (m)	P_{Tx, 50 Ω} (dBm)	Rx_{sens, 50 Ω} (dBm)	V_{DD min.} (V)	V_{DD max._(V)}	R_{b max.} (kbps)	L (mm)	W (mm)	H (mm)	Radio Module	Antenna	USB Radio Stick	Evaluation Kit	Offer

Software Downloads

Wireless Connectivity SDK

The aim of the Wireless Connectivity Software Development Kit (SDK) is to minimize the effort required on customer side to enable his host MCU to communicate with Würth Elektronik eiSos radio modules. It contains the implementation of all available commands in pure C-code. In order to integrate any Würth Elektronik eiSos wireless module, the user has to simply port the corresponding C-code to his host processor. This significantly reduces the time needed for developing the software interface to the radio module.

Download now on GitHub

ACC Tool

The "ACC V3" is a tool to update and configure certain Würth Elektronik eiSos modules. The supported features will include the search and upload of new firmwares as well as the modification of the available configuration parameters. It allows full user control over all supported products, as in the range of the producer’s intentions, always referring to the respective manual of the connected module.

Due to current export legal restrictions, we are required to control the provision of software. To download the software, please contact our technical support or your local sales representative directly. Thank you for your understanding.

Wireless M-Bus

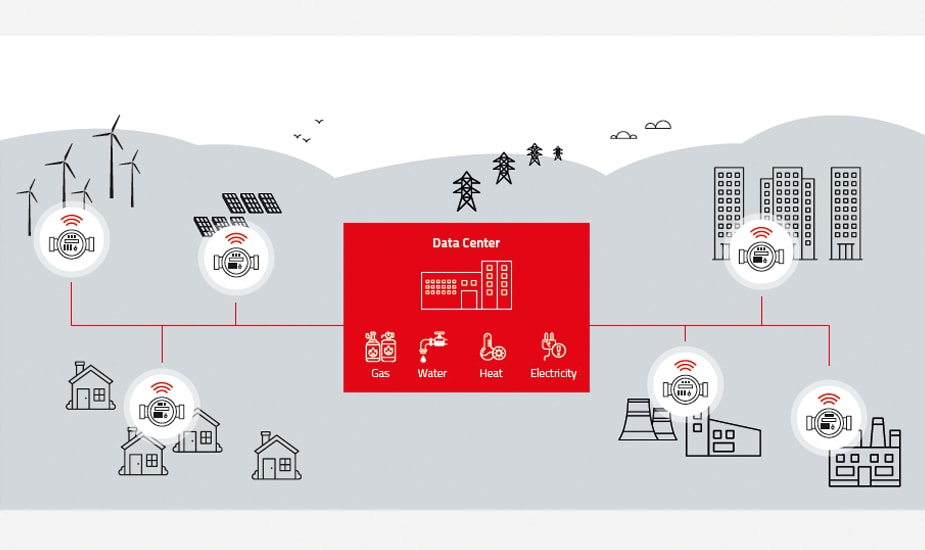

Wireless Meter Bus (wM-BUS) is the extension of the meter Bus (M-BUS) with a wireless protocol and role scheme for handling communication over a standardized wireless communication interface between meters and data loggers – so called smart meter gateways (SMGW). This scheme is specified by the European standard EN 13757 and its sub-standards. The motivation of this standard is to allow an automated measuring and processing of data, track the usage of resources and to optimize provisioning in order to create an “Advanced Metering Infrastructure” (AMI).

Such Smart grid / meter devices are typically battery operated and in need for a long range and robust wireless communication. This is the reason for using the Sub GHz frequencies in the free ISM Bands. EN13757-4 is specifying radio options in the 169 MHz, 434 MHz or 868 MHz band, regarding to the region.

User Application

Advantages for the Customers

„Almost live“ data access on his currently use of resources including a “live” cost estimation instead of yearly billing
Comparison on a day-by-day basis when data is available
No costs for the manual readout, no huddle with a yearly appointment for manual meter readout person
Secure due to encryption, only the owner of the data knows the key required for decrypting the messages of the meters
Several metering providers can share a single Smart meter Gateway (water, gas, electricity, heat cost, …)

Disadvantages for the Customers

High initial costs: Smart meter gateway and meters with wireless interface
Battery lifetime requires exchanging devices each 7 - 10 years in case of battery operated devices – due to security reasons “just” changing the battery is often prevented
