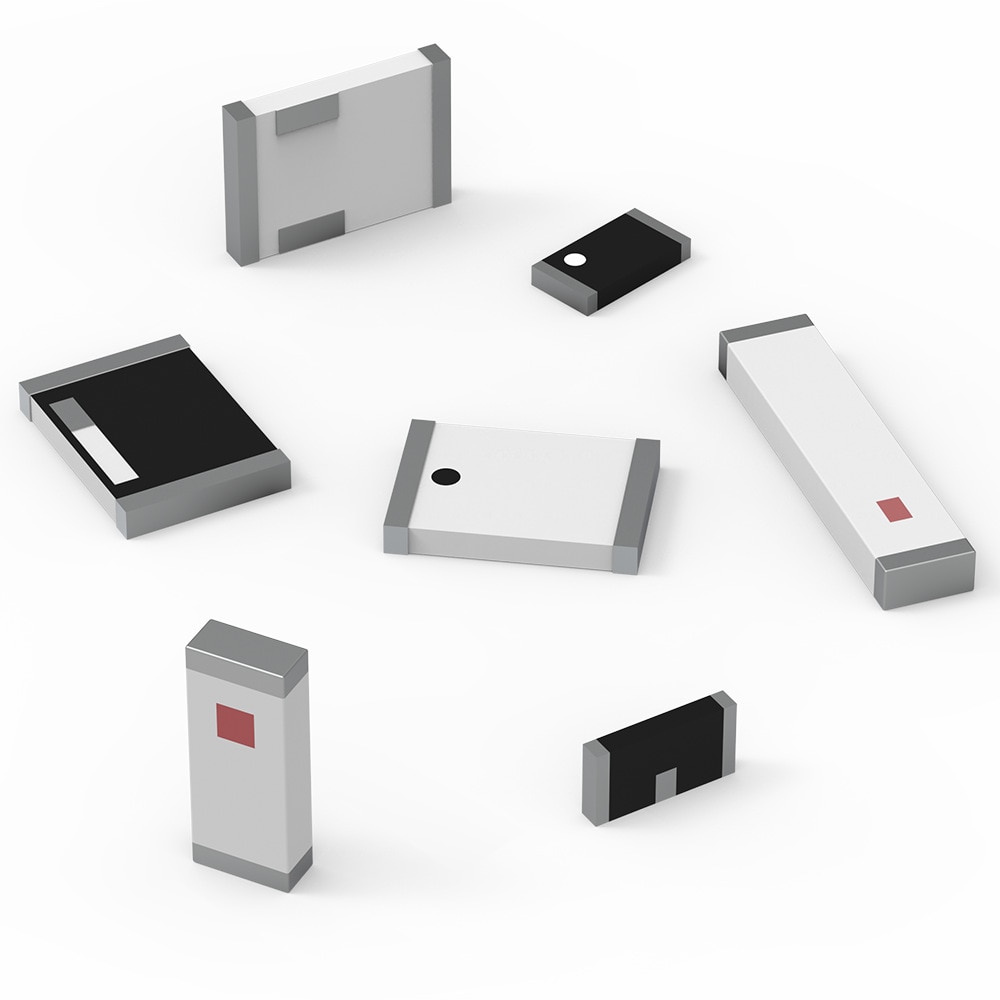

WE-MCA Antennas

Characteristics

SMT multilayer chip antenna
Extremely low profile
Omni-directional radiation pattern
Excellent size to performance ratio
Smallest form factor in the industry
Less ground clearance
Operating temperature: -40 °C to +85°C

Applications

Home RF/Smart home
GSM 900
WLAN/WiFi
Bluetooth
GPS/GNSS
ZigBee
Cellular Communication, 4G/LTE

Application Notes

ANP057 WE-MCA Multilayer Chip Antenna Placement & Matching
PDF

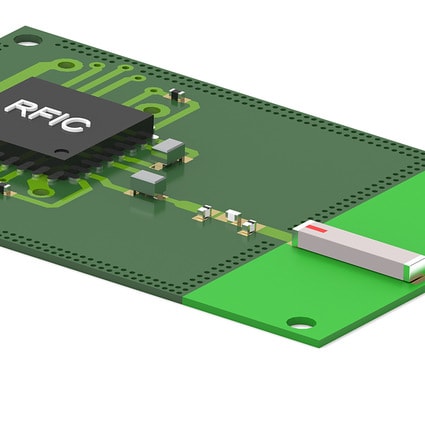

Antenna Matching and Characterization Support

Würth Elektronik is offering not just the components for a matched Antenna Network, we can also support in the process of designing.

Learn more

Products

All

Single band

Dual band

Order Code	Datasheet	Downloads	Frequency Range	G_peak (dBi)	VSWR	Frequency Range 2	G_peak,2 (dBi)	VSWR₁ (%)	Z (Ω)	Size	Type	Design Kit

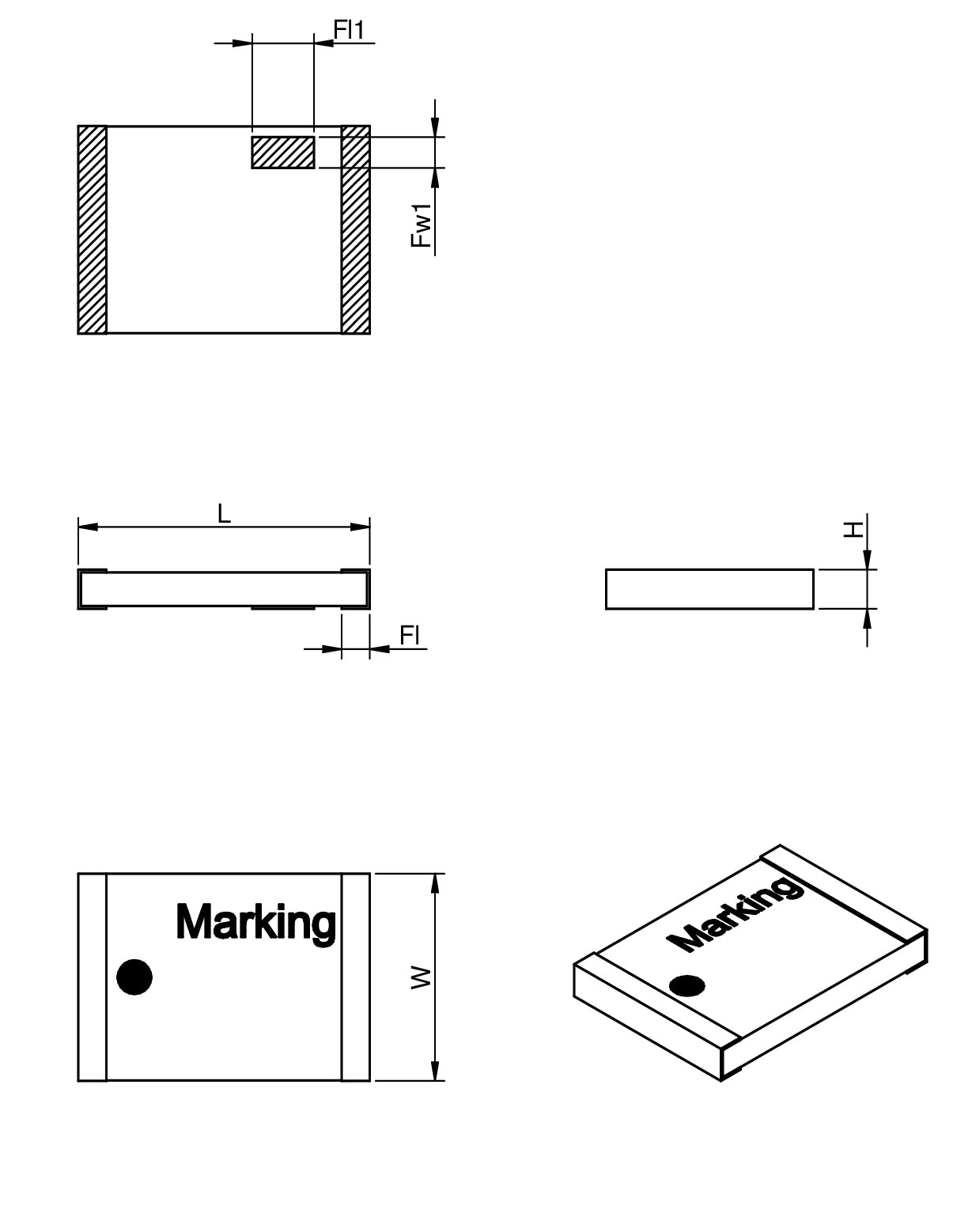

7488910043	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488910043 (rev23a).a3dcomp \| 3.4 MB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS 7488910043 (rev1).igs \| 238.8 KB STP 7488910043 (rev1).stp \| 92.4 KB Electric models ZIP S S-Parameter_7488910043 (rev20a).S1P \| 34.7 KB Download all 8 files as zip archive ZIP	423-443 MHz	-4	2	–	–	–	50	25 x 5 mm	Electrical Antenna	–
7488918022	SPEC	7 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488918022 (rev23a).a3dcomp \| 1012.8 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_7488918022_WE-MCA (rev1).igs \| 616.6 KB STP Step_7488918022_WE-MCA (rev1).stp \| 185.1 KB Electric models ZIP S S-Parameter_7488918022 (rev22a).S1P \| 34.3 KB Download all 7 files as zip archive ZIP	700-960 MHz	2.1	4	1710-2690 MHz	5.5	4	50	40 x 6 mm	Electrical Antenna	–
7488910092	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488910092 (rev23a).a3dcomp \| 2.7 MB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS 7488910092 (rev1).igs \| 480.2 KB STP 7488910092 (rev1).stp \| 180 KB Electric models ZIP S S-Parameter_7488910092 (rev20a).S1P \| 34.7 KB Download all 8 files as zip archive ZIP	868-960 MHz	-0.7	2.5	–	–	–	50	11 x 5.1 mm	Electrical Antenna	748001
7488910915	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488910915 (rev23a).a3dcomp \| 542.2 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_WE-MCA_7488910915 (rev1).igs \| 209.4 KB STP STEP_7488910915_WE-MCA (rev1).stp \| 61 KB Electric models ZIP S S-Parameter_7488910915 (rev20a).S1P \| 34.5 KB Download all 8 files as zip archive ZIP	902-928 MHz	0.5	3	–	–	–	50	5.2 x 3.7 mm	Magnetic Antenna	–
7488920157	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488920157 (rev23a).a3dcomp \| 541.9 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_7488920157_WE-MCA (rev1).igs \| 209.4 KB STP Step_7488920157_WE-MCA (rev1).stp \| 61.2 KB Electric models ZIP S S-Parameter_7488920157 (rev20a).S1P \| 66.9 KB Download all 8 files as zip archive ZIP	1550-1600 MHz	3.4	2	–	–	–	50	5.2 x 3.7 mm	Magnetic Antenna	748001
7488915724	SPEC	9 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488915724 (rev23a).a3dcomp \| 499.2 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_7488915724_WE-MCA (rev1).igs \| 96 KB STP Step_7488915724_WE-MCA (rev1).stp \| 28.9 KB Electric models ZIP S S-Parameter_7488915724_57 (rev20a).S1P \| 67 KB Download all 9 files as zip archive ZIP	1570-1580 MHz	0.69	2.5	2400-2500 MHz	0.97	–	50	3.2 x 1.7 mm	Magnetic Antenna	748001
7488912455	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488912455 (rev23a).a3dcomp \| 1.7 MB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS 7488912455 (rev1).igs \| 256.7 KB STP 7488912455 (rev1).stp \| 93.8 KB Electric models ZIP S S-Parameter_7488912455 (rev20a).S1P \| 34.6 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	1	2.2	4900-5875 MHz	-1.5	2.2	50	8.5 x 1.6 mm	Electrical Antenna	748001
7488920245	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488920245 (rev23a).a3dcomp \| 1.4 MB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS 7488920245 (rev1).igs \| 369.1 KB STP 7488920245 (rev1).stp \| 132.9 KB Electric models ZIP S S-Parameter_7488920245 (rev20a).s1p \| 34.8 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	1.3	2	–	–	–	50	7.6 x 3.5 mm	Electrical Antenna	–
7488960245	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488960245 (rev23a).a3dcomp \| 538.9 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_7488960245_WE-MCA (rev1).igs \| 209.9 KB STP Step_7488960245_WE-MCA (rev1).stp \| 61.5 KB Electric models ZIP S S-Parameter_7488960245 (rev20a).S1P \| 66.9 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	3	2.5	–	–	–	50	5.2 x 3.7 mm	Magnetic Antenna	748001
7488922455	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_7488922455 (rev23a).a3dcomp \| 451.1 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_7488922455_WE-MCA (rev1).igs \| 212.2 KB STP Step_7488922455_WE-MCA (rev1).stp \| 65.2 KB Electric models ZIP S S-Parameter_7488922455 (rev20a).S1P \| 66.9 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	3	2	5000-6000 MHz	3.3	2	50	5.2 x 3.7 mm	Magnetic Antenna	748001
74889102450	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_74889102450 (rev23a).a3dcomp \| 1 MB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_WE-MCA_74889102450 (rev1).igs \| 1.5 MB STP STP_WE-MCA_74889102450 (rev1).stp \| 262.4 KB Electric models ZIP S S-Parameter_74889102450 (rev21a).S1P \| 34.5 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	3	2	–	–	–	50	9.0 x 2.0 mm	Electrical Antenna	–
74889302450	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_74889302450 (rev23a).a3dcomp \| 1 MB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_WE-MCA_74889302450 (rev1).igs \| 125.9 KB STP STP_WE-MCA_74889302450 (rev1).stp \| 34 KB Electric models ZIP S S-Parameter_74889302450 (rev21a).S1P \| 34.6 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	0.5	2	–	–	–	50	3.2 x 1.6 mm	Electrical Antenna	–
74889502450	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_74889502450 (rev23a).a3dcomp \| 1010.9 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_WE-MCA_74889502450 (rev1).igs \| 122.1 KB STP STP_WE-MCA_74889502450 (rev1).stp \| 33 KB Electric models ZIP S S-Parameter_74889502450 (rev21a).S1P \| 34.5 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	2.5	2	–	–	–	50	5.2 x 2.1 mm	Electrical Antenna	–
74889402450	SPEC	8 files EDA models: Components ZIP ALT WE-MCA (rev23a).IntLib \| 316 KB ANS ANSYS_74889402450 (rev23a).a3dcomp \| 932.4 KB ZUK Cadstar_WE-MCA (rev21b).zip \| 14.4 KB CDS Cadence_WE-MCA (rev22a).zip \| 1 MB EAG Eagle_WE-MCA (rev22b).lbr \| 83.6 KB CAD files ZIP IGS IGS_WE-MCA_74889402450 (rev1).igs \| 120.9 KB STP STP_WE-MCA_74889402450 (rev1).stp \| 33.4 KB Electric models ZIP S S-Parameter_74889402450 (rev21a).S1P \| 34.5 KB Download all 8 files as zip archive ZIP	2400-2500 MHz	2.7	2	–	–	–	50	7.0 x 2.0 mm	Electrical Antenna	–

Order Code	Datasheet	Simulation
7488910043	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7488918022	SPEC
7488910092	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7488910915	SPEC
7488920157	SPEC
7488915724	SPEC
7488912455	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7488920245	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
7488960245	SPEC
7488922455	SPEC
74889102450	SPEC
74889302450	SPEC
74889502450	SPEC
74889402450	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Frequency Range	G_peak (dBi)	VSWR	Frequency Range 2	G_peak,2 (dBi)	VSWR₁ (%)	Z (Ω)	Size	Type	Design Kit	Samples

Suitable for

WCAP-CSRF High Frequency

RF Inductors

WCAP-CSRF High Frequency

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Antenna Matching

Videos

Würth Elektronik Webinar: Antenna Matching Network optimization & the effect of coaxial connectors

Videos

Würth Elektronik Webinar: Discover Radio Communication

Videos

Würth Elektronik Webinar: Range of radio protocols and appropriate antennas in theory & practice

Videos

Würth Elektronik Webinar: Certification, Policies & Guidelines for wireless communication

Videos

Würth Elektronik practice-oriented webinar: RF modules design do’s and don’ts

Videos

WE meet @ Digital Days 2020: Antenna matching. Small overview of the service and portfolio
