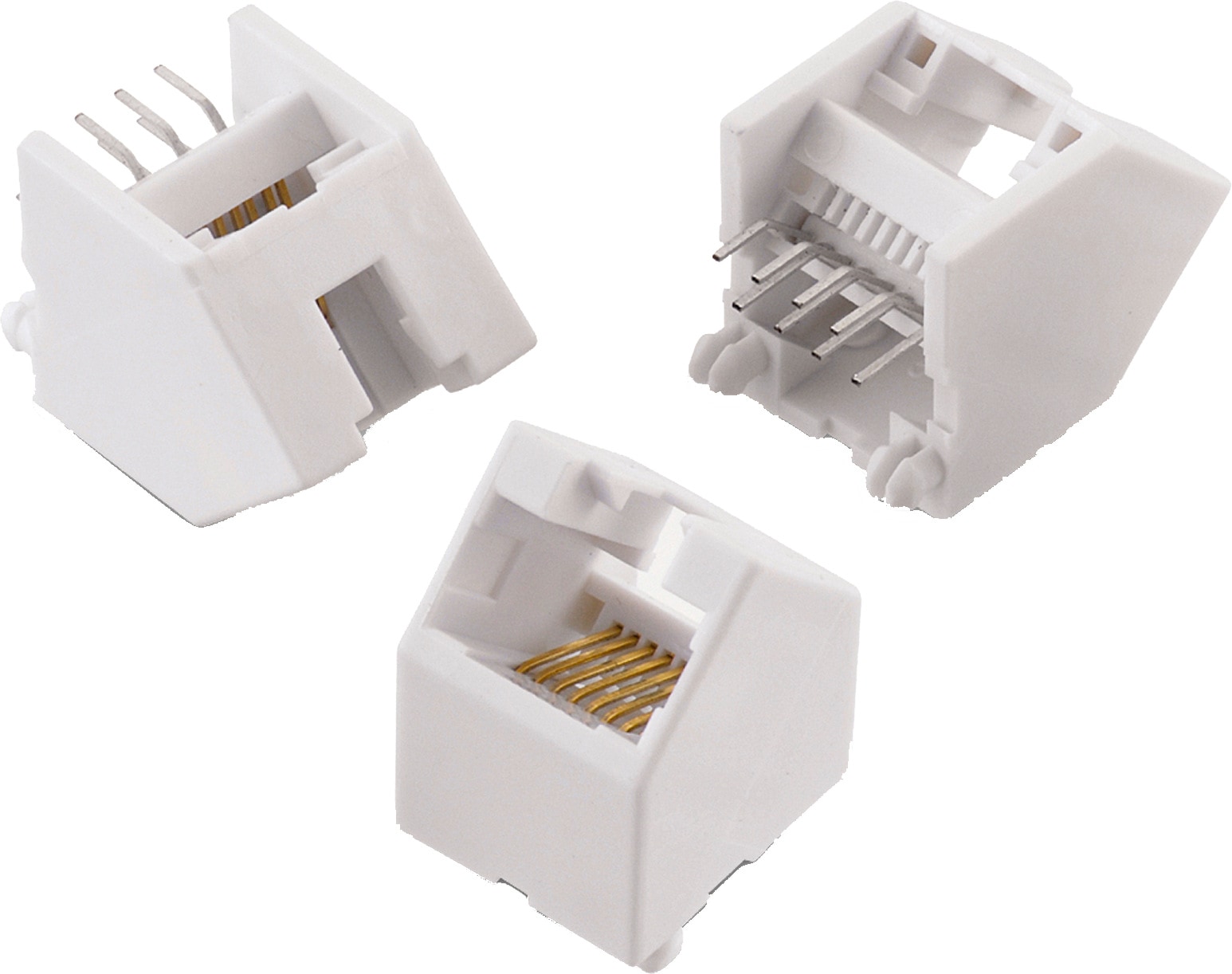

WR-MJ Modular Jack 45° Plastic 8P8C

General Information
Operating Temperature	-40 °C up to +85 °C
Compliance	RoHS
Quality Class	500 Mating cycles

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Color	White
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Bronze
Shielding Plating	Nickel (Ni)

Electrical Properties
I_R	1.5 A
Working Voltage	120 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	20 mΩ
R_ISO	500 MΩ

Packaging Properties
Packaging	Tray

Application Notes

ANP116 Gigabit Ethernet interface from an EMC perspective
PDF

Products

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Application System	Design Kit	Samples
615008142521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 615008142521_1 (rev1).pdf \| 197.1 KB IGS 615008142521 (rev1).igs \| 2.7 MB STP 615008142521 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	45°	THT	CAT 3	615001

Order Code	Datasheet
615008142521	SPEC

Samples

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Application System	Design Kit	Samples

Suitable for

Signal Transformer

Use with

WA-PCCA Plastic Caps for RJ45 Modular Jack

WA-PCCA Plastic Caps for RJ45 Modular Jack

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Modular Jacks & Communication Connectors
