| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +85 °C |
| Material Properties | |
|---|---|
| Insulator Material | PBT |
| Insulator Flammability Rating | UL94 V-0 |
| Insulator Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Selective Gold |
| Contact Type | Stamped |
| Shielding Material | Bronze |
| Shielding Plating | Nickel (Ni) |
| Electrical Properties | |
|---|---|
| Working Voltage | 120 V (AC) |
| Withstanding Voltage | 1000 V (AC) |
| Contact Resistance | 20 mΩ |
| RISO | 500 MΩ |
| Packaging Properties | |
|---|---|
| Packaging | Tray |
Application Notes
Products
| Order Code | Datasheet | Downloads | Status | xPxC | Type | Mount | Application System | Design Kit | Samples |
|---|---|---|---|---|---|---|---|---|---|

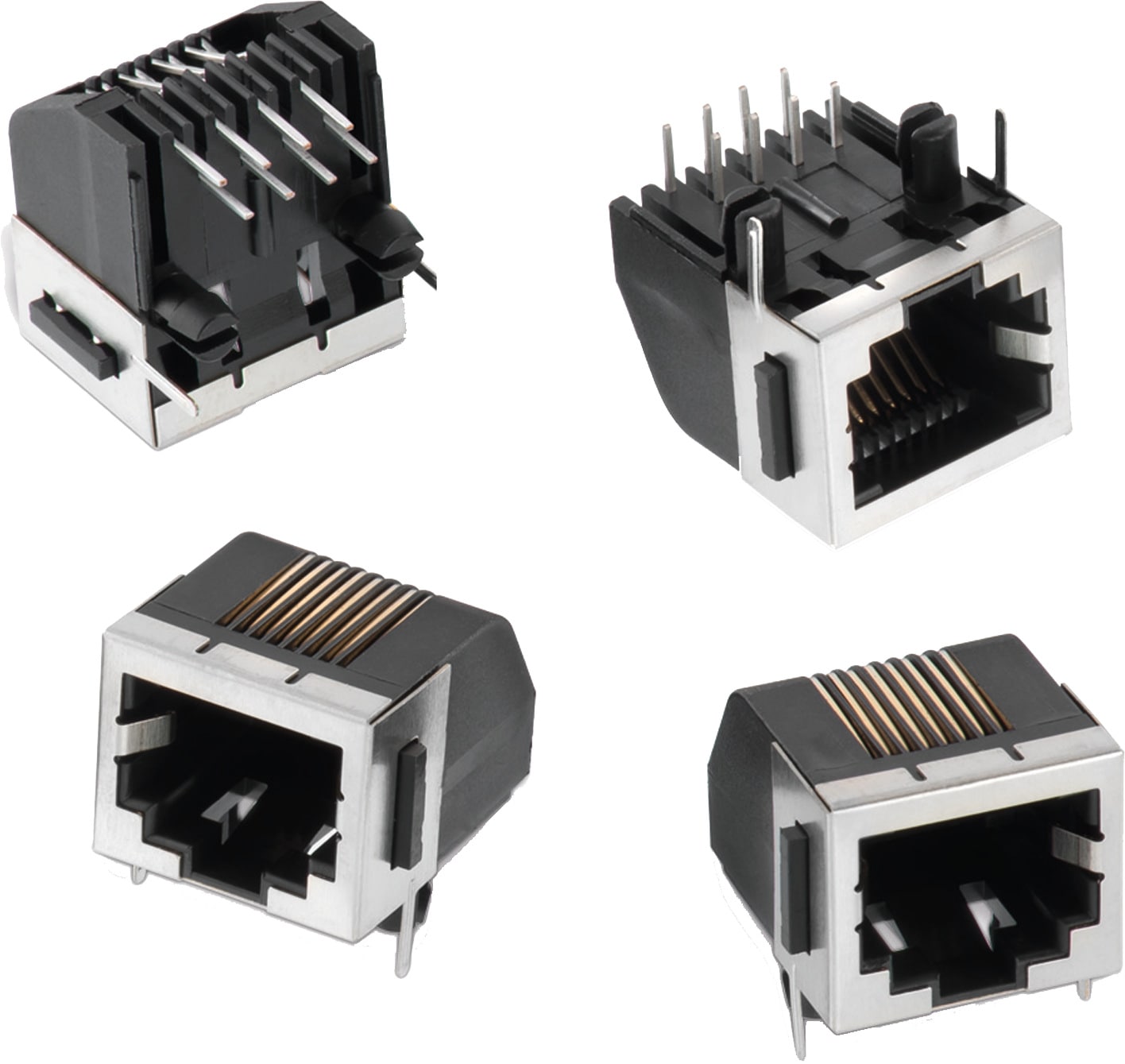

| 615008143521 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | 8P8C | Horizontal | THT | CAT 3 | 615001 |
| Order Code | Datasheet |
|---|---|
| 615008143521 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | xPxC | Type | Mount | Application System | Design Kit | Samples |
|---|
