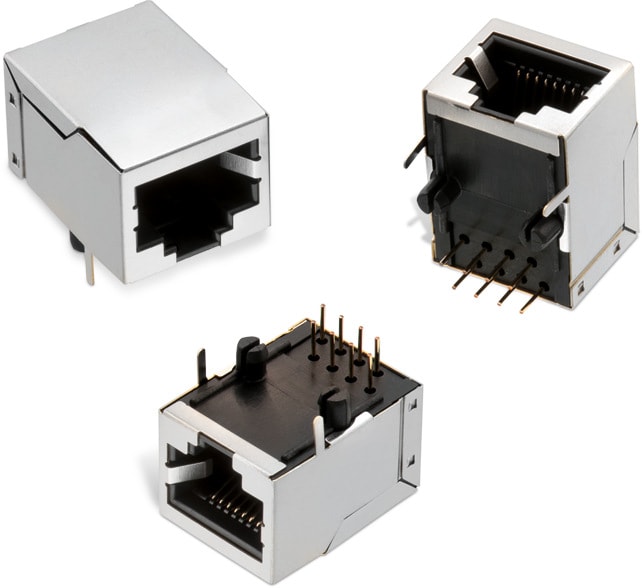

WR-MJ Modular Jack Horizontal Shielded 8P8C Tab Down

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Bronze
Shielding Plating	Nickel (Ni)

Packaging Properties
Packaging	Tray

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Application System	Design Kit	Samples
61500814221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D 3D_61500814221 (rev1).pdf \| 521.7 KB IGS Download_IGS_61500814221 (rev1).igs \| 4.2 MB STP Download_STP_61500814221 (rev1).stp \| 2 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	Horizontal	THT	CAT 3	615001 749615
