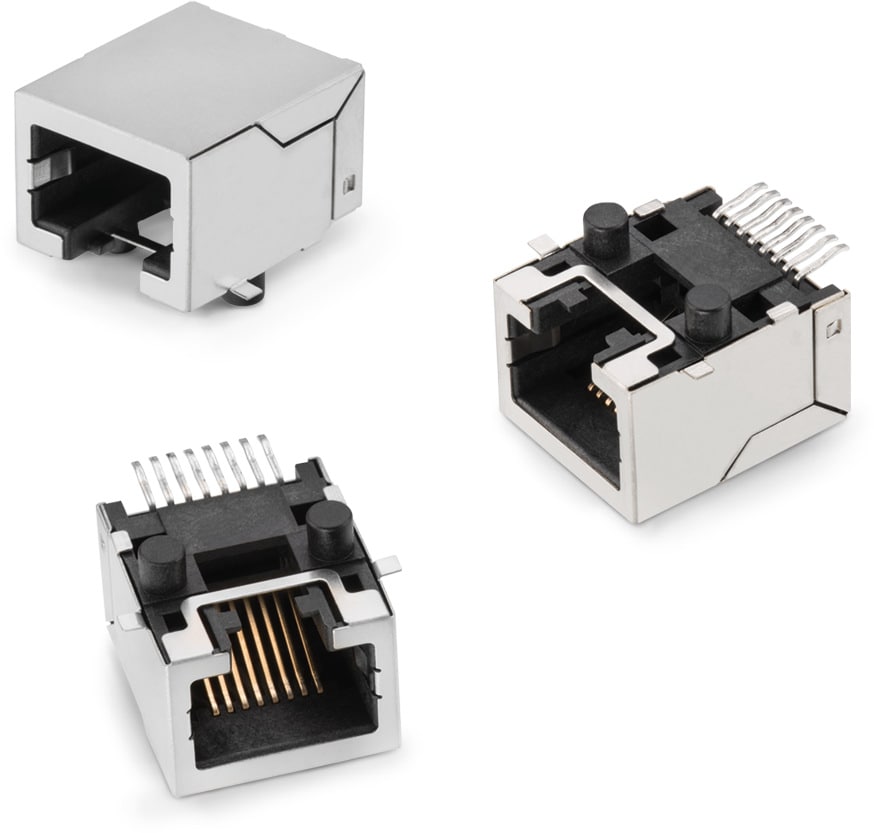

WR-MJ Modular Jack Horizontal Shielded SMT 8P8C Tab Down

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped
Shielding Material	Brass
Shielding Plating	Nickel (Ni)

Packaging Properties
Packaging	Tape and Reel

Order Code	Datasheet	Downloads	Status	xPxC	Tab	EMI	Mount	Application System	Samples
634108185421	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 08/07/2025 SPEC Datasheet valid from 09/07/2025	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev25a).lbr \| 522.8 KB CAD files ZIP 3D 3D_634108185421 (rev1).pdf \| 914.8 KB IGS Download_IGES_634108185421 (rev1).iges \| 5 MB STP Download_STP_634108185421 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	Down	No	SMT	CAT 3
