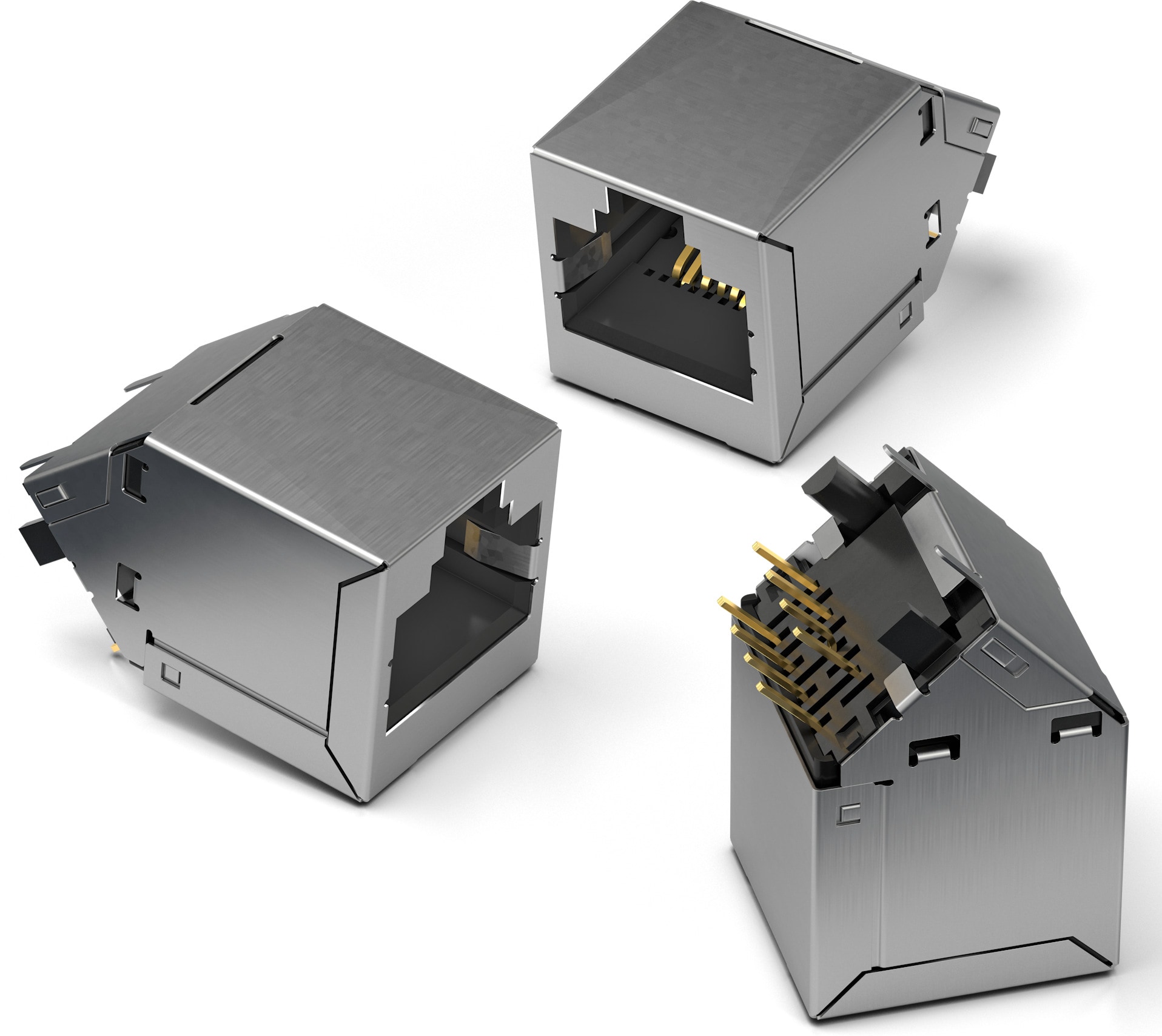

WR-MJ Modular Jack THT 47,5° Shielded 8P8C

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

Packaging Properties
Packaging	Tray

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Application System	Samples
615008160721	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D Download_3D_615008160721 (rev1).pdf \| 669.3 KB IGS Download_IGES_615008160721 (rev1).iges \| 9.3 MB STP Download_STEP_615008160721 (rev1).stp \| 2 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	47.5°	THT	CAT 6
