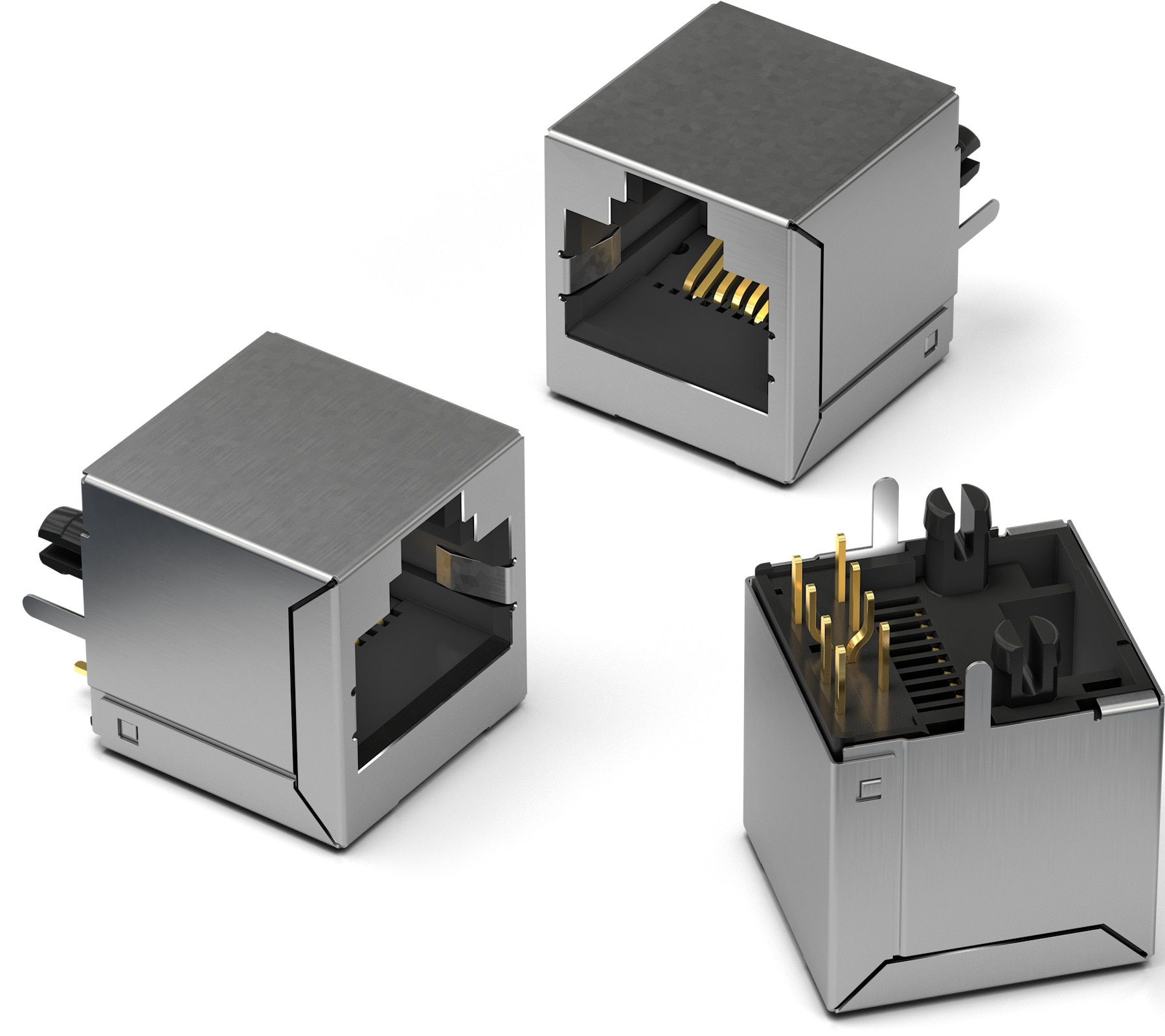

WR-MJ Modular Jack THT Vertical Shielded 8P8C

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

Packaging Properties
Packaging	Tray

Order Code	Datasheet	Downloads	Status	xPxC	Type	Mount	Application System	Samples
615008160421	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-MJ (rev23a).IntLib \| 18.3 MB CDS Cadence_WR-MJ (rev24a).zip \| 83.4 MB EAG Eagle_WR-MJ (rev23b).lbr \| 509 KB CAD files ZIP 3D Downloads_3D_615008160421 (rev1).pdf \| 553.1 KB IGS Downloads_IGES_615008160421 (rev1).iges \| 6.8 MB STP Download_STEP_615008160421 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	8P8C	Vertical	THT	CAT 6
