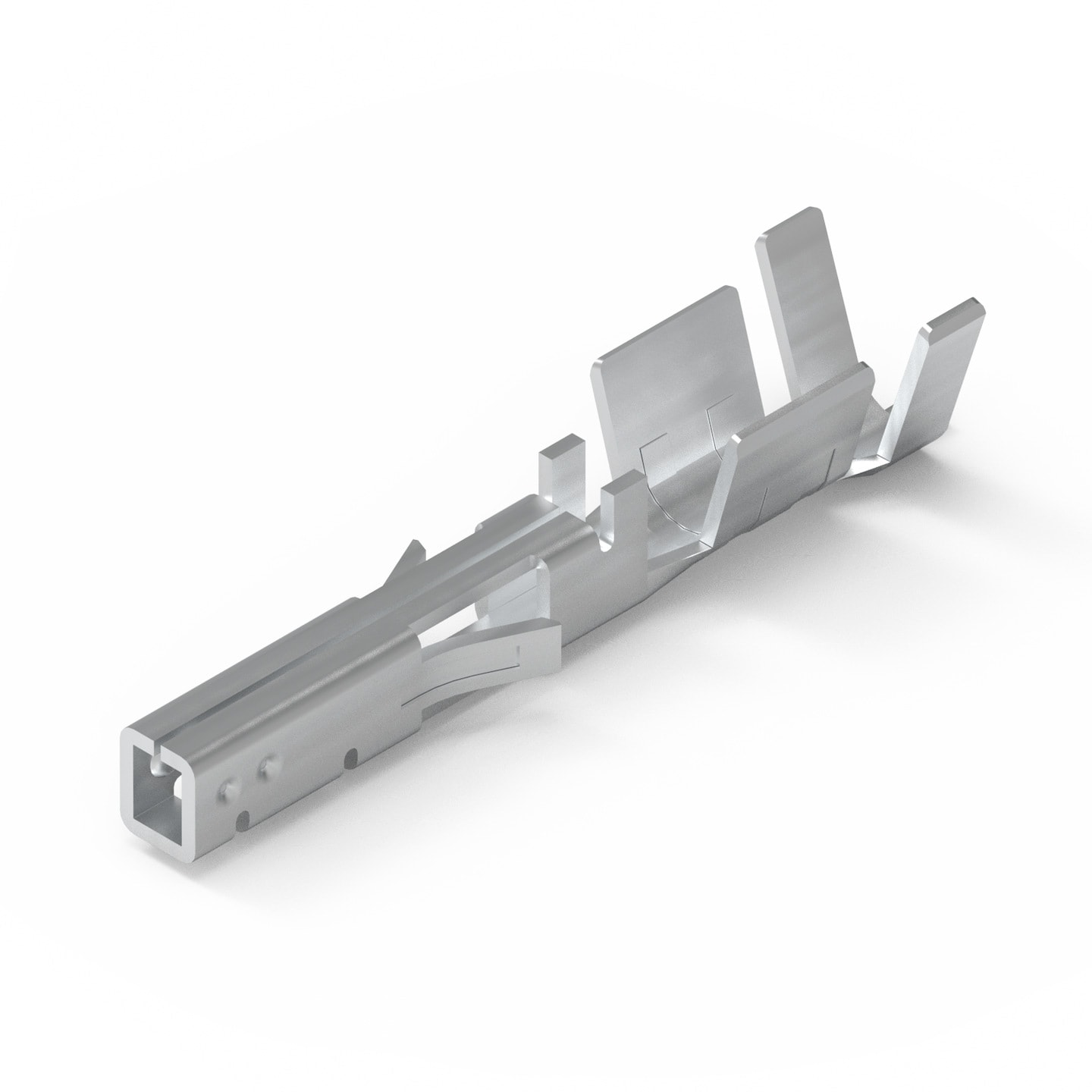

WR-MPC3 3.00 mm Female Crimp Contact - Tin

General Informations
Type	Crimp Terminal
Operating Temperature	-25 °C up to +105 °C
Durability	25 Mating cycles

Electrical Properties
I_R	5 A
Working Voltage	250 V (AC)
Contact Resistance	10 mΩ

Packaging Properties
Packaging	Bag; Big Reel; Small Reel
Qty.	100 pcs; 1000 pcs; 10000 pcs

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin

Wire Properties
Stranded Wire Section (AWG)	24 to 20 (AWG); 30 to 26 (AWG)

Application Notes

ANE001 Low Force Crimp Contacts
PDF

Products

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Type	I_R (A)	Working Voltage (V (AC))	Contact Plating	Contact Resistance (mΩ)	Packaging	Qty. (pcs)	Tools	Design Kit	Samples
66200113722	SPEC	6 files CAD files ZIP 3D 662x0113722_1 (rev1).pdf \| 336.9 KB IGS 662x0113722 (rev1).iges \| 3.1 MB IGS 66200113722 (rev1).igs \| 1.9 MB STP 662x0113722 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	24 to 20 (AWG)	0.205 to 0.518 (mm²)	Crimp Terminal	5	250	Tin	10	Big Reel	10000	600662401 600300300001	–
66200113722DEC	SPEC	3 files CAD files ZIP 3D 66200113722DEC_1 (rev1).pdf \| 189.8 KB IGS 66200113722DEC (rev1).iges \| 1.3 MB STP 66200113722DEC (rev1).stp \| 557.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	24 to 20 (AWG)	0.205 to 0.518 (mm²)	Crimp Terminal	5	250	Tin	10	Bag	100	–	662001
66210113722	SPEC	6 files CAD files ZIP 3D 66210113722_1 (rev1).pdf \| 288.7 KB IGS 66210113722 (rev1).iges \| 2.8 MB STP 66210113722 (rev1).stp \| 1.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	24 to 20 (AWG)	0.205 to 0.518 (mm²)	Crimp Terminal	5	250	Tin	10	Small Reel	1000	600662401 600300300001	–
66200413722	SPEC	3 files CAD files ZIP 3D 662x0413722_1 (rev1).pdf \| 311.2 KB IGS 662x0413722 (rev1).iges \| 3.1 MB STP 662x0413722 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	30 to 26 (AWG)	0.129 to 0.0509 (mm²)	Crimp Terminal	5	250	Tin	10	Big Reel	10000	600662404	–
66210413722	SPEC	8 files CAD files ZIP 3D 66210413722_1 (rev1).pdf \| 308 KB IGS 66210413722 (rev1).iges \| 2.8 MB STP 66210413722 (rev1).stp \| 1.1 MB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	30 to 26 (AWG)	0.129 to 0.0509 (mm²)	Crimp Terminal	5	250	Tin	10	Small Reel	1000	600300300001	–
66200413722DEC	SPEC	5 files CAD files ZIP 3D 66200413722DEC_1 (rev1).pdf \| 176.3 KB IGS 66200413722DEC (rev1).iges \| 1.4 MB STP 66200413722DEC (rev1).stp \| 556.2 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Female	30 to 26 (AWG)	0.129 to 0.0509 (mm²)	Crimp Terminal	5	250	Tin	10	Bag	100	600300300001	662001
