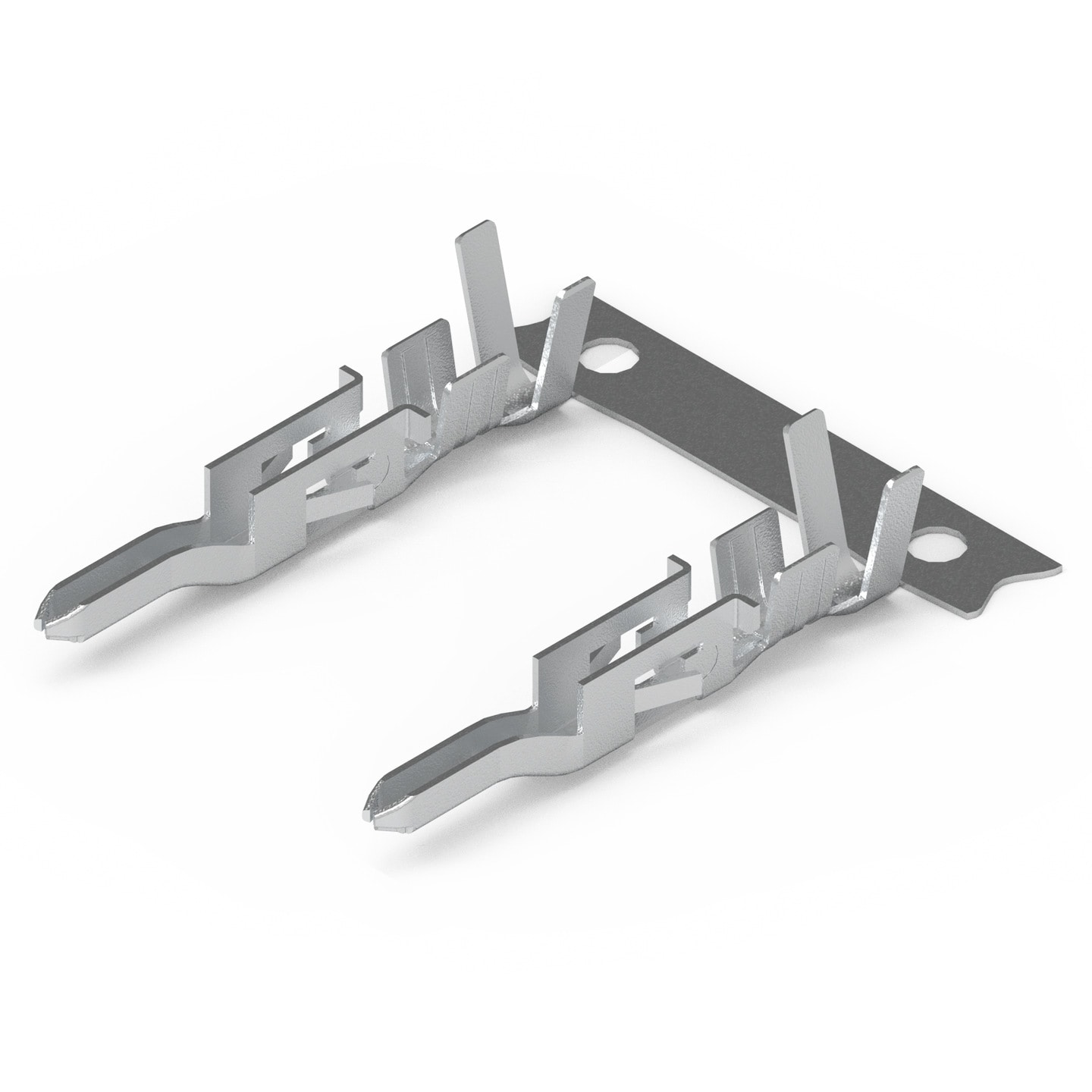

WR-MPC4 4.20 mm Male Terminal

Material Properties
Contact Material	Copper Alloy
Contact Plating	Tin
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
I_R	9 A
Working Voltage	600 V (AC)
Contact Resistance	10 mΩ
Pitch	4.2 mm
Gender	Male

Wire Properties
Stranded Wire Section (AWG)	16 (AWG); 18 to 24 (AWG); 22 to 28 (AWG)
Stranded Wire Section (Metric)	0.326 to 0.0810 (mm²); 0.823 to 0.205 (mm²); 1.31 (mm²)
Packaging	Bag; Big Reel; Small Reel

Products

Order Code	Datasheet	Downloads	Status	Gender	Stranded Wire Section (AWG)	Stranded Wire Section (Metric)	Packaging	Qty. (pcs)	Tools	Design Kit	Samples
64900813722	SPEC	3 files CAD files ZIP 3D 64900813722 (rev1).pdf \| 194.2 KB IGS 64900813722 (rev1).iges \| 1.8 MB STP 64900813722 (rev1).stp \| 584.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	16 (AWG)	1.31 (mm²)	Big Reel	4000	600649405	–
64900913722	SPEC	3 files CAD files ZIP 3D 64900913722 (rev1).pdf \| 197.3 KB IGS 64900913722 (rev1).iges \| 1.8 MB STP 64900913722 (rev1).stp \| 585.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	18 to 24 (AWG)	0.823 to 0.205 (mm²)	Big Reel	4000	600649406 600420420001	–
64900013722	SPEC	3 files CAD files ZIP 3D 64900013722 (rev1).pdf \| 210.2 KB IGS 64900013722 (rev1).iges \| 1.9 MB STP 64900013722 (rev1).stp \| 581.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	Male	22 to 28 (AWG)	0.326 to 0.0810 (mm²)	Big Reel	5000	600649407 600420420001	–
64900813722DEC	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	Male	16 (AWG)	1.31 (mm²)	Bag	100	600420420001	612690 649001
64900913722DEC	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	Male	18 to 24 (AWG)	0.823 to 0.205 (mm²)	Bag	100	600420420001	649001
64900013722DEC	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	Male	22 to 28 (AWG)	0.326 to 0.0810 (mm²)	Bag	100	600420420001	649001
64910813722	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	Male	16 (AWG)	1.31 (mm²)	Small Reel	200	600649405	–
64910913722	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	Male	18 to 24 (AWG)	0.823 to 0.205 (mm²)	Small Reel	200	600649406 600420420001	–
64910013722	SPEC	–	Active i\| Production is active. Expected lifetime: >10 years.	Male	22 to 28 (AWG)	0.326 to 0.0810 (mm²)	Small Reel	500	600649407 600420420001	–

Order Code	Datasheet
64900813722	SPEC
64900913722	SPEC
64900013722	SPEC
64900813722DEC	SPEC
64900913722DEC	SPEC
64900013722DEC	SPEC
64910813722	SPEC
64910913722	SPEC
64910013722	SPEC
