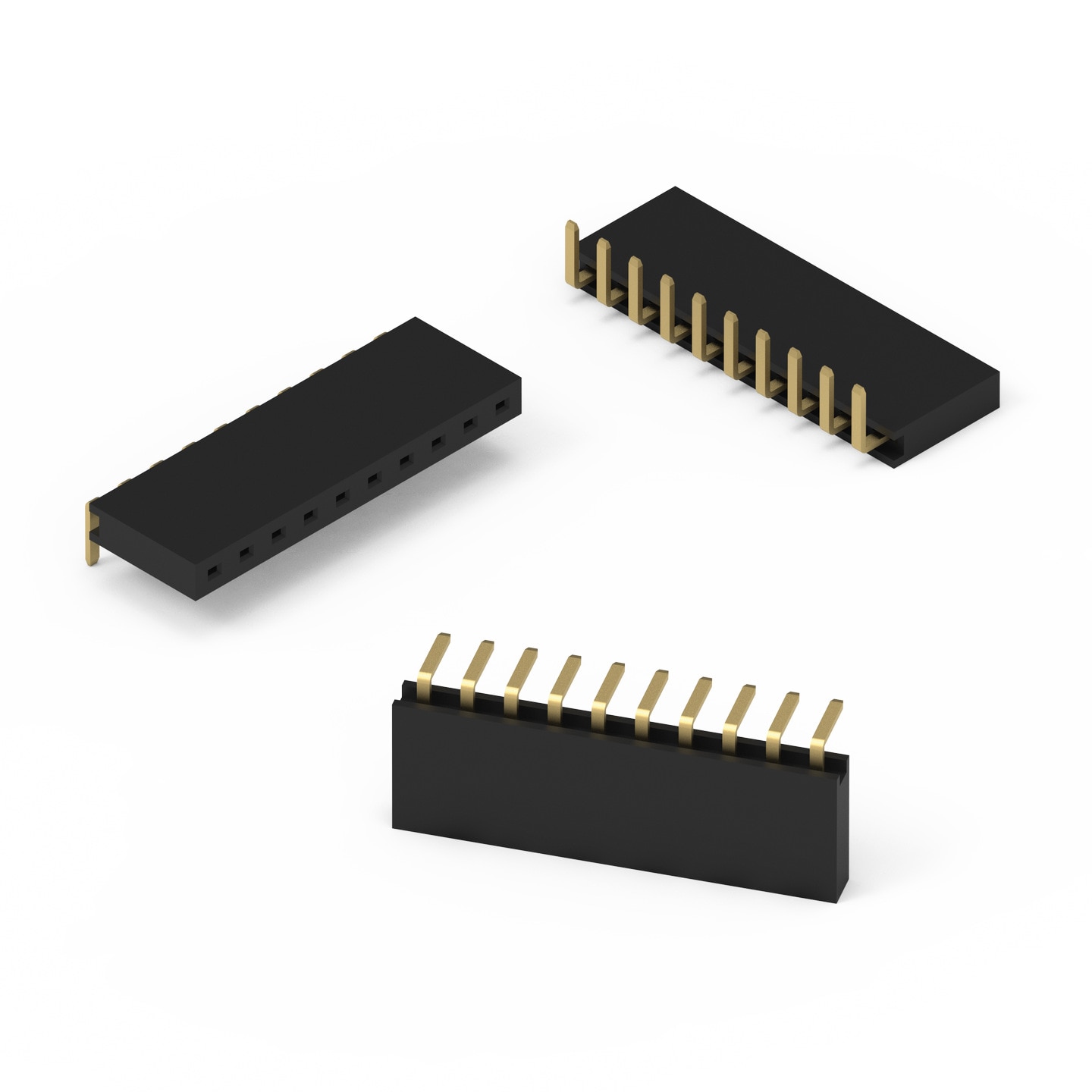

WR-PHD 2.54 mm Angled Socket Header

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	2 pcs; 3 pcs; 4 pcs; 5 pcs; 6 pcs; 7 pcs; 8 pcs; 9 pcs; 10 pcs; 12 pcs; 13 pcs; 15 pcs; 16 pcs; 18 pcs; 20 pcs; 24 pcs; 32 pcs

Material Properties
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Single
Gender	Socket Header
Type	Angled

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tray

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	613002143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613002143121_1 (rev1).pdf \| 29.1 KB IGS 613002143121 (rev1).igs \| 375 KB STP 613002143121 (rev1).stp \| 152.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Single	Socket Header	Angled	3	Tray	–
	613003143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613003143121_1 (rev1).pdf \| 32.2 KB IGS 613003143121 (rev1).igs \| 441.5 KB STP 613003143121 (rev1).stp \| 179.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Single	Socket Header	Angled	3	Tray	–
	613004143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613004143121_1 (rev1).pdf \| 35.4 KB IGS 613004143121 (rev1).igs \| 508.7 KB STP 613004143121 (rev1).stp \| 207 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Single	Socket Header	Angled	3	Tray	–
	613005143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613005143121_1 (rev1).pdf \| 39.5 KB IGS 613005143121 (rev1).igs \| 575.2 KB STP 613005143121 (rev1).stp \| 234.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Single	Socket Header	Angled	3	Tray	–
	613006143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613006143121_1 (rev1).pdf \| 45.2 KB IGS 613006143121 (rev1).igs \| 641.9 KB STP 613006143121 (rev1).stp \| 261.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Single	Socket Header	Angled	3	Tray	–
	613007143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613007143121_1 (rev1).pdf \| 49 KB IGS 613007143121 (rev1).igs \| 708.9 KB STP 613007143121 (rev1).stp \| 288.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Single	Socket Header	Angled	3	Tray	–
	613008143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613008143121_1 (rev1).pdf \| 52.7 KB IGS 613008143121 (rev1).igs \| 775.7 KB STP 613008143121 (rev1).stp \| 316 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Single	Socket Header	Angled	3	Tray	613001
	613009143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613009143121_1 (rev1).pdf \| 56.5 KB IGS 613009143121 (rev1).igs \| 843.1 KB STP 613009143121 (rev1).stp \| 343.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Single	Socket Header	Angled	3	Tray	–
	613010143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613010143121_1 (rev1).pdf \| 59.7 KB IGS 613010143121 (rev1).igs \| 910.2 KB STP 613010143121 (rev1).stp \| 370.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Single	Socket Header	Angled	3	Tray	613001
	613012143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613012143121_1 (rev1).pdf \| 67.2 KB IGS 613012143121 (rev1).igs \| 1 MB STP 613012143121 (rev1).stp \| 425 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Single	Socket Header	Angled	3	Tray	–
	613013143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613013143121_1 (rev1).pdf \| 71 KB IGS 613013143121 (rev1).igs \| 1.1 MB STP 613013143121 (rev1).stp \| 452.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	13	Single	Socket Header	Angled	3	Tray	–
	613015143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_613015143121 (rev1).pdf \| 81.9 KB IGS 613015143121 (rev1).igs \| 1.2 MB STP 613015143121 (rev1).stp \| 506.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	15	Single	Socket Header	Angled	3	Tray	–
	613016143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613016143121_1 (rev1).pdf \| 82.4 KB IGS 613016143121 (rev1).igs \| 1.3 MB STP 613016143121 (rev1).stp \| 534.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Single	Socket Header	Angled	3	Tray	–
	613018143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613018143121_1 (rev1).pdf \| 89.5 KB IGS 613018143121 (rev1).igs \| 1.4 MB STP 613018143121 (rev1).stp \| 588.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	Single	Socket Header	Angled	3	Tray	–
	613020143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613020143121_1 (rev1).pdf \| 96 KB IGS 613020143121 (rev1).igs \| 1.5 MB STP 613020143121 (rev1).stp \| 645.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Single	Socket Header	Angled	3	Tray	613001
	613024143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613024143121_1 (rev1).pdf \| 111.4 KB IGS 613024143121 (rev1).igs \| 1.8 MB STP 613024143121 (rev1).stp \| 758.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Single	Socket Header	Angled	3	Tray	–
	613032143121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 613032143121_1 (rev1).pdf \| 142.2 KB IGS 613032143121 (rev1).igs \| 2.3 MB STP 613032143121 (rev1).stp \| 985.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	Socket Header	Angled	3	Tray	–

	Order Code	Datasheet
	613002143121	SPEC
	613003143121	SPEC
	613004143121	SPEC
	613005143121	SPEC
	613006143121	SPEC
	613007143121	SPEC
	613008143121	SPEC
	613009143121	SPEC
	613010143121	SPEC
	613012143121	SPEC
	613013143121	SPEC
	613015143121	SPEC
	613016143121	SPEC
	613018143121	SPEC
	613020143121	SPEC
	613024143121	SPEC
	613032143121	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm THT Pin Header

WR-PHD 2.54 mm THT Angled Pin Header

WR-PHD 2.54 mm THT Board Stacker

WR-PHD 2.54 mm SMT Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
