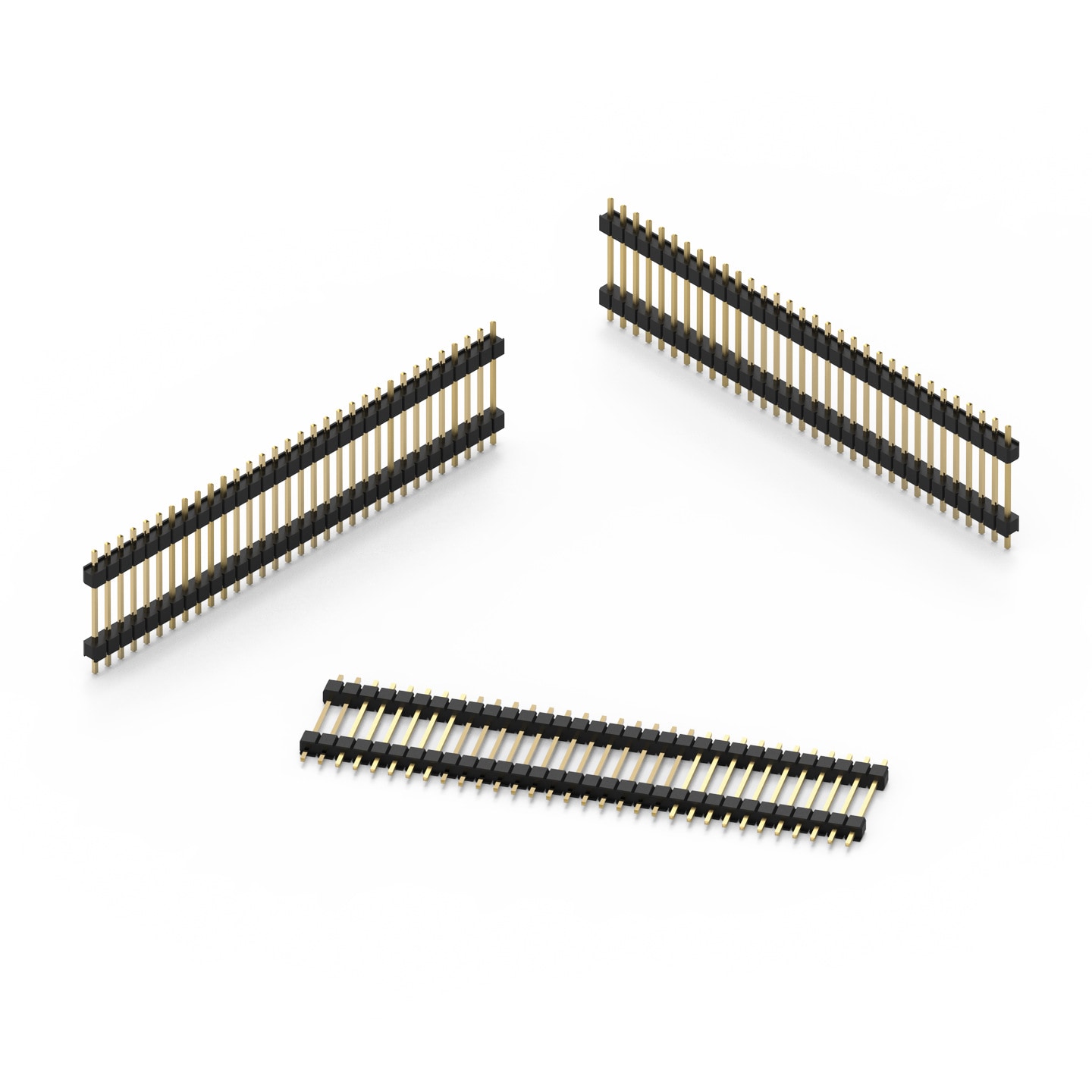

WR-PHD 2.54 mm THT Board Stacker

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	32 pcs

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Single
Gender	Pin Header
Type	Board Stacker

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	H (mm)	G (mm)	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	61303211221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 61303211221_1 (rev1).pdf \| 157.2 KB IGS 61303211221 (rev1).igs \| 2.9 MB STP 61303211221 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	15.24	3	Pin Header	Board Stacker	3	Bag	613001
	61303211321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 61303211321_1 (rev1).pdf \| 157.2 KB IGS 61303211321 (rev1).igs \| 2.9 MB STP 61303211321 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	30.48	3	Pin Header	Board Stacker	3	Bag	–
	61303218421	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 61303218421_1 (rev1).pdf \| 157.2 KB IGS 61303218421 (rev1).igs \| 2.9 MB STP 61303218421 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	15.24	6	Pin Header	Board Stacker	3	Bag	–
	61303218521	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 61303218521_1 (rev1).pdf \| 157.2 KB IGS 61303218521 (rev1).igs \| 2.9 MB STP 61303218521 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Single	30.48	6	Pin Header	Board Stacker	3	Bag	613001

	Order Code	Datasheet
	61303211221	SPEC
	61303211321	SPEC
	61303218421	SPEC
	61303218521	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	H (mm)	G (mm)	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm Socket Header

WR-PHD 2.54 mm Angled Socket Header

WR-PHD 2.54 mm Socket Header Bottom Entry

WR-PHD 2.54 mm SMT Socket Header

WR-PHD 2.54 mm Multi-Jumper Jumper with Test Point

WR-PHD 2.54 mm Jumper with Test Point & Pullback

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WR-PHD Pin & Socket Header
