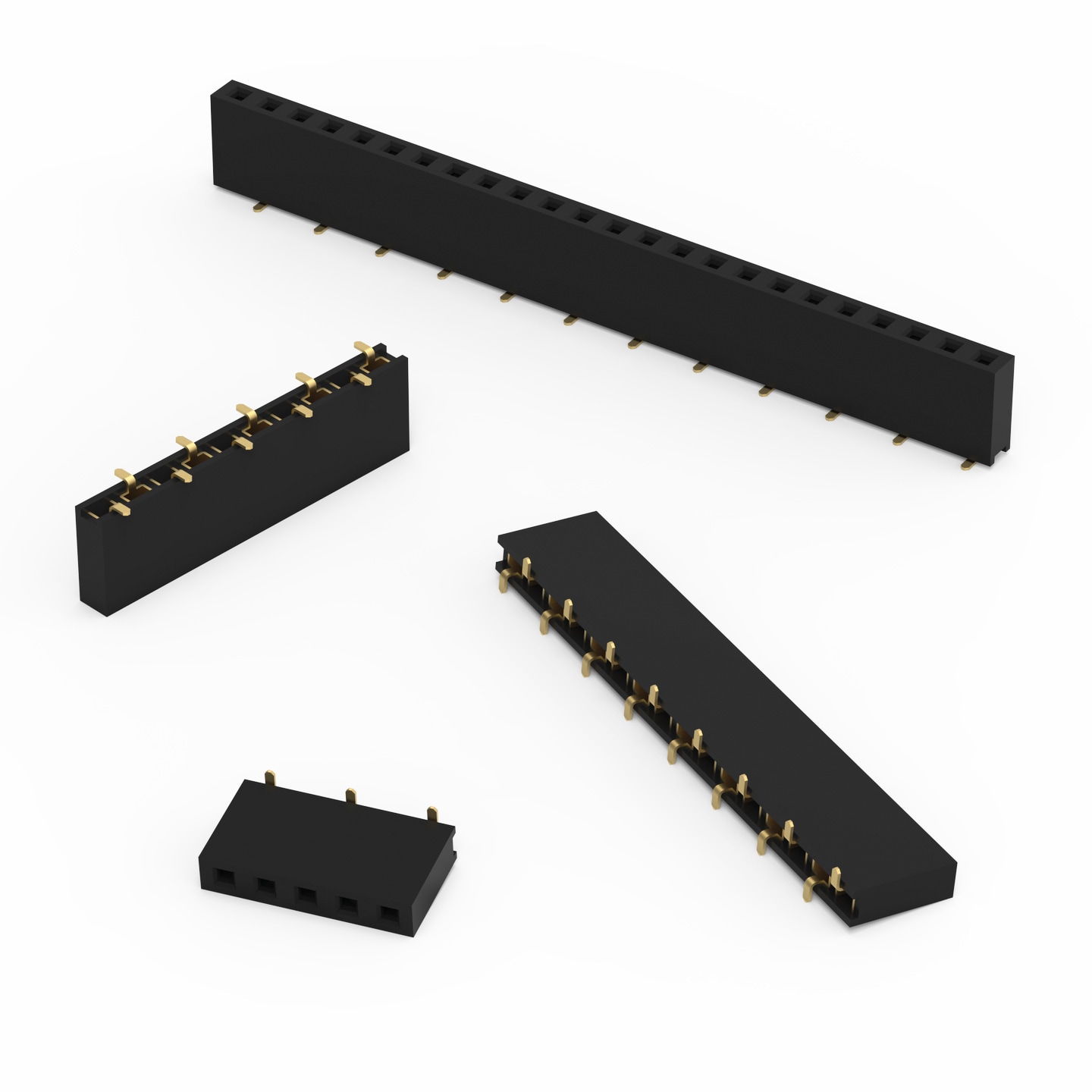

WR-PHD 2.54 mm SMT Socket Header | Electromechanical Components

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins (Value)	4 pcs; 5 pcs; 6 pcs; 8 pcs; 10 pcs; 12 pcs; 14 pcs; 15 pcs; 16 pcs; 20 pcs; 24 pcs

Material Properties
Insulator Material	Nylon 46; PA 9T; PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C; -40 °C up to +125 °C
Compliance	Lead free / RoHS
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Single
Gender	Socket Header
Type	Straight Type 1; Straight Type 2

Electrical Properties
I_R	3 A
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
61000411921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000411921 (rev1).pdf \| 55.3 KB IGS Download_IGES_61000411921 (rev1).iges \| 758.8 KB STP 61000411921 (rev1).stp \| 172.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Single	Socket Header	Straight Type 1	3	Tube	–
61000413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000413321 (rev1).pdf \| 55.3 KB IGS Download_IGES_61000413321 (rev1).iges \| 758.7 KB STP 61000413321 (rev1).stp \| 172.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Single	Socket Header	Straight Type 2	3	Tube	–
61000511921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000511921 (rev1).pdf \| 59 KB IGS Download_IGES_61000511921 (rev1).iges \| 825.9 KB STP 61000511921 (rev1).stp \| 187.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Single	Socket Header	Straight Type 1	3	Tube	–
61000513321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000513321 (rev1).pdf \| 59 KB IGS Download_IGES_61000513321 (rev1).iges \| 826.3 KB STP 61000513321 (rev1).stp \| 187.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Single	Socket Header	Straight Type 2	3	Tube	–
61000611921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000611921 (rev1).pdf \| 63.4 KB IGS Download_IGES_61000611921 (rev1).iges \| 893.9 KB STP 61000611921 (rev1).stp \| 202.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Single	Socket Header	Straight Type 1	3	Tube	–
61000613321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000613321 (rev1).pdf \| 63.4 KB IGS Download_IGES_61000613321 (rev1).iges \| 894.2 KB STP 61000613321 (rev1).stp \| 202.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Single	Socket Header	Straight Type 2	3	Tube	–
61000811921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000811921 (rev1).pdf \| 70.3 KB IGS Download_IGES_61000811921 (rev1).iges \| 1 MB STP 61000811921 (rev1).stp \| 232.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Single	Socket Header	Straight Type 1	3	Tube	613001
61000813321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61000813321 (rev1).pdf \| 70.3 KB IGS Download_IGES_61000813321 (rev1).iges \| 1 MB STP 61000813321 (rev1).stp \| 232.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Single	Socket Header	Straight Type 2	3	Tube	613001
61001011921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001011921 (rev1).pdf \| 77 KB IGS Download_IGES_61001011921 (rev1).iges \| 1.1 MB STP 61001011921 (rev1).stp \| 264.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Single	Socket Header	Straight Type 1	3	Tube	613001
61001013321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001013321 (rev1).pdf \| 77 KB IGS Download_IGES_61001013321 (rev1).iges \| 1.1 MB STP 61001013321 (rev1).stp \| 264.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Single	Socket Header	Straight Type 2	3	Tube	613001
61001211921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001211921 (rev1).pdf \| 84 KB IGS Download_IGES_61001211921 (rev1).iges \| 1.3 MB STP 61001211921 (rev1).stp \| 291.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Single	Socket Header	Straight Type 1	3	Tube	–
61001213321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001213321 (rev1).pdf \| 84 KB IGS Download_IGES_61001213321 (rev1).iges \| 1.3 MB STP 61001213321 (rev1).stp \| 292 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Single	Socket Header	Straight Type 2	3	Tube	–
61001413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001413321 (rev1).pdf \| 91.1 KB IGS Download_IGES_61001413321 (rev1).iges \| 1.4 MB STP 61001413321 (rev1).stp \| 323.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Single	Socket Header	Straight Type 2	3	Tube	–
61001511921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001511921 (rev1).pdf \| 97.5 KB IGS IGS_61001511921 (rev1).iges \| 1.5 MB STP STP_61001511921 (rev1).stp \| 339.2 KB	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	15	–	–	–	3	–	–
61001513321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001513321 (rev1).pdf \| 97.5 KB IGS IGS_61001513321 (rev1).iges \| 1.5 MB STP STP_61001513321 (rev1).stp \| 339.2 KB	New i\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	15	–	–	–	3	–	–
61001611921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001611921 (rev1).pdf \| 98.1 KB IGS Download_IGES_61001611921 (rev1).iges \| 1.5 MB STP 61001611921 (rev1).stp \| 354.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Single	Socket Header	Straight Type 1	3	Tube	–
61001613321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61001613321 (rev1).pdf \| 98.1 KB IGS Download_IGES_61001613321 (rev1).iges \| 1.5 MB STP 61001613321 (rev1).stp \| 354.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Single	Socket Header	Straight Type 2	3	Tube	–
61002011921	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61002011921 (rev1).pdf \| 111.4 KB IGS Download_IGES_61002011921 (rev1).iges \| 1.8 MB STP 61002011921 (rev1).stp \| 416.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Single	Socket Header	Straight Type 1	3	Tube	613001
61002013321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 6100xx13321_1 (rev1).pdf \| 111.4 KB IGS Download_IGES_61002013321 (rev1).iges \| 1.8 MB STP 61002013321 (rev1).stp \| 416.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Single	Socket Header	Straight Type 2	3	Tube	613001
61002411921	SPEC	5 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP IGS Download_IGES_61002411921 (rev1).iges \| 2.1 MB STP 61002411921 (rev1).stp \| 479.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Single	Socket Header	Straight Type 1	3	Tube	–
61002413321	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24c).lbr \| 5.2 MB CAD files ZIP 3D 3D_61002413321 (rev1).pdf \| 125.6 KB IGS Download_IGES_61002413321 (rev1).iges \| 2.1 MB STP 61002413321 (rev1).stp \| 479.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Single	Socket Header	Straight Type 2	3	Tube	–
