Characteristics
- Bluetooth® Low Energy 5.1 radio protocol
- Based on Nordic Seminconductor SoC nRF52805

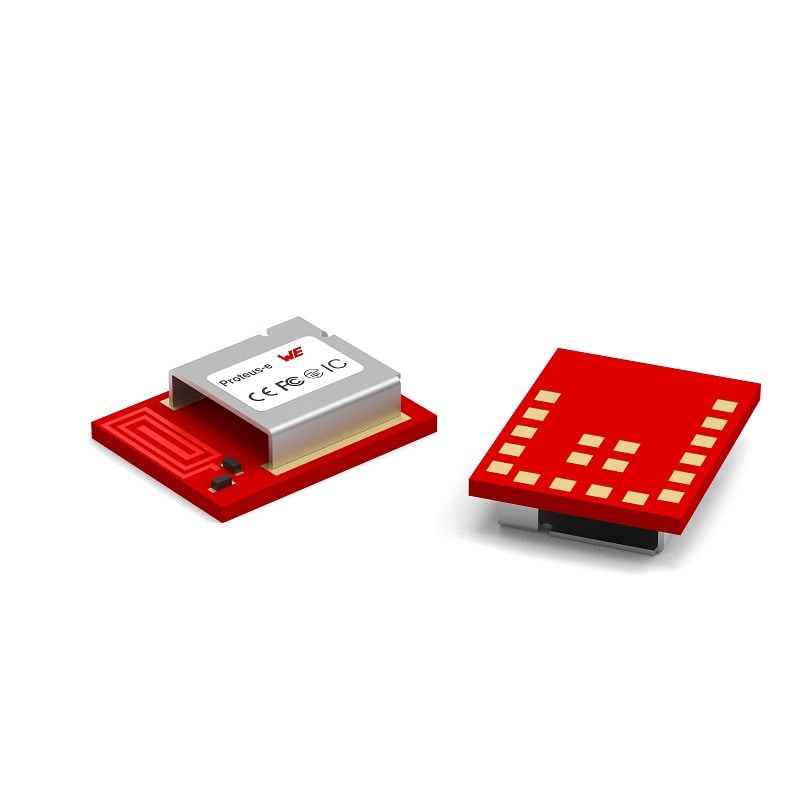

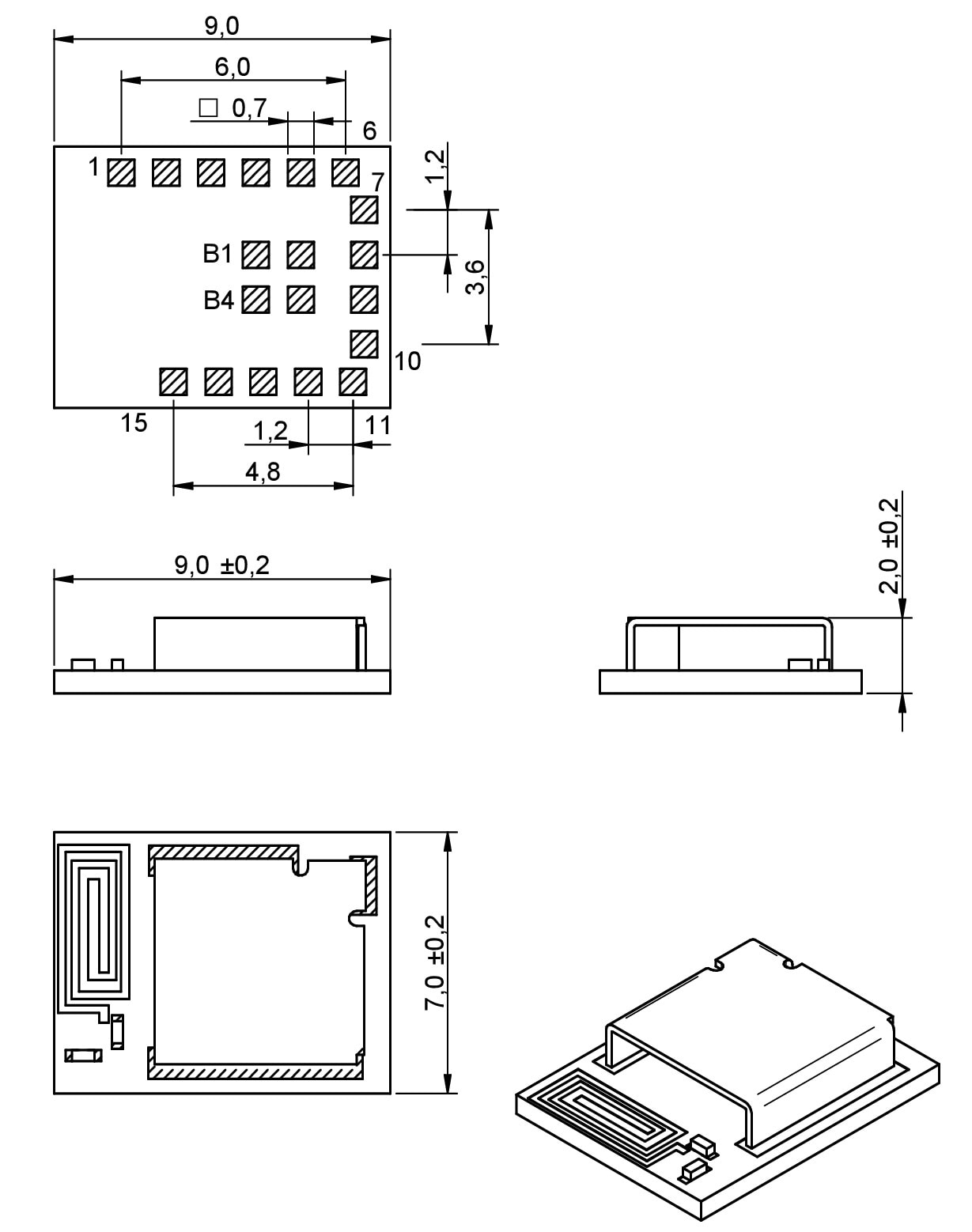

- Miniaturized design: 7 x 9 x 2 mm
- Smart antenna configuration (2-in-1 module)
- UART interface
- 192 kB flash memory, 24 kB RAM
- Serial data transmission (Smart Serial Profile)
- 1 Mbit and 2 Mbit radio profiles
- Up to 4 dBm output power
- Serial data transmission (Smart Serial Profile)
- Peripheral function
- Payload size of up to 243 bytes
- Free definition of advertising packets
- 2 pins for remote GPIO access
- CE, FCC, IC, TELEC
- Proteus Windows 10 SDK @GitHub
- WE UART Terminal
- With the WE Bluetooth LE Terminal App we provide you a fast and easy way of testing and also a base for your own app. Download it in the Google PlayStore® or in the Apple AppStore® or as source code on GitHub.
Products
| Order Code | Datasheet | Manual | Downloads | Status | Frequency Range (MHz) | Description | Interface 1 (Value) | IO1 Bitrate (kbps) | dLoS (m) | PTx, e.r.p. (dBm) | Rxsens, e.r.p. (dBm) | PTx, 50 Ω (dBm) | Rxsens, 50 Ω (dBm) | VDD min. (V) | VDD max. (V) | Rb max. (kbps) | ANTConn | Evaluation Kit | Radio Module | Offer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2612011024000 | SPEC | 5 files | Active i| Production is active. Expected lifetime: >10 years. | 2402 - 2480 | Proteus-e | UART | 115.2 | 350 | -4 | -85 | 4 | -93 | 1.8 | 3.6 | 2000 | RF connector pad for external antenna and internal PCB antenna | 2612019024001 | – | ||
| 2612019024001 | SPEC | – | – | Active i| Production is active. Expected lifetime: >10 years. | – | EV-Kit Proteus-e | – | – | – | – | – | – | – | – | – | – | – | – | 2612011024000 |
| Offer |
|---|
| Order Code | Datasheet | Manual | Downloads | Status | Frequency Range (MHz) | Description | Interface 1 (Value) | IO1 Bitrate (kbps) | dLoS (m) | PTx, e.r.p. (dBm) | Rxsens, e.r.p. (dBm) | PTx, 50 Ω (dBm) | Rxsens, 50 Ω (dBm) | VDD min. (V) | VDD max. (V) | Rb max. (kbps) | ANTConn | Evaluation Kit | Radio Module | Offer |
|---|
Software Downloads
The aim of the Wireless Connectivity Software Development Kit (SDK) is to minimize the effort required on customer side to enable his host MCU to communicate with Würth Elektronik eiSos radio modules. It contains the implementation of all available commands in pure C-code. In order to integrate any Würth Elektronik eiSos wireless module, the user has to simply port the corresponding C-code to his host processor. This significantly reduces the time needed for developing the software interface to the radio module.
Download now on GitHub
Kickstart your Prototyping instantly.The WE UART Terminal is an easy-to-use PC software that enables complete control of the Würth Elektronik eiSos wireless modules through an intuitive GUI. This tool along with the evaluation boards allow quick prototyping and testing of various features of the radio modules.
- Simple setup
- Intuitive interface
- Color coded Packet interpretation
- 100% log traceability
Download now
Proteus Windows 10 Software Development Kit (SDK) - This demo program uses integrated Windows 10 runtime functions to access, connect and exchange data with Proteus radio modules. Please refer to the readme.md in the Github repository.
The most important benefit of Bluetooth® LE Connections is mostly a mobile app. With the WE Bluetooth LE Terminal App we provide you a fast and easy way of testing and also a base for your own app.
- Smart-Device Mobile App for easy testing for Android and iOS
- Scan – Connect – Transmit Commands directly
- Development files available on GitHub
- Built your own App on base of Proteus-App
Download now on GitHub
Antenna
Videos
Manni Talks- Unboxing the Evaluation Kit
Videos
Manni Talks - Serial Interfaces
