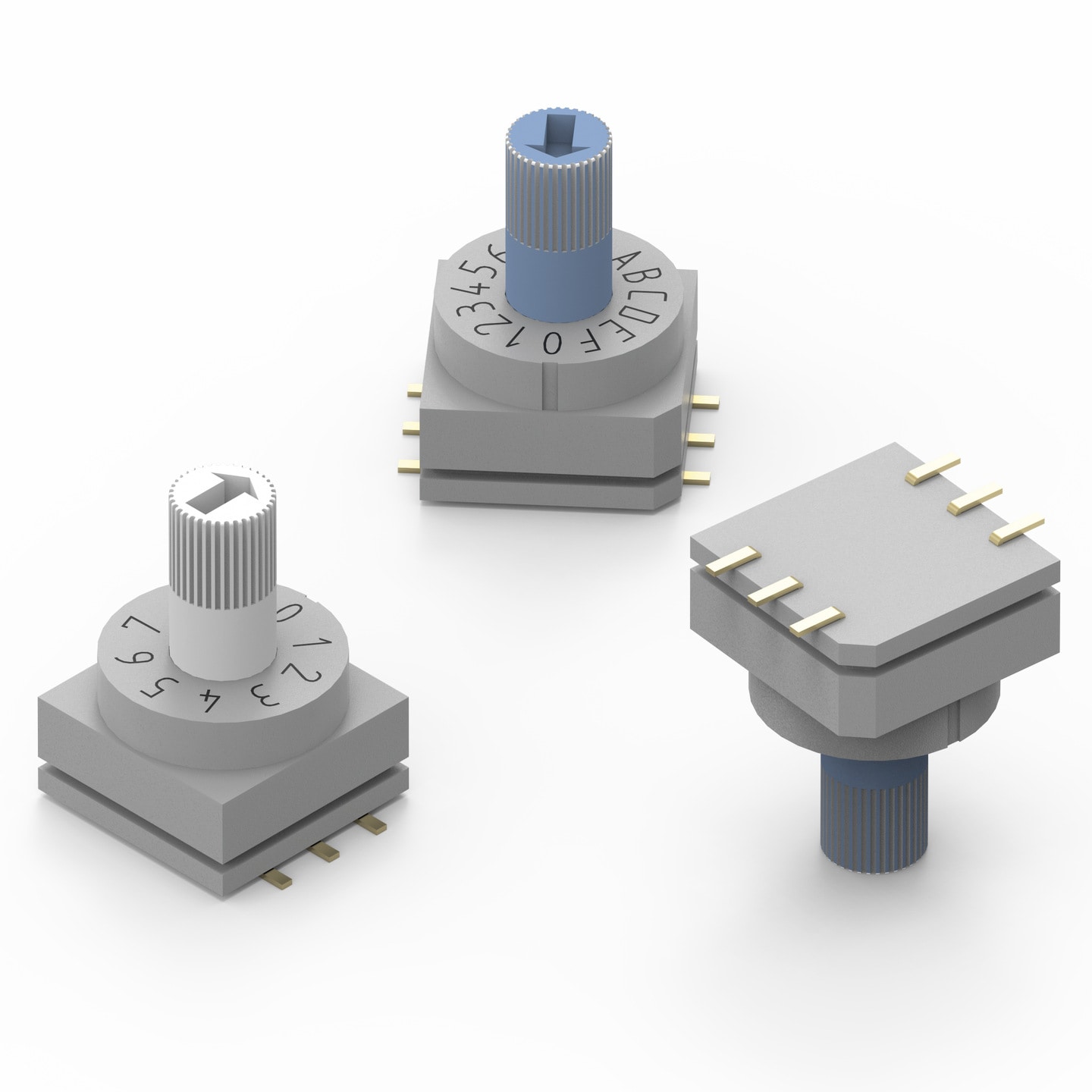

WS-ROSV SMT IP67 Rotary Switch with Shaft Type Actuator 10x10 mm
| Material Properties | |
|---|---|
| Cover Material | LCP |
| Cover Flammability Rating | UL94 V-0 |
| Base Material | LCP |
| Base Flammability Rating | UL94 V-0 |
| Actuator Material | LCP |
| Actuator Flammability Rating | UL94 V-0 |
| Terminal Material | Copper Alloy |
| Terminal Plating | Gold |
| Electrical Properties | |
|---|---|
| IR | 400 mA |
| VR | 24 V (DC) |
| Contact Resistance Initial | 80 mΩ |
| RISO | 100 MΩ |
| Withstanding Voltage | 250 V (AC) |
| Mechanical Properties | |
|---|---|
| Electrical Life | 10000 Steps |
| Actuator Type | Shaft Type |
| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +85 °C |
| Washable | Yes |
| Ingress Protection Code | IP67 |
| Packaging Properties | |
|---|---|
| Packaging | Tube |
Products
Filter by
show in
article in 0 product lines
Reset allOrder Code | Datasheet | Downloads | Status | Number of Position (Value) | Code | Ingress Protection Code | Vaporphase process | Actuator Color | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|
 | 428521420910 | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Number of Position10 | CodeReal Code | Ingress Protection CodeIP67 | Vaporphase processnot specified | Actuator ColorLight Grey | ||
 | 428521420911 | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Number of Position10 | CodeComplement Code | Ingress Protection CodeIP67 | Vaporphase processnot specified | Actuator ColorBlue | ||
 | 428521420916 | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Number of Position16 | CodeReal Code | Ingress Protection CodeIP67 | Vaporphase processnot specified | Actuator ColorLight Grey | ||
 | 428521420917 | Downloads6 files | Status Activei| Production is active. Expected lifetime: >10 years. | Number of Position16 | CodeComplement Code | Ingress Protection CodeIP67 | Vaporphase processnot specified | Actuator ColorBlue |
Switches for IP applications
Switches for IP applications
Würth Elektronik offers IP67 classified rotary switches as well as tact switches. Tested according to IEC61058 and IEC60068, these components are ideally designed for use in harsh industrial environments.If you would like to know more about the IP certified products, your Würth Elektronik field sales will be happy to provide you with advice and support.
