SensorBLE FeatherWing Kit

Characteristics

Monitor temperature, absolute pressure, relative humidity and 3-axis acceleration
Universal connectivity to any smart device using Bluetooth® LE 5.1
WE-SensorBLE app for data visualization on Android and iOS
In Adafruit Feather form factor
Easy to expand with our WE FeatherWings and hundreds of already existing boards with the Feather form factor
Firmware
APP source code

Applications

Rapid prototype development for IoT applications
Easy to use platform for learning, experimenting and prototyping smart device connectivity applications
Collect sensor data, store and then visualize the data on a smart device

Application Notes

ANP121 Filter and surge protection for I2C Bus
PDF

Access the resources via GitHub

Products

Order Code	Datasheet	Manual	Downloads	Status	Description	Offer
2611187024001	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	PDF	–	Active i\| Production is active. Expected lifetime: >10 years.	SensorBLE FeatherWing Kit

Order Code	Datasheet
2611187024001	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Offer

Order Code	Datasheet	Manual	Downloads	Status	Description	Offer

Software Downloads

Sensor SDK

The Würth Elektronik range of sensors provide advanced sensing capabilities to any embedded application. The built-in digital interface enables easy integration with any of the most commonly used host MCUs through industry standard serial communication interfaces like I²C. This also allows complete configuration and control of the sensor via software running on the host MCU.
The Sensors Software Development Kit (SDK) is a set of software tools that enable quick software integration of Würth Elektronik eiSos sensors to application software on the host MCU. It consists of a set of platform-independent drivers for the sensors and sample applications developed on the Raspberry Pi platform written in C.

Download now

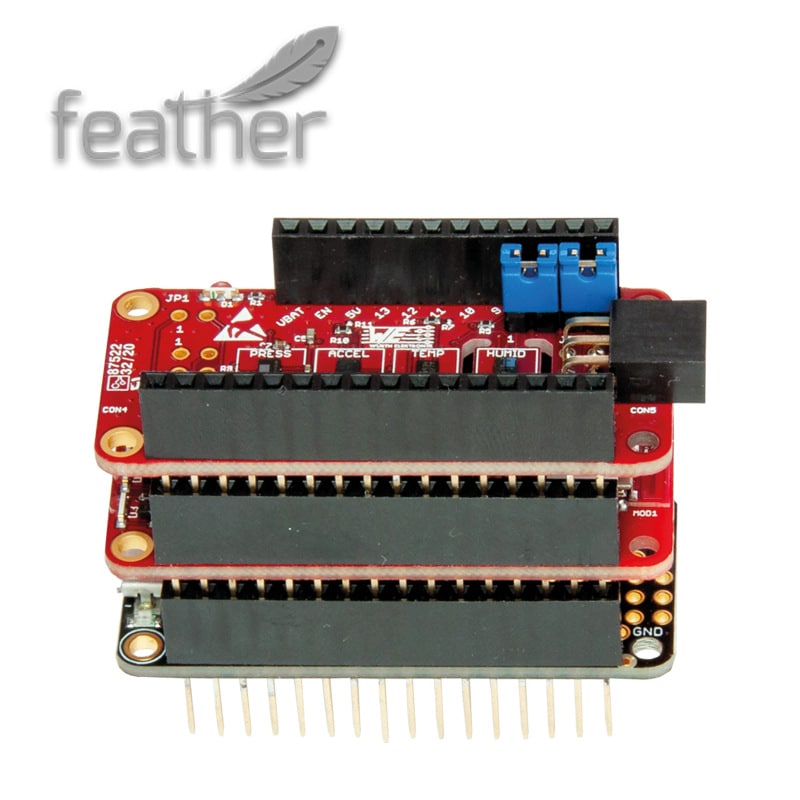

Stacking boards ideal for prototyping

WE FeatherWings

Würth Elektronik eiSos presents a range of FeatherWing development boards that are open source and fully compatible with the Feather form factor. Through these development boards, WE brings a range of wireless connectivity modules, sensors and power modules to the Feather ecosystem.

Adafruit Feather is a complete line of development boards from Adafruit and other developers that are both standalone and stackable. They're able to be powered by LiPo batteries for On-the-Go use or by their micro-USB plugs for stationary projects.

Feathers are flexible, portable and as light as their namesake. FeatherWings are stacking boards and add functionality and room for prototyping. At its core, the Adafruit Feather is a complete ecosystem of products - and the best way to get your project flying.

Supercharge your prototyping for easy and fast solution testing. Start by checking our quick start section.

Boards

IC LED FeatherWing (150015)

Boards

5V power supply via USB-C connection
Easy connection to sensors and bluetooh modules
Framerate up to 150 Hz, arbitrarily adjustable
Usable with 1.8V logic controllers outside FW-standard

Go to board

Calypso IoT Design Kit (2610059035001)

Boards

Design Kit for prototyping Sensor-to-Cloud IoT applications
Monitor temperature, absolute pressure, relative humidity and 3-axis acceleration
Plug-and-Play secure connectivity to Azure IoT central

Go to board

Sensor FeatherWing (2501000201291)

Temperature
Humidity
Acceleration
Absolute pressure
Sparfun QWIIC compatible to easily add hundreds of extension boards

Go to board

MagI³C Power FeatherWing (2601157100001)

5 V USB connection
Industrial input voltage rails of 9 V, 12 V, 15 V, 18 V and 24 V with maximum nominal input voltage of 36 V

Go to board

Serial Bridge FeatherWing (2601167101001)

Boards

Standard DSUB9 connector
3V3 logic level UART interface on the Feather pin header
RS232 with and without flow control
Full and half duplex RS485
Double throw slider to switch between RS232 and RS485

Go to board

SensorBLE FeatherWing Kit (2611187024001)

Boards

Monitor temperature, absolute pressure, relative humidity and 3-axis acceleration
Universal connectivity to any smart device using Bluetooth® LE 5.1
WE-SensorBLE app for data visualization on Android and iOSAdrastea Cellular FeatherWing

Go to board

Adrastea Cellular FeatherWing (2615039336001)

Boards

The FeatherWing kit includes one Adrastea-I FeatherWing board with the LTE-M / NB-IoT Adrastea-I module, the external LTE antenna, the external GNSS antenna and USB cable.
Flexible mode selection between LTE-M and NB-IoT
3GPP release 13 compliant
Integrated GNSS (supports GPS & GLONASS)
Integrated user MCU (ARM Cortex-M4, 1 MB flash memory, 256 KB RAM)
Output power class 3 (23 dBm)
Supports 3GPP TS27.005, 27.007 and Würth Elektronik enhanced AT commands
Protocols: IPv4/IPv6, TCP/UDP, HTTP/HTTPS, TLS/DTLS, MQTT, LWM2M
LTE-M supported bands: B2/B3/B4/B5/B8/B12/B20/B25/B26/B28
NB-IoT supported bands: B3/B5/B8/B20/B28

Go to board

Thyone-I Wireless FeatherWing (2611059021001)
