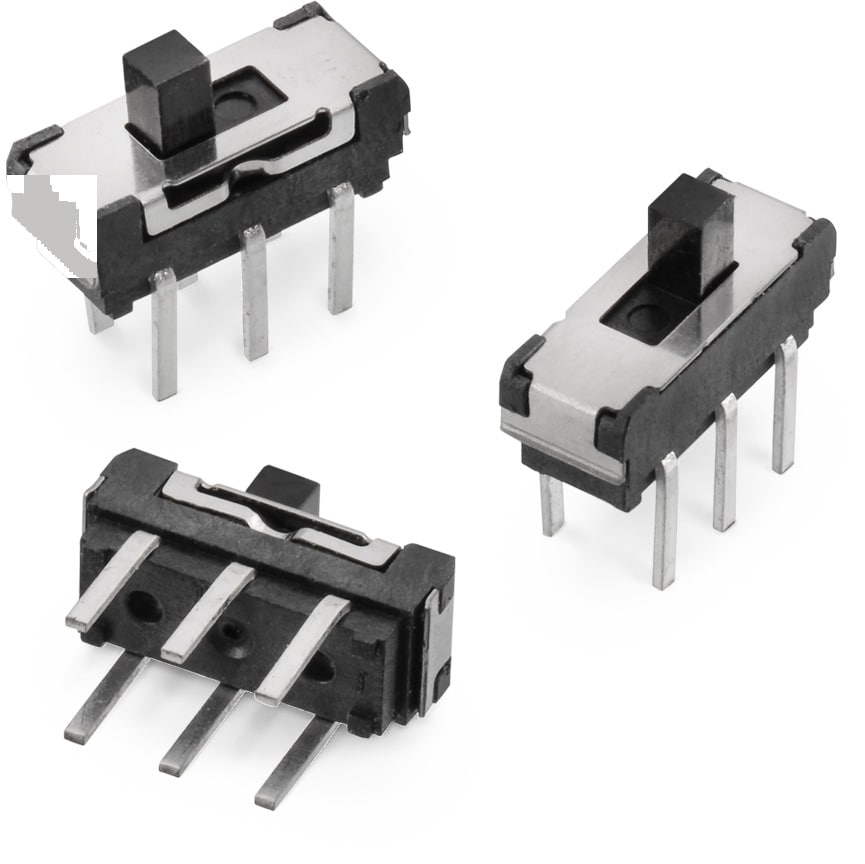

WS-SLTV THT Mini Slide Switch, Same Side Connection 9.0x3.5 mm | Electromechanical Components | Würth Elektronik Product Catalog

OverviewAll product units Product unitElectromechanical Components Product groupSwitches Product familySlide Switches Product sub-familyTHT Mini Slide Switch Product seriesWS-SLTV THT Mini Slide Switch, Same Side Connection 9.0x3.5 mm

WS-SLTV THT Mini Slide Switch, Same Side Connection 9.0x3.5 mm.Electrical Life 20000 steps. Withstanding Voltage 500 V (AC).

General Information
Operating Temperature	-40 °C up to +85 °C

Material Properties
Frame Material	LCP
Frame Flammability Rating	UL94 V-0
Frame Color	Black
Actuator Material	PA9T
Actuator Flammability Rating	UL94 HB
Actuator Color	Black
Contact Material	Copper Alloy
Contact Plating	Silver
Terminal Material	Copper Alloy
Terminal Plating	Silver

Electrical Properties
I_R	300 mA
V_R	6 V (DC)
Contact Resistance Initial	70 mΩ
R_ISO	100 MΩ
Withstanding Voltage	500 V (AC)

Mechanical Properties
Electrical Life	20000 Steps
Connection Type	Same Side Connection

Products

	Order Code	Datasheet	Downloads	Status	Operation Force (Value) (g)	Schematic	Packaging	Design Kit	Samples
	452404020202	SPEC	6 files EDA models: Components ZIP ALT Altium_WS-SLTV (rev22a).IntLib \| 183.5 KB CDS Cadence_WS-SLTV (rev18a).zip \| 684.2 KB EAG Eagle_WS-SLTV (rev20a).lbr \| 20.1 KB CAD files ZIP 3D 3D_452404020202 (rev1).pdf \| 111.7 KB IGS Download_IGS_452404020202 (rev1).igs \| 1.9 MB STP Download_STP_452404020202 (rev1).stp \| 780.9 KB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	450	DPDT	Bulk	499001

	Order Code	Datasheet
	452404020202	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Operation Force (Value) (g)	Schematic	Packaging	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Switches
