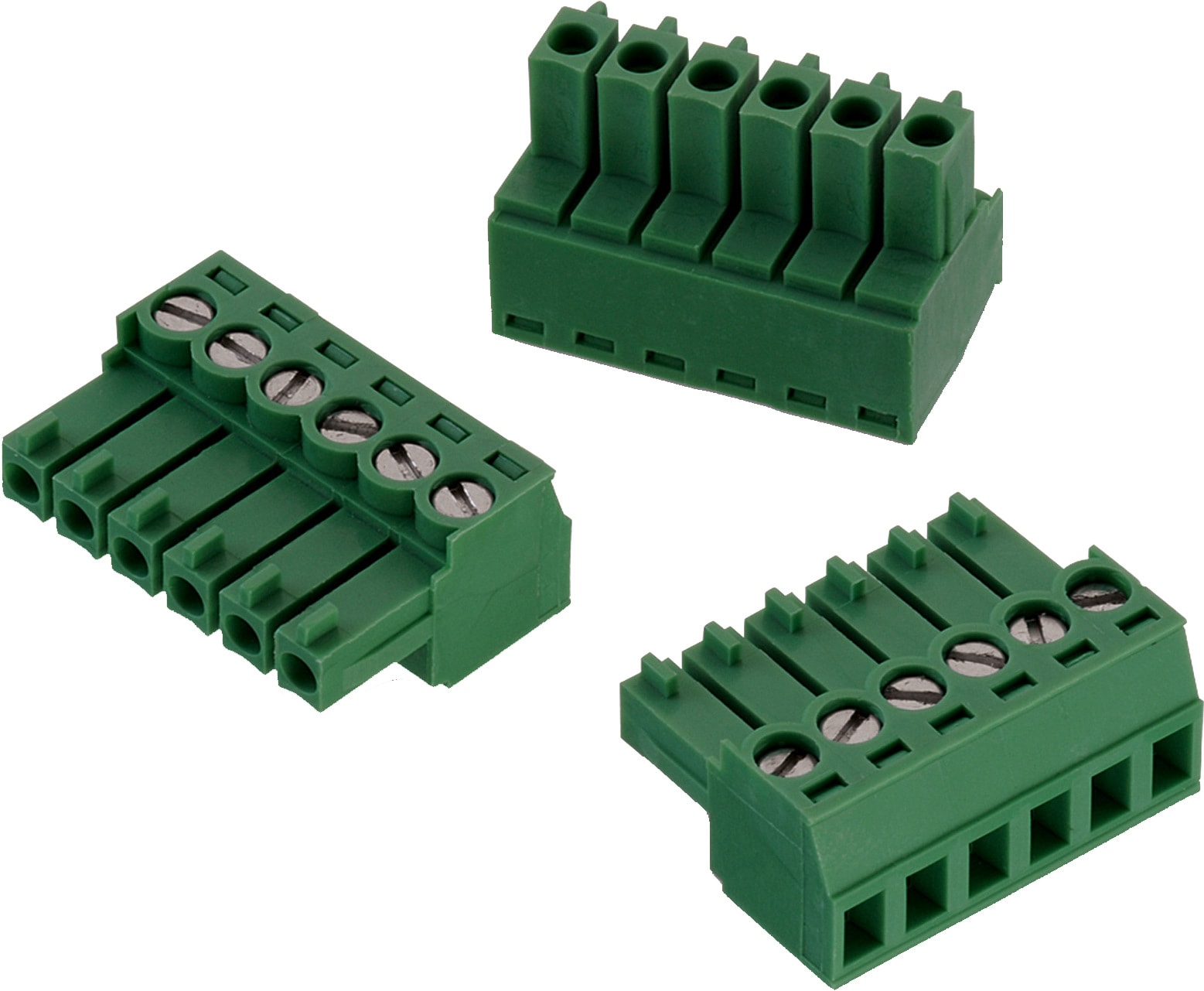

WR-TBL Series 3611 - 3.50 mm Vertical | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Phosphor Bronze
Contact Plating	Tin over Nickel
Cage Material	Brass
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Phosphor Bronze

Electrical Properties
I_R	10 A; 10.5 A
I_R	10 A
I_R	10.5 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Mechanical Properties
Screw	M2

Wire Properties
Solid Wire Section (AWG)	26 to 16 (AWG)
Solid Wire Section (Metric)	0.129 to 1.31 (mm²)
Stranded Wire Section (AWG)	26 to 16 (AWG)
Stranded Wire Section (Metric)	0.129 to 1.31 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691361100002	SPEC	3 files CAD files ZIP 3D 691361100002_1 (rev1).pdf \| 197.9 KB IGS 691361100002 (rev1).igs \| 1.5 MB STP 691361100002 (rev1).stp \| 541.1 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	691002
691361100003	SPEC	3 files CAD files ZIP 3D 691361100003_1 (rev1).pdf \| 241.9 KB IGS 691361100003 (rev1).igs \| 1.9 MB STP 691361100003 (rev1).stp \| 701.4 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
691361100004	SPEC	3 files CAD files ZIP 3D 691361100004_1 (rev1).pdf \| 281.1 KB IGS 691361100004 (rev1).igs \| 2.3 MB STP 691361100004 (rev1).stp \| 863.3 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
691361100005	SPEC	3 files CAD files ZIP 3D 3D_691361100005 (rev1).pdf \| 313.7 KB IGS Download_IGES_691361100005 (rev1).iges \| 2.8 MB STP Download_STP_691361100005 (rev1).stp \| 1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
691361100006	SPEC	3 files CAD files ZIP 3D 691361100006_1 (rev1).pdf \| 366.6 KB IGS 691361100006 (rev1).igs \| 3.2 MB STP 691361100006 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
691361100007	SPEC	3 files CAD files ZIP 3D 3D_691361100007 (rev1).pdf \| 407.5 KB IGS Download_IGES_691361100007 (rev1).iges \| 3.6 MB STP Download_STP_691361100007 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
691361100008	SPEC	3 files CAD files ZIP 3D 691361100008_1 (rev1).pdf \| 440.6 KB IGS 691361100008 (rev1).igs \| 4 MB STP 691361100008 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
691361100012	SPEC	3 files CAD files ZIP 3D 3D_691361100012 (rev1).pdf \| 568.3 KB IGS Download_IGES_691361100012 (rev1).iges \| 5.8 MB STP Download_STP_691361100012 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	Cable	No	Vertical	26 to 16 (AWG) 0.129 to 1.31 (mm²)	–
