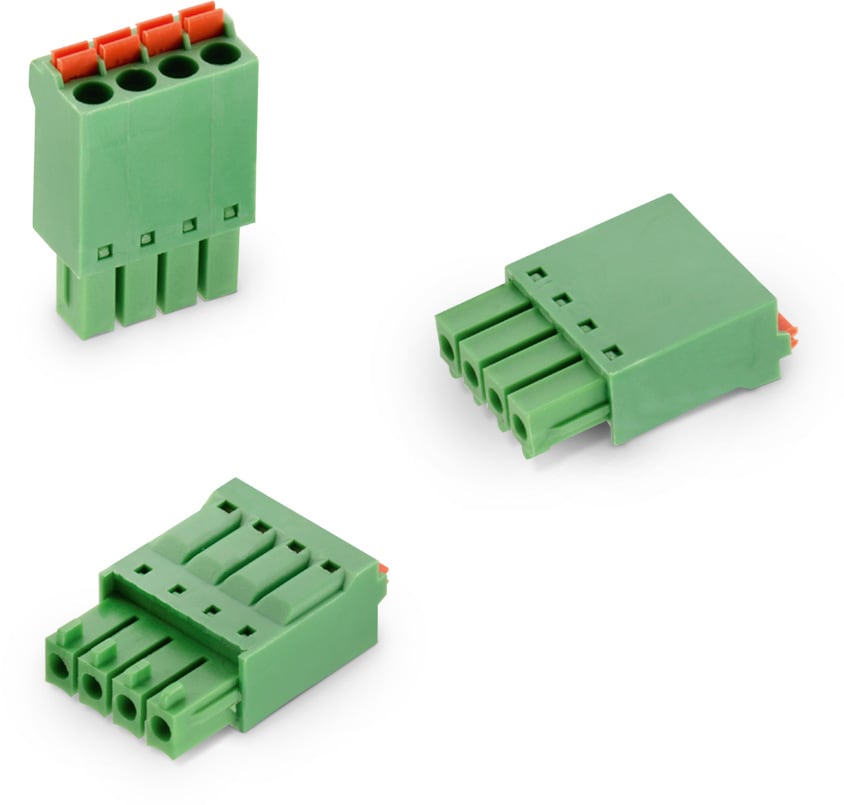

WR-TBL Series 3041 - 3.50 mm Screwless Plug Vertical Entry Low Profile| Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	3.5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green/Orange
Contact Material	Copper Alloy
Contact Plating	Tin
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
I_R	12 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	16 to 24 (AWG)
Solid Wire Section (Metric)	1.31 to 0.205 (mm²)
Stranded Wire Section (AWG)	16 to 24 (AWG)
Stranded Wire Section (Metric)	1.31 to 0.205 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691304100002	SPEC	3 files CAD files ZIP 3D 3D_691304100002 (rev1).pdf \| 207.7 KB IGS Download_IGES_691304100002 (rev1).iges \| 2.8 MB STP Download_STEP_691304100002 (rev1).stp \| 626.8 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100003	SPEC	3 files CAD files ZIP 3D 3D_691304100003 (rev1).pdf \| 267 KB IGS Download_IGES_691304100003 (rev1).iges \| 3.7 MB STP Download_STEP_691304100003 (rev1).stp \| 823.7 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	691002
691304100004	SPEC	3 files CAD files ZIP 3D 3D_691304100004 (rev1).pdf \| 329.4 KB IGS Download_IGES_691304100004 (rev1).iges \| 4.6 MB STP Download_STEP_691304100004 (rev1).stp \| 1022.6 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100005	SPEC	3 files CAD files ZIP 3D 3D_691304100005 (rev1).pdf \| 390.4 KB IGS Download_IGES_691304100005 (rev1).iges \| 5.5 MB STP Download_STEP_691304100005 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100006	SPEC	3 files CAD files ZIP 3D 3D_691304100006 (rev1).pdf \| 463.5 KB IGS Download_IGES_691304100006 (rev1).iges \| 6.4 MB STP Download_STEP_691304100006 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100007	SPEC	3 files CAD files ZIP 3D 3D_691304100007 (rev1).pdf \| 524.2 KB IGS Download_IGES_691304100007 (rev1).iges \| 7.2 MB STP Download_STEP_691304100007 (rev1).stp \| 1.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100008	SPEC	3 files CAD files ZIP 3D 3D_691304100008 (rev1).pdf \| 586.2 KB IGS Download_IGES_691304100008 (rev1).iges \| 8.1 MB STP Download_STEP_691304100008 (rev1).stp \| 1.8 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100009	SPEC	3 files CAD files ZIP 3D 3D_691304100009 (rev1).pdf \| 644.8 KB IGS IGES_691304100009 (rev1).iges \| 9 MB STP STP_691304100009 (rev1).stp \| 2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–
691304100010	SPEC	3 files CAD files ZIP 3D 3D_691304100010 (rev1).pdf \| 699.9 KB IGS IGES_691304100010 (rev1).iges \| 10 MB STP STP_691304100010 (rev1).stp \| 2.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	Cable	No	Vertical	16 to 24 (AWG) 1.31 to 0.205 (mm²)	–

Order Code	Datasheet
691304100002	SPEC
691304100003	SPEC
691304100004	SPEC
691304100005	SPEC
691304100006	SPEC
691304100007	SPEC
691304100008	SPEC
691304100009	SPEC
691304100010	SPEC
