WR-TBL Series 126B - Excenter Clamp 5.00mm pitch - Horizontal cable entry - THT | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Steel
Contact Plating	Zinc
Terminal Screw Material	Steel
Terminal Screw Plating	Zinc
Wire Guard Material	Steel

Electrical Properties
I_R	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage	2000 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
Contact Resistance	20 mΩ
R_C	20 mΩ

Mechanical Properties
Wire Strip Length	9 (mm)
Screw	M2

Certification
cULus Approval	E315414

Packaging Properties
Packaging	Box

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691126710002B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691126710002B (rev1).pdf \| 271.5 KB IGS 691126710002B (rev1).igs \| 2.4 MB STP 691126710002B (rev1).stp \| 909.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pressure Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)	691001
691126710003B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691126710003B (rev1).pdf \| 272.7 KB IGS 691126710003B (rev1).igs \| 2.4 MB STP 691126710003B (rev1).stp \| 910.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pressure Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691126710004B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691126710004B (rev1).pdf \| 273.9 KB IGS 691126710004B (rev1).igs \| 2.4 MB STP 691126710004B (rev1).stp \| 911 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pressure Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691126710005B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691126710005B (rev1).pdf \| 275.1 KB IGS 691126710005B (rev1).igs \| 2.4 MB STP 691126710005B (rev1).stp \| 911.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pressure Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691126710006B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691126710006B (rev1).pdf \| 276.3 KB IGS 691126710006B (rev1).igs \| 2.4 MB STP 691126710006B (rev1).stp \| 912.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pressure Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–
691126710008B	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Wire Protector (rev22a).lbr \| 845.2 KB CAD files ZIP 3D 3D_691126710008B (rev1).pdf \| 278.6 KB IGS 691126710008B (rev1).igs \| 2.4 MB STP 691126710008B (rev1).stp \| 914.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pressure Clamp	PCB	Yes	Horizontal	30 to 12 (AWG) 0.2 to 2.5 (mm²)	–

Order Code	Datasheet
691126710002B	SPEC
691126710003B	SPEC
691126710004B	SPEC
691126710005B	SPEC
691126710006B	SPEC
691126710008B	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit	Samples

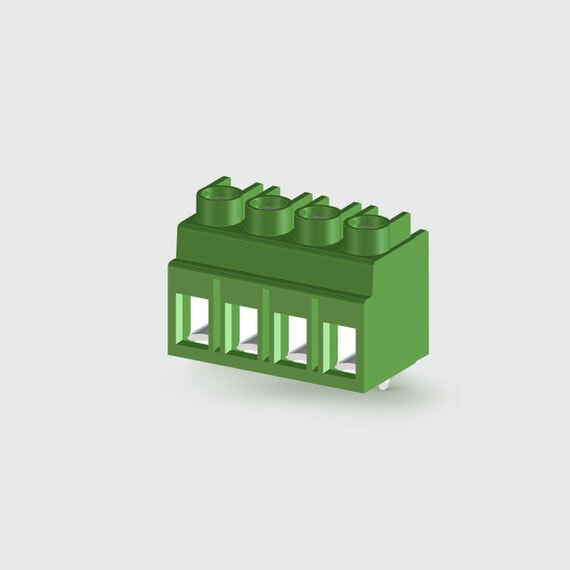

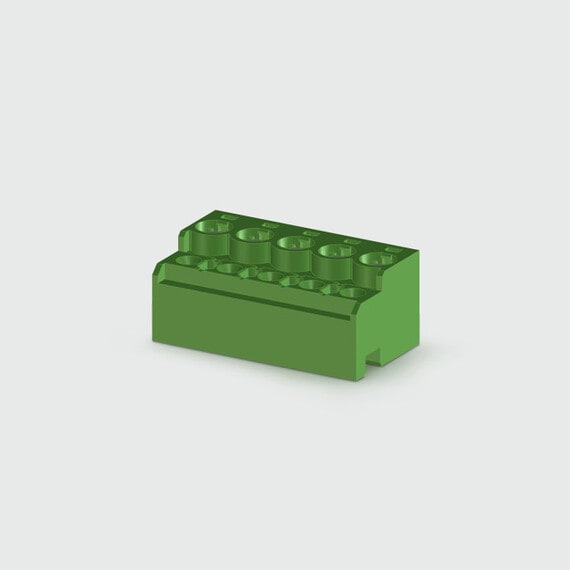

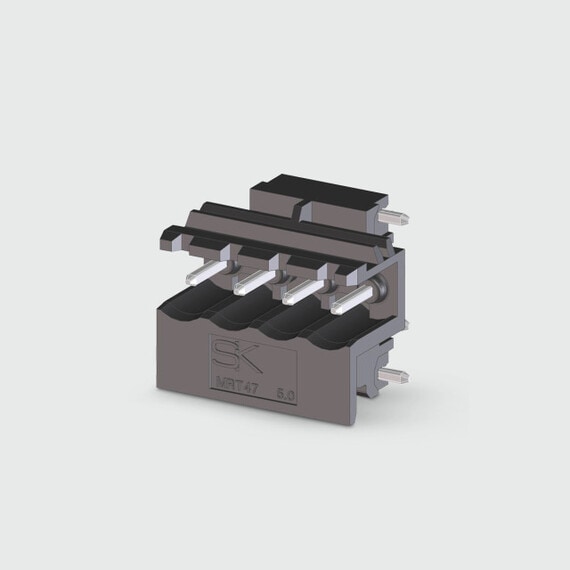

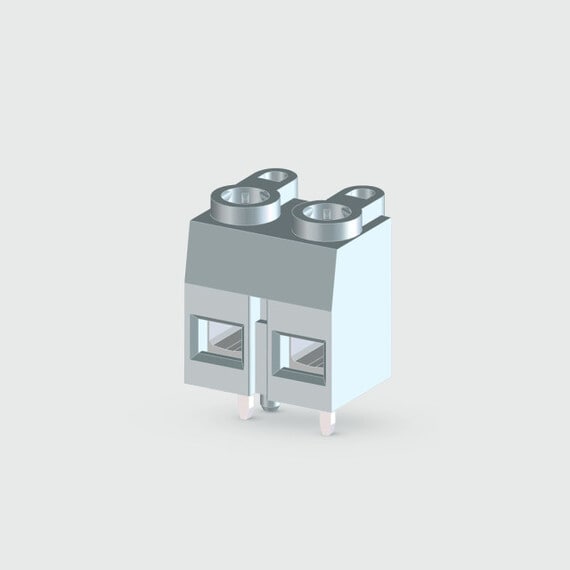

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

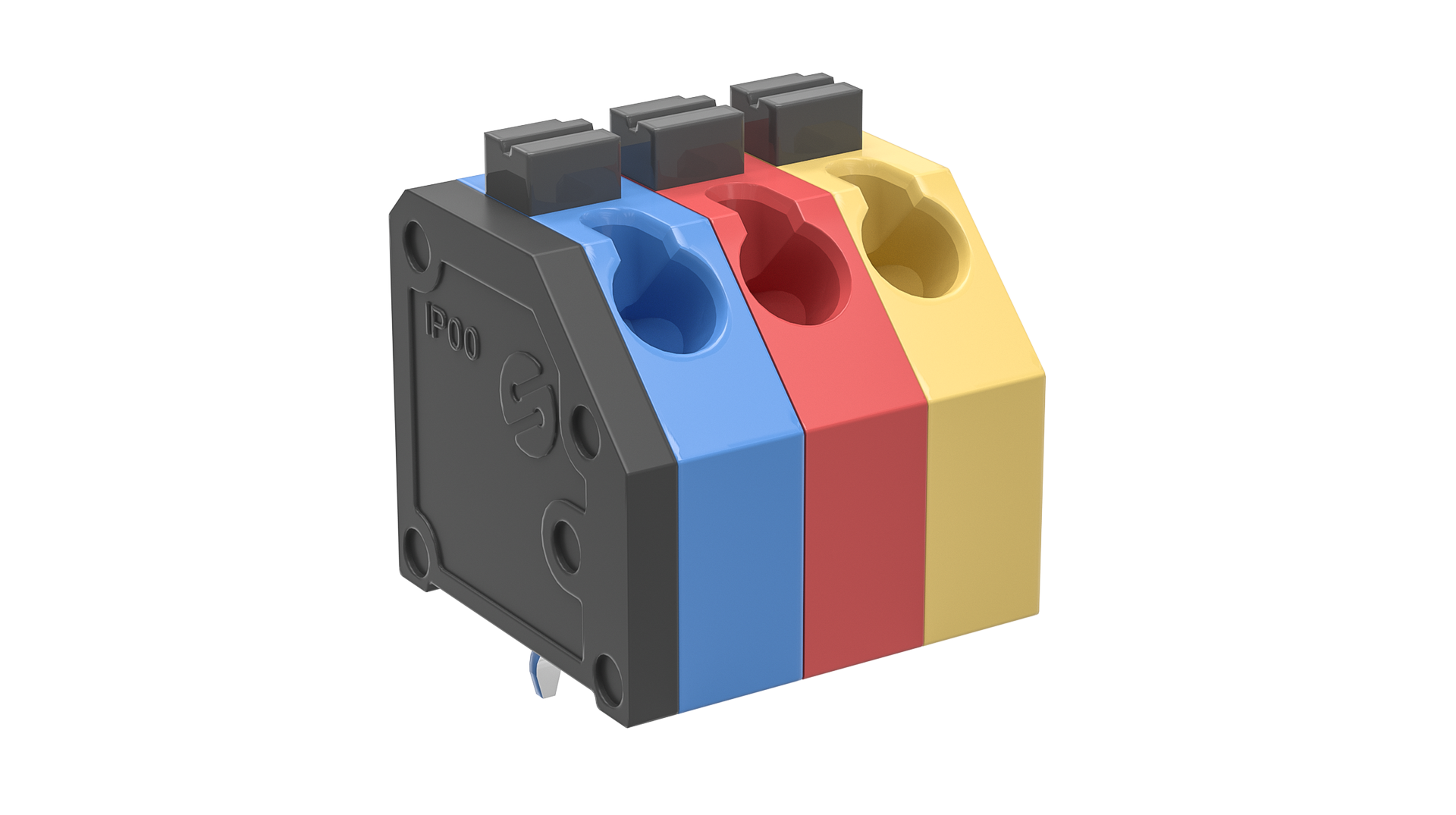

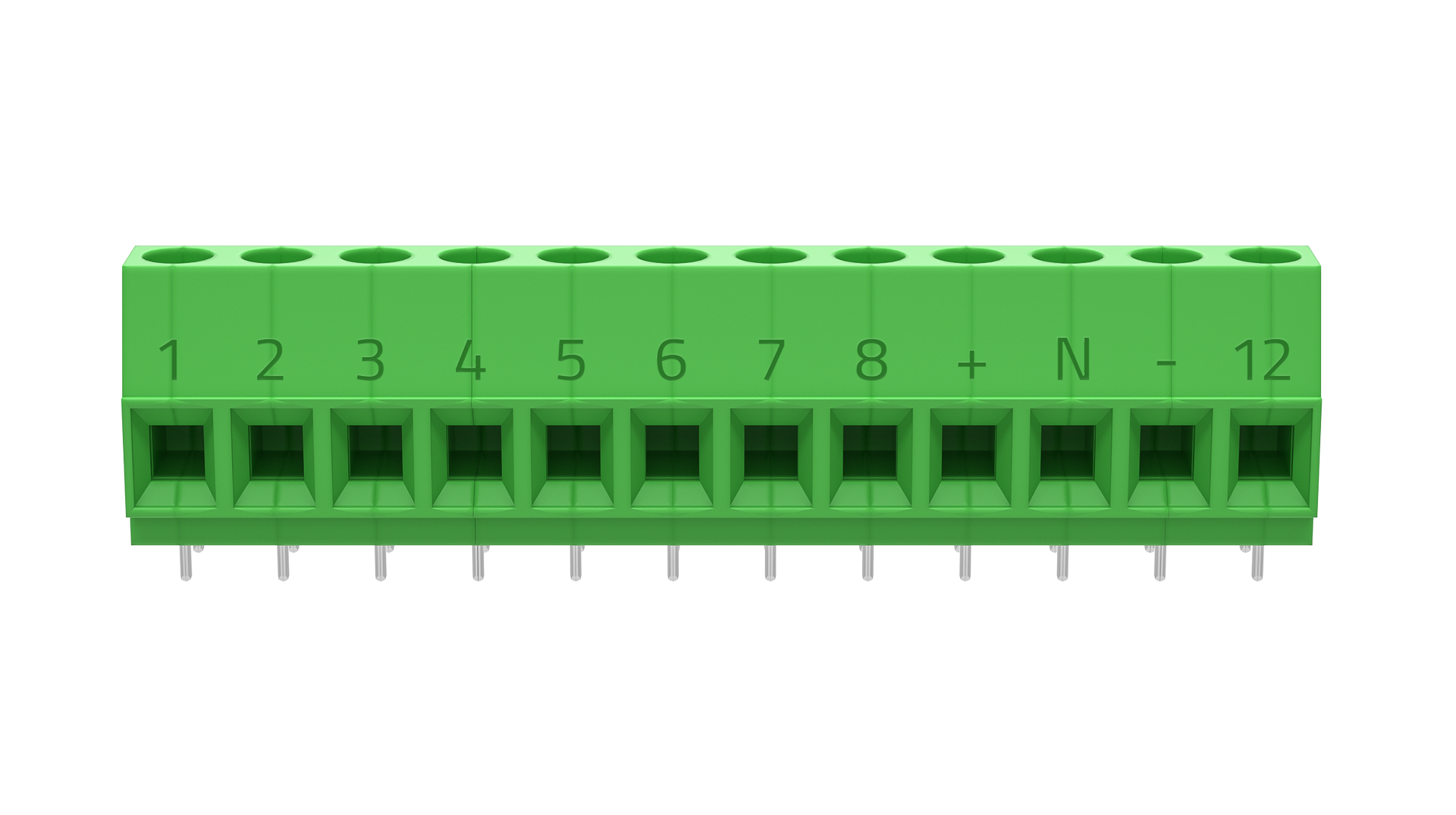

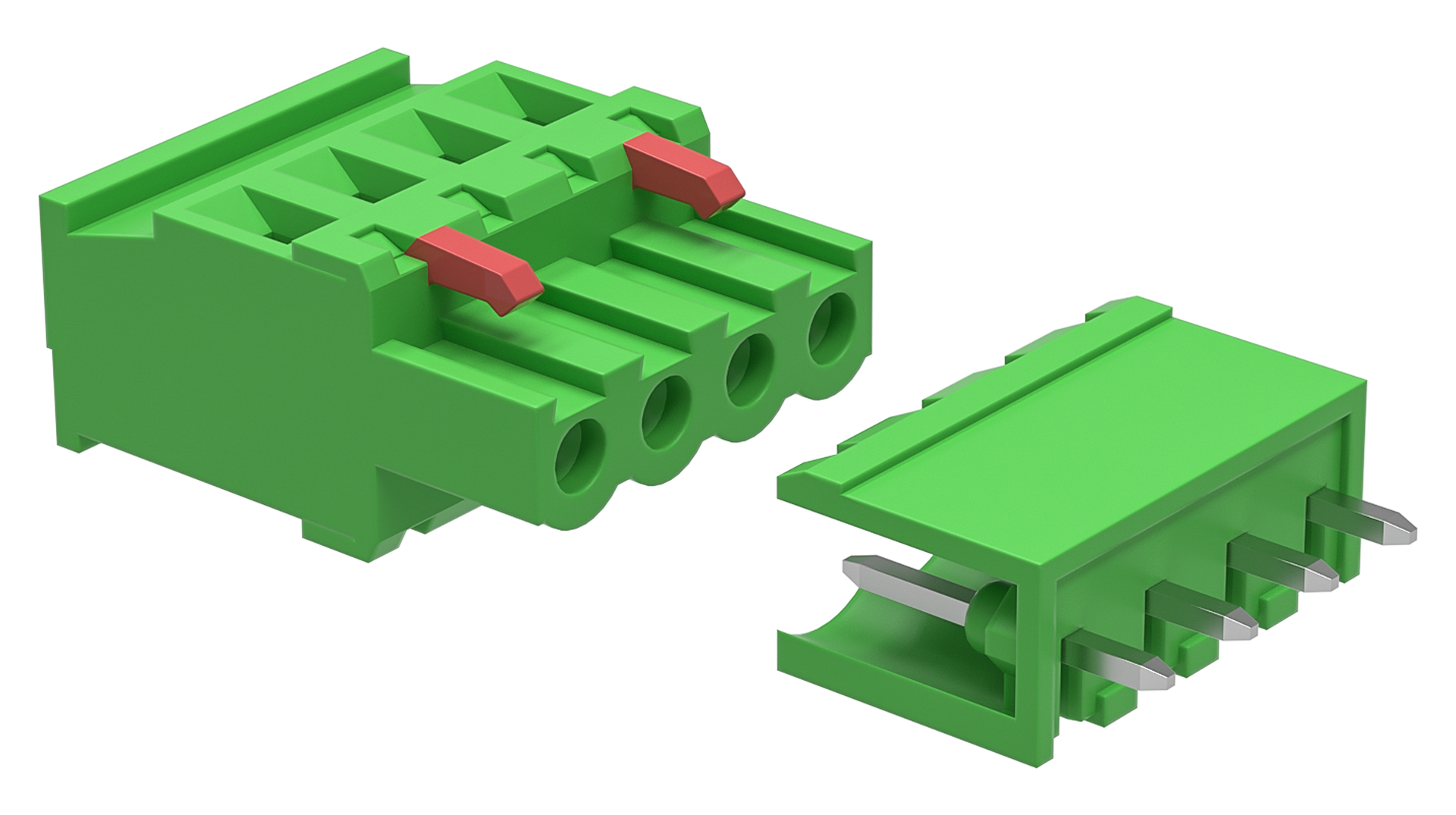

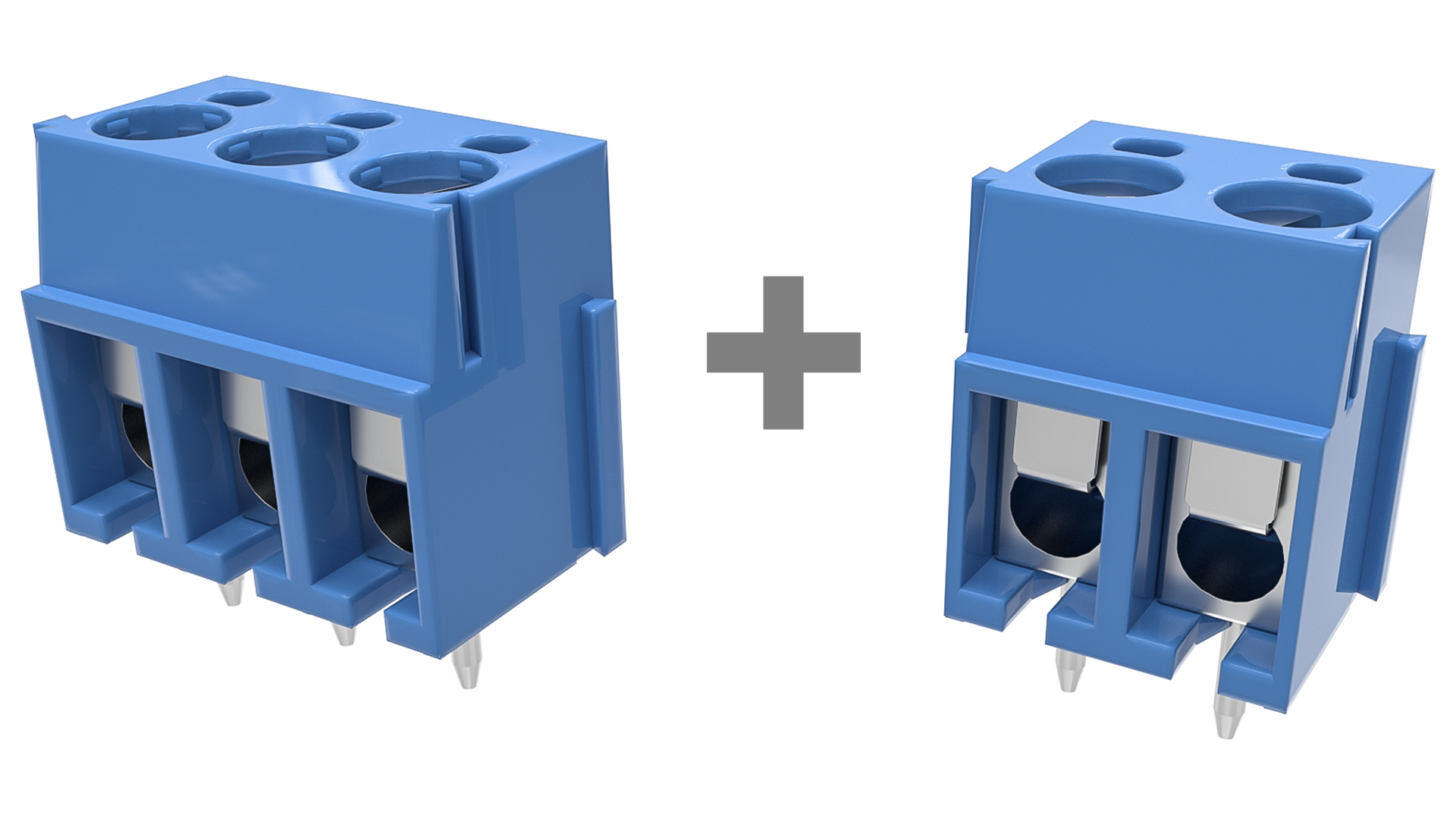

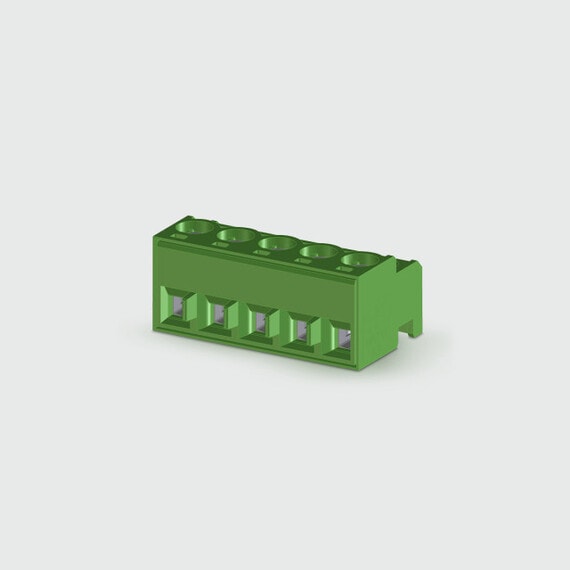

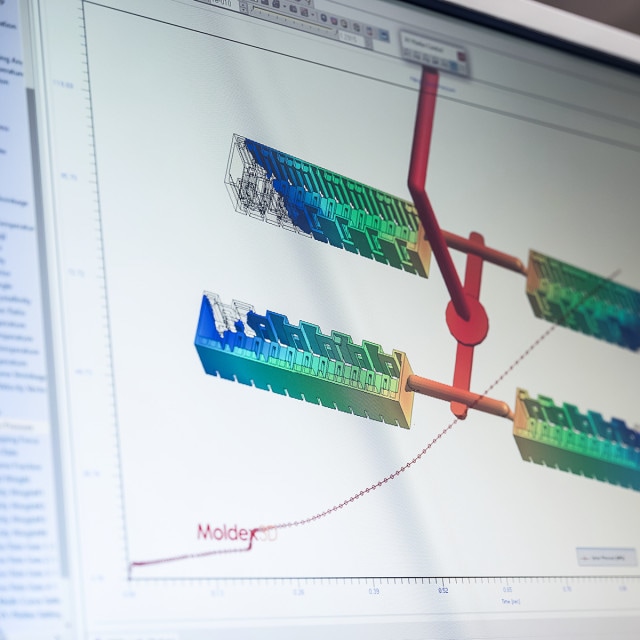

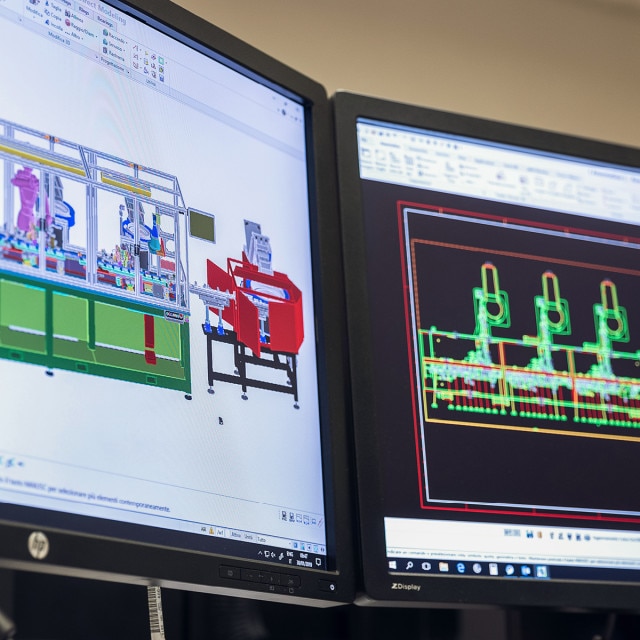

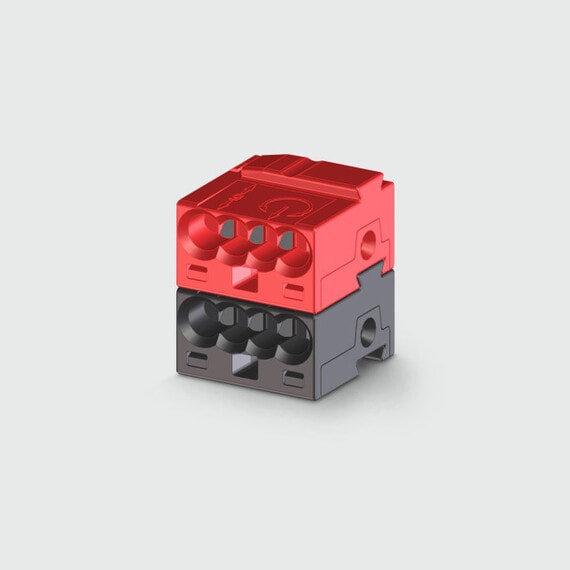

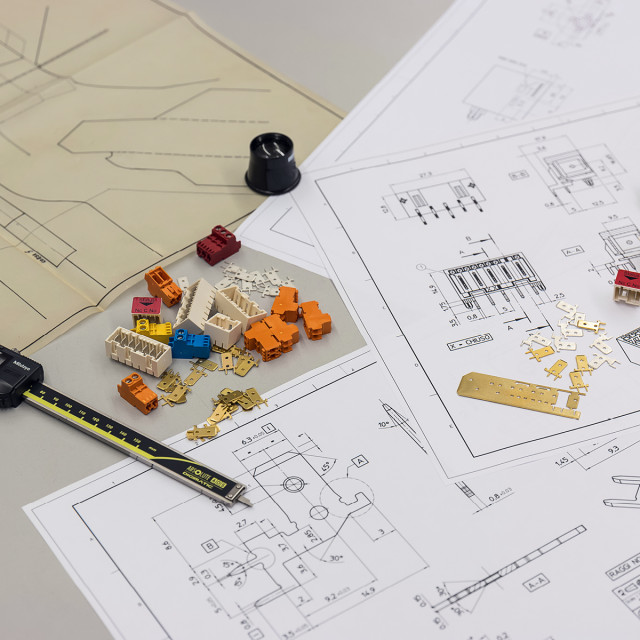

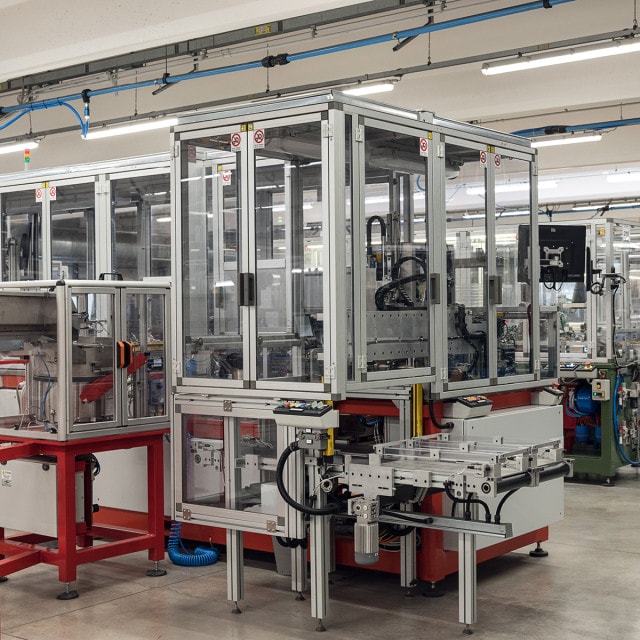

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
