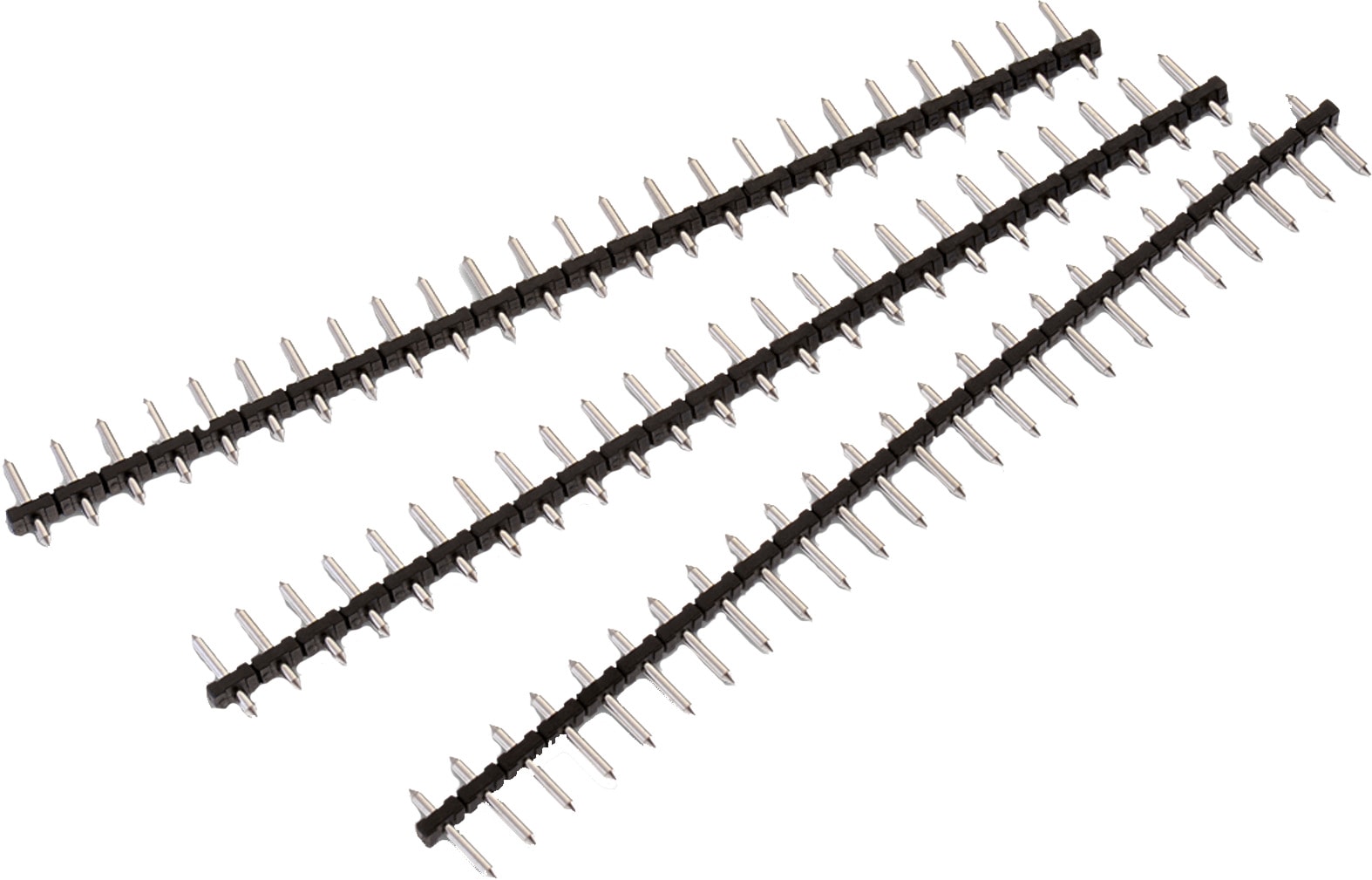

WR-TBL Series 300 - 5.00 mm Pin Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	12 A; 15 A
I_R	15 A
I_R	12 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
691300700024	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691300700024_1 (rev1).pdf \| 196.2 KB IGS 691300700024 (rev1).igs \| 2.8 MB STP 691300700024 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	Pluggable	PCB	Yes	Vertical	612690 691002

Order Code	Datasheet
691300700024	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
