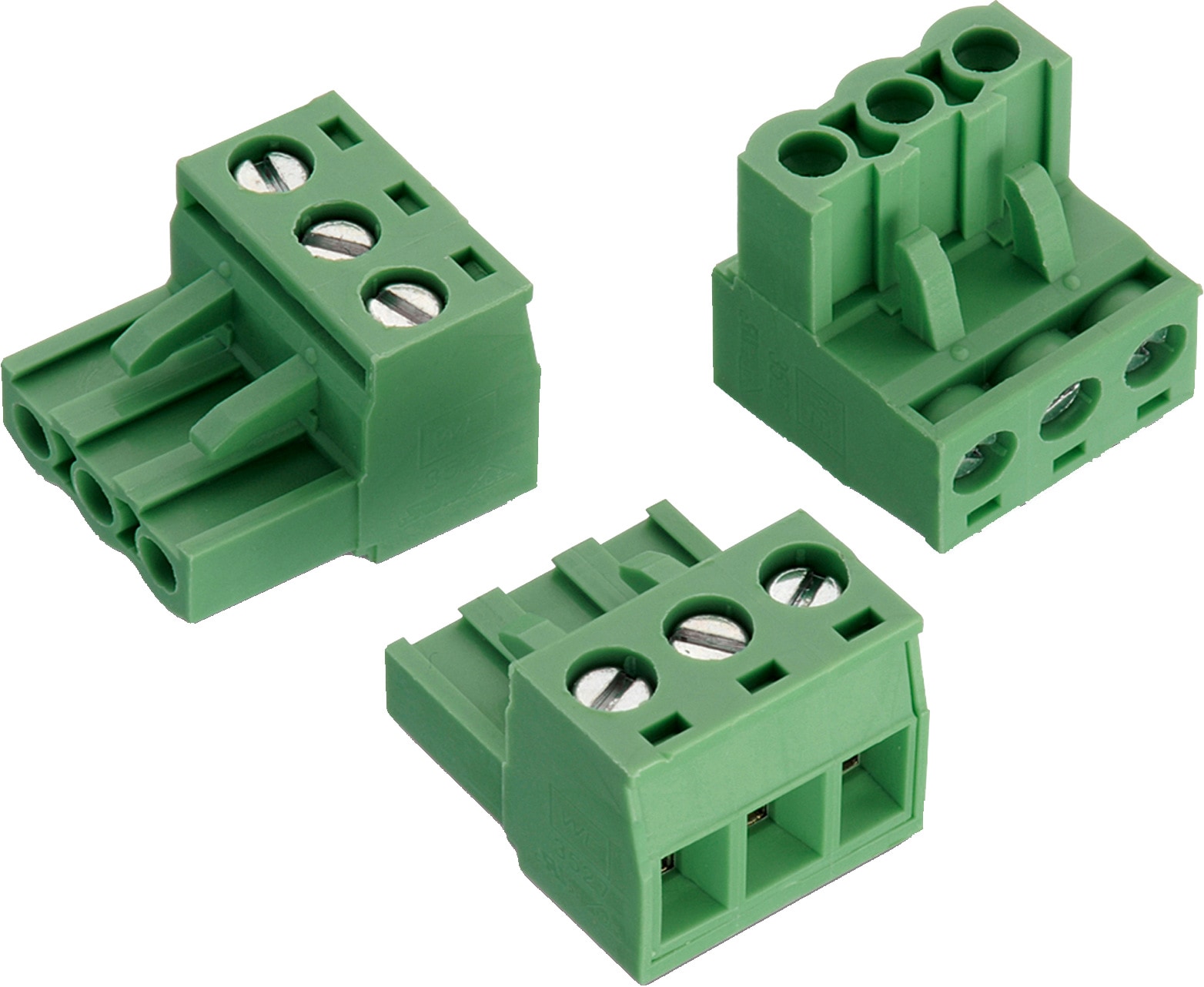

WR-TBL Series 3527 - 5.00 mm Vertical | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Wire Guard Material	Stainless Steel

Electrical Properties
I_R	20 A
I_R	20 A
I_R	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Wire Properties
Solid Wire Section (AWG)	12 to 22 (AWG)
Solid Wire Section (Metric)	3.31 to 0.129 (mm²)
Stranded Wire Section (AWG)	12 to 22 (AWG)
Stranded Wire Section (Metric)	3.31 to 0.129 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691352710002	SPEC	3 files CAD files ZIP 3D 691352710002_1 (rev1).pdf \| 230.1 KB IGS 691352710002 (rev1).igs \| 2.2 MB STP 691352710002 (rev1).stp \| 757.5 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
691352710003	SPEC	3 files CAD files ZIP 3D 691352710003_1 (rev1).pdf \| 289.6 KB IGS 691352710003 (rev1).igs \| 2.9 MB STP 691352710003 (rev1).stp \| 1009 KB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	691002
691352710004	SPEC	3 files CAD files ZIP 3D 691352710004_1 (rev1).pdf \| 324.3 KB IGS 691352710004 (rev1).igs \| 3.3 MB STP 691352710004 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
691352710005	SPEC	3 files CAD files ZIP 3D 691352710005_1 (rev1).pdf \| 356.6 KB IGS 691352710005 (rev1).igs \| 3.8 MB STP 691352710005 (rev1).stp \| 1.3 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
691352710006	SPEC	3 files CAD files ZIP 3D 691352710006_1 (rev1).pdf \| 396.8 KB IGS 691352710006 (rev1).igs \| 4.3 MB STP 691352710006 (rev1).stp \| 1.5 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
691352710007	SPEC	3 files CAD files ZIP 3D 3D_691352710007 (rev1).pdf \| 442.8 KB IGS Download_IGES_691352710007 (rev1).iges \| 4.9 MB STP Download_STP_691352710007 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
691352710008	SPEC	3 files CAD files ZIP 3D 691352710008_1 (rev1).pdf \| 475.1 KB IGS 691352710008 (rev1).igs \| 5.3 MB STP 691352710008 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
691352710012	SPEC	3 files CAD files ZIP 3D 3D_691352710012 (rev1).pdf \| 589.9 KB IGS Download_IGES_691352710012 (rev1).iges \| 7.4 MB STP Download_STP_691352710012 (rev1).stp \| 2.6 MB Download all 3 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	Cable	No	Vertical	12 to 22 (AWG) 3.31 to 0.129 (mm²)	–
