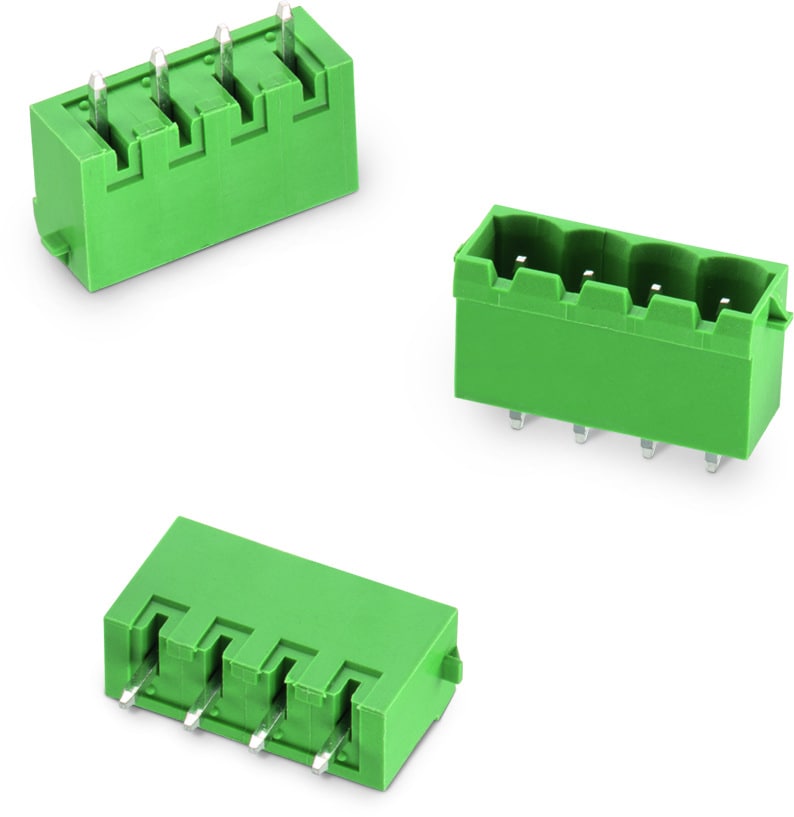

WR-TBL Series 3055 - 5,08 mm - PCB Header Vertical Entry with Plastic Latches | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Terminal Material	Copper Alloy
Terminal Plating	Tin-plated surface

Electrical Properties
I_R	16 A
I_R	16 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691305530002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530002 (rev1).pdf \| 71.5 KB IGS Download_IGES_691305530002 (rev1).iges \| 658.3 KB STP Download_STEP_ 691305530002 (rev1).stp \| 144.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Vertical	–
691305530003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530003 (rev1).pdf \| 93.7 KB IGS Download_IGES_691305530003 (rev1).iges \| 877.6 KB STP Download_STEP_691305530003 (rev1).stp \| 194.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Vertical	691002
691305530004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530004 (rev1).pdf \| 112.5 KB IGS Download_IGES_691305530004 (rev1).iges \| 1.1 MB STP Download_STEP_691305530004 (rev1).stp \| 239.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Vertical	–
691305530005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530005 (rev1).pdf \| 132.7 KB IGS Download_IGES_691305530005 (rev1).iges \| 1.3 MB STP Download_STEP_691305530005 (rev1).stp \| 279.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Vertical	–
691305530006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_69130550006 (rev1).pdf \| 147.3 KB IGS Download_IGES_691305530006 (rev1).iges \| 1.5 MB STP Download_STEP_691305530006 (rev1).stp \| 324.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Vertical	–
691305530007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530007 (rev1).pdf \| 162.6 KB IGS Download_IGES_691305530007 (rev1).iges \| 1.7 MB STP Download_STEP_691305530007 (rev1).stp \| 370 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Vertical	–
691305530008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530008 (rev1).pdf \| 183.9 KB IGS Download_IGES_691305530008 (rev1).iges \| 1.9 MB STP Download_STEP_691305530008 (rev1).stp \| 413.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Vertical	–
691305530009	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530009 (rev1).pdf \| 196.1 KB IGS Download_IGES_619305530009 (rev1).iges \| 2.1 MB STP Download_STEP_691305530009 (rev1).stp \| 460.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	PCB	No	Vertical	–
691305530010	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305530010 (rev1).pdf \| 216.2 KB IGS Download_IGES_691305530010 (rev1).iges \| 2.3 MB STP Download_STEP_6913055300010 (rev1).stp \| 505.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Vertical	–

Order Code	Datasheet
691305530002	SPEC
691305530003	SPEC
691305530004	SPEC
691305530005	SPEC
691305530006	SPEC
691305530007	SPEC
691305530008	SPEC
691305530009	SPEC
691305530010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
