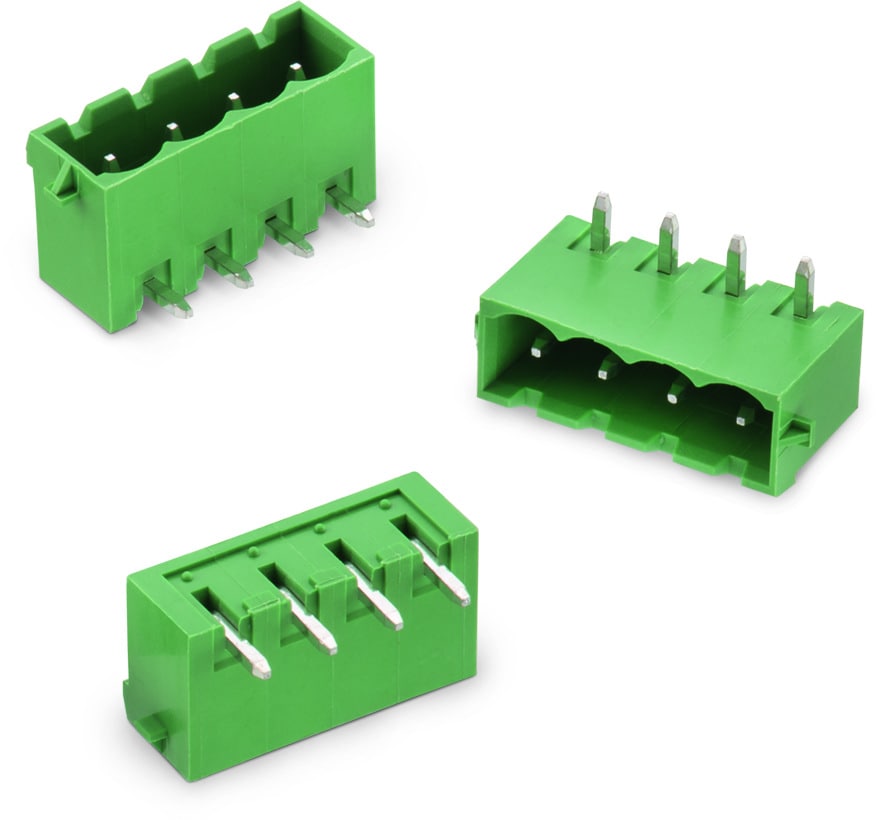

WR-TBL Series 3055 - 5.08 mm - PCB Header Horizontal Entry with Plastic Latches | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Terminal Material	Copper Alloy
Terminal Plating	Tin-plated surface

Electrical Properties
I_R	16 A
I_R	16 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691305540002	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540002 (rev1).pdf \| 73.3 KB IGS Download_IGES_691305540002 (rev1).iges \| 676.7 KB STP Download_STEP_691305540002 (rev1).stp \| 148.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Horizontal	–
691305540003	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540003 (rev1).pdf \| 95.4 KB IGS Download_IGES_691305540003 (rev1).iges \| 896.5 KB STP Download_STEP_691305540003 (rev1).stp \| 198.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Horizontal	691002
691305540004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540004 (rev1).pdf \| 114.2 KB IGS Download_IGES-691305540004 (rev1).iges \| 1.1 MB STP Download_STEP_691305540004 (rev1).stp \| 243.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal	–
691305540005	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540005 (rev1).pdf \| 134.4 KB IGS Download_IGES_691305540005 (rev1).iges \| 1.3 MB STP Download_STEP_691305540005 (rev1).stp \| 283.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Horizontal	–
691305540006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540006 (rev1).pdf \| 149 KB IGS Download_IGES_ 691305540006 (rev1).iges \| 1.5 MB STP Download_STEP_691305540006 (rev1).stp \| 328.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal	–
691305540007	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540007 (rev1).pdf \| 164.4 KB IGS Download_IGES_691305540007 (rev1).iges \| 1.7 MB STP Download_STEP_691305540007 (rev1).stp \| 373.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Horizontal	–
691305540008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540008 (rev1).pdf \| 185.7 KB IGS Download_IGES_691305540008 (rev1).iges \| 1.9 MB STP Download_STEP_691305540008 (rev1).stp \| 417.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal	–
691305540009	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540009 (rev1).pdf \| 197.9 KB IGS Download_IGES_691305540009 (rev1).iges \| 2.1 MB STP Download_STEP_691305540009 (rev1).stp \| 464 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	PCB	No	Horizontal	–
691305540010	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 3D_691305540010 (rev1).pdf \| 217.9 KB IGS Download_IGES_691305540010 (rev1).iges \| 2.3 MB STP Download_STEP_691305540010 (rev1).stp \| 509 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Horizontal	–

Order Code	Datasheet
691305540002	SPEC
691305540003	SPEC
691305540004	SPEC
691305540005	SPEC
691305540006	SPEC
691305540007	SPEC
691305540008	SPEC
691305540009	SPEC
691305540010	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (Value) (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
