Reference Design MagI³C LED Driver

Order Code 178001

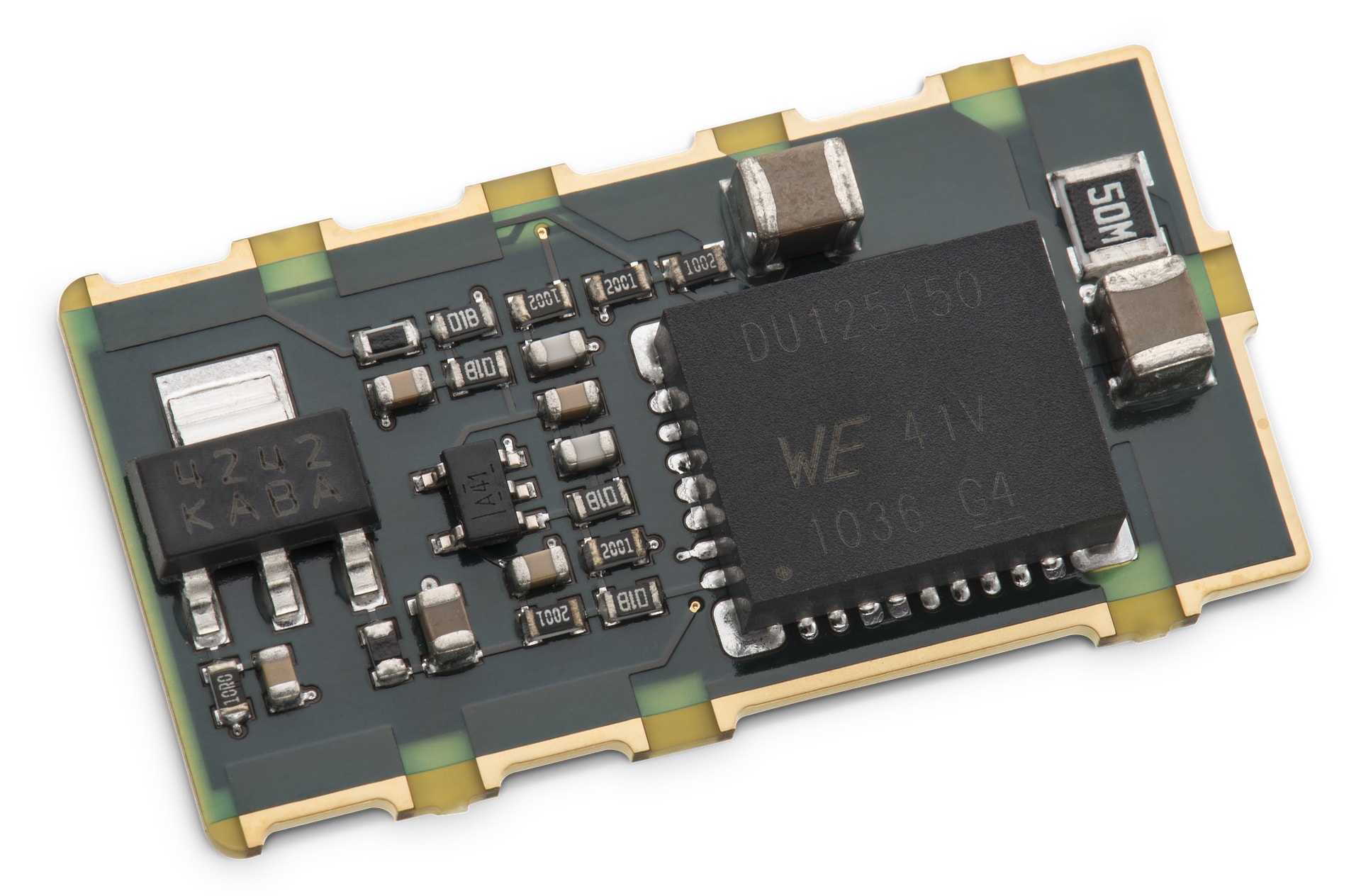

Reference Design MagI³C LED Driver

Characteristics

  • Current can be adjusted individually (0 – 1.5 A)
  • Current dynamically adjustable by external microcontroller (using PWM or DC)
  • Up to 4 white high power LEDs can be connected in series - or up to 6 color high power LEDs
  • Enable/Disable function
  • Power Good Signal
  • SMT Pick & Placeable

Applications

  • High Power LED Driver
  • Constant Current Source (can be individually adjusted)
  • Battery Charger
  • Super Cap Charger

The MagI³C LED Driver demonstrates how a MagI³C Power Module can be used for applications that require a current source for high power LEDs or for battery charging.

Products

Order Code Data­sheet Downloads StatusDescriptionVIN
(V)		VOUT
(V)		IOUT
(A)		 Offer
178001SPEC
2 files

EDA models: Reference designs
ZIP

Download all 2 files as zip archive
ZIP

 NRND i| Production is active. Product is not recommended for new design. Please check NRND notification. Expected lifetime: 2-5 years. LED Driver 7 - 24 15 1.5
Order Code Data­sheet
178001SPEC
Offer
Order Code Data­sheet Downloads StatusDescriptionVIN
(V)		VOUT
(V)		IOUT
(A)		 Offer

Included Products

MagI³C-VDRM Variable Step Down Regulator Module: 171021501
