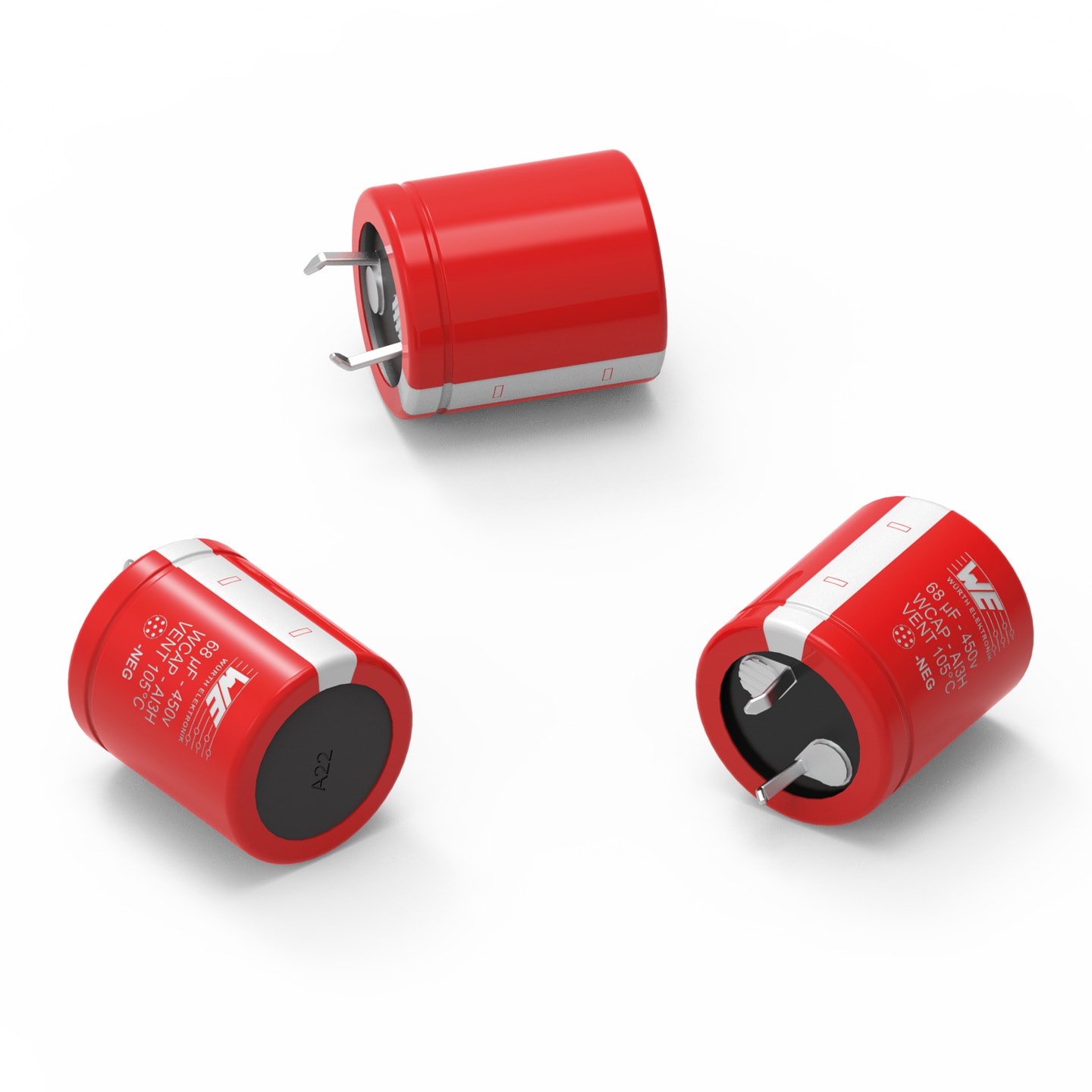

WCAP-AI3H Aluminum Electrolytic Capacitors

LTSpice files

LT
LTSpice_WCAP-AI3H (rev22a).zip
|
2.8 KB

Characteristics

Long life product series
Mounting style: Snap-In
Capacitance range: 68 µF ‒ 4700 µF
Capacitance tolerance: ±20 %
Voltage range (UR): 63 ‒ 450 V(DC)
Operating temperature:
-40 °C up to +105 °C for UR ≤ 100 V(DC)
-25 °C up to +105 °C for UR > 100 V(DC)
Endurance: 3000 h @ +105 °C

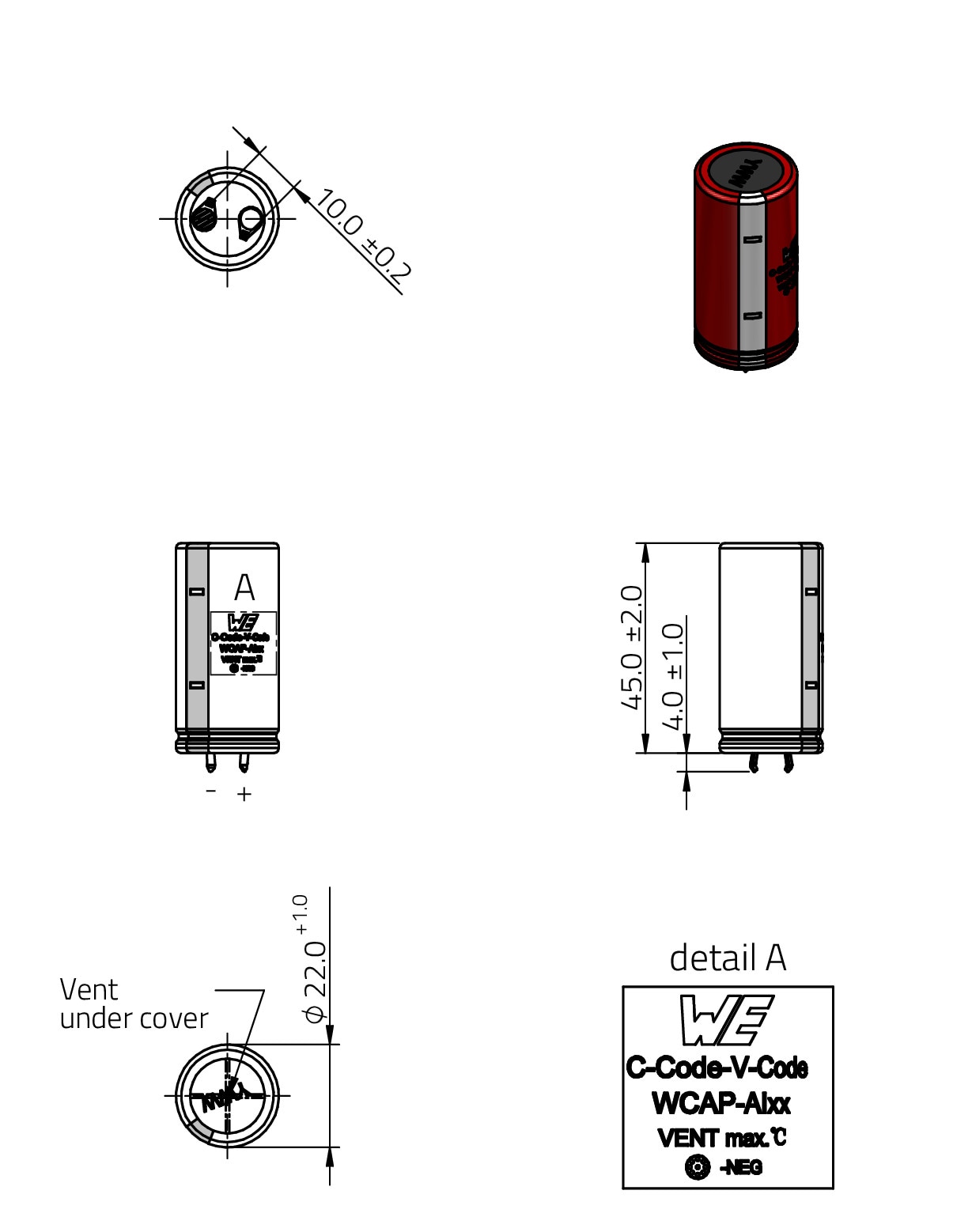

Dimensions (DxL) in mm: 22.0 x 25.0 up to 35.0 x 65.0
Recommended soldering: Wave soldering

Applications

Long life & high operating temperature applications
Filtering
Smoothing
Energy storage
e.g. Personal and industrial computer power supply, server power supply, drive circuit, DC/AC inverter
